Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

61 part groups · 18 illustrations

Illustrations

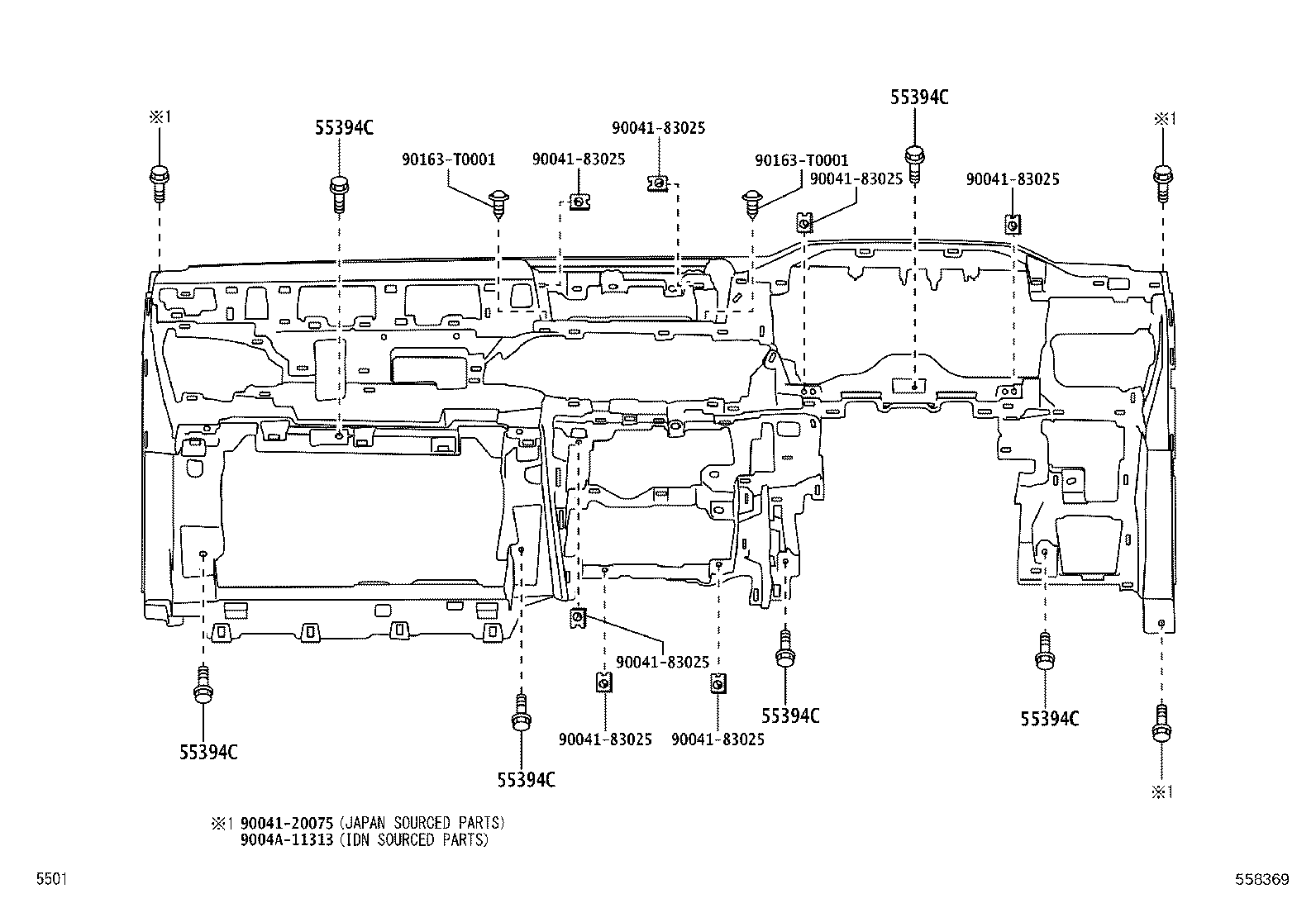

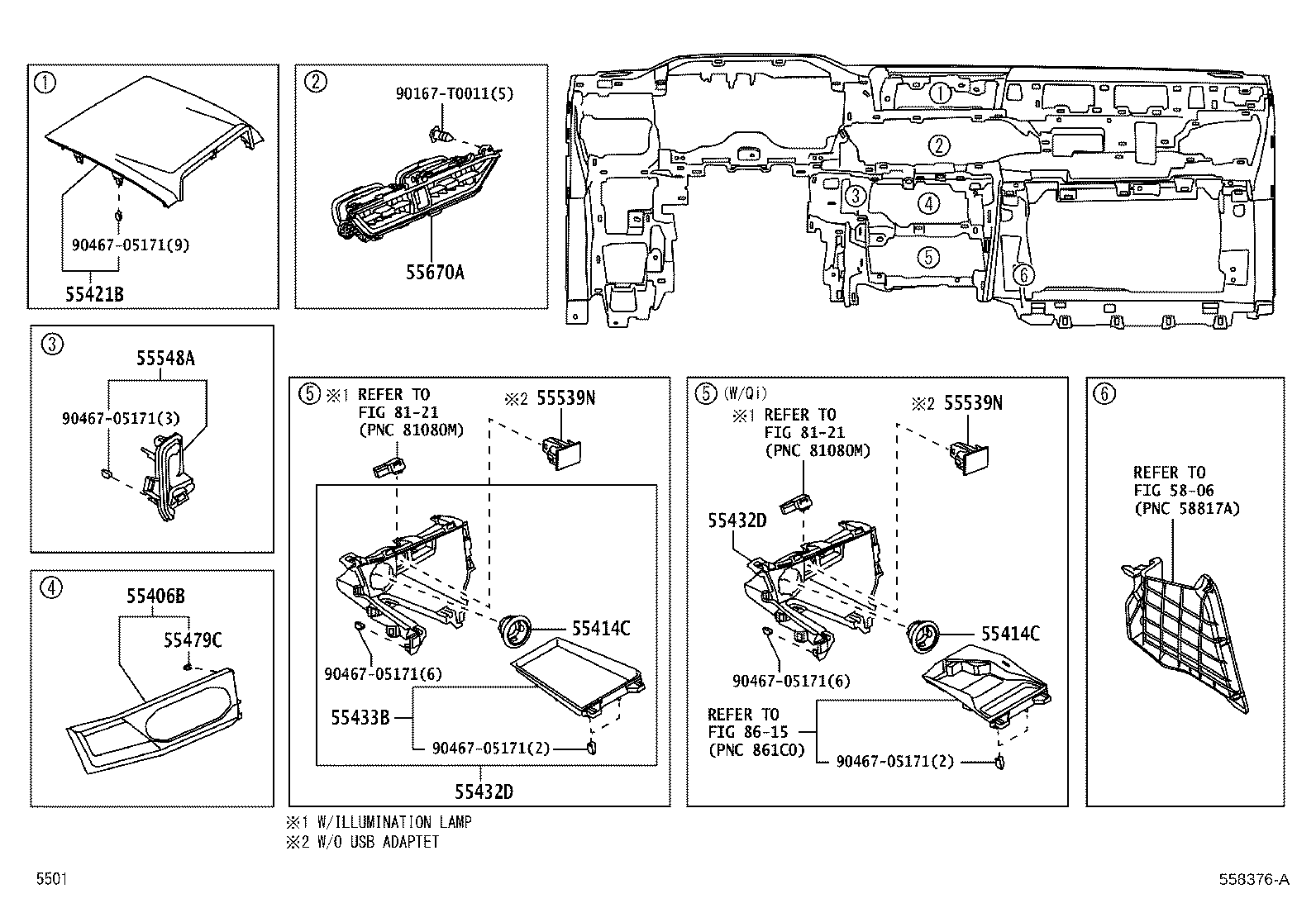

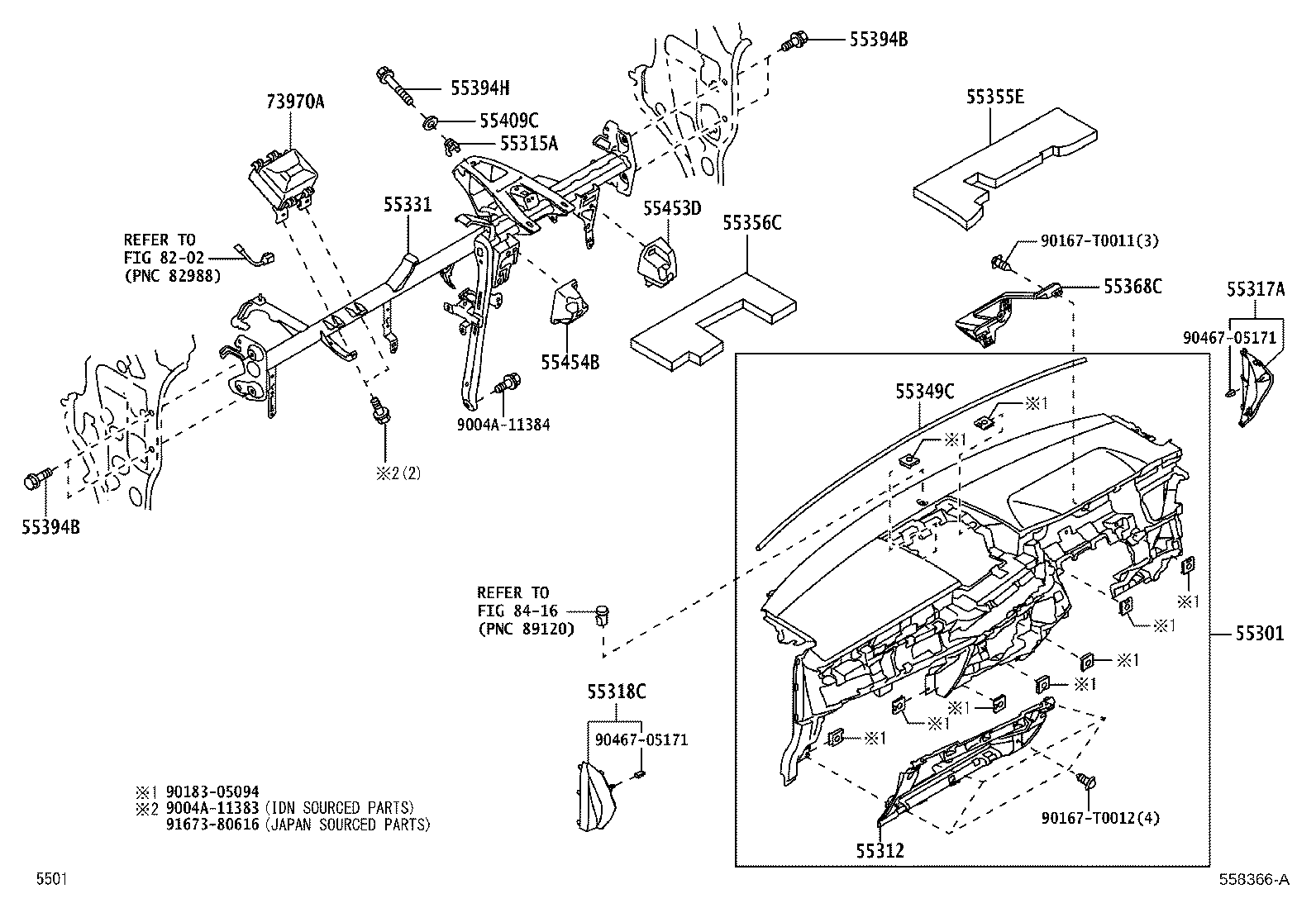

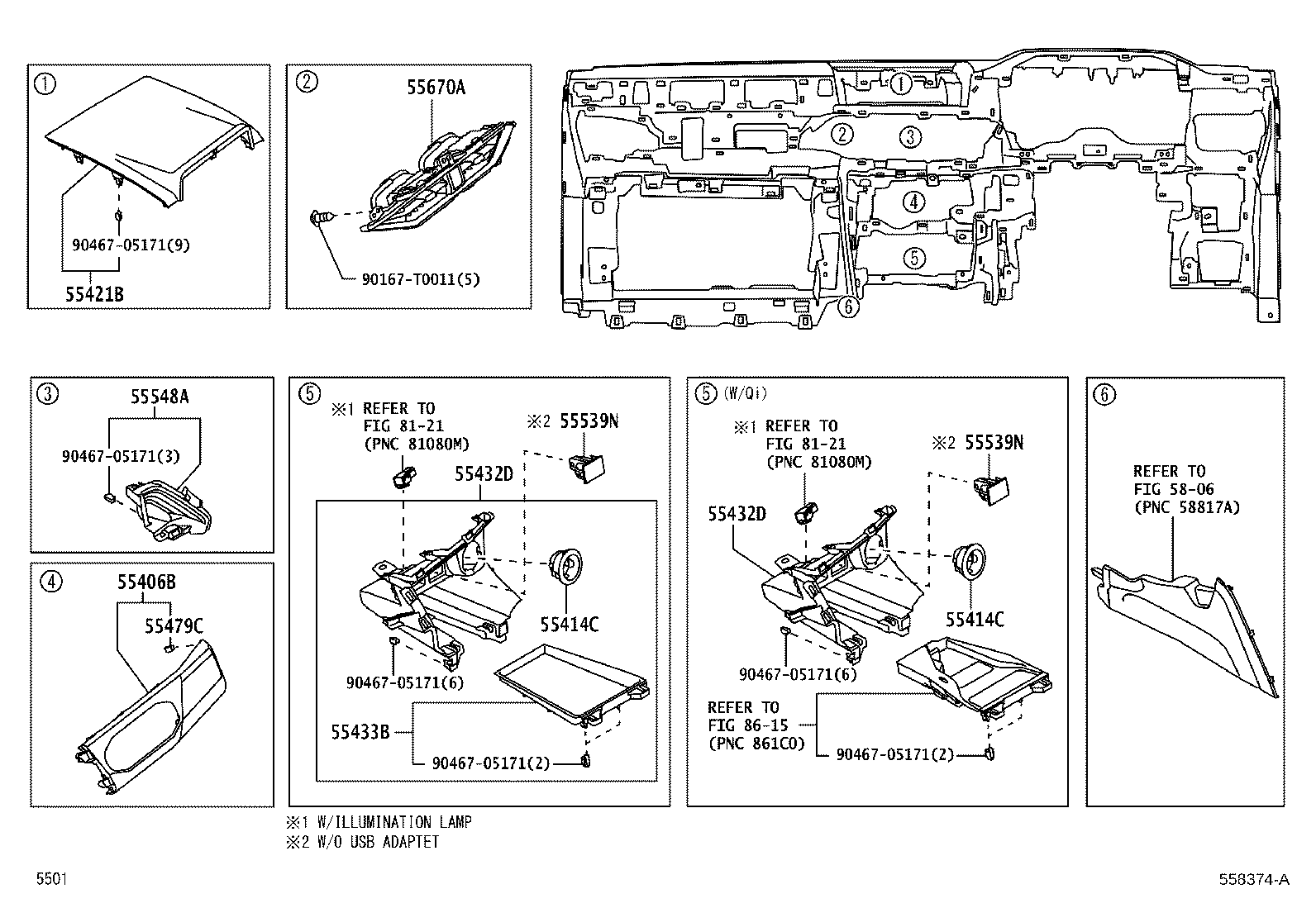

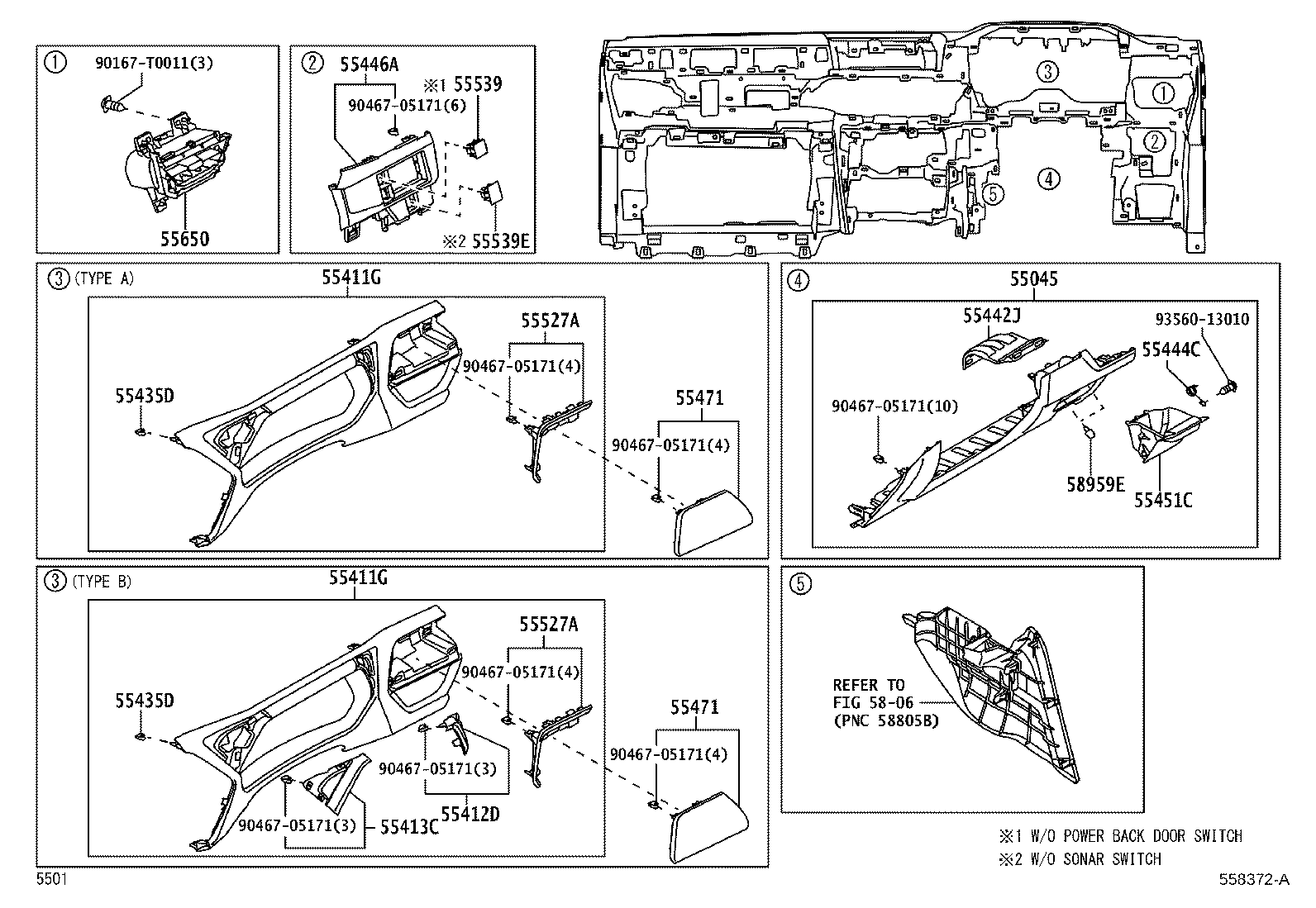

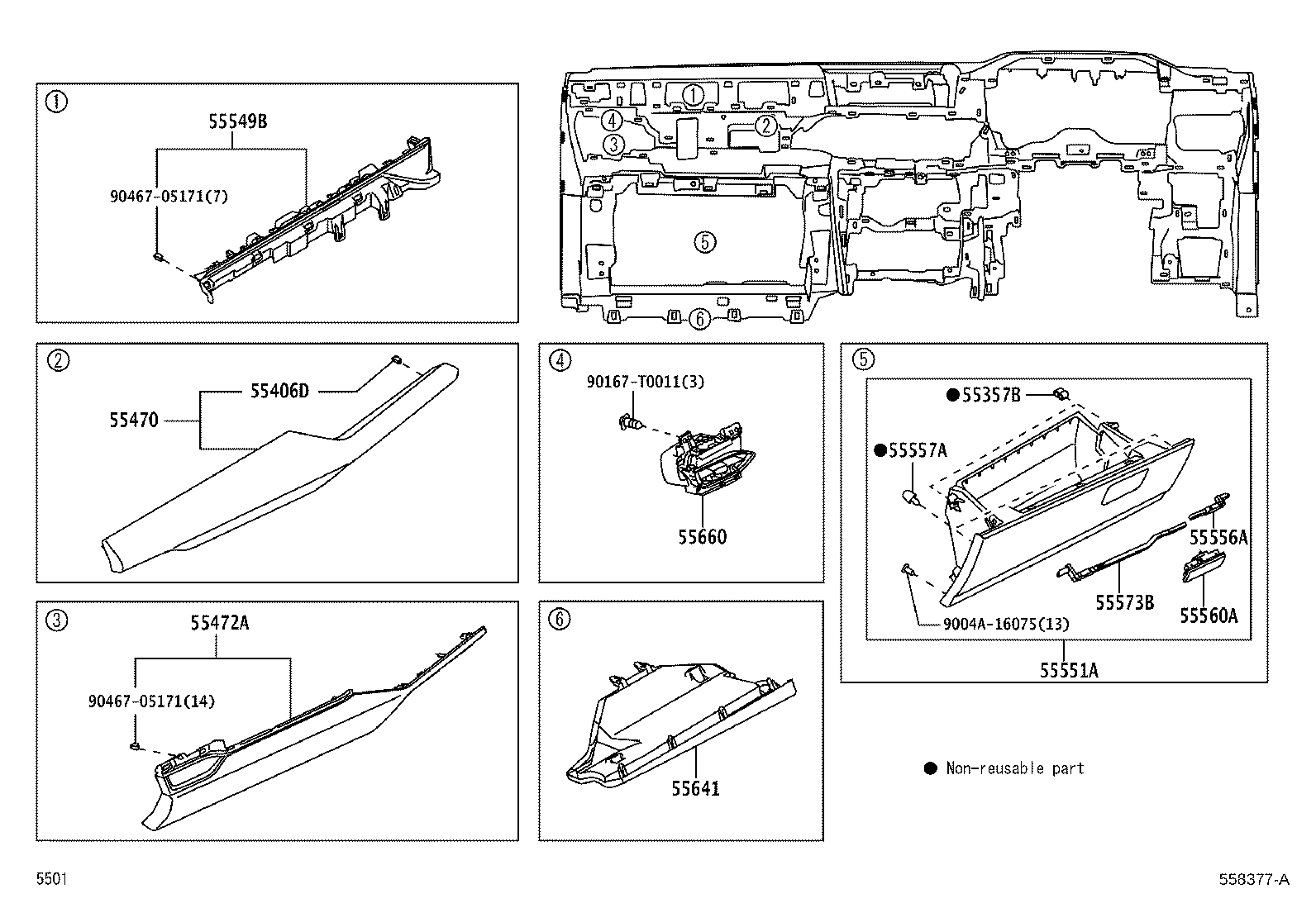

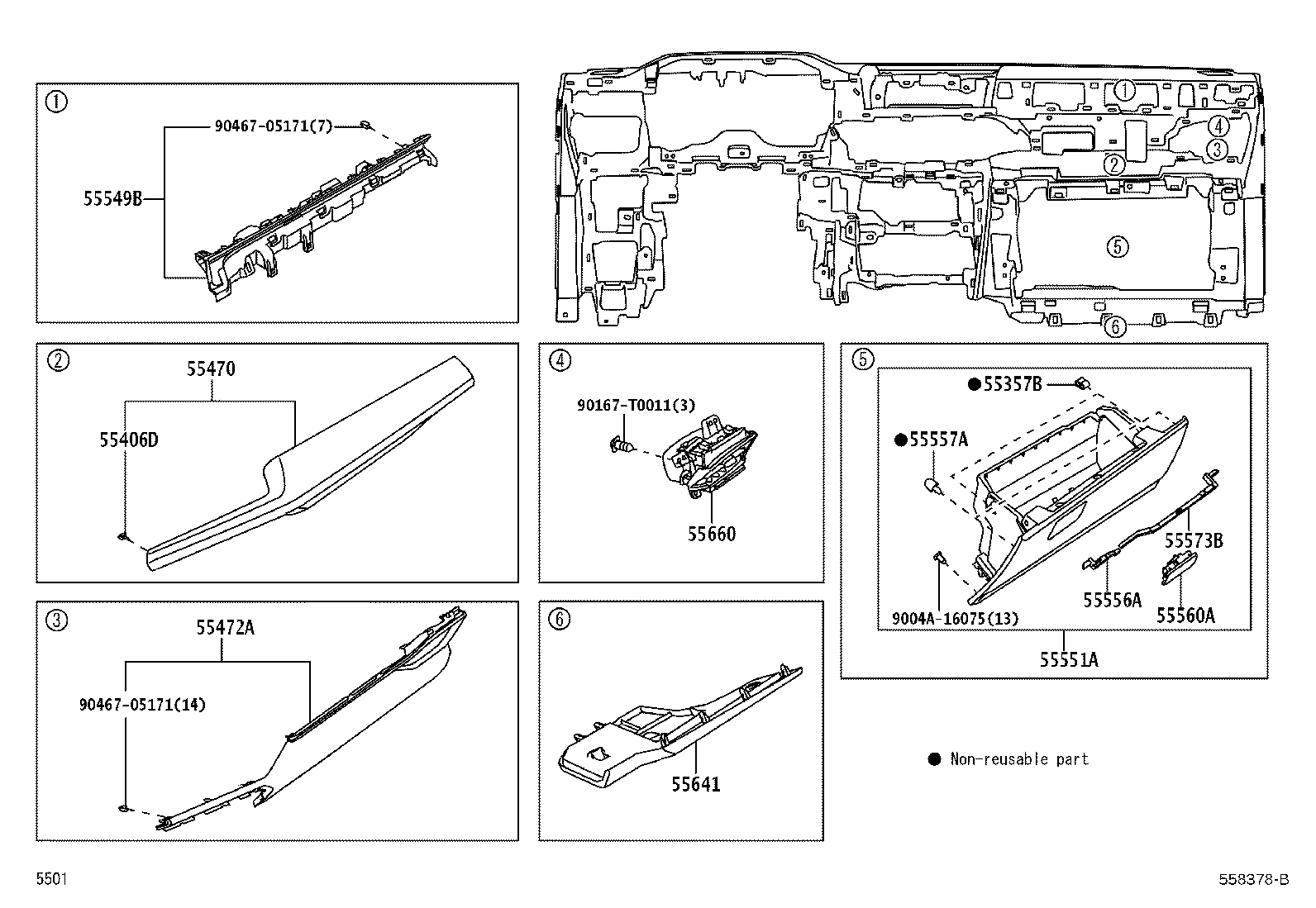

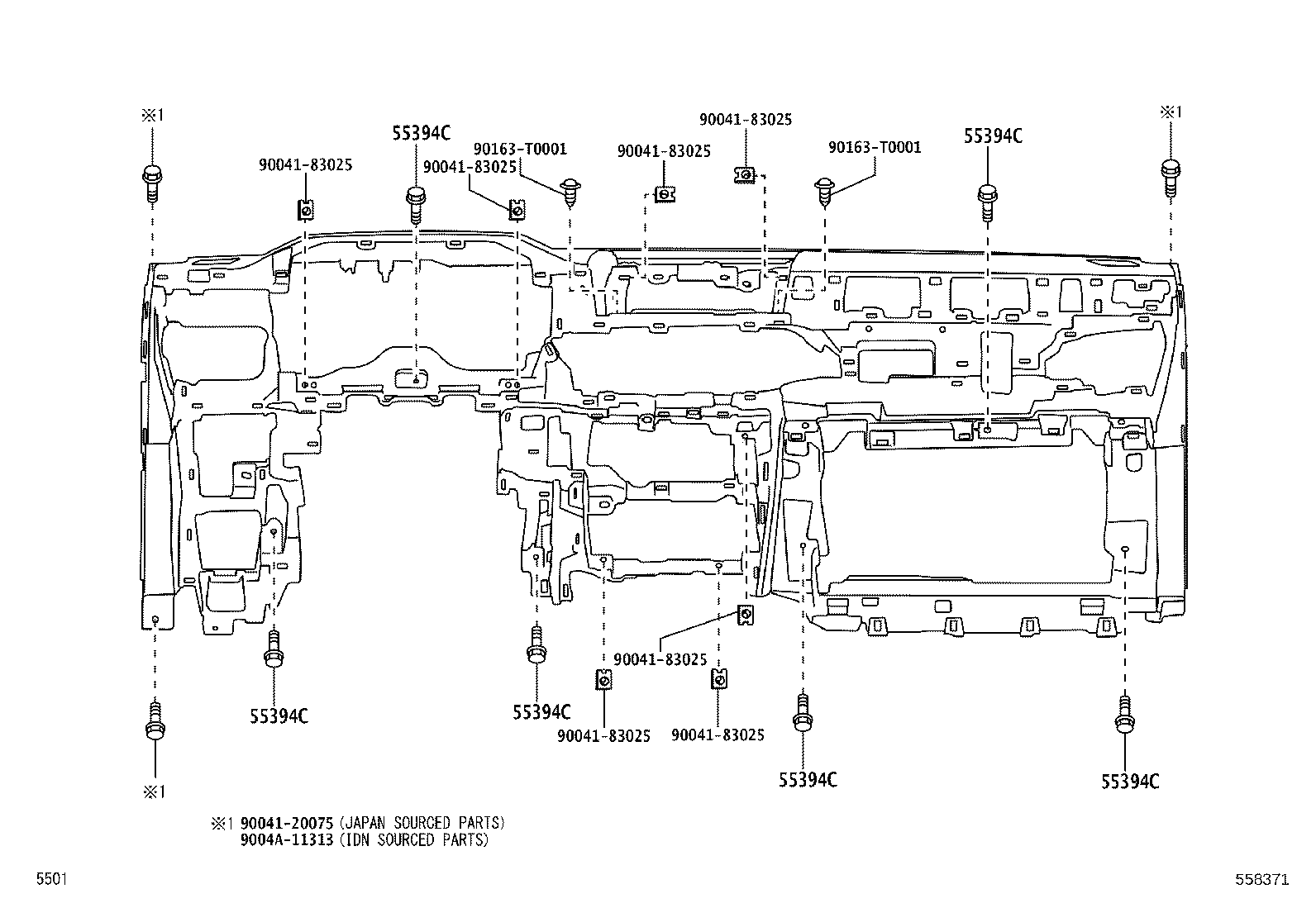

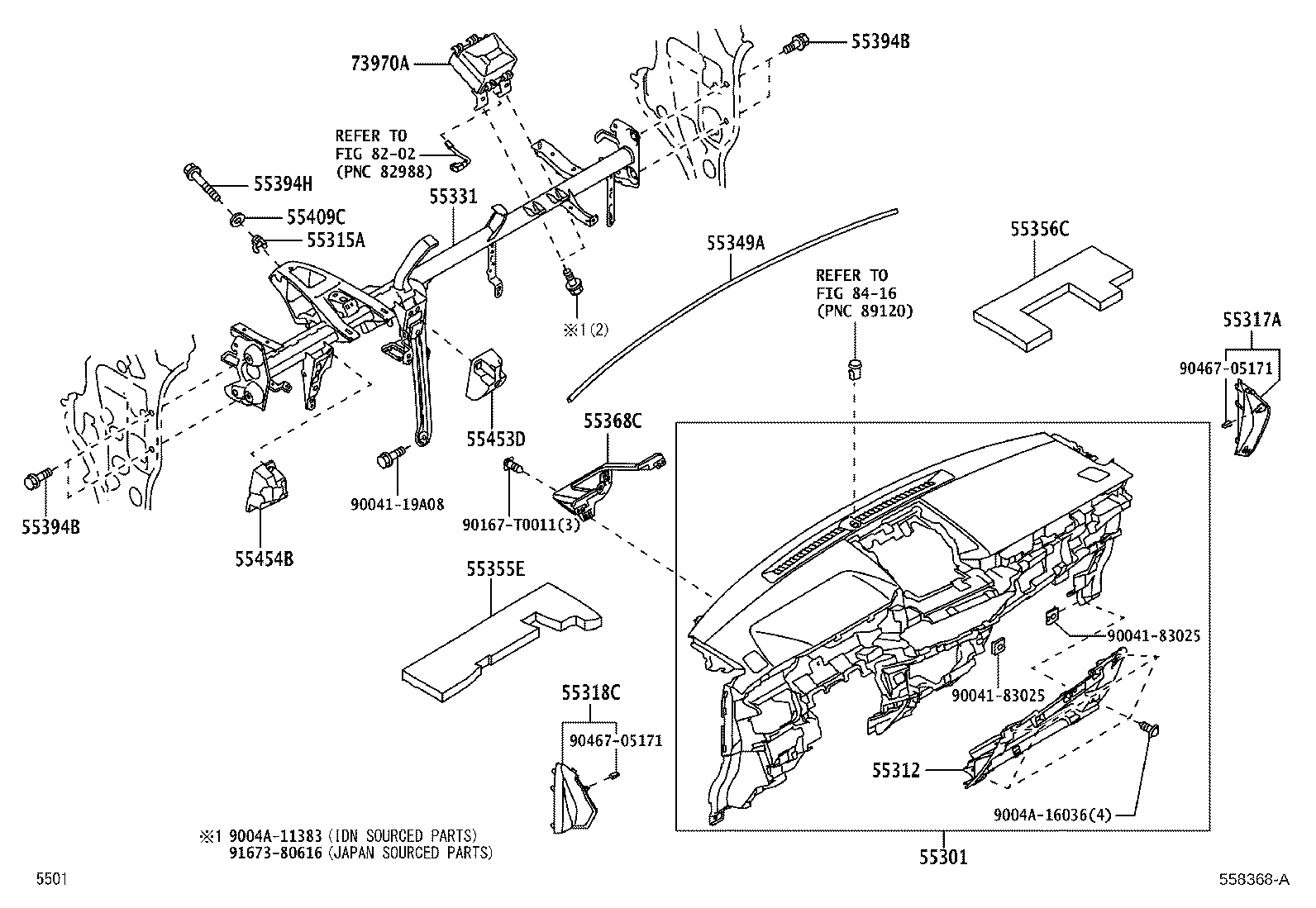

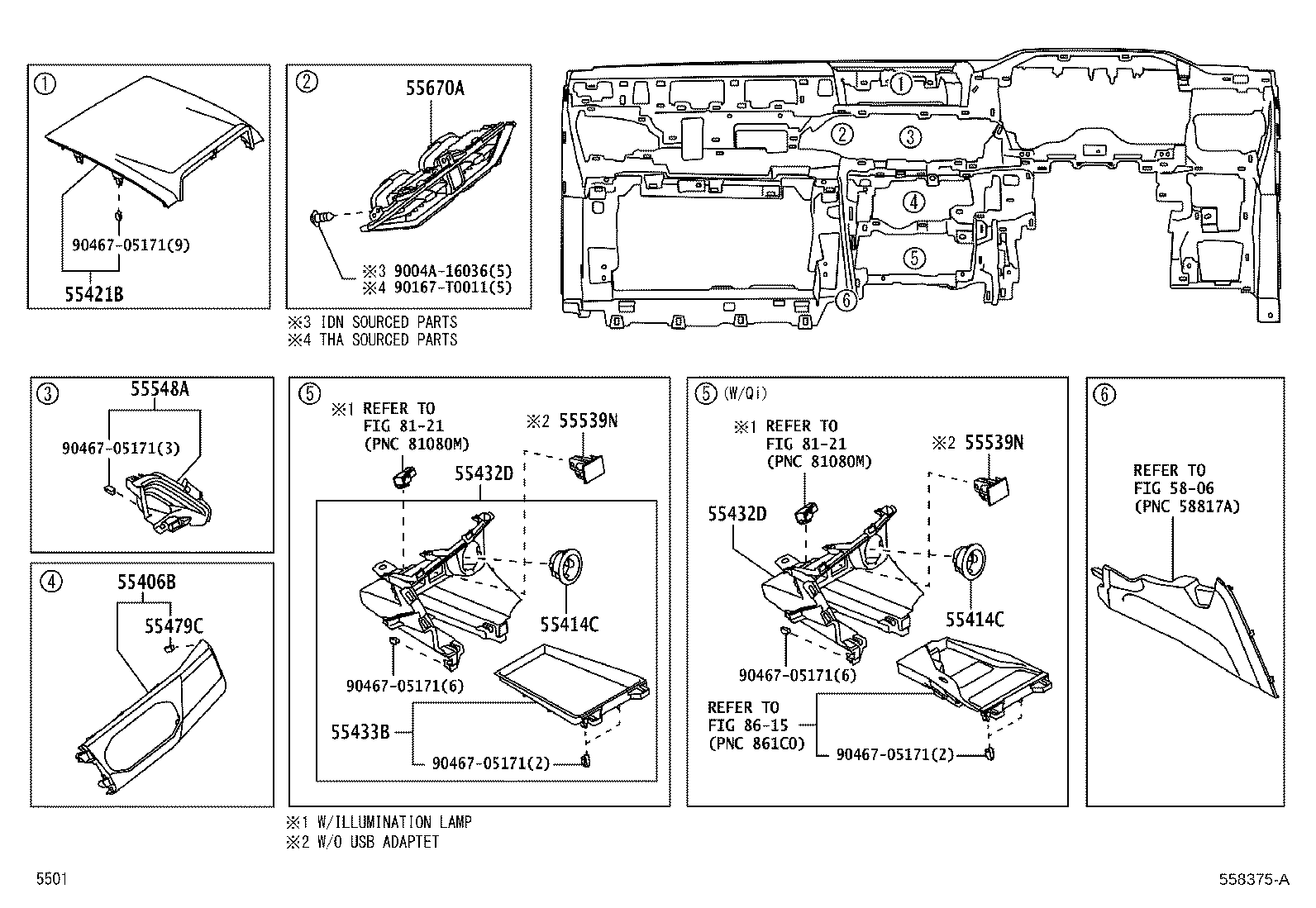

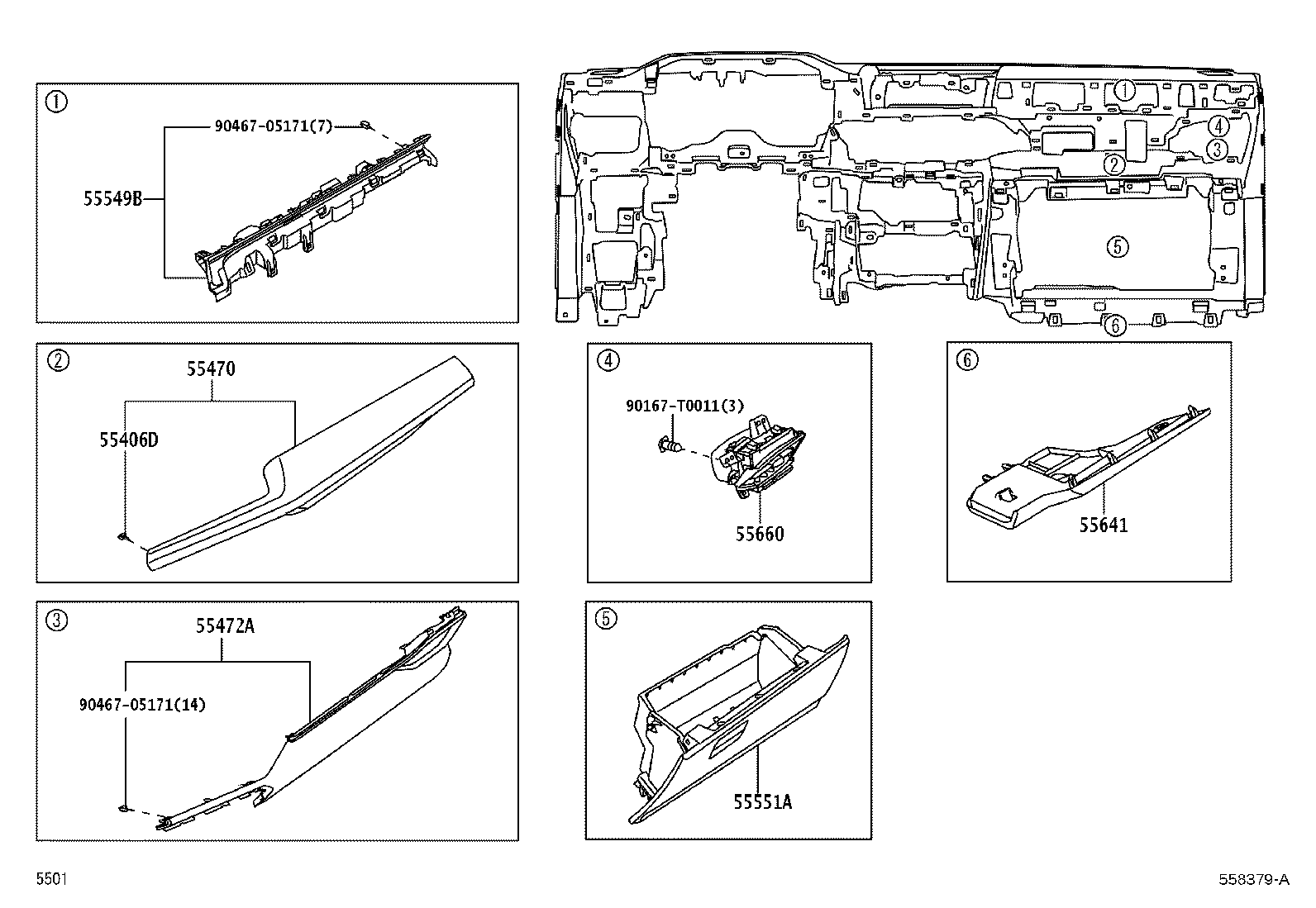

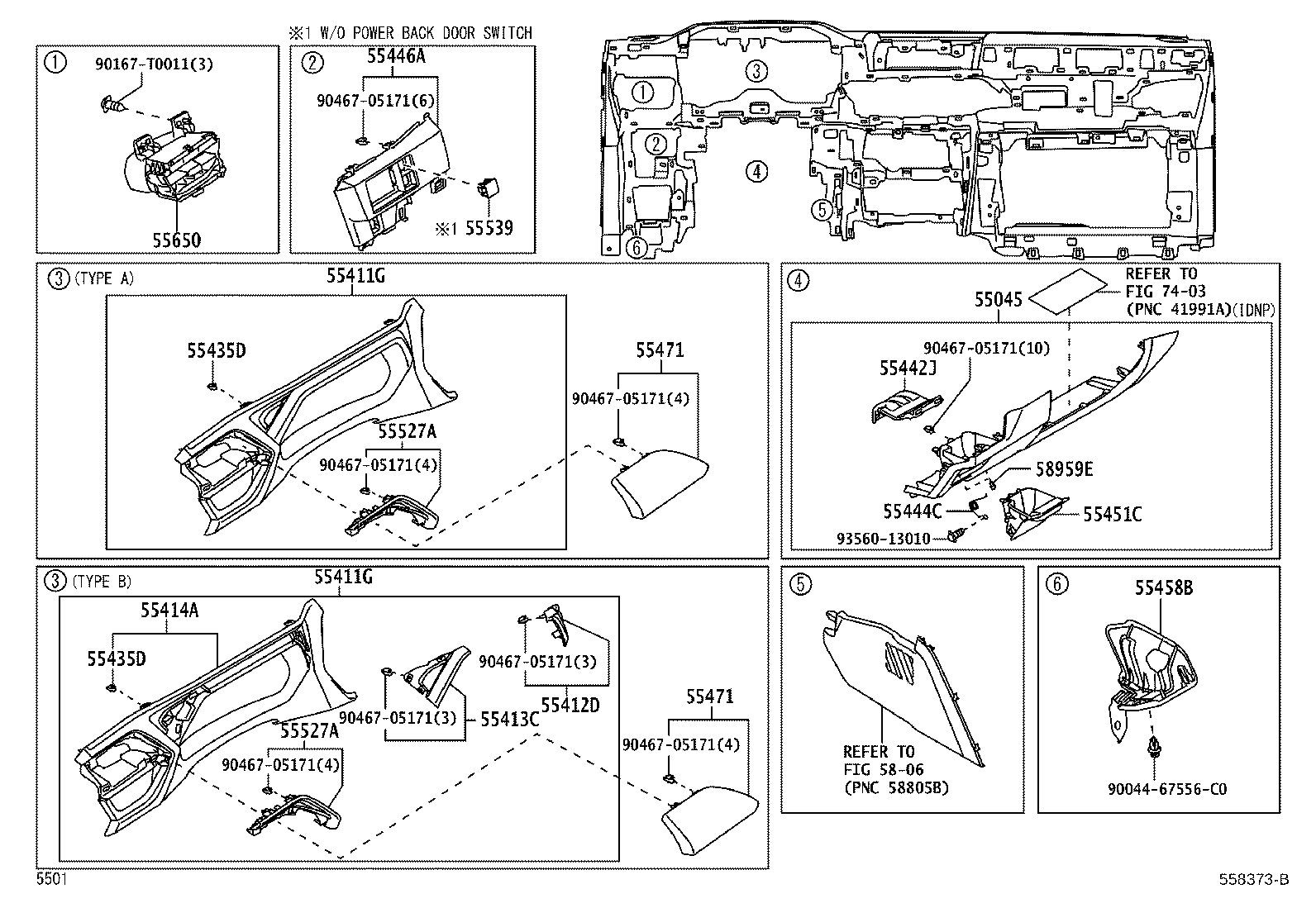

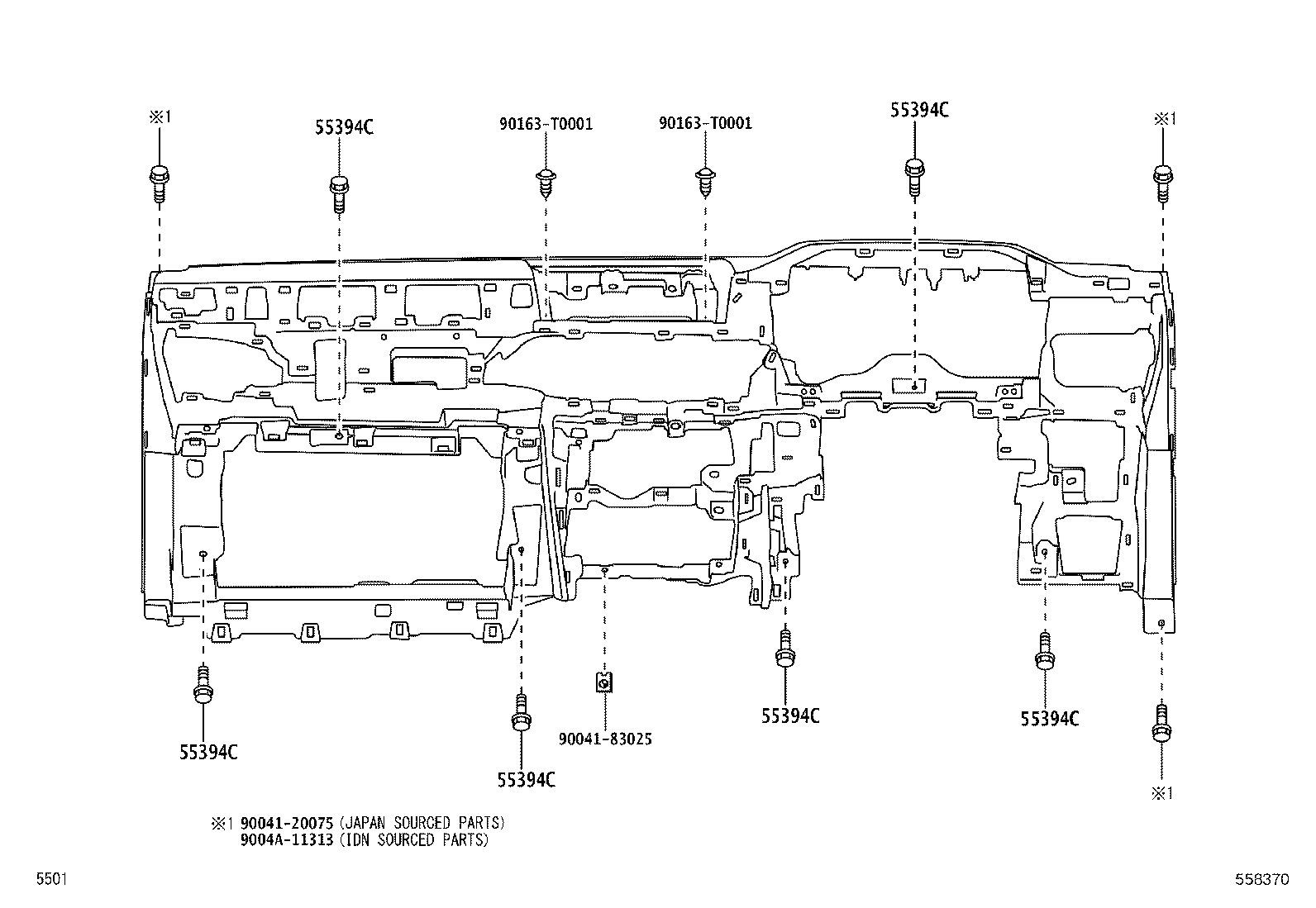

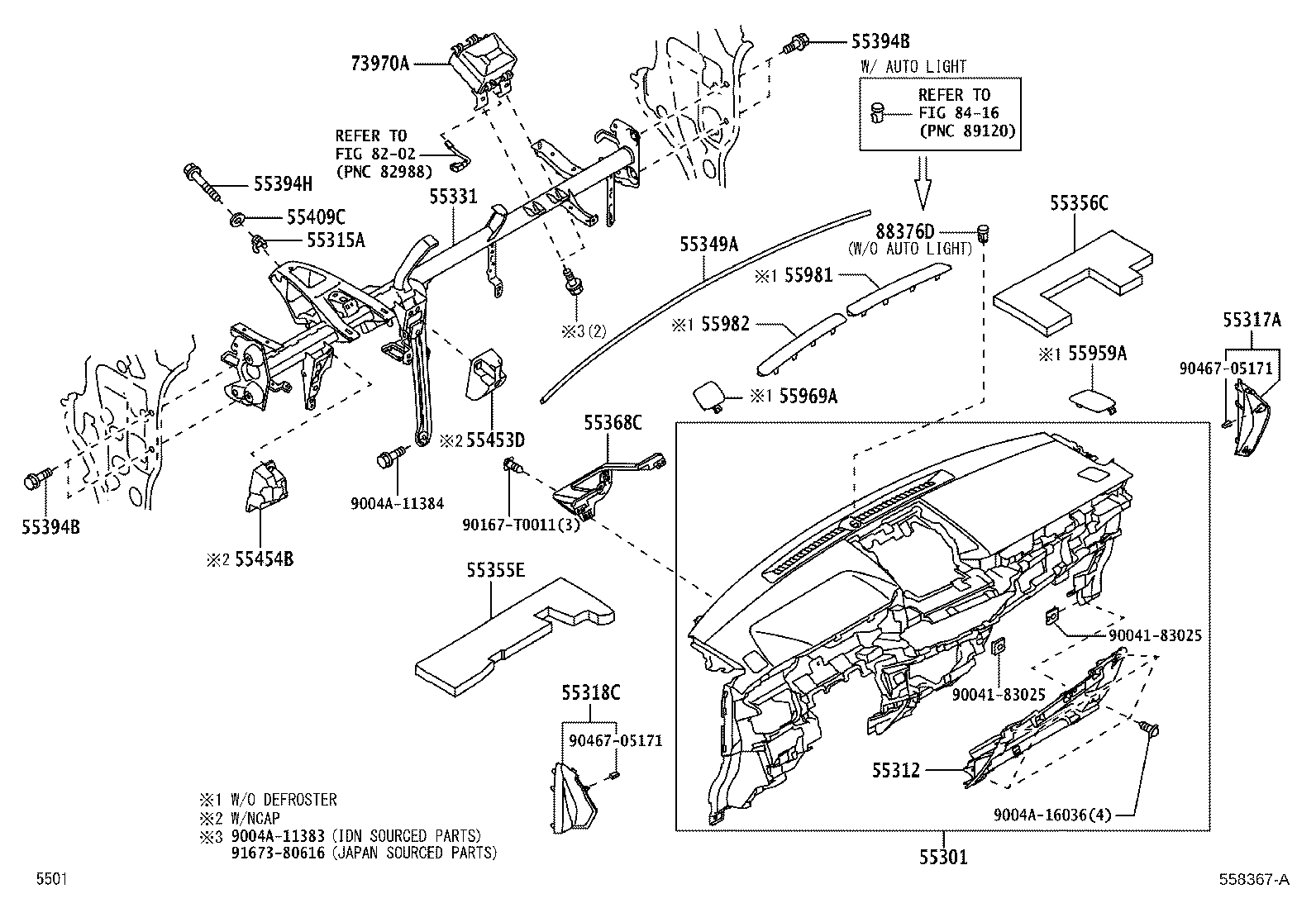

Figure 558365A 558365A 2023-06 → — Figure 558366A 558366A 2023-06 → — Figure 558366A 558366A 2024-06 → — Figure 558367A 558367A 2023-06 → — Figure 558368A 558368A 2023-10 → — Figure 558369 558369 2023-06 → — Figure 558370 558370 2023-10 → — Figure 558370 558370 2024-06 → — Figure 558371 558371 2023-06 → — Figure 558372A 558372A 2023-06 → — Figure 558373B 558373B 2023-06 → — Figure 558374A 558374A 2023-06 → — Figure 558374A 558374A 2024-06 → — Figure 558375A 558375A 2023-10 → — Figure 558376A 558376A 2023-06 → — Figure 558377A 558377A 2023-06 → — Figure 558378B 558378B 2023-06 → — Figure 558379A 558379A 2023-10 → —

Part groups

PNCDescription
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55301 Panel Sub-assy, Instrument
55312 Panel, Instrument, Lower
55315A Spacer, Instrument Panel, NO.1
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55331 Reinforcement, Instrument Panel
55349A Cushion, Instrument Panel
55349C Cushion, Instrument Panel
55355E Cushion, Instrument Panel
55356C Cushion, Instrument Panel, NO.2
55357B Cushion, Instrument Panel, NO.3
55368C Bracket, Meter Mounting
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55394H Bolt, Instrument Panel, NO.2
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55409C Plug, Hole
55411G Panel, Instrument Cluster Finish, NO.1
55412D Panel, Instrument Cluster Finish, Center
55413C Panel, Instrument Cluster Finish, Center NO.2
55414A Panel, Instrument Cluster Finish, End
55414C Bezel, Starter Switch
55421B Panel, Instrument Cluster Finish, Upper
55432D Panel, Instrument Panel Finish, Lower NO.1
55433B Panel, Instrument Panel Finish, Lower NO.2
55435D Clip, Meter Hood Cluster
55442J Bezel, Instrument Panel Coin Box
55444C Spring, Instrument Panel Box
55446A Base, Switch Hole, NO.1
55451C Box, Instrument Panel, NO.1
55453D Pad, Instrument Panel Safety, NO.1
55454B Pad, Instrument Panel Safety, NO.2
55458B Cover, Instrument, Lwr
55470 Garnish Assy, Instrument Cluster Finish Panel
55471 Moulding, Instrument Cluster, NO.1
55472A Moulding, Instrument Cluster, NO.2
55479C Clip(FOR INSTRUMENT LOWER COVER)
55527A Cover, Meter Opening
55539 Cover, Spare Switch Hole
55539E Cover, Spare Switch Hole
55539N Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55549B Cover, Instrument Panel Hole, NO.2
55551A Door, Glove Compartment, Outer
55556A Arm, Glove Compartment Door Check, RH
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55573B Arm, Glove Compartment Door Check, LH
55641 Cover, Instrument Panel Under, NO.1
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55959A Cover, Defroster Nozzle Opening, NO.1
55969A Cover, Defroster Nozzle Opening, NO.2
55981 Garnish, Defroster Nozzle, NO.1
55982 Garnish, Defroster Nozzle, NO.2
58959E Cushion, Console Compartment Door
73970A Airbag Assy, Instrument Panel Passenger
88376D Cap, Blind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
