Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09
Mat & Carpet
25 part groups · 7 illustrations
Part groups

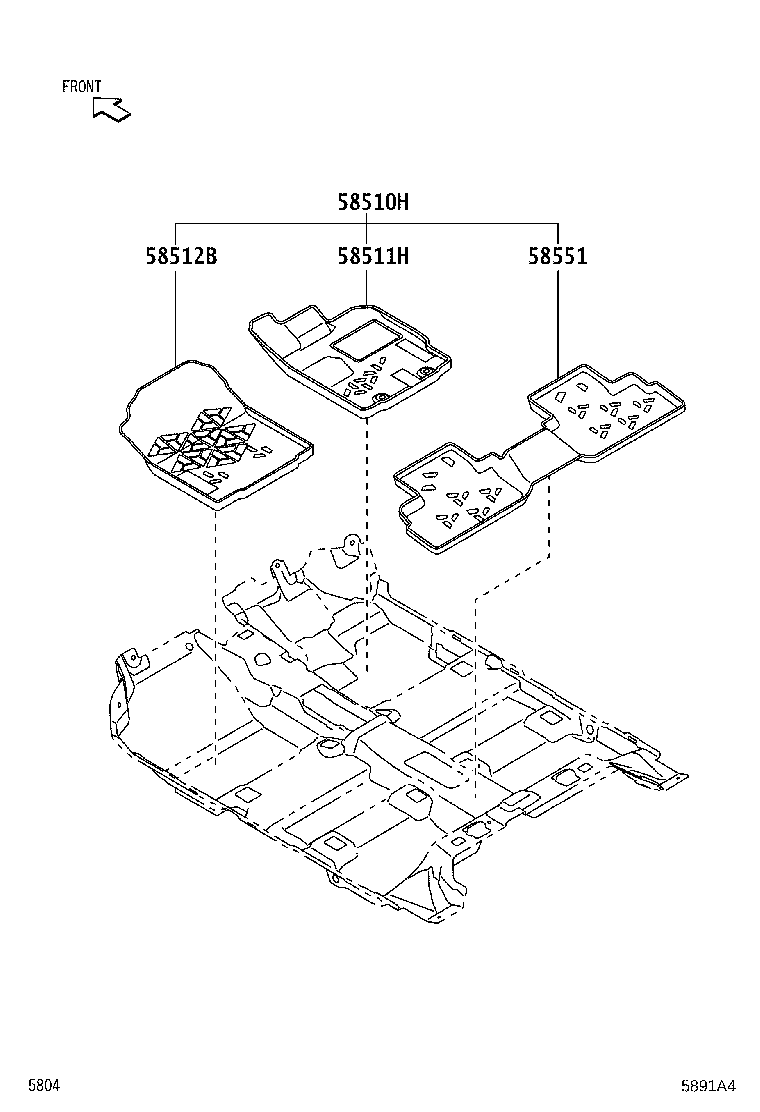

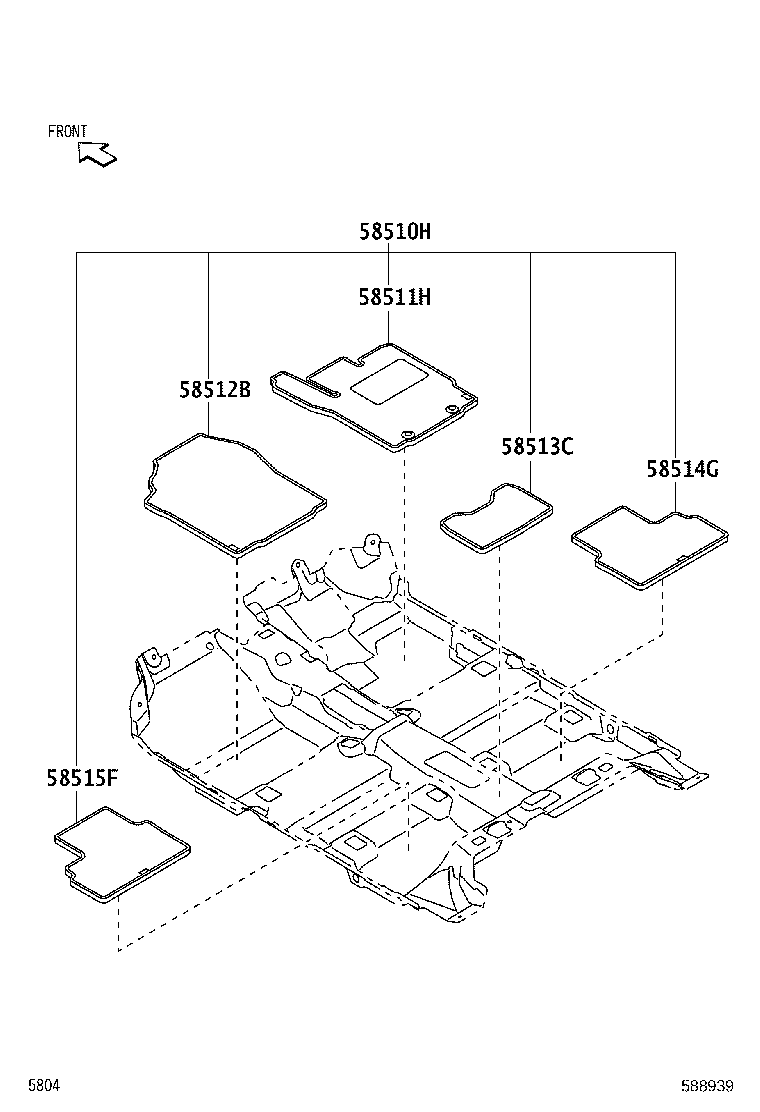

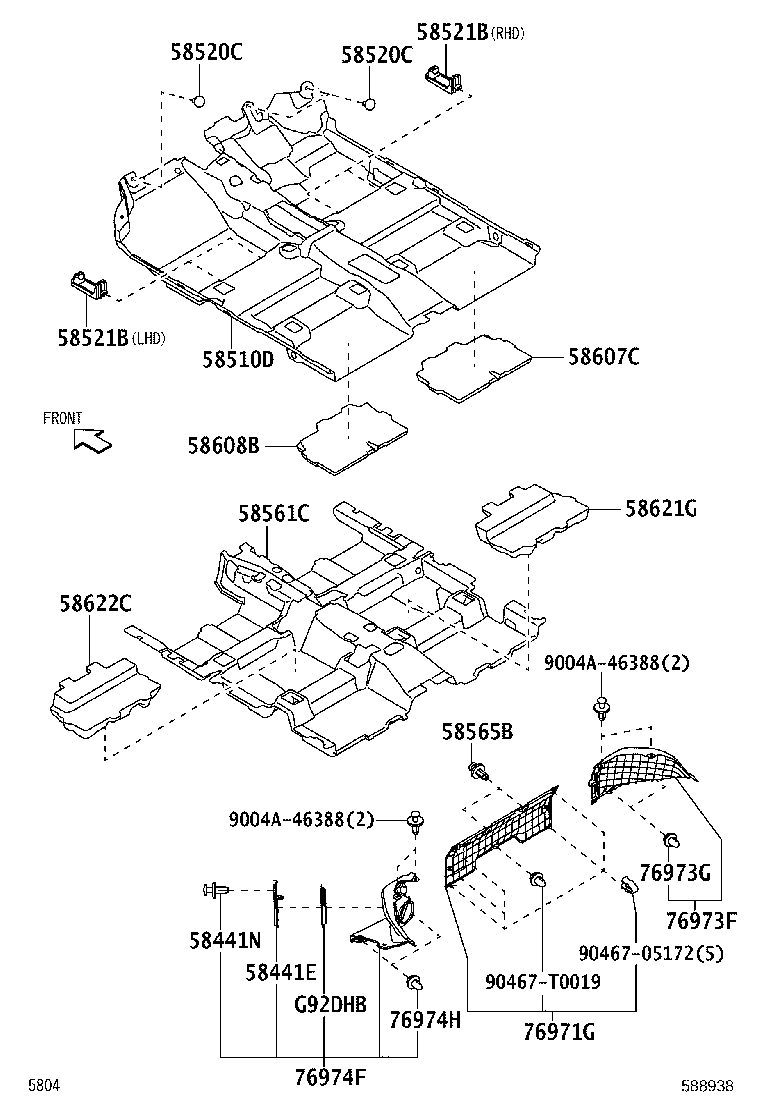

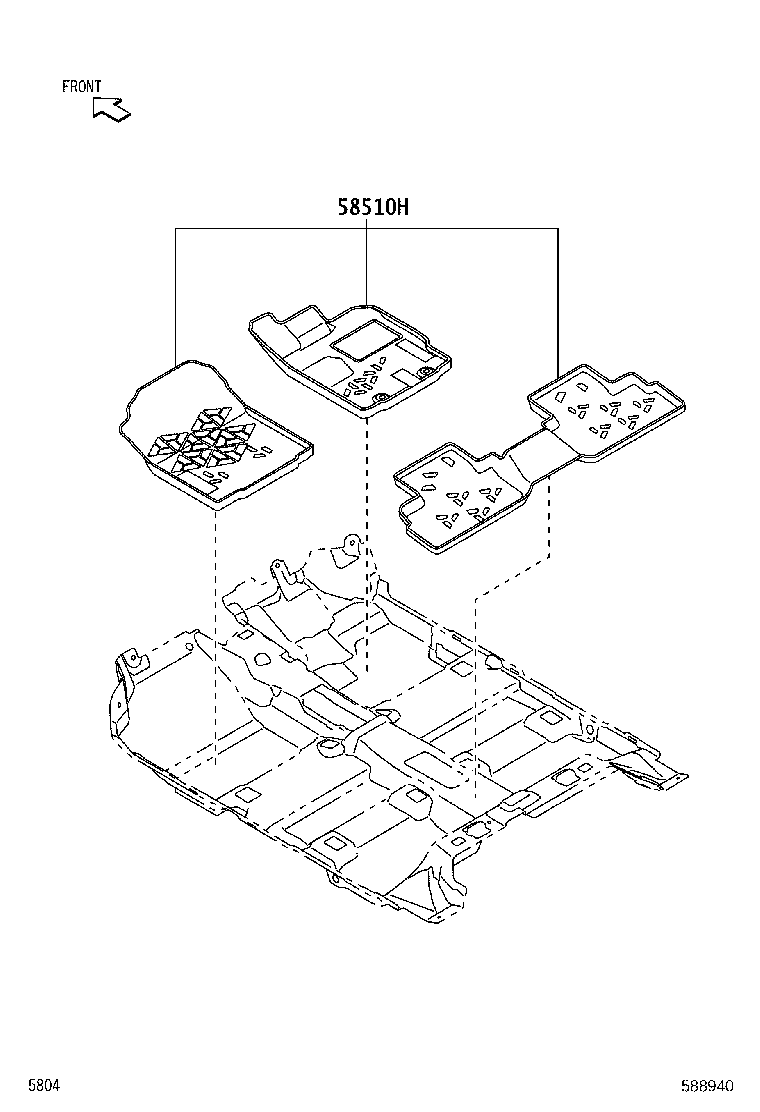

| PNC | Description |
|---|---|
| 58441E | Cover, Battery Service Hole |
| 58441N | Clip(FOR BATTERY SERVICE HOLE COVER) |
| 58510D | Carpet Assy, Floor, Front |
| 58510H | Mat Assy, Floor |
| 58511H | Mat, Floor, Front RH |
| 58512B | Mat, Floor, Front LH |
| 58513C | Mat, Floor, Front Center |
| 58514G | Mat, Floor, Rear RH |
| 58515F | Mat, Floor, Rear LH |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58551 | Mat, Floor, Rear |
| 58561C | Silencer, Front Floor, NO.1 |
| 58565B | Clip |
| 58607C | Pad Sub-assy, Front Floor Silencer, Rear RH |
| 58608B | Pad Sub-assy, Front Floor Silencer, Rear LH |
| 58621G | Pad, Front Floor Silencer, RH |
| 58622C | Pad, Front Floor Silencer, LH |
| 76971G | Cover, Rear Under |
| 76973F | Cover, Rear Under Side, RH |
| 76973G | Clip, Rear Under Side Cover, RH |
| 76974F | Cover, Rear Under Side, LH |
| 76974H | Clip, Rear Under Side Cover, LH |
| G92DHB | Filter, HV Battery Intake, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
