Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

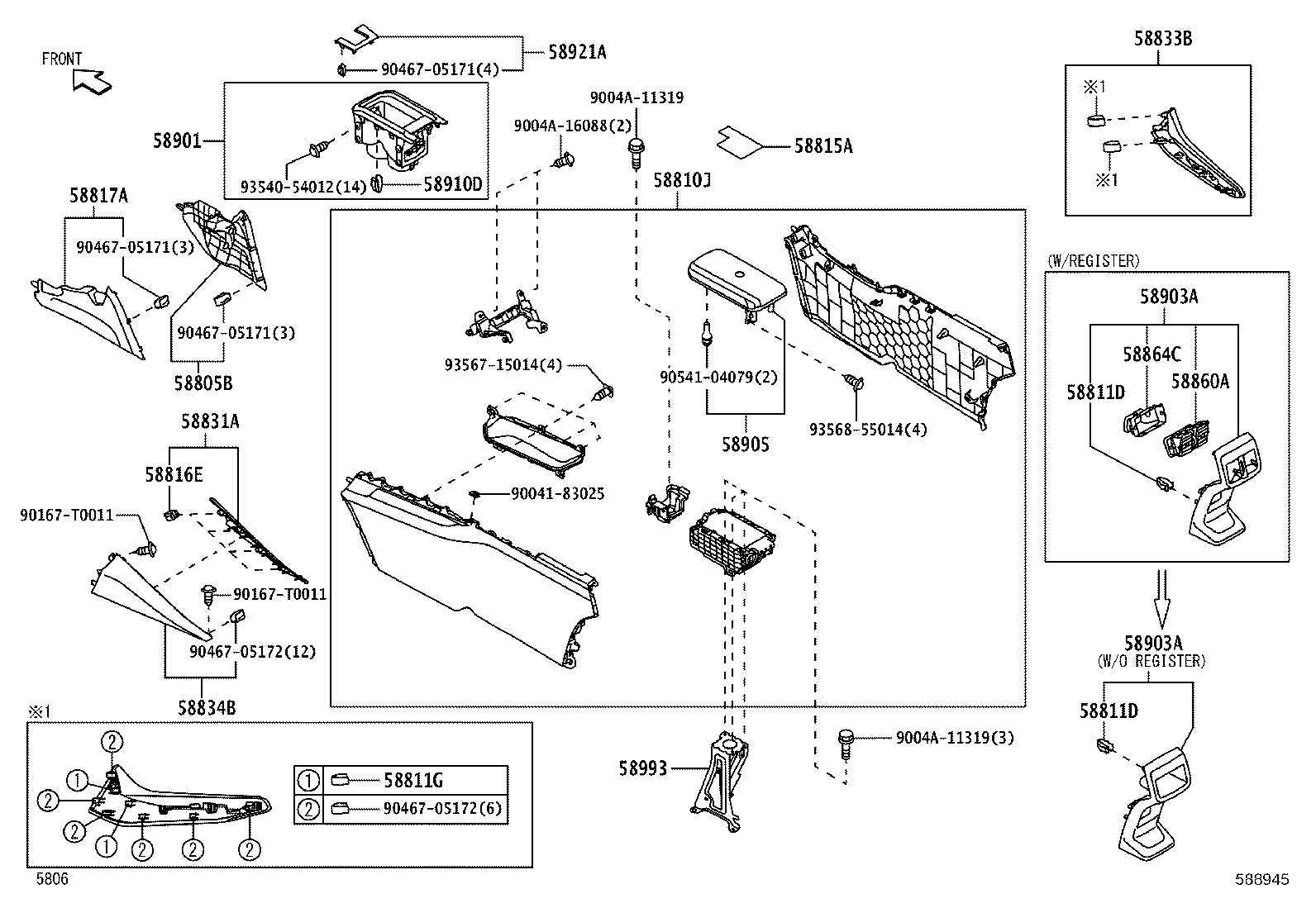

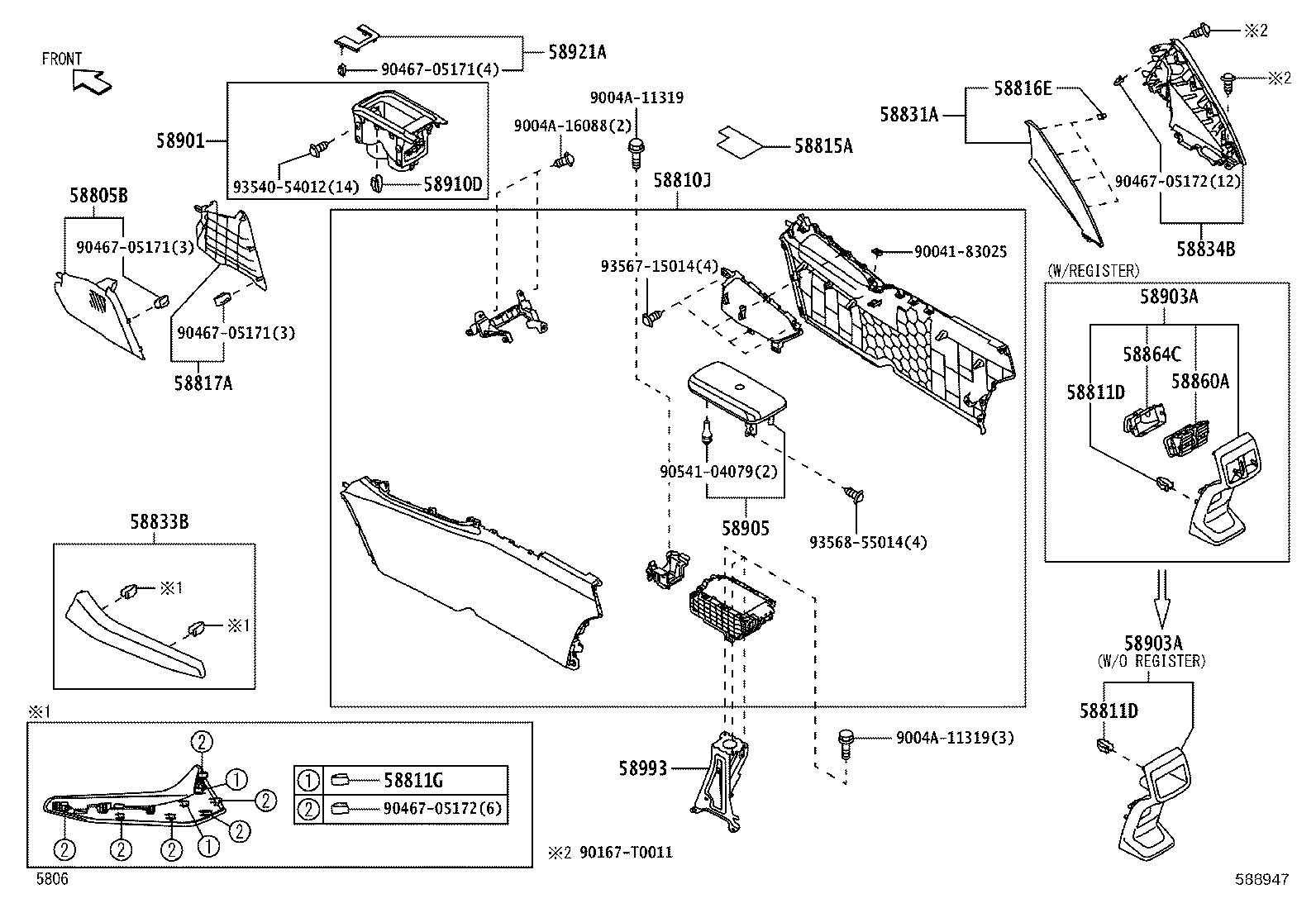

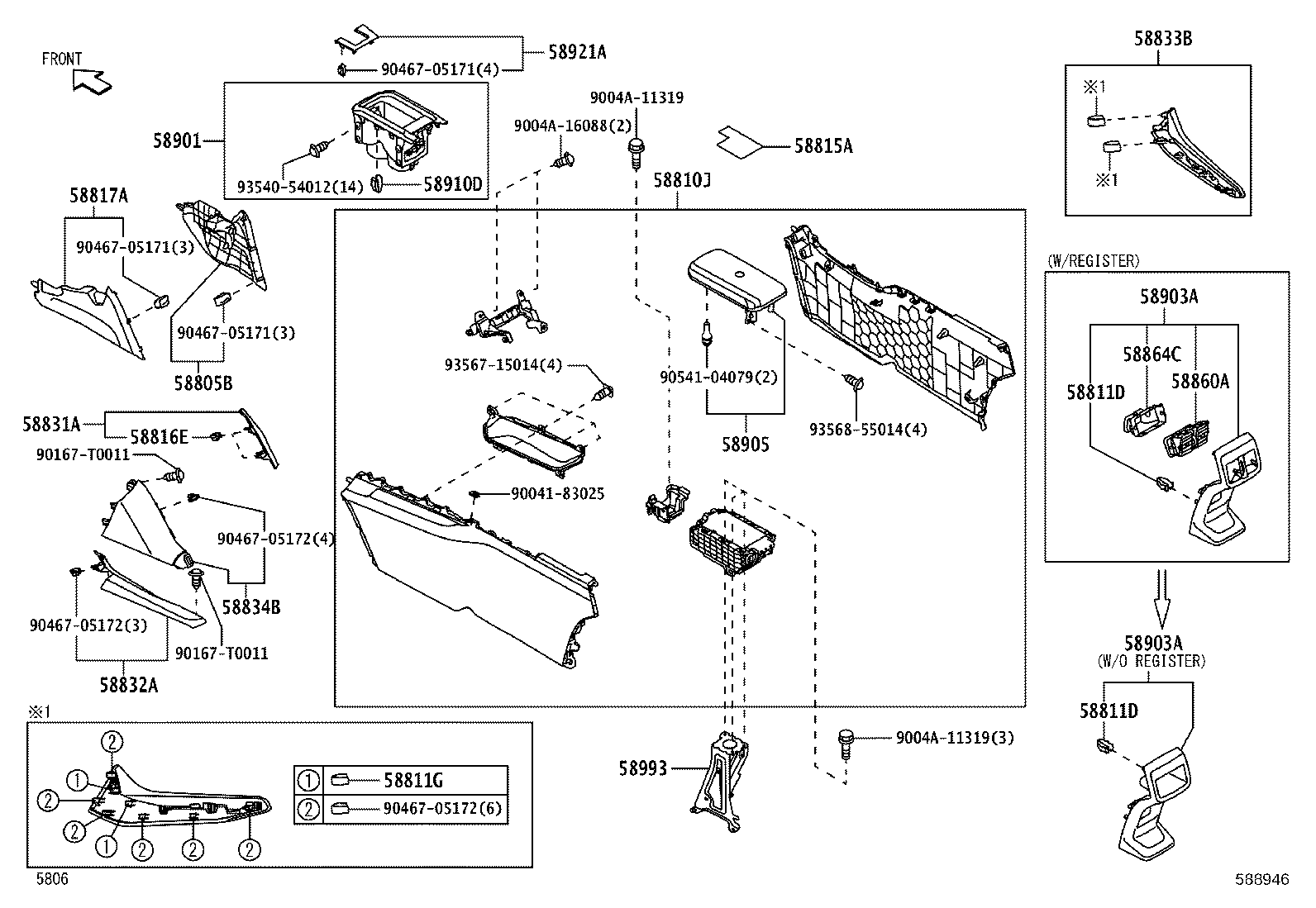

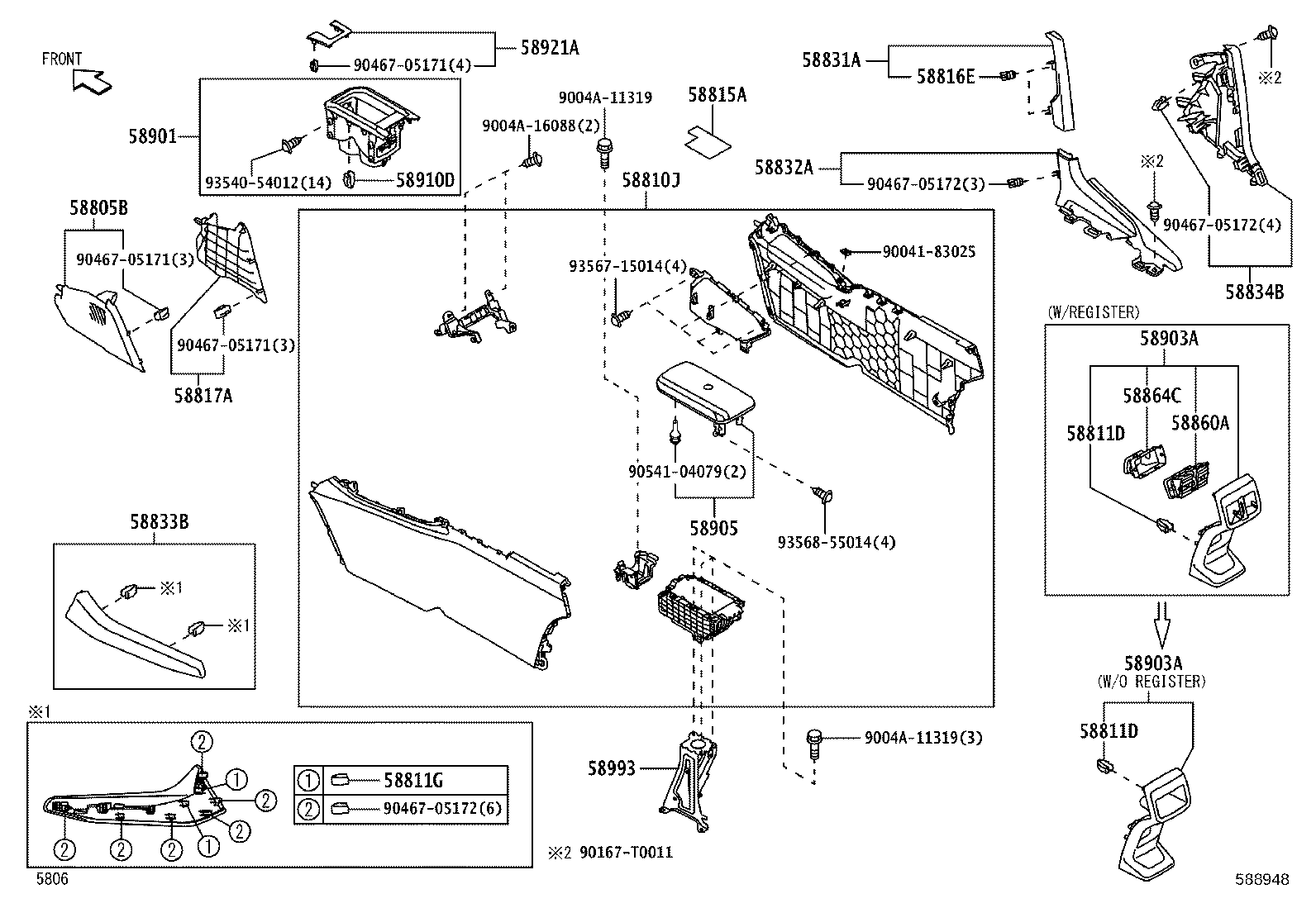

Console Box & Bracket
24 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 33554J | Cover, Shift Lock Release Button |
| 58804A | Panel Sub-assy, Console, Upper |
| 58805B | Panel Sub-assy, Console, Lower |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58811G | Clip(CONSOL BOX) |
| 58815A | Carpet, Console Box |
| 58816E | Clip, Console Box Insert, Front |
| 58817A | Insert, Console Box, Front NO.2 |
| 58821C | Panel, Console, Upper |
| 58831A | Garnish, Console Upper Panel, Front |
| 58832A | Garnish, Console Upper Panel, Rear |
| 58833B | Garnish, Console Upper Panel, NO.1 |
| 58834B | Garnish, Console Upper Panel, NO.2 |
| 58840K | Cover Assy, Shifting Hole |
| 58844 | Bezel, Console Box |
| 58860A | Register Assy, Console Box |
| 58864C | Duct, Console Box, NO.4 |
| 58901 | Panel Sub-assy, Box |
| 58903A | Panel Sub-assy, Console Rear End |
| 58905 | Door Sub-assy, Console Compartment |
| 58910D | Clip(FOR CONSOLE BOX) |
| 58921A | Panel, Rear Console, Upper |
| 58993 | Bracket, Console Box Mounting, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
