Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

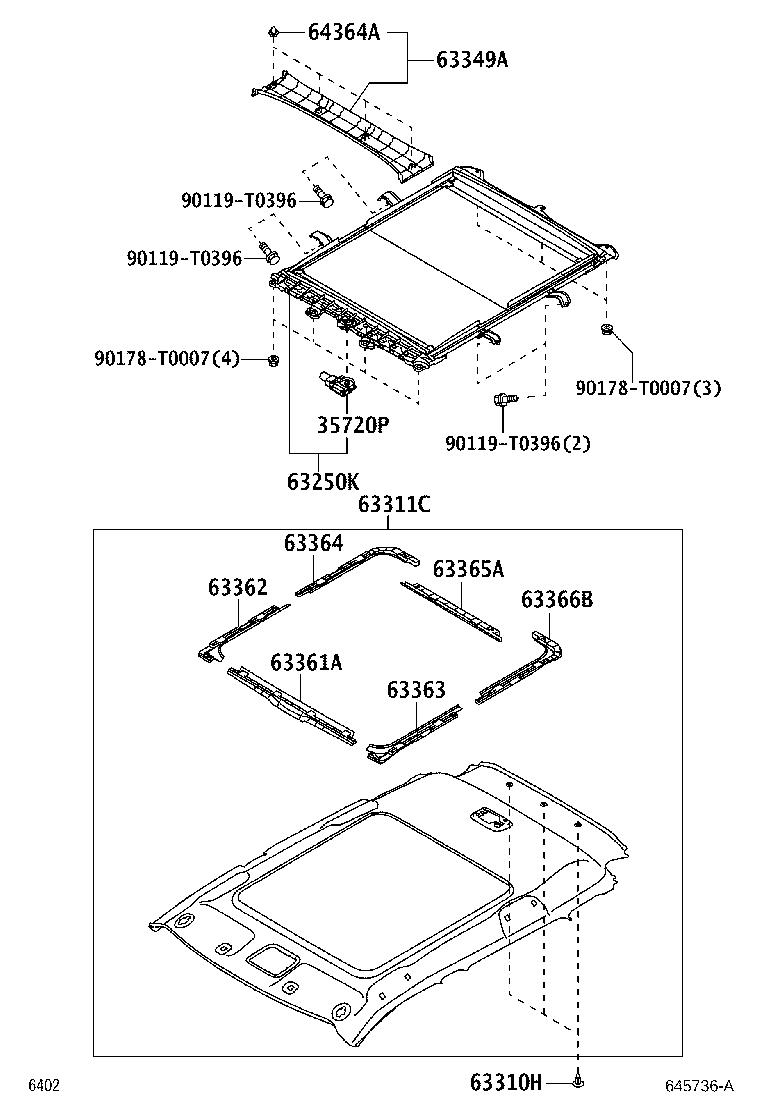

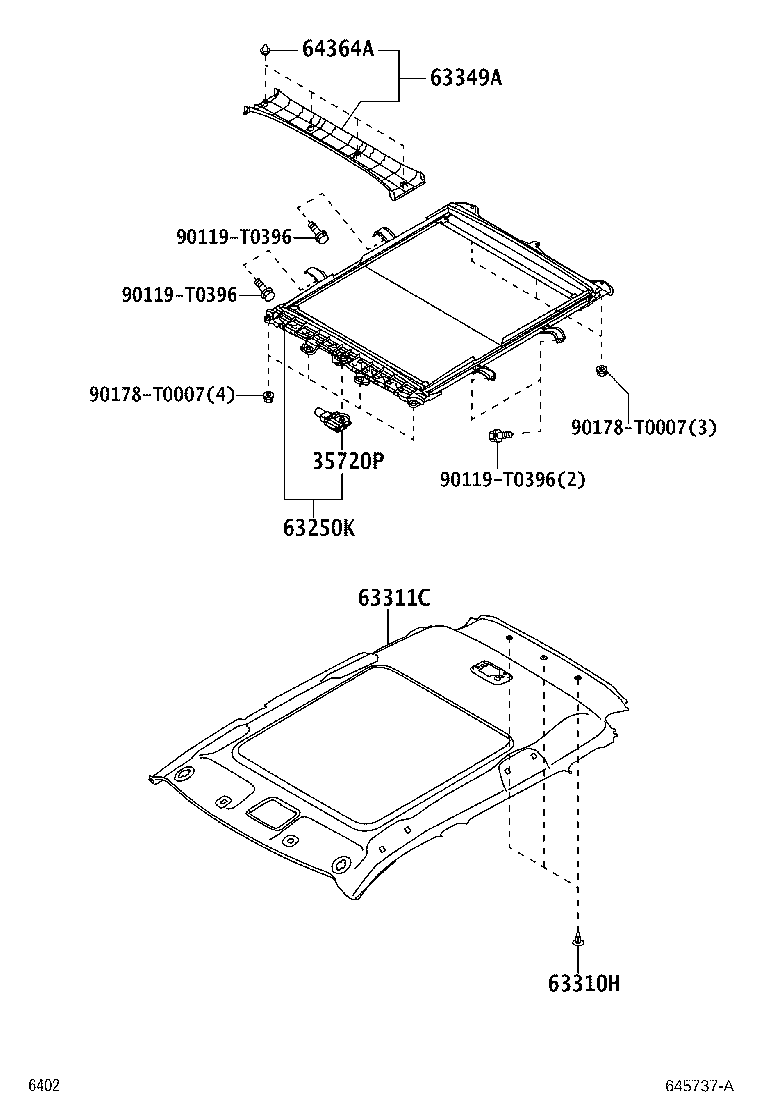

Roof Headlining & Silencer Pad
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35720P | Gear Assy |
| 63250K | Housing Assy, Sunshade |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63311C | Headlining, Roof |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341G | Pad, Roof Silencer |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63349A | Garnish, Roof Headlining, Rear |
| 63361A | Support, Roof Headlining |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365A | Plate, Roof Headlining Set |
| 63366B | Plate, Roof Headlining Set, LH |
| 64364A | Clip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
