Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

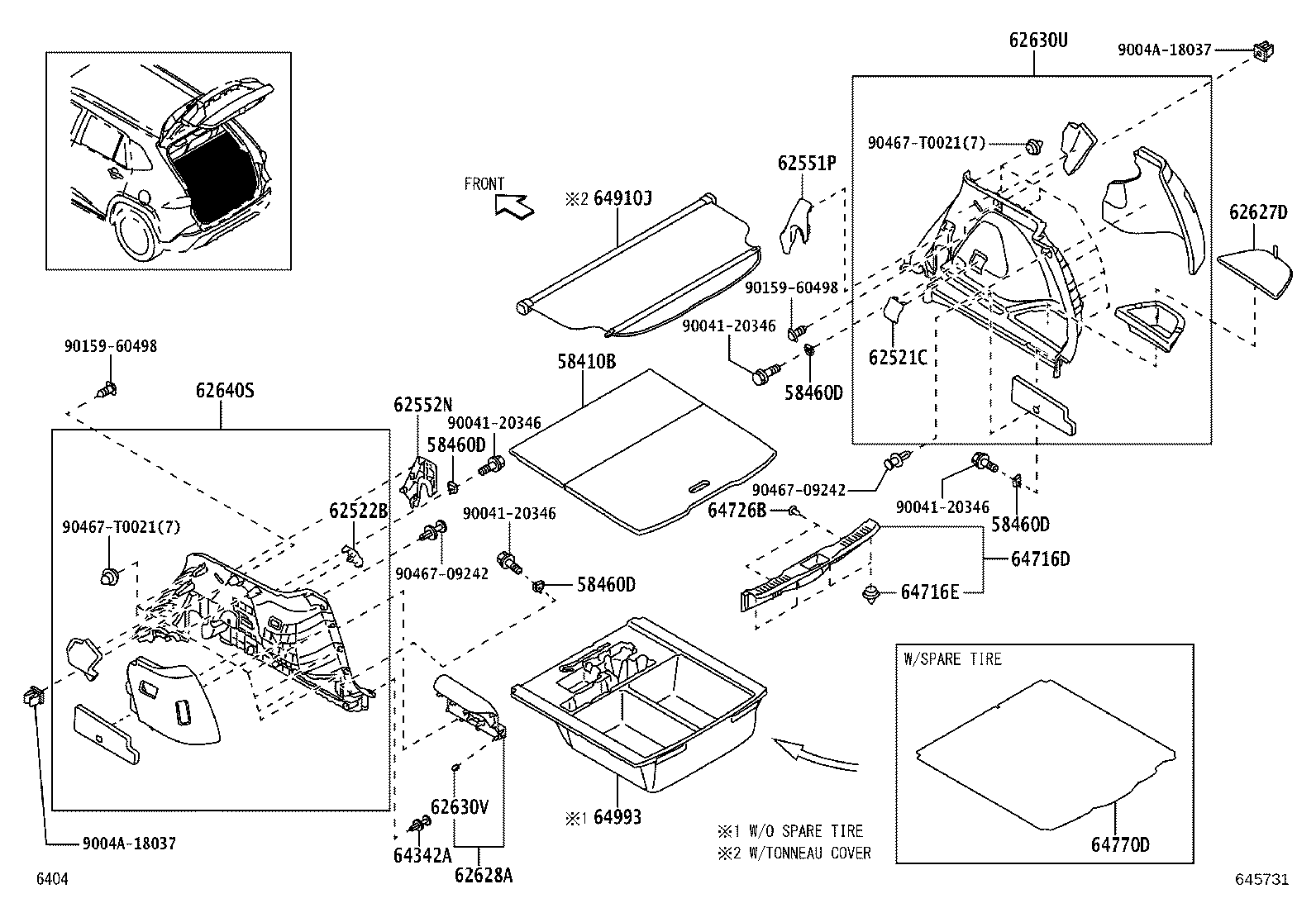

Deck Board & Deck Trim Cover
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58410B | Board Assy, Deck |
| 58460D | Striker Assy, Luggage Hold Belt |
| 62521C | Cover, Quarter Trim RH |
| 62522B | Cover, Quarter Trim LH |
| 62551P | Cover, Rear Seat Side, RH |
| 62552N | Cover, Rear Seat Side, LH |
| 62627D | Cover, Side Trim, RH |
| 62628A | Cover, Side Trim, LH |
| 62630U | Panel Assy, Quarter Trim, Rear RH |
| 62630V | Clip (FOR QUARTER REAR TRIM) |
| 62640S | Panel Assy, Quarter Trim, Rear LH |
| 64342A | Clip |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64726B | Clip, Deck Rear Trim |
| 64770D | Cover Assy, Spare Wheel |
| 64910J | Cover Assy, Tonneau |
| 64993 | Box, Deck Floor, Rear |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
