Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

46 part groups · 10 illustrations

Illustrations

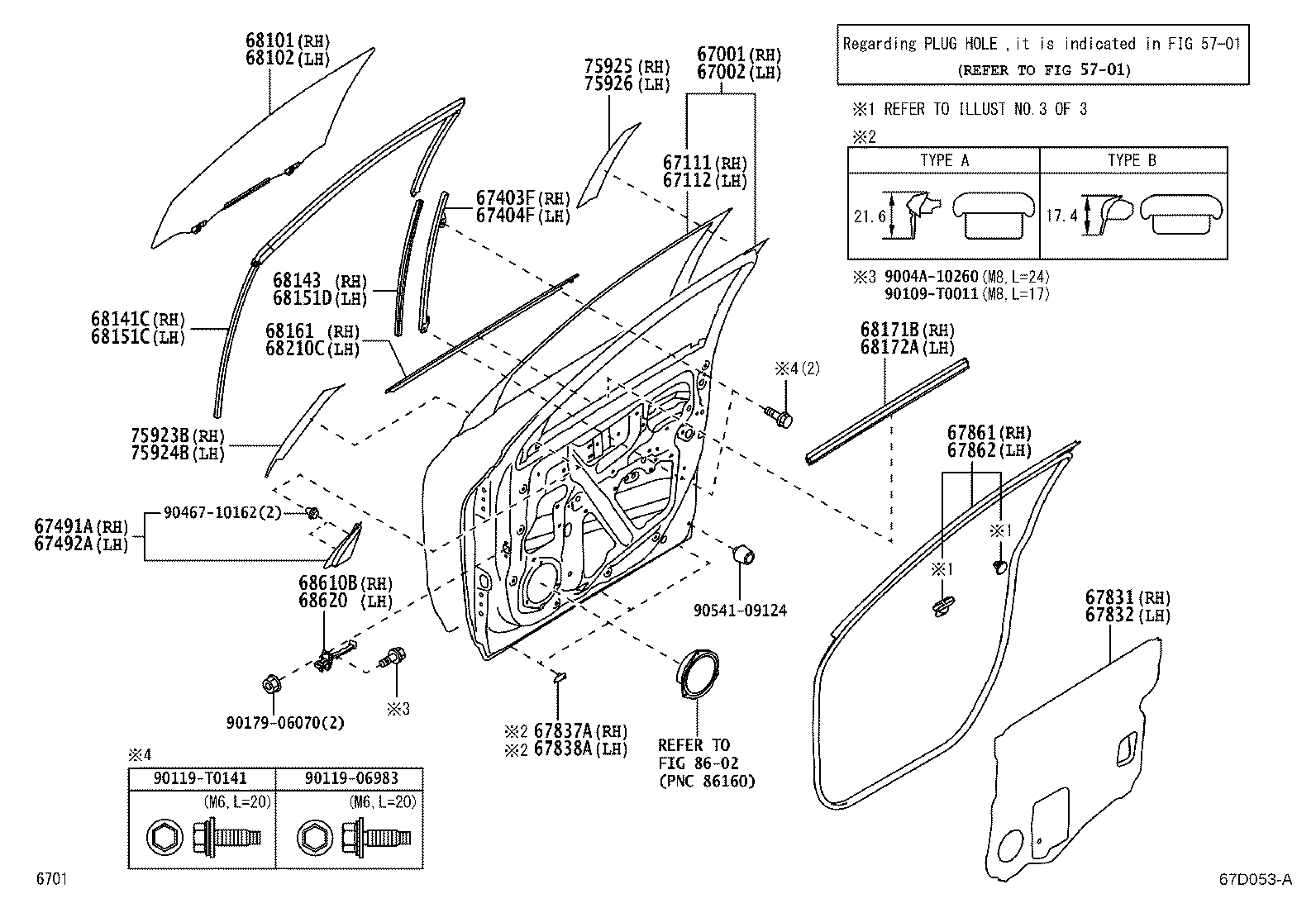

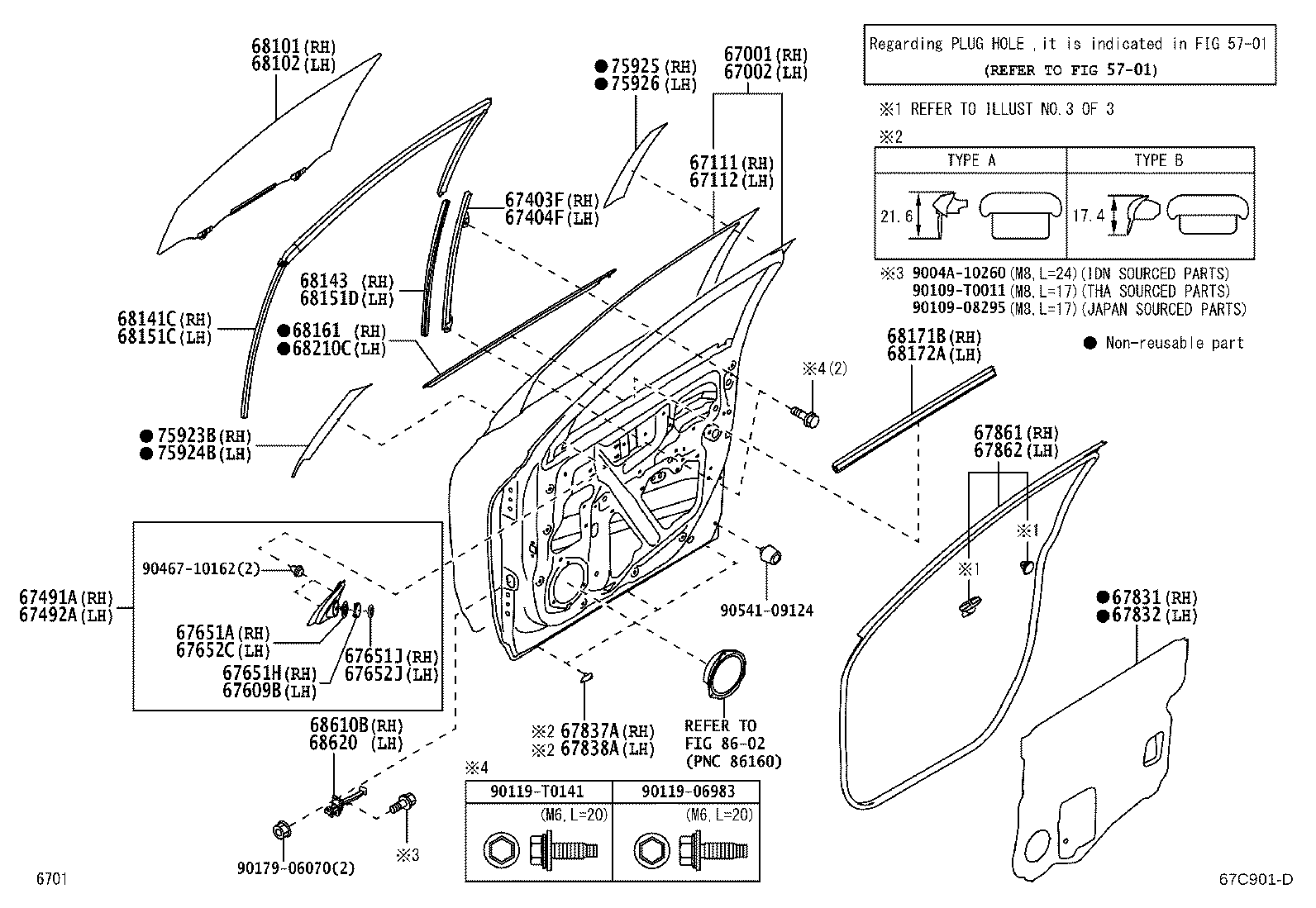

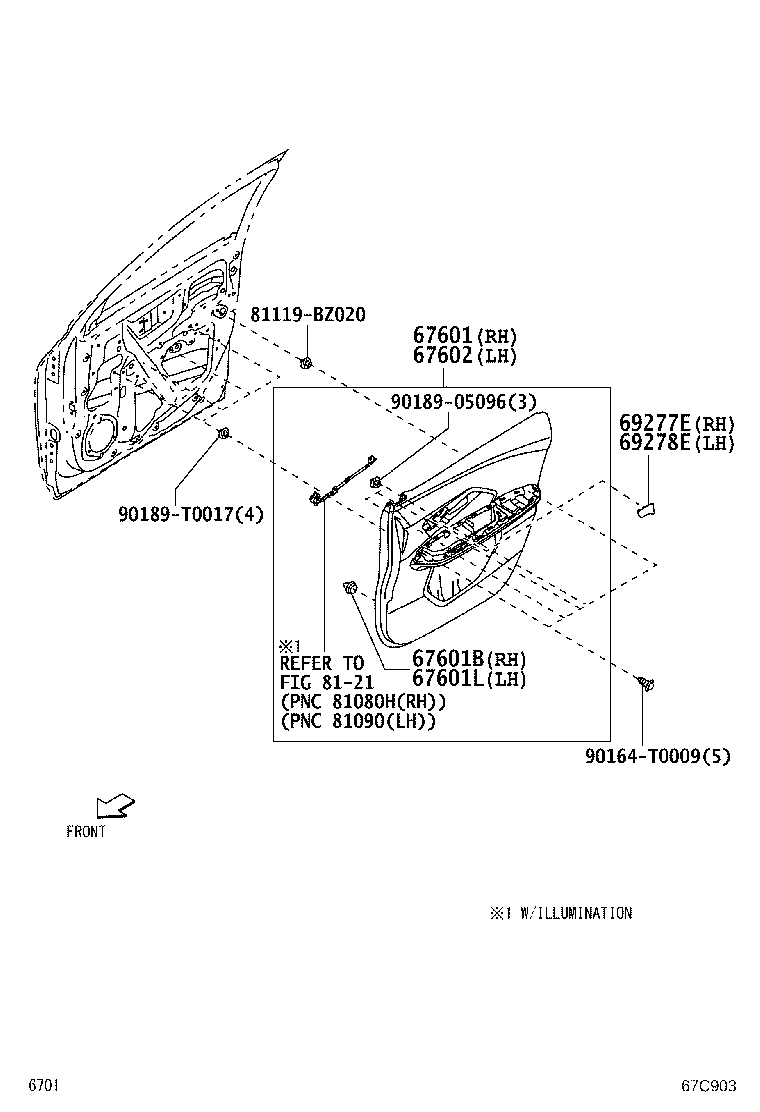

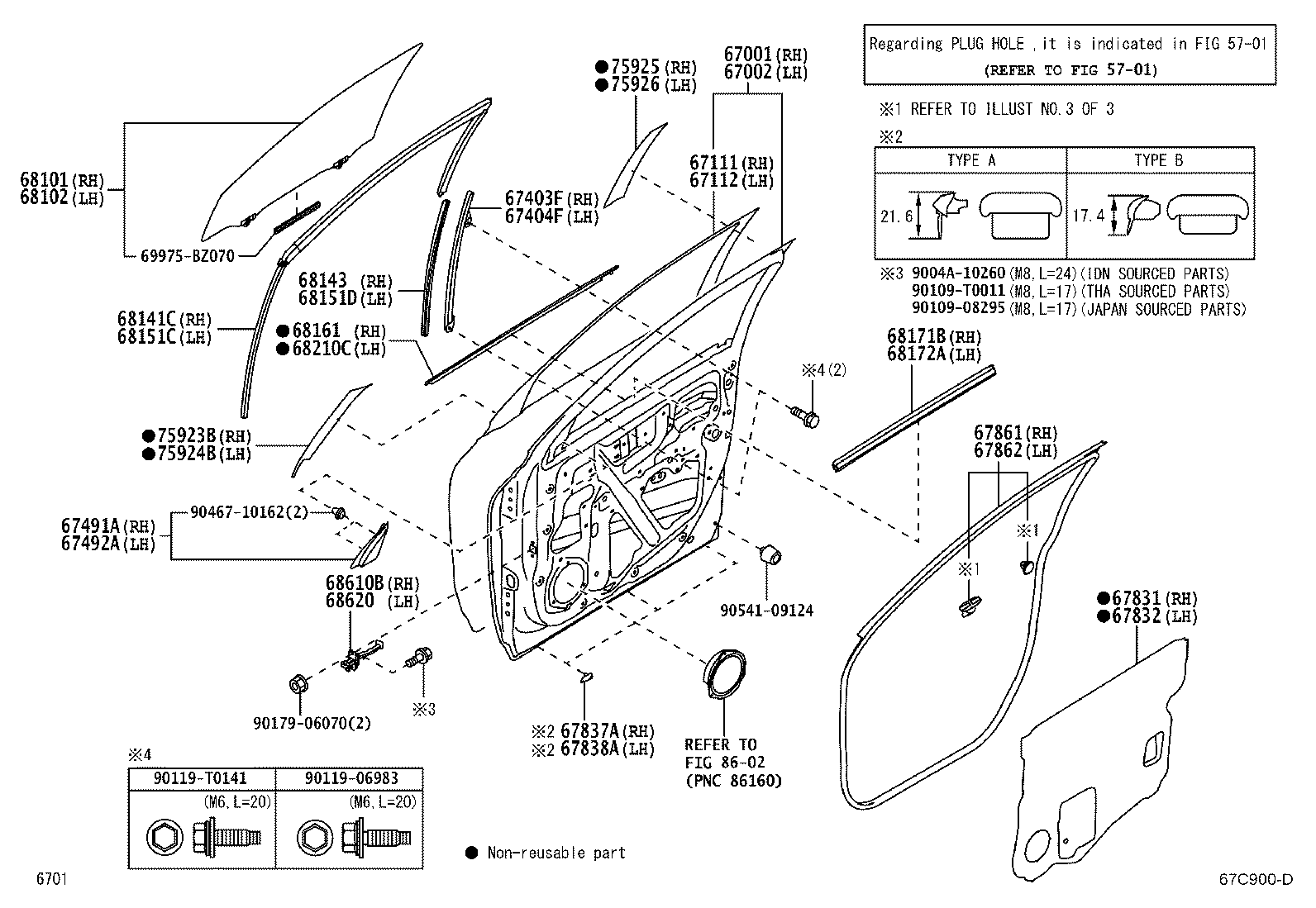

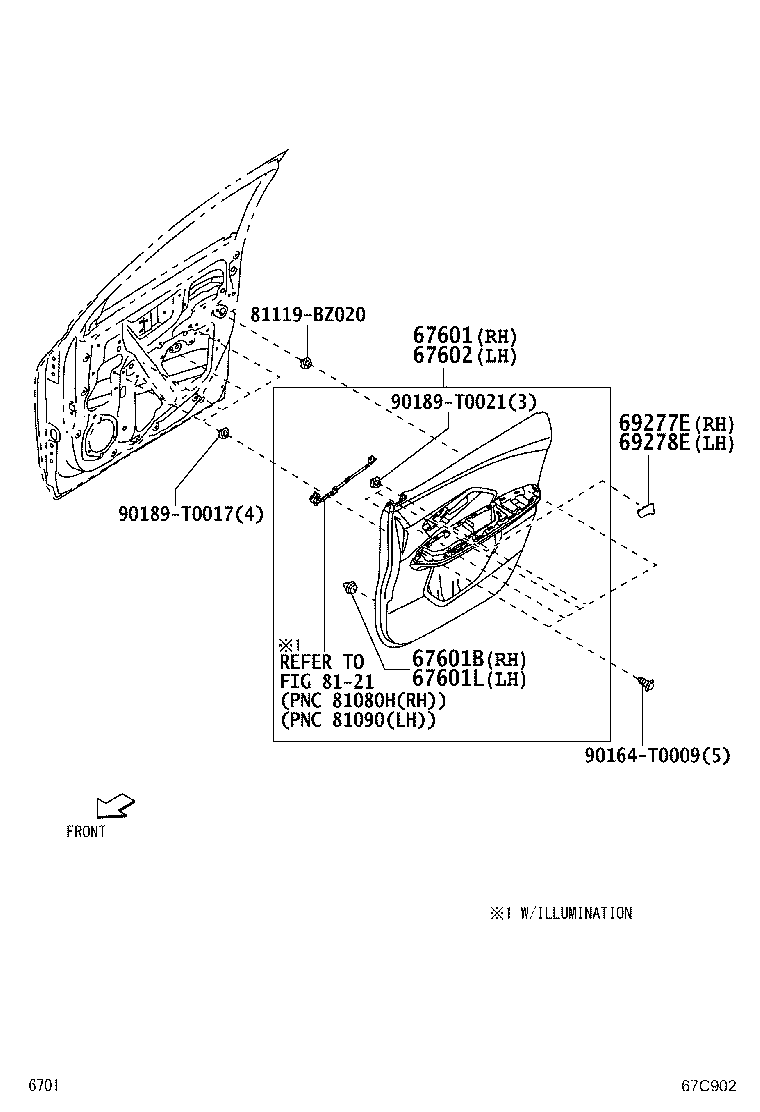

Figure 67C899D 67C899D 2023-06 → — Figure 67C900D 67C900D 2023-10 → — Figure 67C901D 67C901D 2023-06 → — Figure 67C901D 67C901D 2023-10 → — Figure 67D053A 67D053A 2024-06 → — Figure 67C902 67C902 2023-06 → — Figure 67C902 67C902 2023-10 → — Figure 67C902 67C902 2024-06 → — Figure 67C903 67C903 2023-10 → — Figure 67C904 67C904 2023-06 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67601L Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67609B Grille Sub-assy, Front Door Speaker
67651A Grille, Speaker Door
67651H Grille, Speaker Door, RH
67651J Grille Sub-assy, Door Speaker, RH
67652C Grille, Speaker Door, LH
67652J Grille Sub-assy, Door Speaker, LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67837A Seal, Front Door Vent, RH
67838A Seal, Front Door Vent, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67869B Clip, Front Door Weatherstrip
67869E Clip, Front Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68143 Run, Front Door Glass, Lower
68151C Run, Front Door Glass, LH
68151D Run, Front Door Glass, LH
68161 Weatherstrip, Front Door Glass, Outer
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68210C Weatherstrip Assy, Front Door Glass, Outer LH
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
69277E Bezel, Front Door Inside Handle, RH
69278E Bezel, Front Door Inside Handle, LH
75923B Tape, Black Out, NO.2 RH
75924B Tape, Black Out, NO.2 LH
75925 Tape, Black Out, NO.3 RH
75926 Tape, Black Out, NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
