Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

29 part groups · 3 illustrations

Illustrations

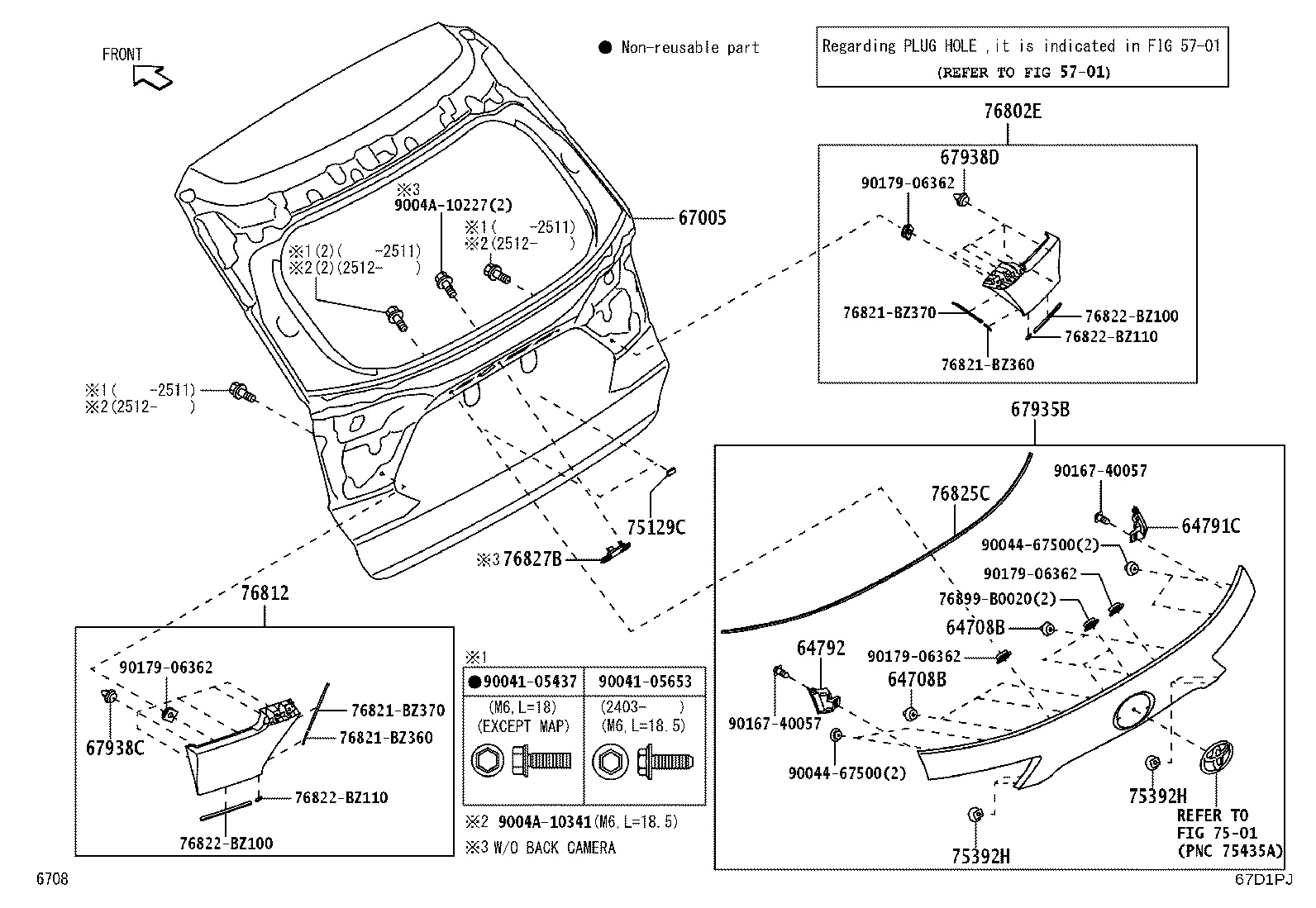

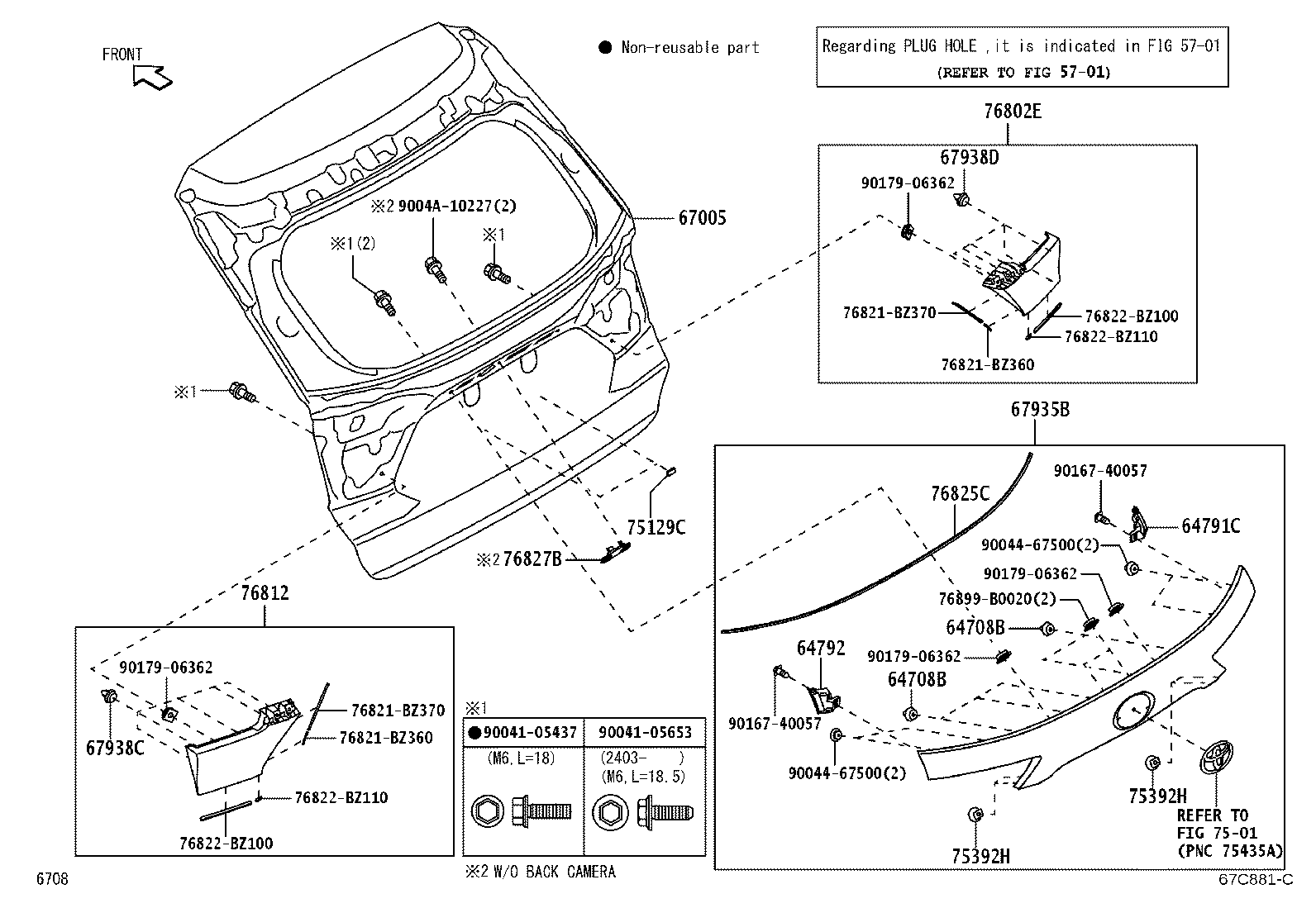

Figure 67C880A 67C880A 2023-06 → — Figure 67D1PJ 67D1PJ 2023-06 → — Figure 67C881C 67C881C 2023-10 → —

Part groups

PNCDescription
64708B Clip, Back Door Trim
64780A Panel Assy, Back Door Trim
64780B Clip(FOR BACK DOOR TRIM PANEL)
64790B Panel Assy, Back Door Trim, Upper
64791C Cover, Back Door Trim, RH
64792 Cover, Back Door Trim, LH
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67750A Clip(FOR BACK DOOR TRIM)
67750C Clip(FOR BACK DOOR TRIM BOARD)
67751A Clip(FOR BACK DOOR TRIM BOARD)
67754A Cover, Back Door Hole
67818B Spacer, Back Window Glass
67837L Seal, Door Dust Proof
67881A Weatherstrip, Back Door
67935B Garnish, Back Door
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
67938C Clip (FOR BACK DOOR SIDE GARNISH), LH
67938D Clip(FOR BACK DOOR SIDE GARNISH)
68131 Glass, Back Door
75129C Cushion, Rear Licence Plate
75392H Retainer, Outside Moulding
76802E Garnish Sub-assy, Back Door, Outside Lower
76812 Garnish, Back Door, Outside Lower
76825C Protector, Back Door Outside Garnish
76827B Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
