Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

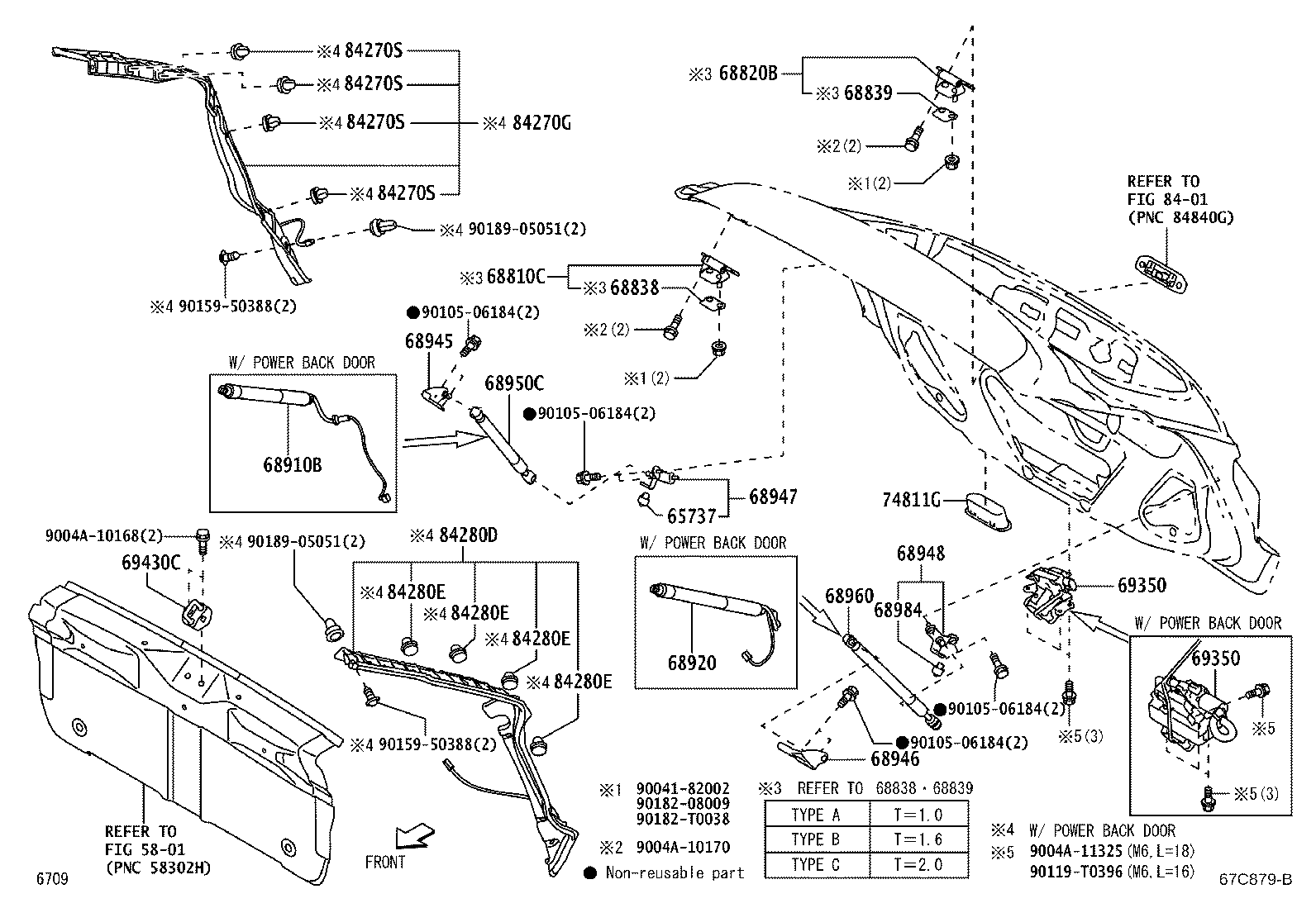

Back Door Lock & Handle
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 65737 | Stop, Tail Gate |
| 68810C | Hinge Assy, Back Door, RH |
| 68820B | Hinge Assy, Back Door, LH |
| 68838 | Pad, Back Door Hinge, NO.1 |
| 68839 | Pad, Back Door Hinge, NO.2 |
| 68910B | Unit Assy, Power Back Door, RH |
| 68920 | Unit Assy Set, Power Back Door, LH |
| 68945 | Bracket, Back Door Damper Stay, Upper RH |
| 68946 | Bracket, Back Door Damper Stay, Upper LH |
| 68947 | Bracket, Back Door Damper Stay, Lower RH |
| 68948 | Bracket, Back Door Damper Stay, Lower LH |
| 68950C | Stay Assy, Back Door, RH |
| 68960 | Stay Assy, Back Door, LH |
| 68984 | Stopper, Back Door Stay |
| 69350 | Lock Assy, Back Door |
| 69430C | Striker Assy, Back Door Lock |
| 74811G | Handle, Door Pull |
| 84270G | Sensor Assy, Power Back Door, RH |
| 84270S | Clip(POWER BACK DOOR SENSOR, RH) |
| 84280D | Sensor Assy, Power Back Door, LH |
| 84280E | Clip (FOR POWER BACK DOOR SENSOR, LH) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
