Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

85 part groups · 22 illustrations

Illustrations

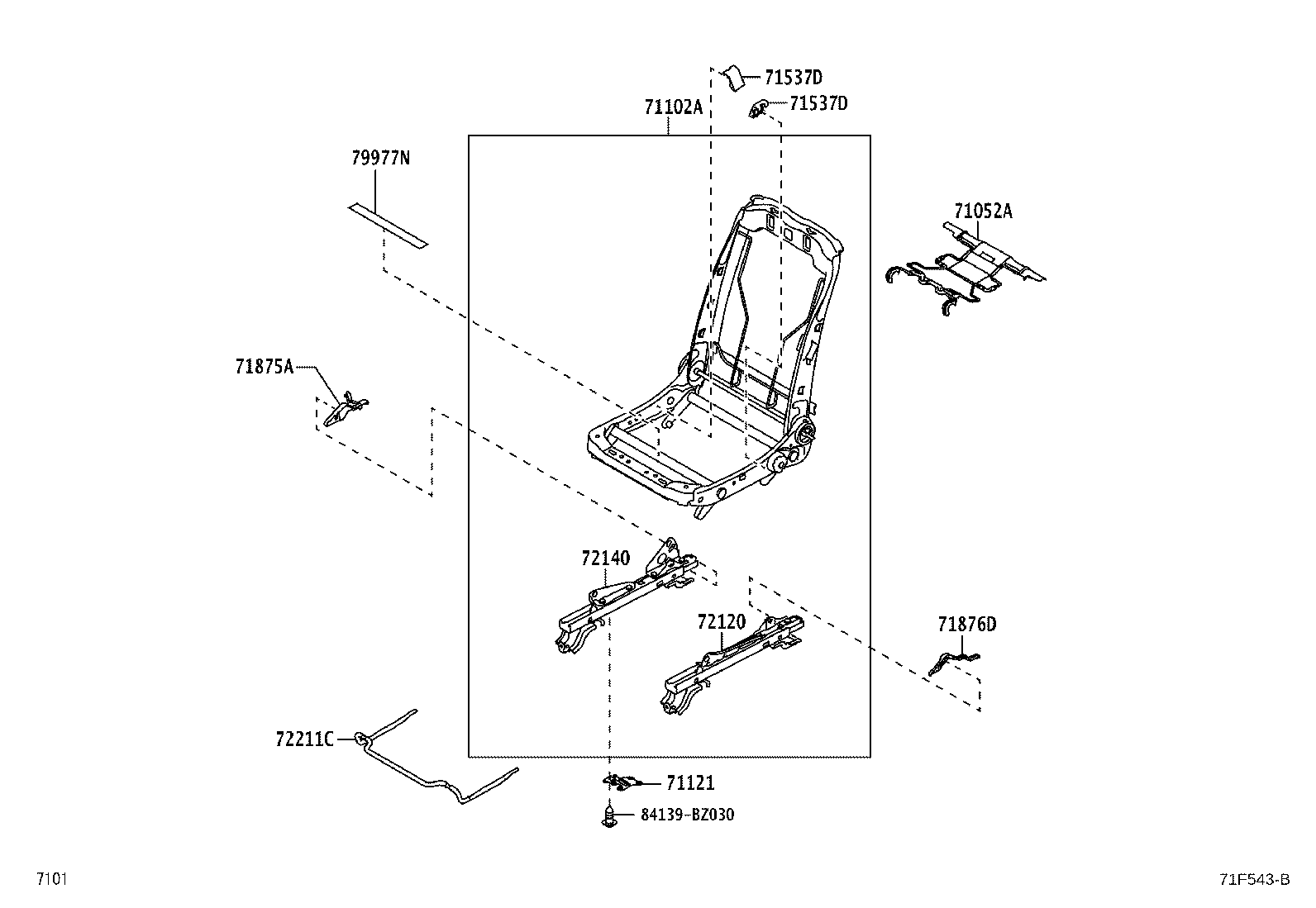

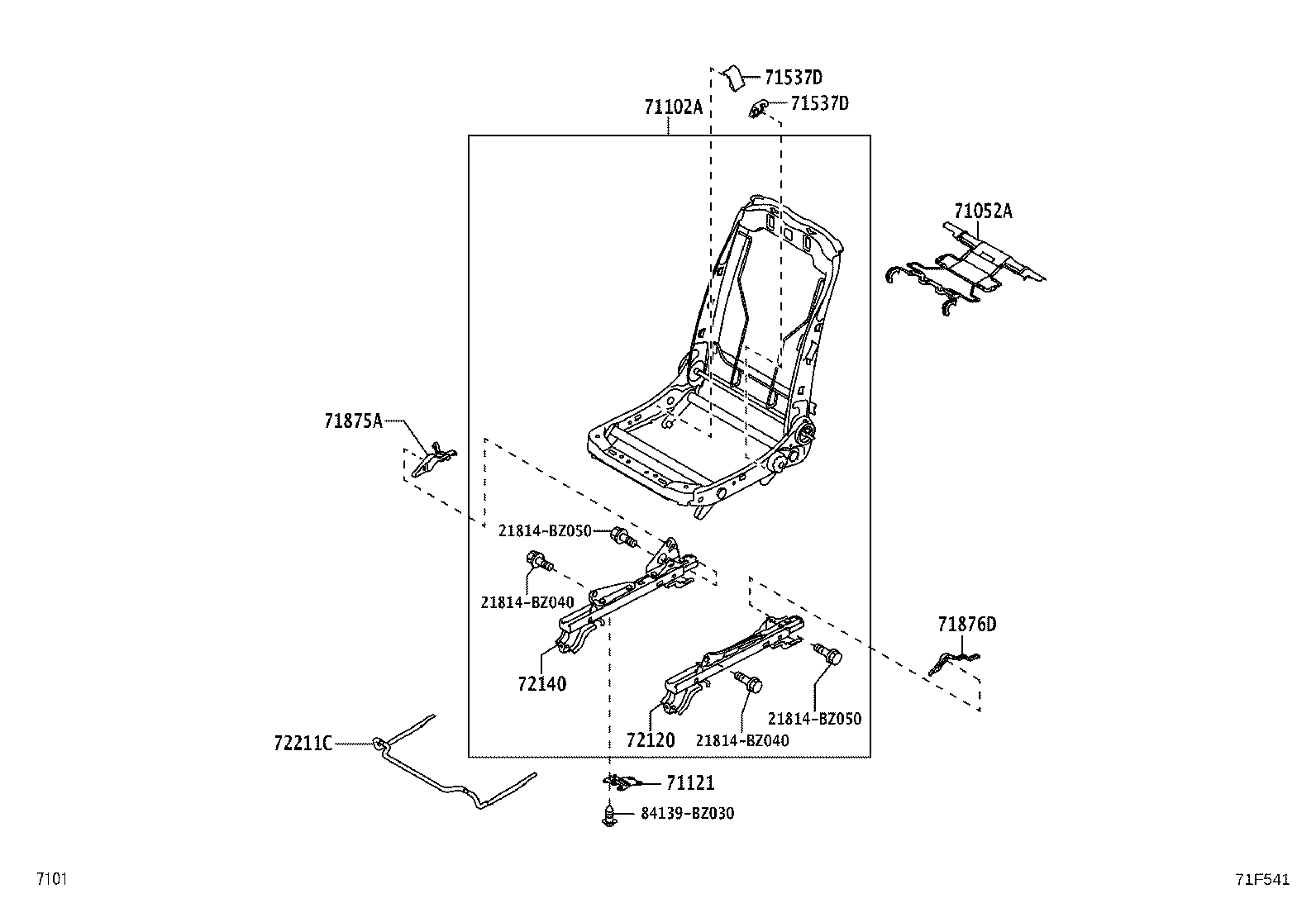

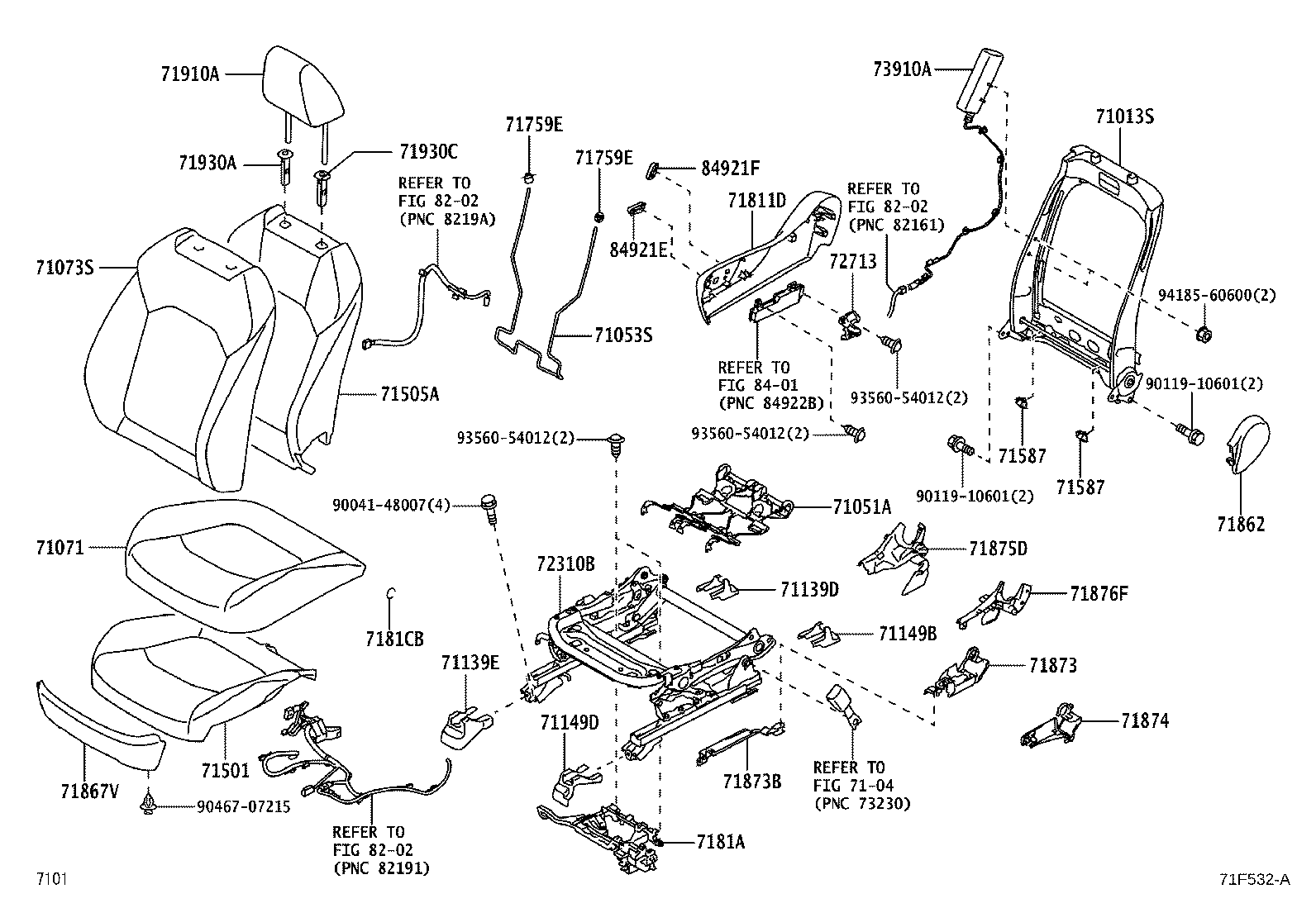

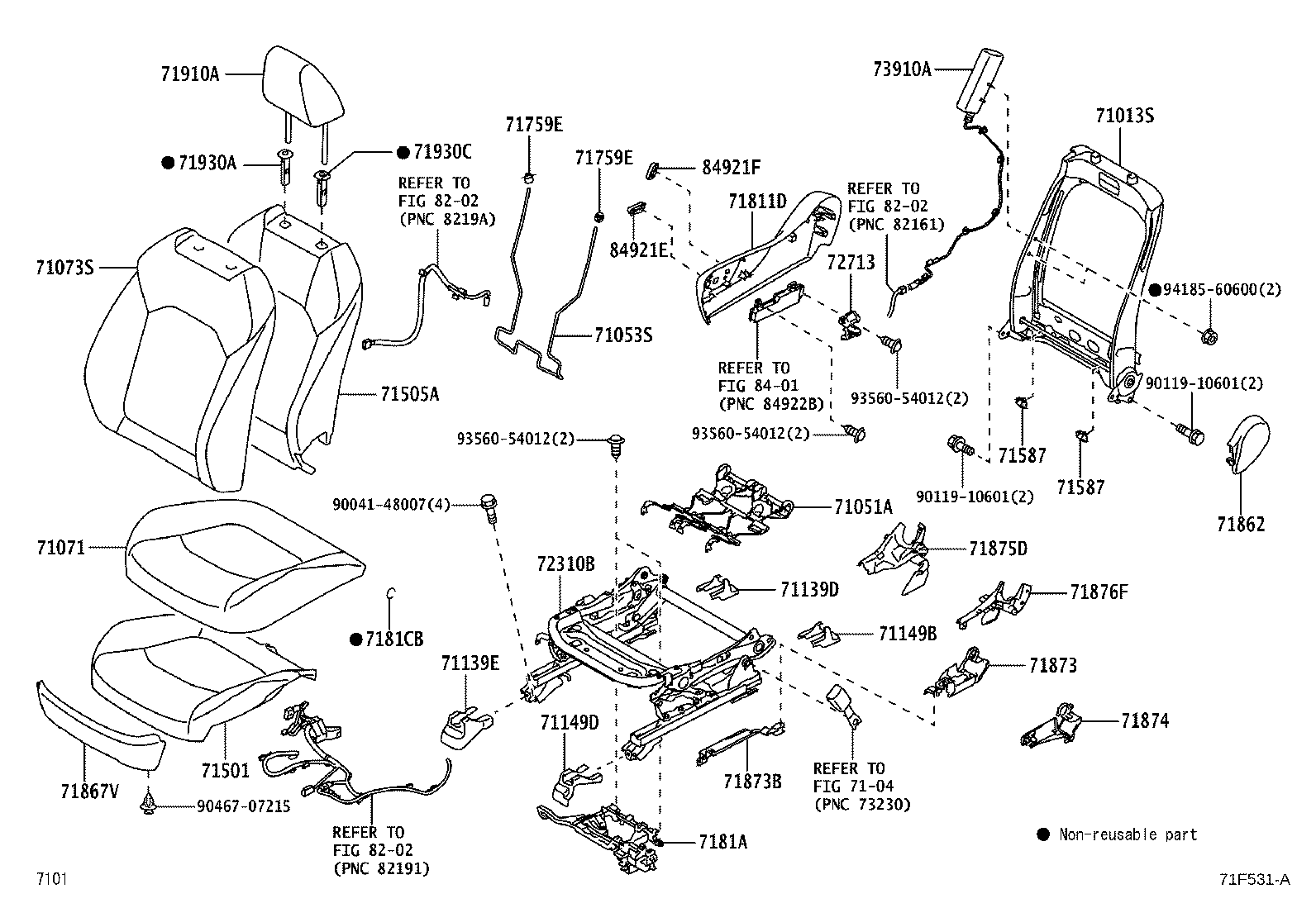

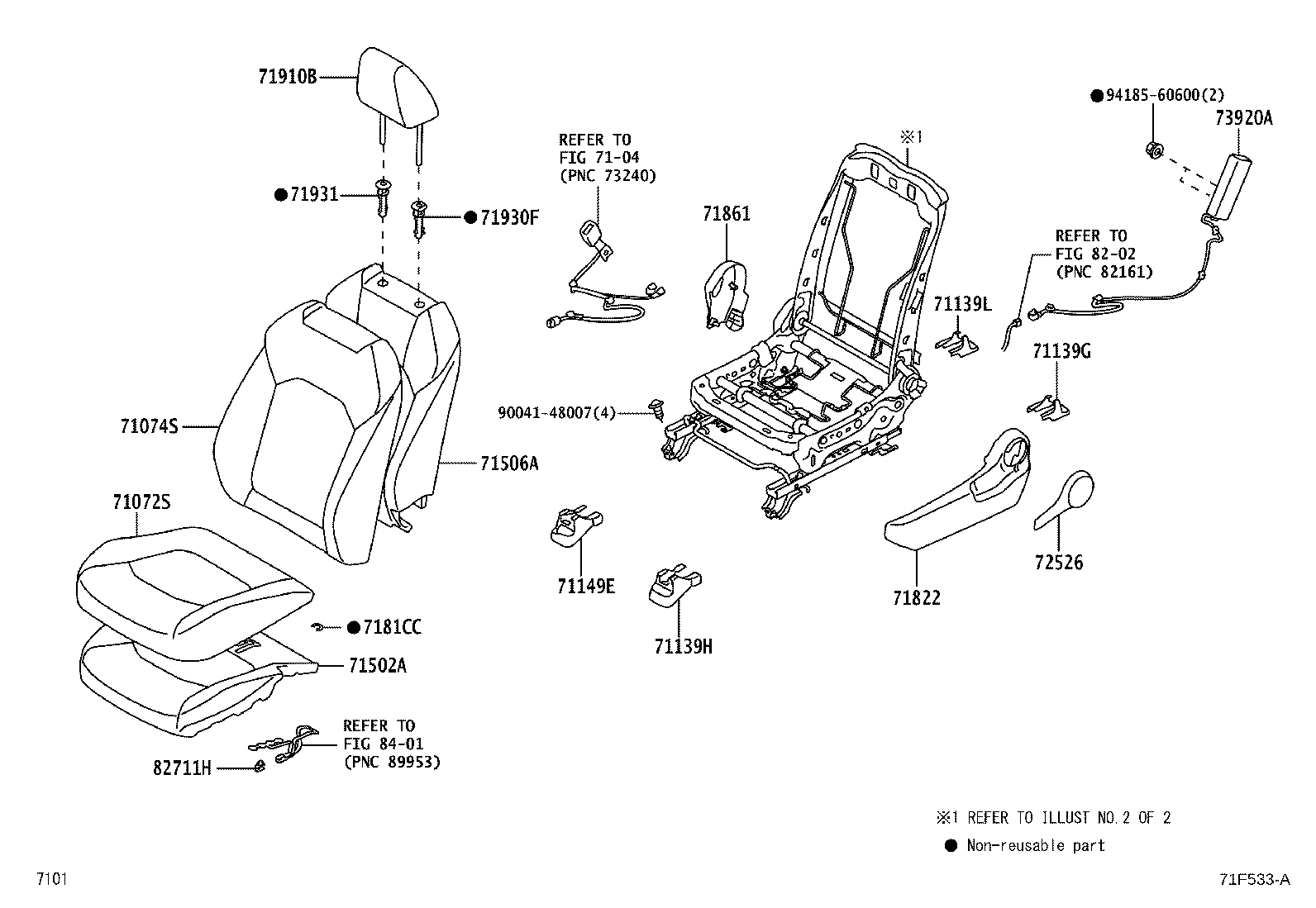

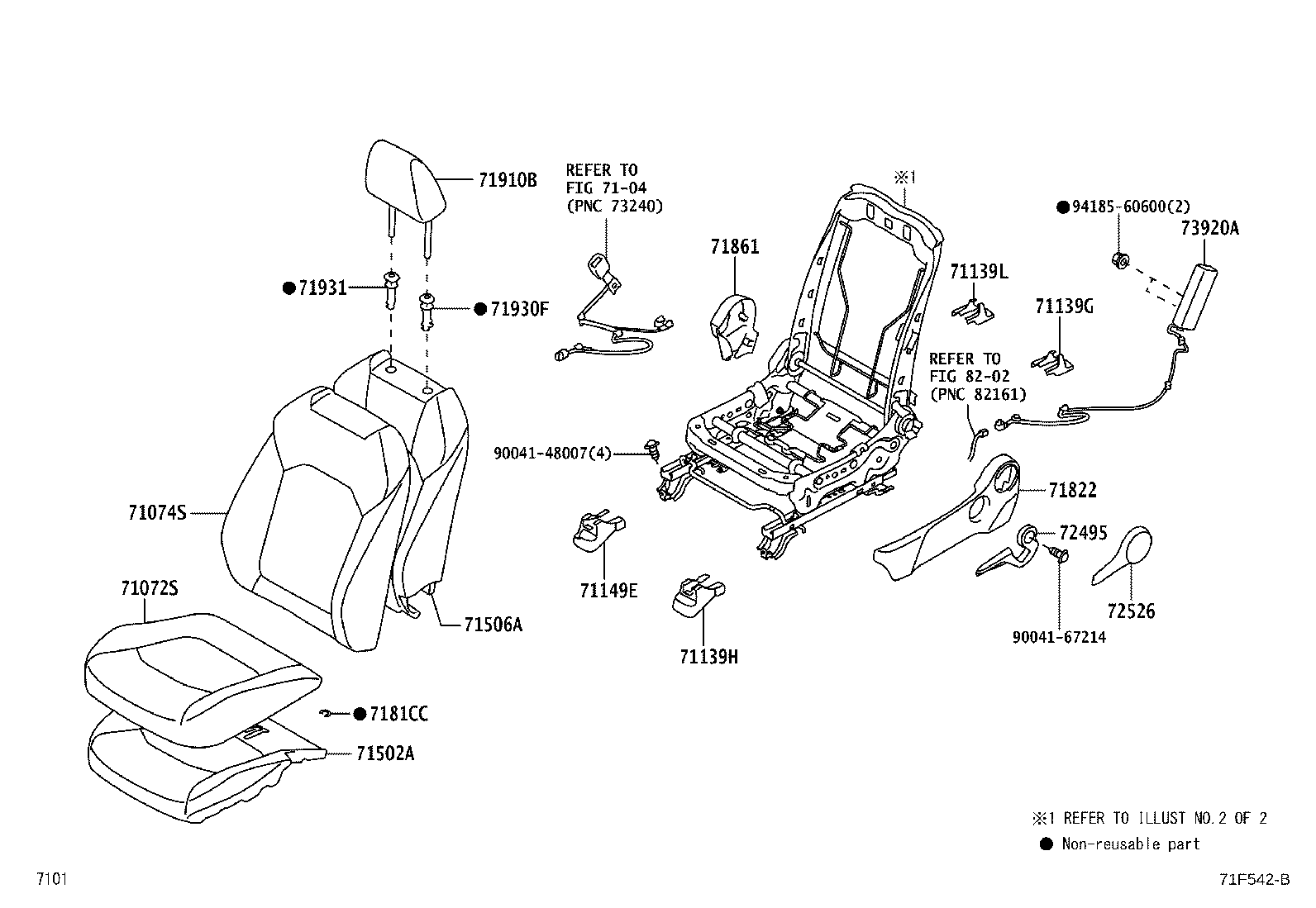

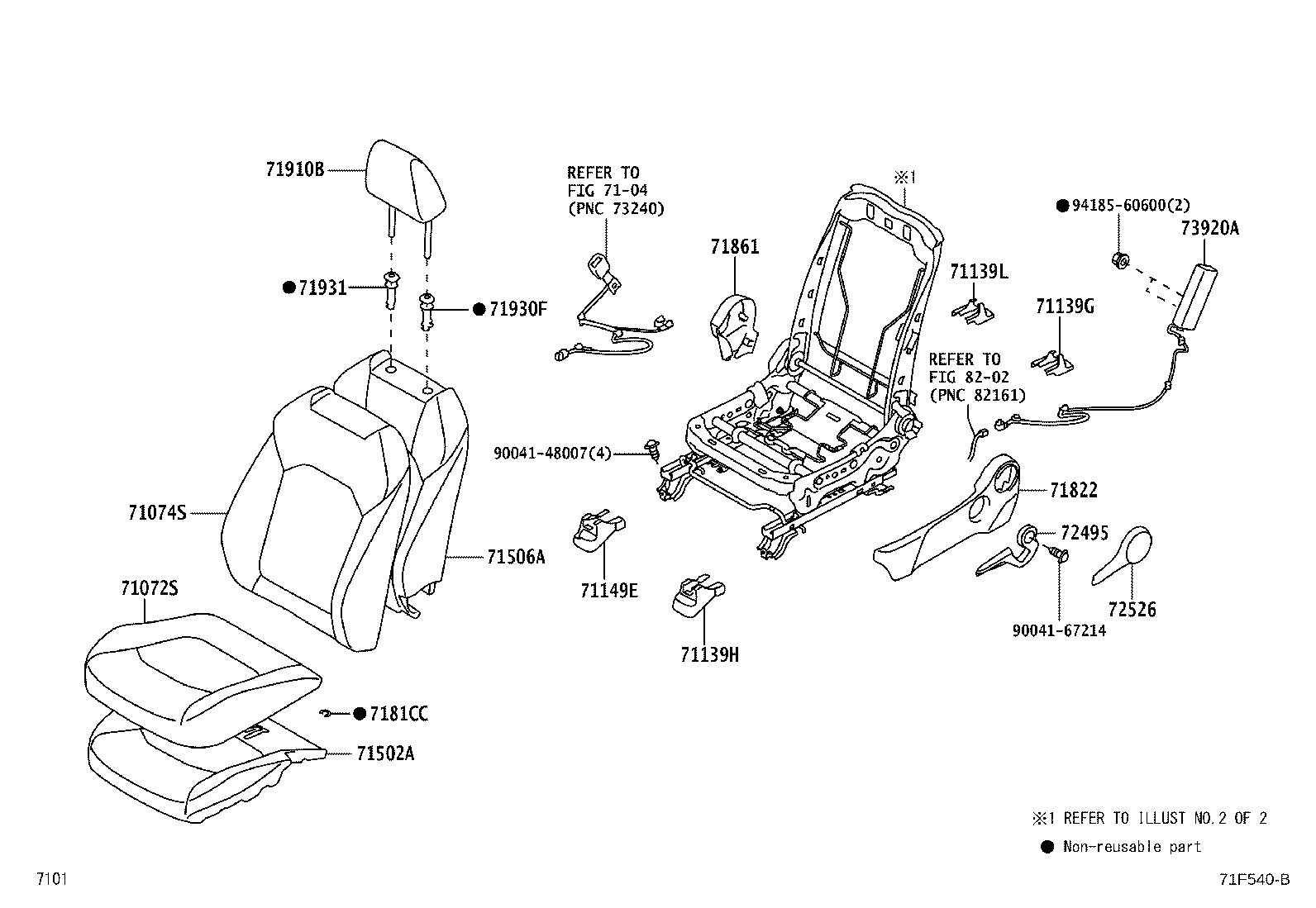

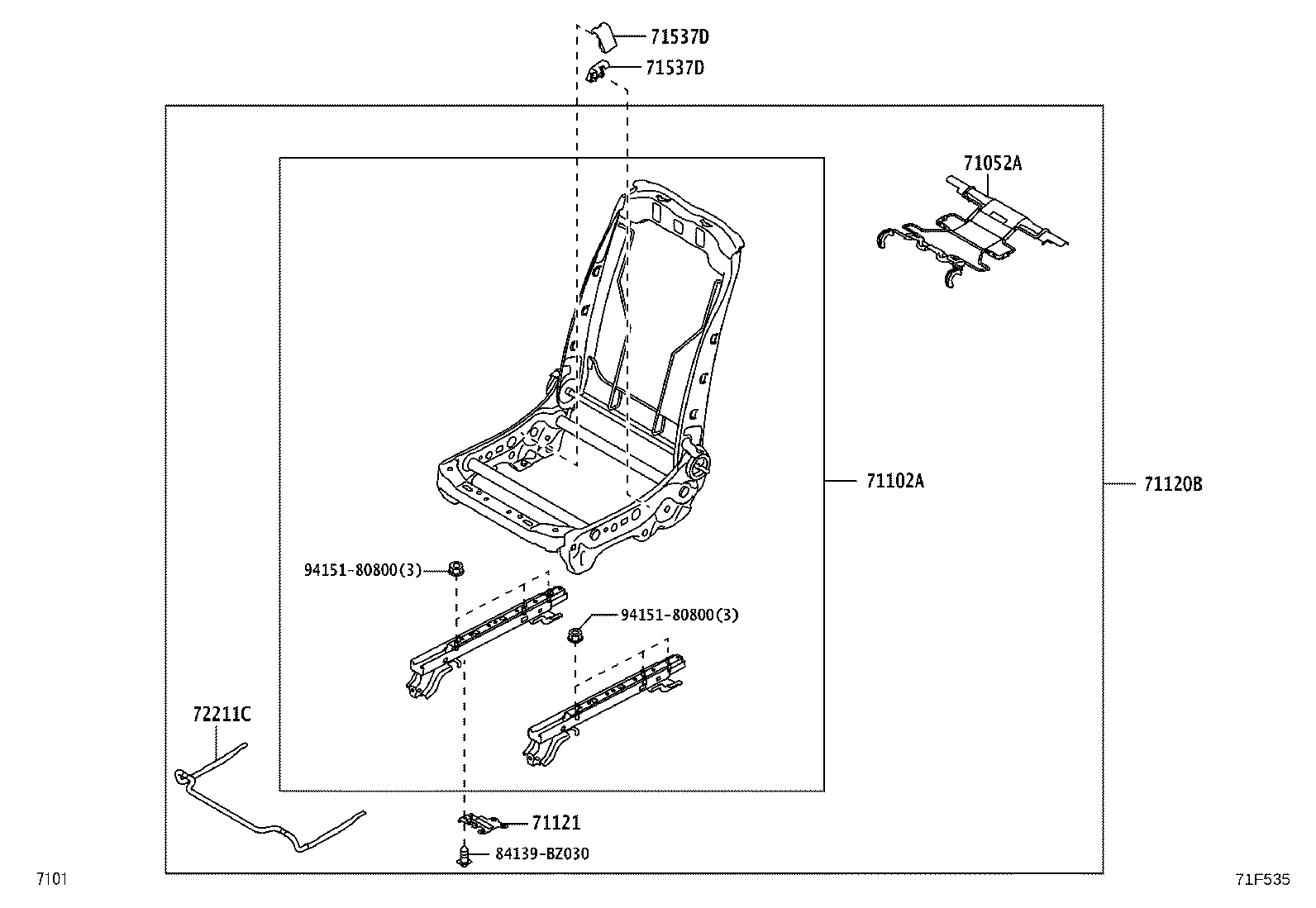

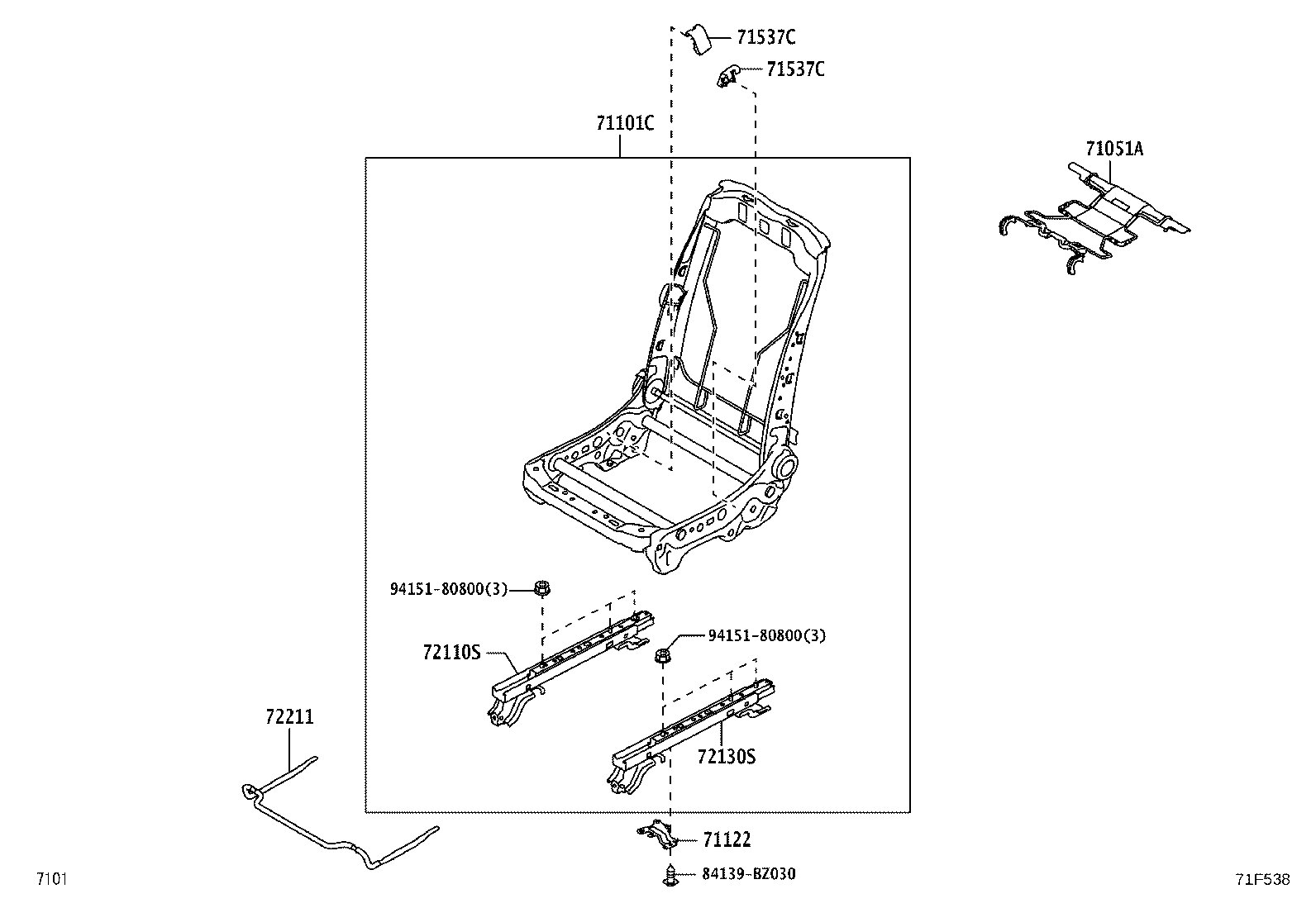

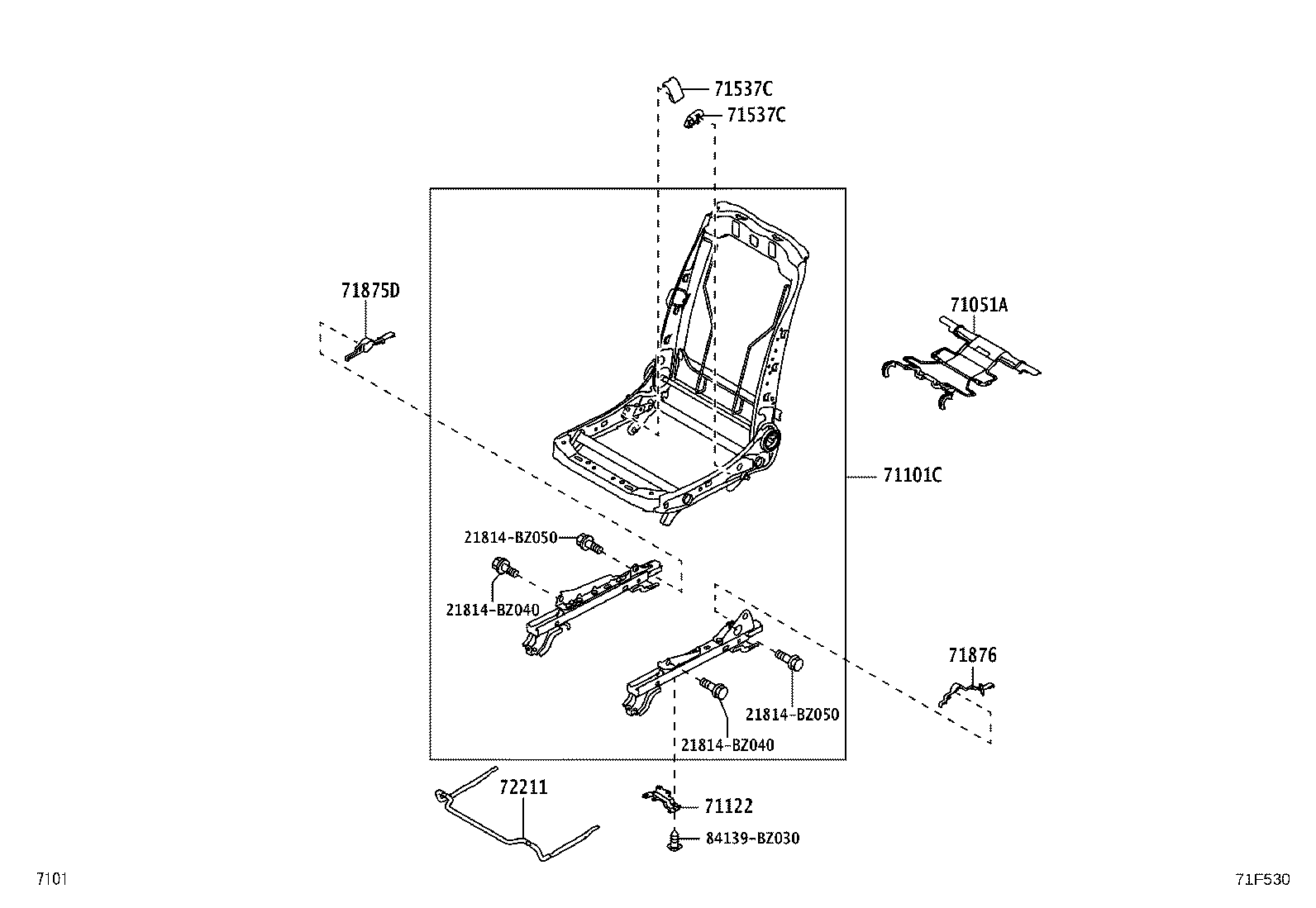

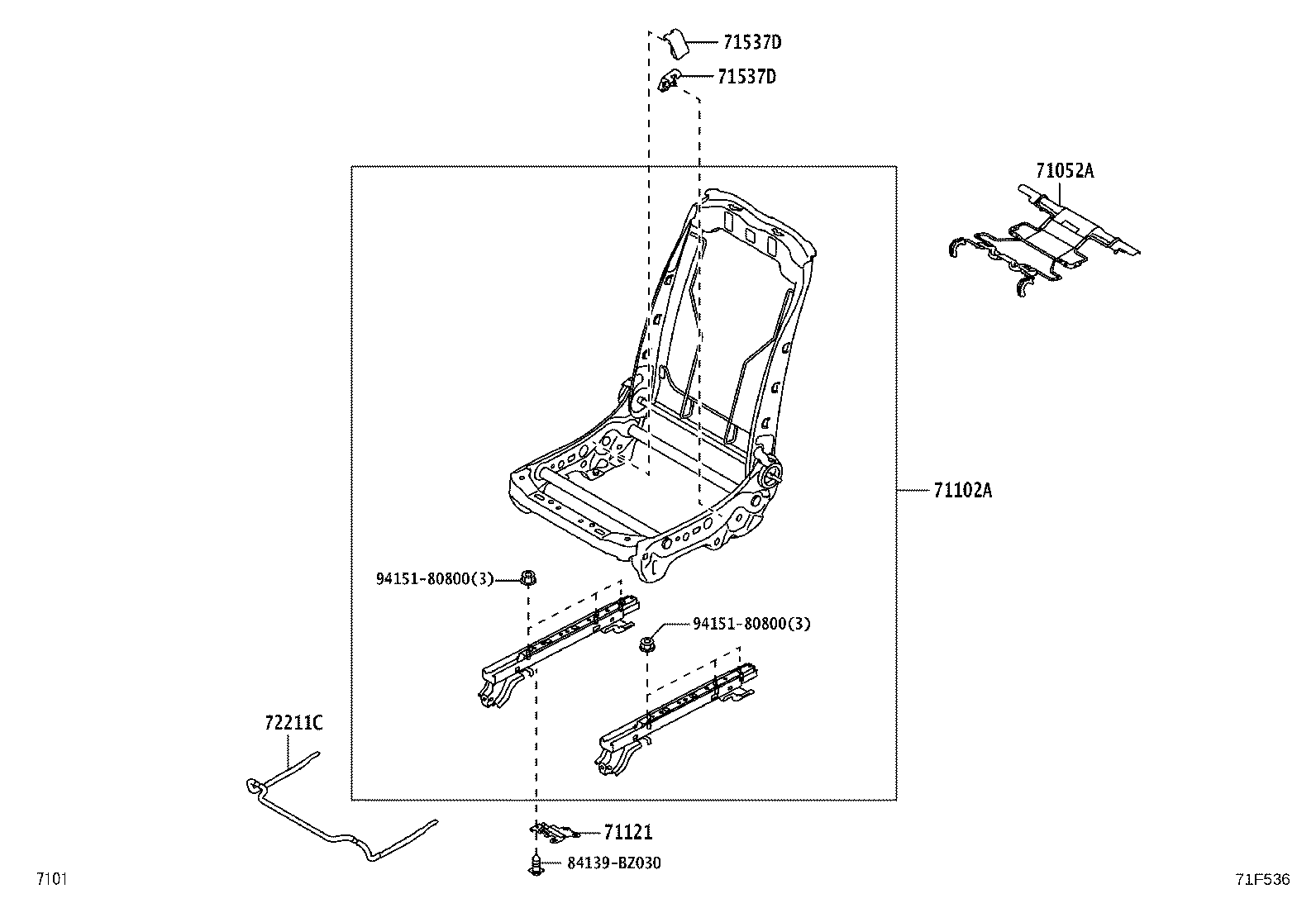

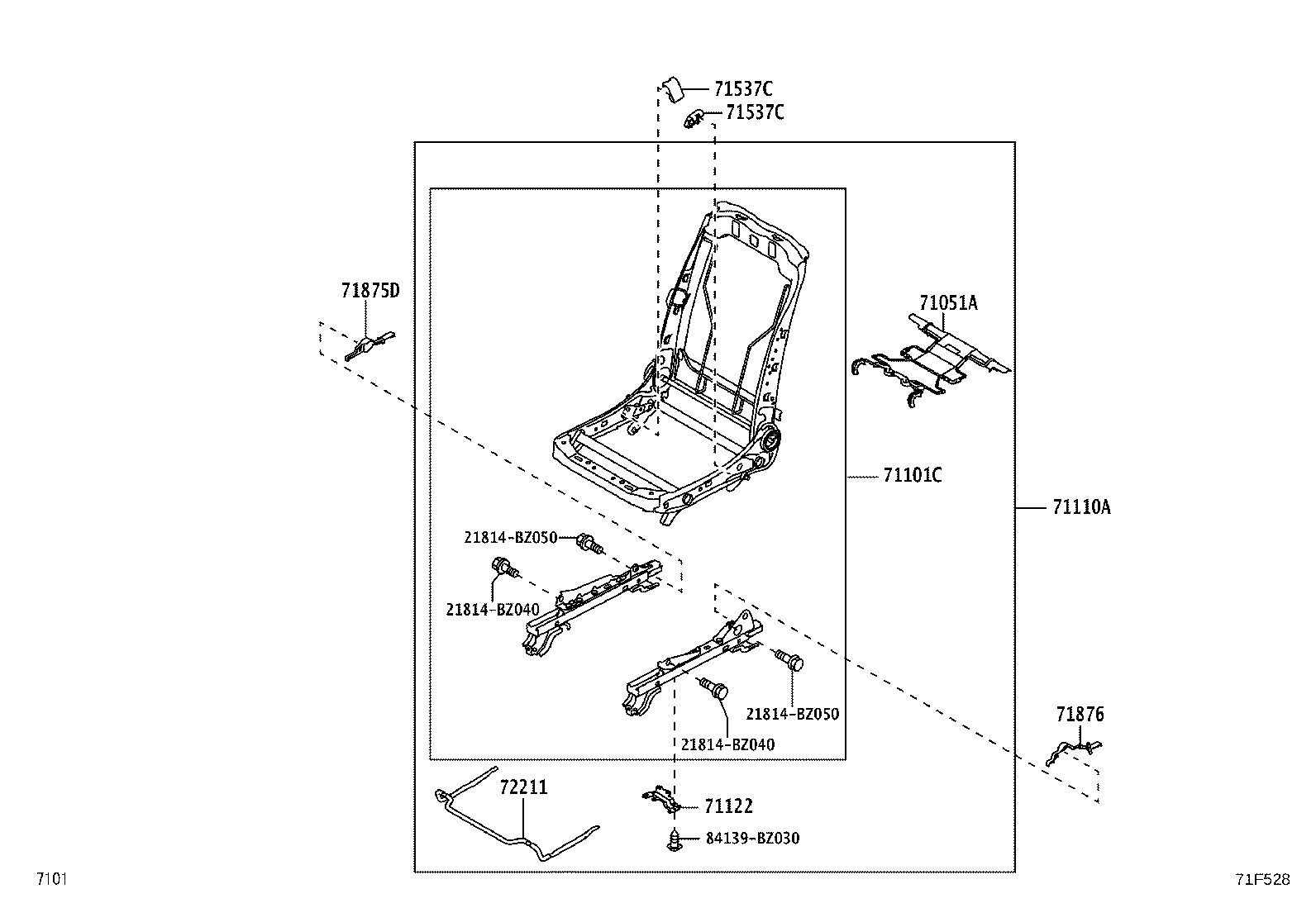

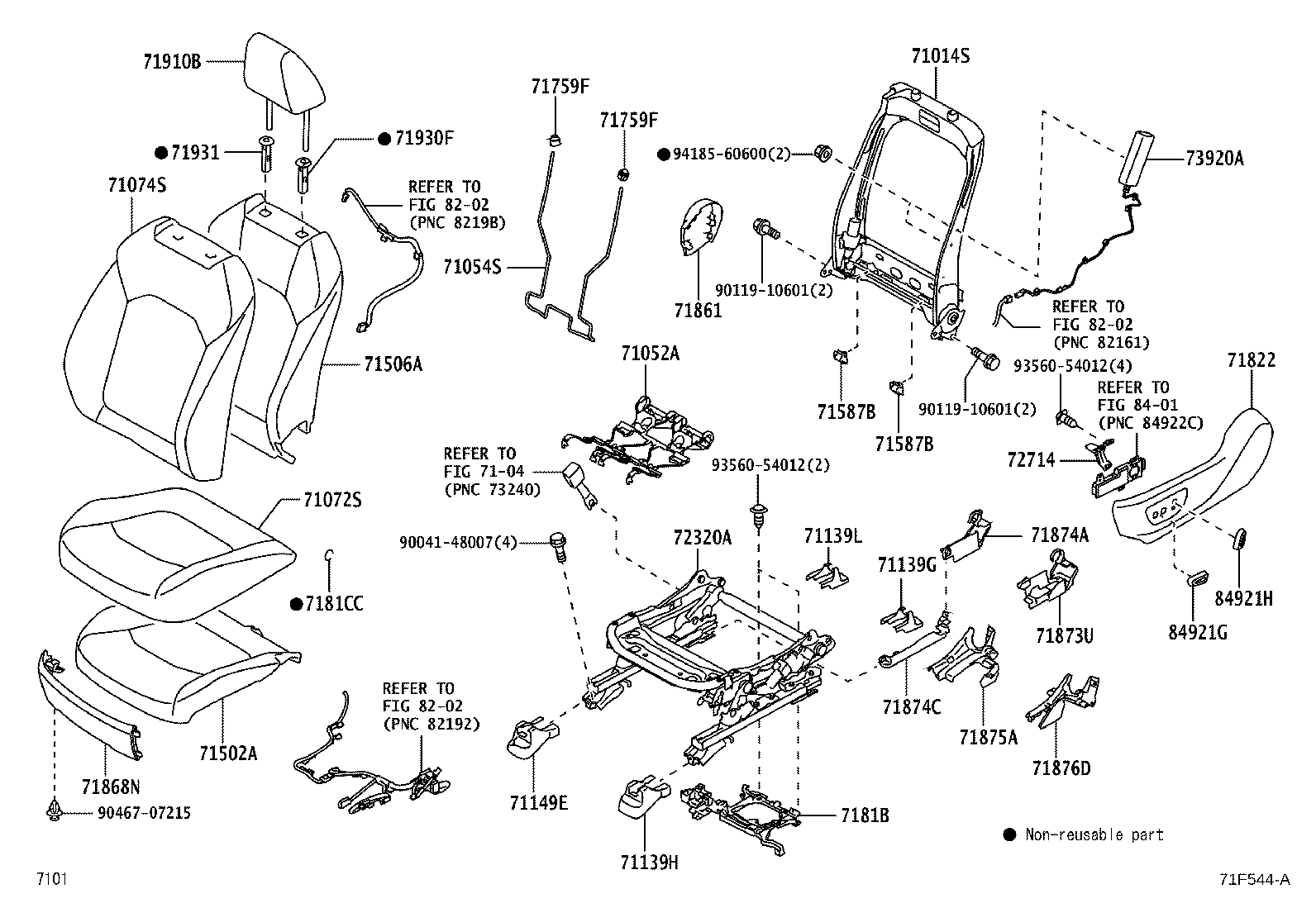

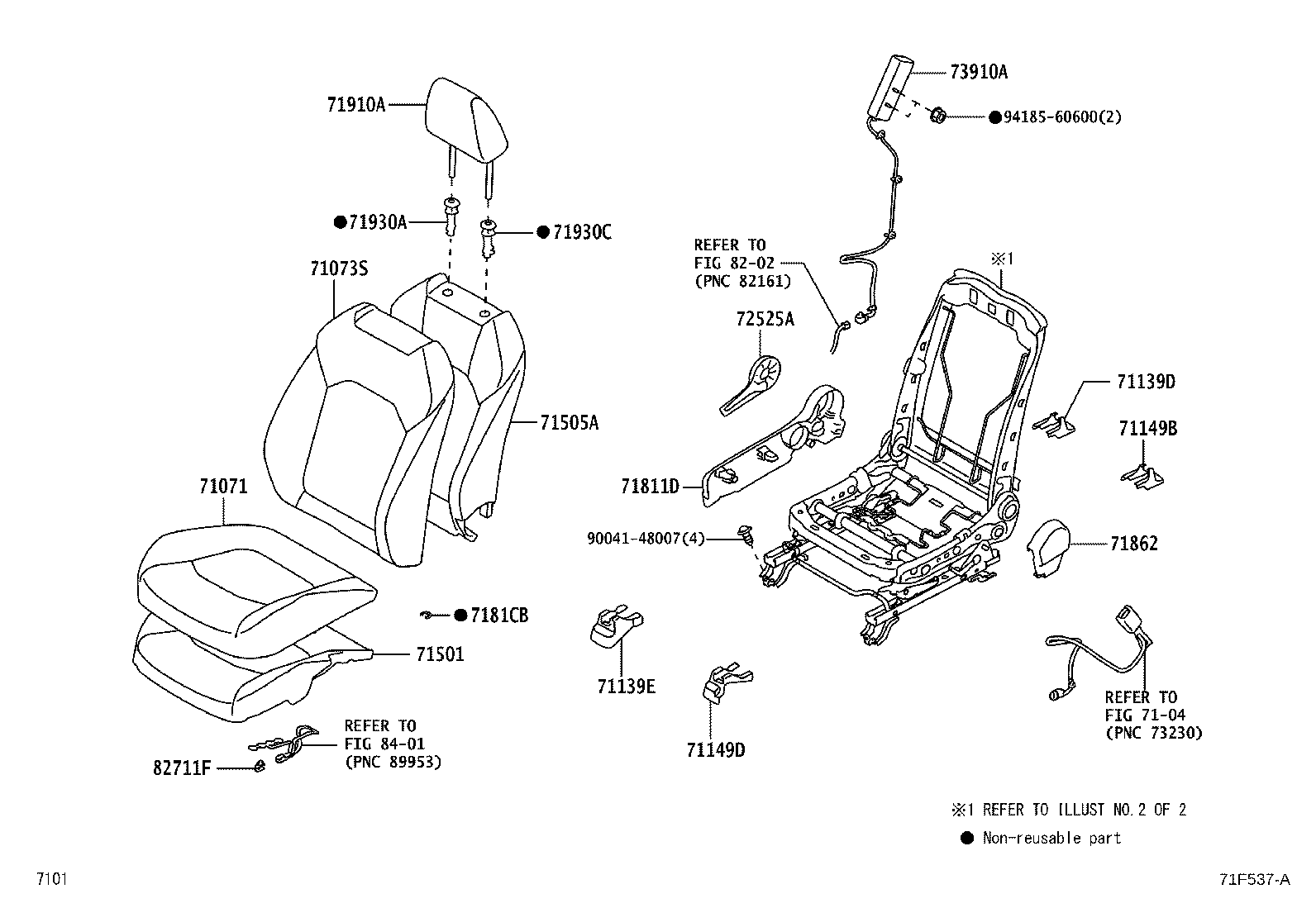

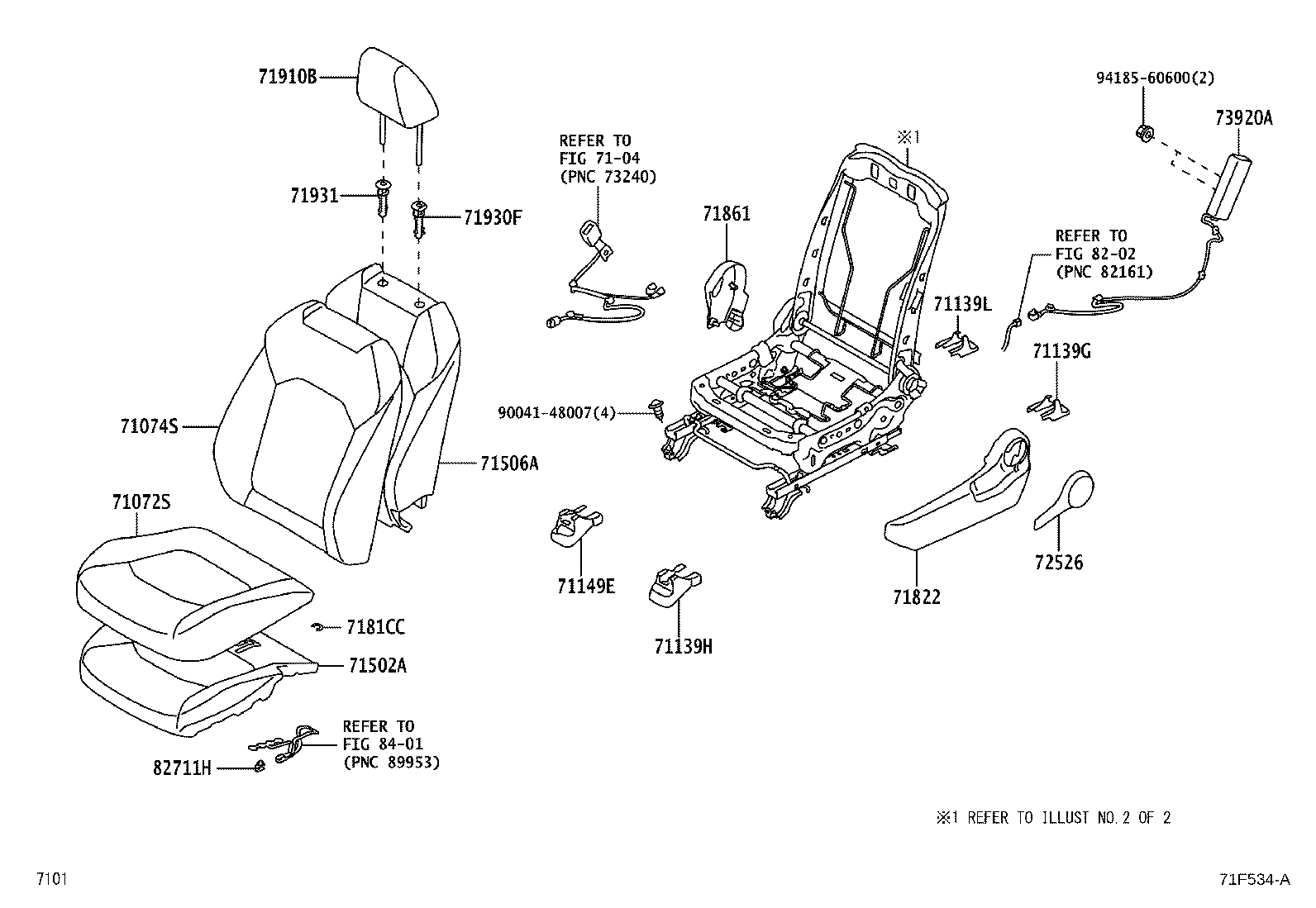

Figure 71F527B 71F527B 2023-06 → — Figure 71F527B 71F527B 2023-10 → — Figure 71F528 71F528 2023-06 → — Figure 71F530 71F530 2023-10 → — Figure 71F531A 71F531A 2023-06 → — Figure 71F531A 71F531A 2023-10 → — Figure 71F532A 71F532A 2024-06 → — Figure 71F533A 71F533A 2023-06 → — Figure 71F533A 71F533A 2023-10 → — Figure 71F534A 71F534A 2024-06 → — Figure 71F536 71F536 2023-06 → — Figure 71F536 71F536 2023-10 → — Figure 71F536 71F536 2024-06 → — Figure 71F535 71F535 2023-10 → — Figure 71F537A 71F537A 2023-06 → — Figure 71F538 71F538 2023-06 → — Figure 71F539B 71F539B 2023-10 → — Figure 71F540B 71F540B 2023-06 → — Figure 71F541 71F541 2023-06 → — Figure 71F542B 71F542B 2023-10 → — Figure 71F543B 71F543B 2023-10 → — Figure 71F544A 71F544A 2023-06 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071 Cover Sub-assy, Front Seat Cushion, RH
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71101C Seat Sub-assy, Front RH
71102A Seat Sub-assy, Front LH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71121 Bracket, Front Seat Cushion, RH
71122 Bracket, Front Seat Cushion, LH
71139D Cover, Front Seat Leg NO.1
71139E Cover, Front Seat Leg NO.2
71139G Cover, Front Seat Leg
71139H Cover, Front Seat Leg
71139L Cover, Front Seat Leg, RH(FOR LH SEAT)
71149B Cover, Front Seat Leg, LH (FOR RH SEAT)
71149D Cover, Front Seat Leg, Inner (FOR RH SEAT)
71149E Cover, Front Seat Leg, Inner (FOR LH SEAT)
71501 Pad Sub-assy, Front Seat Cushion, RH
71502A Pad Sub-assy, Front Seat Cushion, LH
71505A Pad Sub-assy, Front Seatback, RH
71506A Pad Sub-assy, Front Seatback, LH
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71587 Protector, Front Seatback Edge
71587B Protector, Front Seatback Edge
71759E Hook, Front Seatback, RH
71759F Hook, Front Seatback, LH
71811D Shield, Front Seat Cushion, RH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
7181CB Ring, Hog, Small (FOR FRONT SEAT CUSHION)
7181CC Ring, Hog, Small (FOR FRONT SEAT CUSHION)
71822 Shield, Front Seat Side, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71868N Shield, Front Seat Cushion, Front LH
71873 Shield, Front Seat Cushion, Lower RH
71873B Shield, Front Seat Cushion, Lower RH, NO.1
71873U Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71874C Shield, Front Seat Cushion, Lower
71875A Cover, Reclining Adjuster Inside, RH
71875D Cover, Reclining Adjuster Outside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876D Cover, Reclining Adjuster Outside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71910A Headrest Assy, Front Seat
71910B Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
71930C Support, Front Seat Headrest, LH
71930F Support Assy, Front Seat Headrest, LH
71931 Support, Front Seat Headrest
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120 Track Assy, Front Seat, Outer LH
72130S Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
72140 Track Assy, LH Seat, Inner
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72310B Adjuster Assy, Front Seat Vertical, RH
72320A Adjuster Assy, Front Seat Vertical, LH
72494A Handle, Front Seat Vertical Adjuster, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72713 Bracket, Seat Adjuster Shield Clamp, RH
72714 Bracket, Seat Adjuster Shield Clamp, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79977A Felt, Seatback
79977N Felt, Seatback
82711F Clamp, Wiring Harness
82711H Clamp, Wiring Harness
84921E Knob, Power Seat Switch
84921F Knob, Power Seat Switch
84921G Knob, Power Seat Switch
84921H Knob, Power Seat Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
