Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

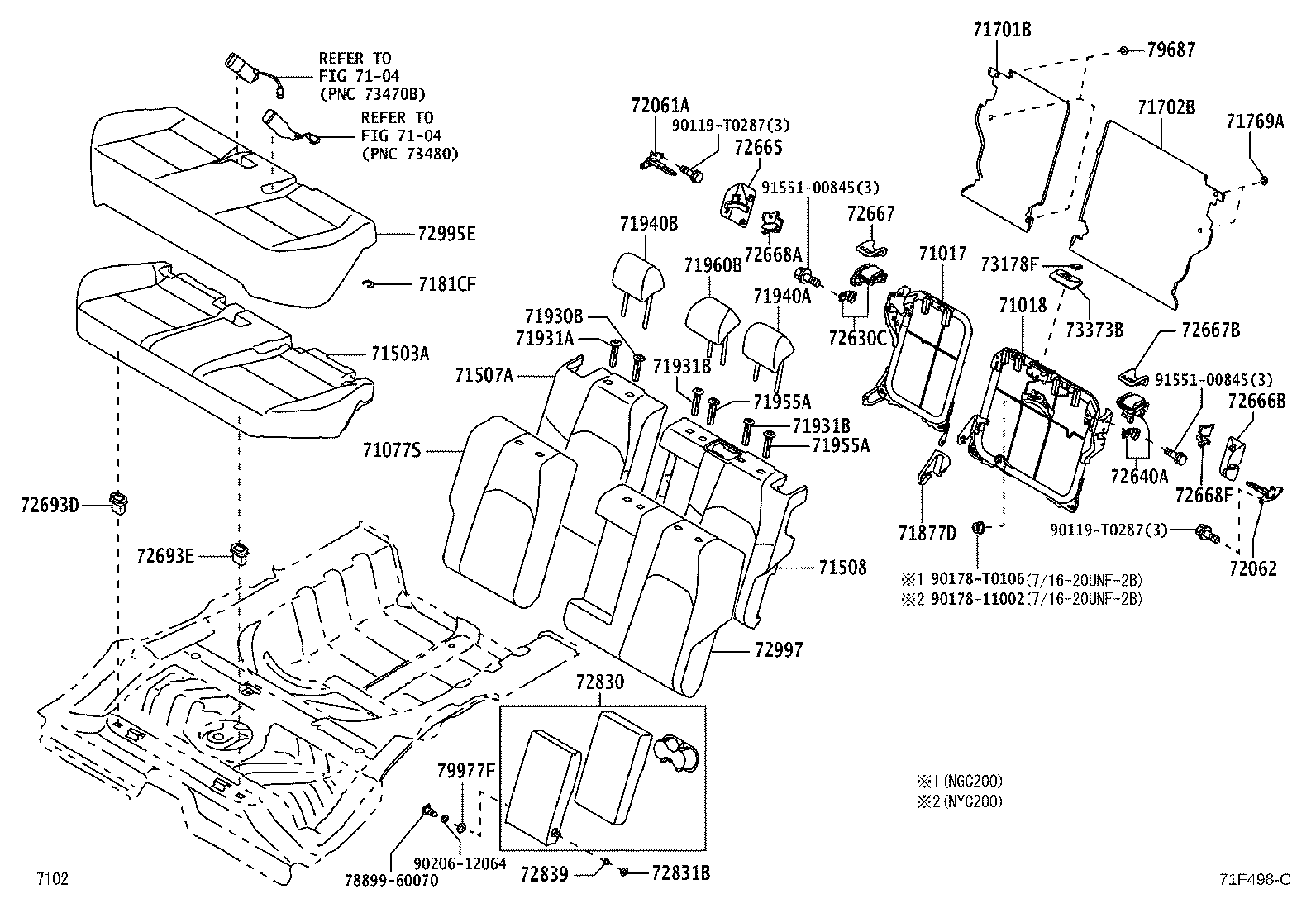

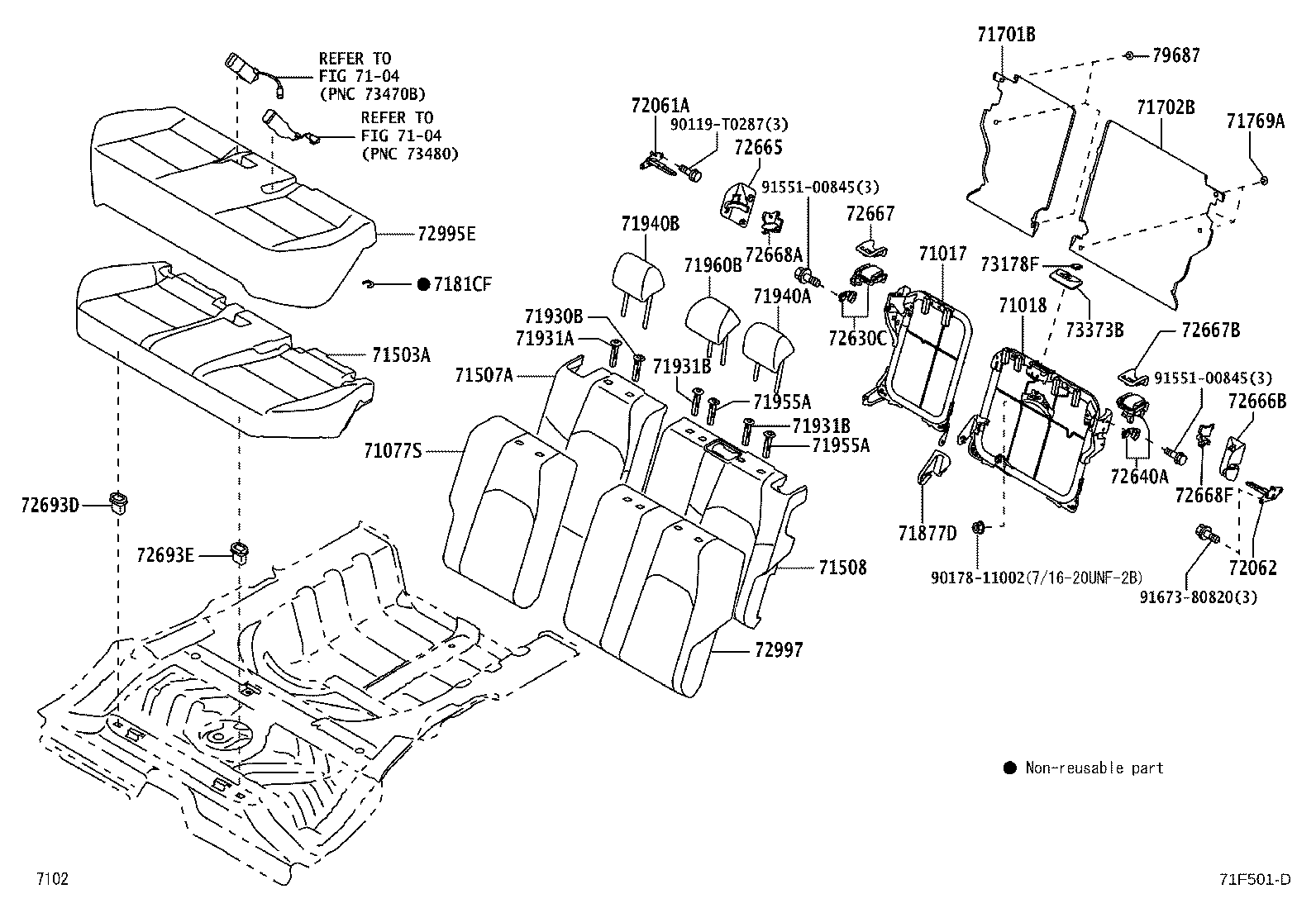

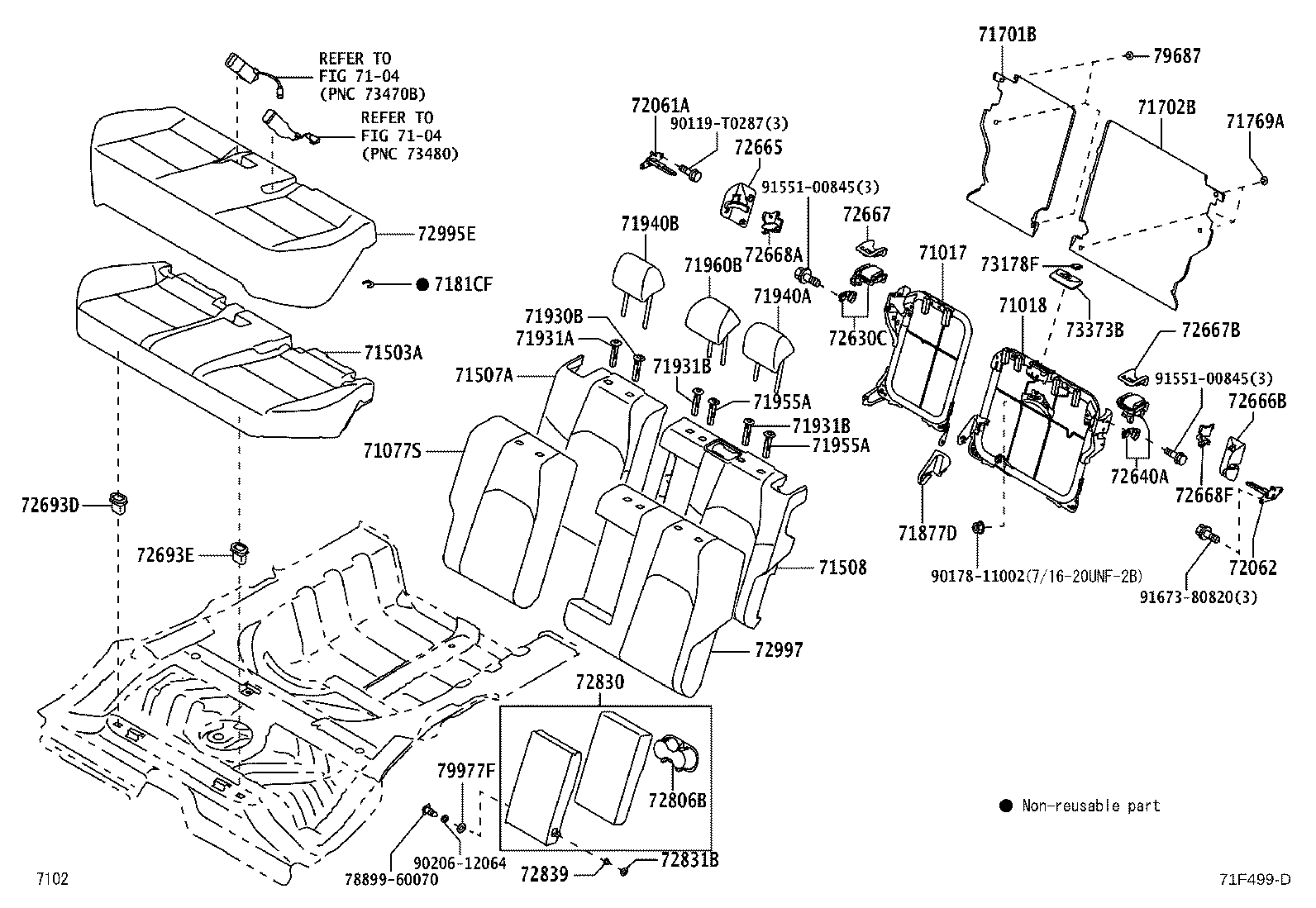

Rear Seat & Seat Track
42 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71503A | Pad Sub-assy, Rear Seat Cushion |
| 71507A | Pad Sub-assy, Rear Seatback |
| 71508 | Pad Sub-assy, Rear Seatback, LH |
| 71701B | Board Sub-assy, Rear Seatback, RH |
| 71702B | Board Sub-assy, Rear Seatback, LH |
| 71769A | Clip, Rear Seatback Board |
| 7181CF | Ring, Hog, Small (FOR REAR SEAT CUSHION) |
| 71877D | Cover, Rear Seat Armrest Hole |
| 71930B | Support Assy, Rear Seat Headrest |
| 71931A | Support, Rear Seat Headrest |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71940B | Headrest Assy, Rear Seat, RH |
| 71955A | Support, Rear Seat Headrest |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72061A | Base Sub-assy, Rear Seatback Lock, RH |
| 72062 | Base Sub-assy, Rear Seatback Lock, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72665 | Cover, Rear Seatback Lock, RH |
| 72666B | Cover, Rear Seat Lock, LH |
| 72667 | Bezel, Rear Seatback Lock, Upper |
| 72667B | Bezel, Rear Seatback Lock, Upper LH |
| 72668A | Bezel, Rear Seatback Lock, Lower |
| 72668F | Bezel, Rear Seatback Lock, Lower LH |
| 72693D | Hook, Rear Seat Cushion Lock, RH |
| 72693E | Hook, Rear Seat Cushion Lock, LH |
| 72806B | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72831B | Plate, Rear Seat Center Armrest, NO.1 |
| 72839 | Shim, Rear Seat Armrest Hinge |
| 72995E | Cover, Rear Seat Cushion |
| 72997 | Cover, Rear Seatback, LH |
| 73178F | Cap, Seat Belt Anchor Cover, NO.3 |
| 73373B | Cover, Rear NO.1 Seat Shoulder Belt |

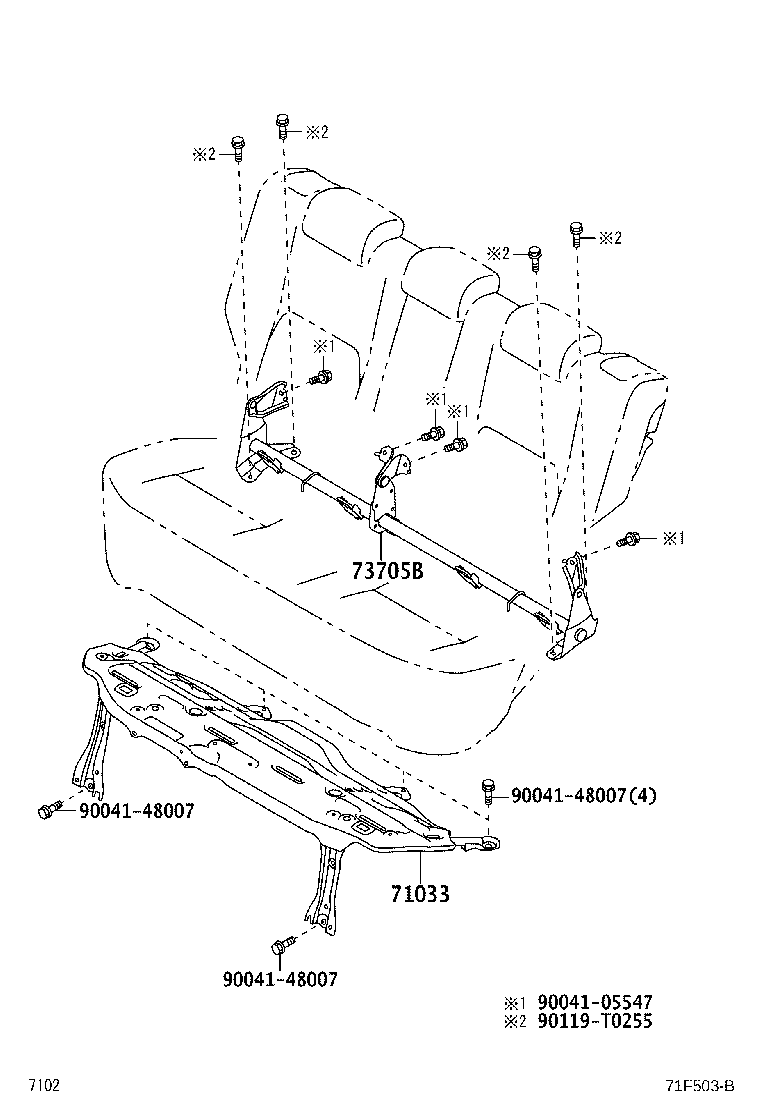

| 73705B | Bracket Sub-assy, Cross Anchor |
| 79687 | Clip |
| 79977F | Felt, Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
