Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09
Seat Belt & Child Restraint Seat
13 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

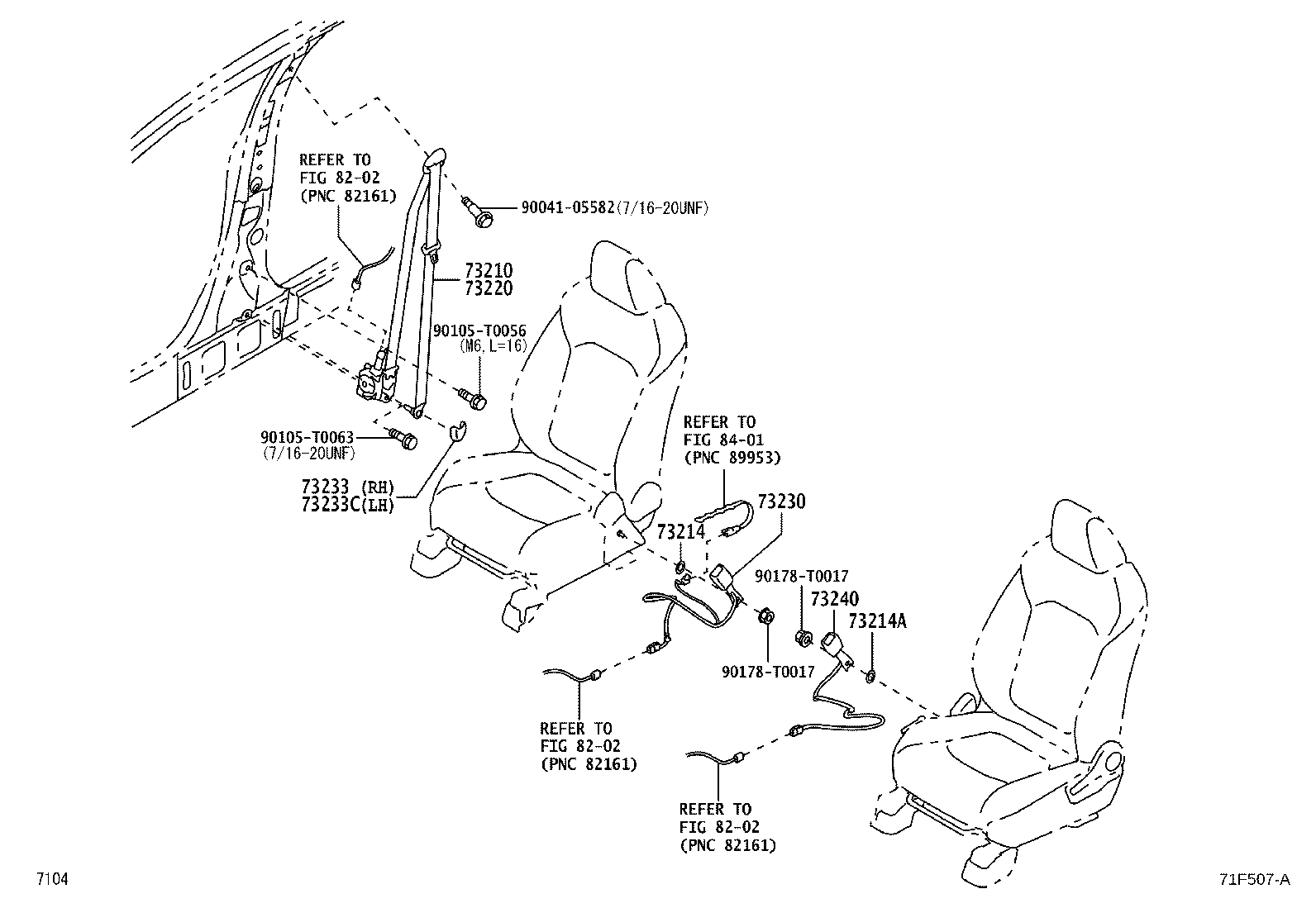

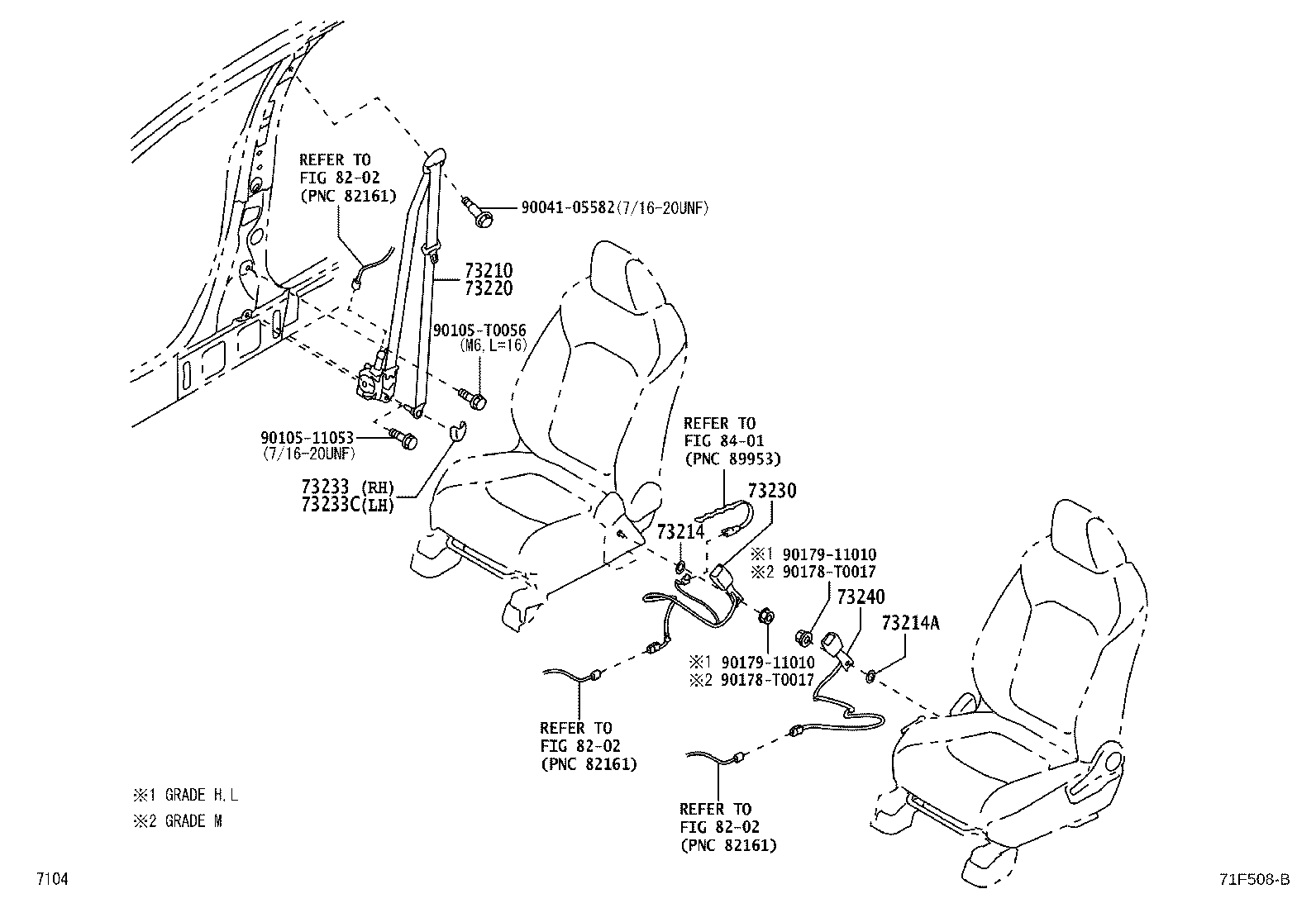

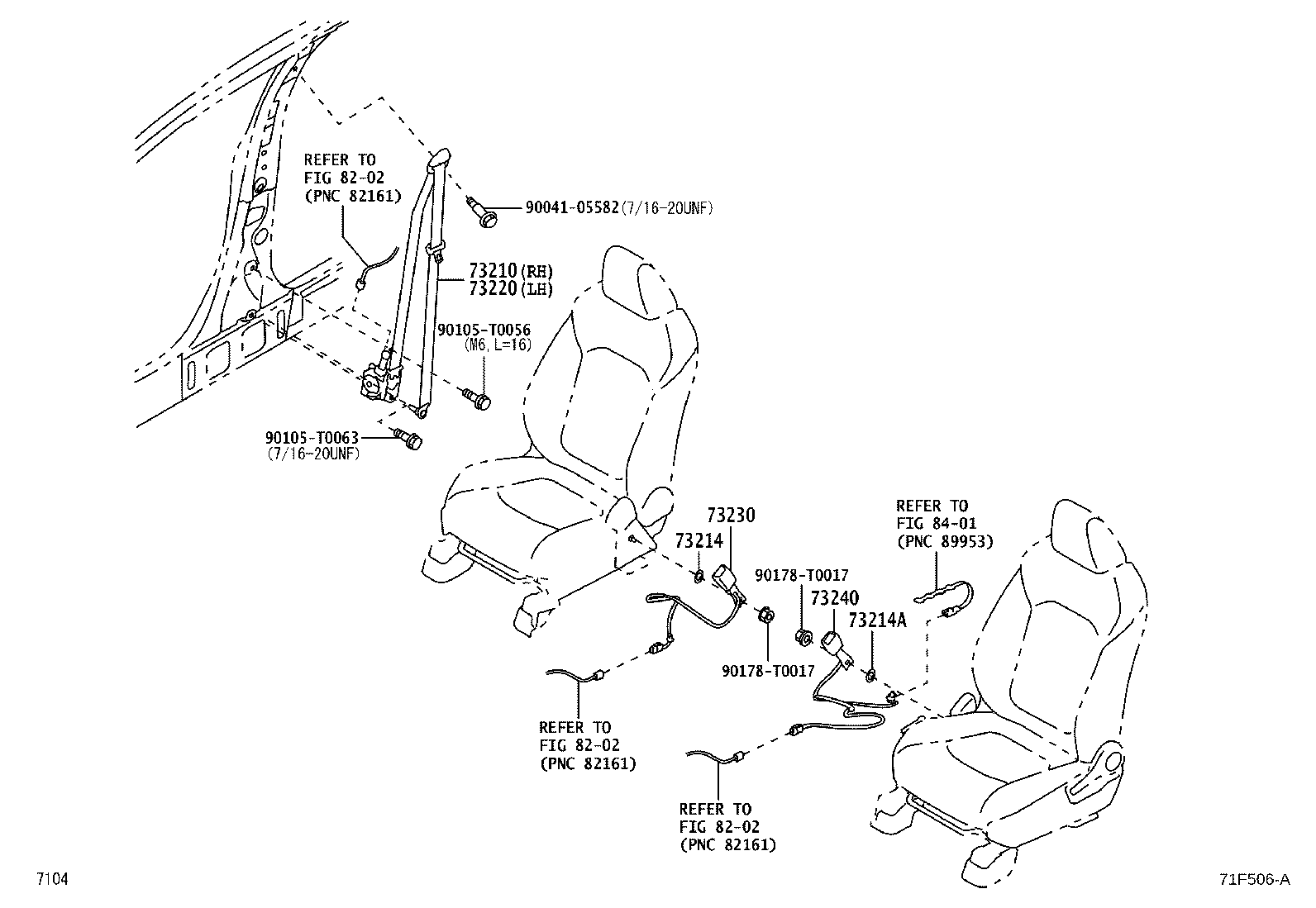

| 73210 | Belt Assy, Front Seat Outer, RH |
| 73214 | Plate, Front Seat Belt Anchor |
| 73214A | Plate, Front Seat Belt Anchor, NO.2 |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73233C | Cover, Lap Belt Outer Anchor, LH |
| 73240 | Belt Assy, Front Seat Inner, LH |

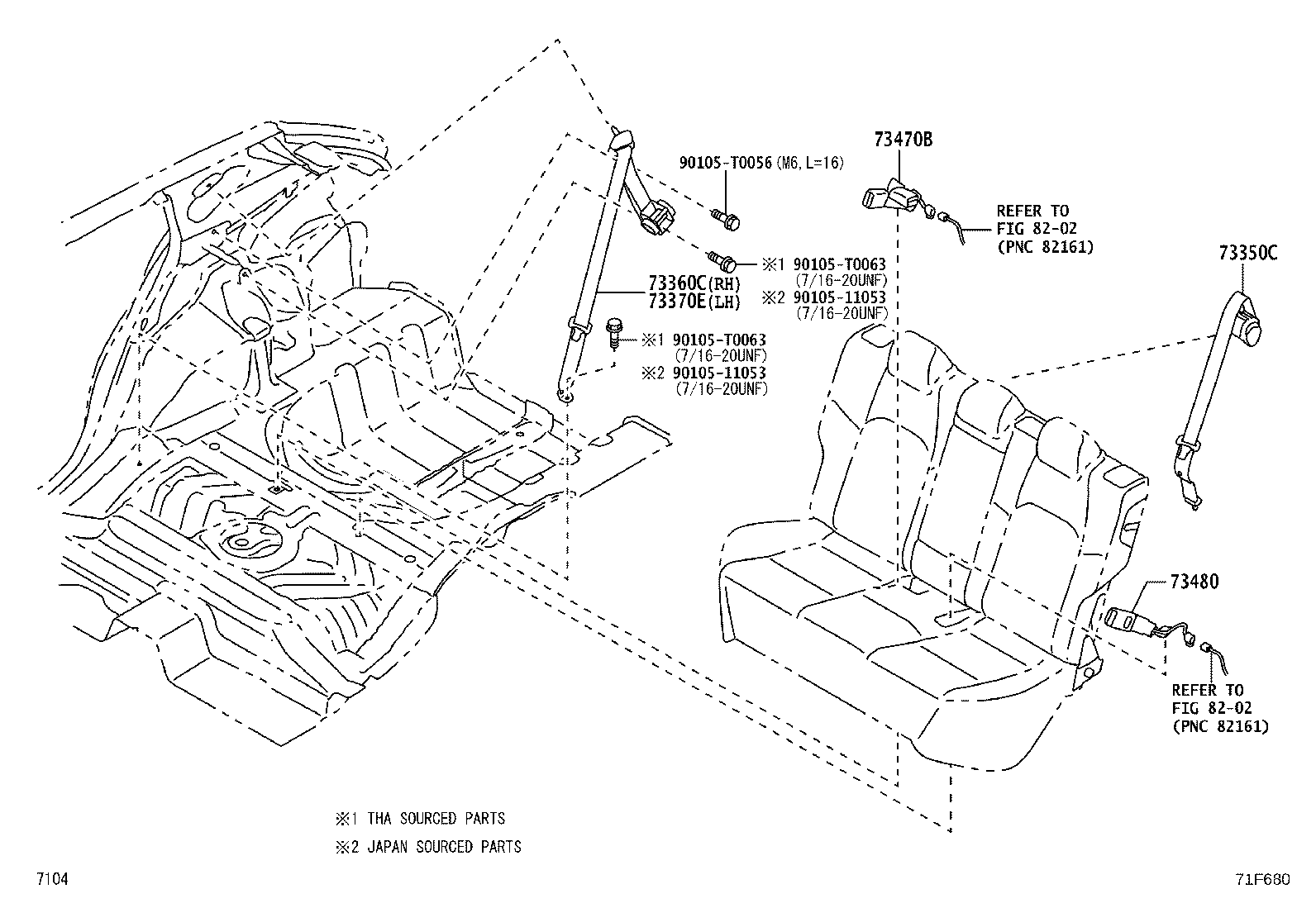

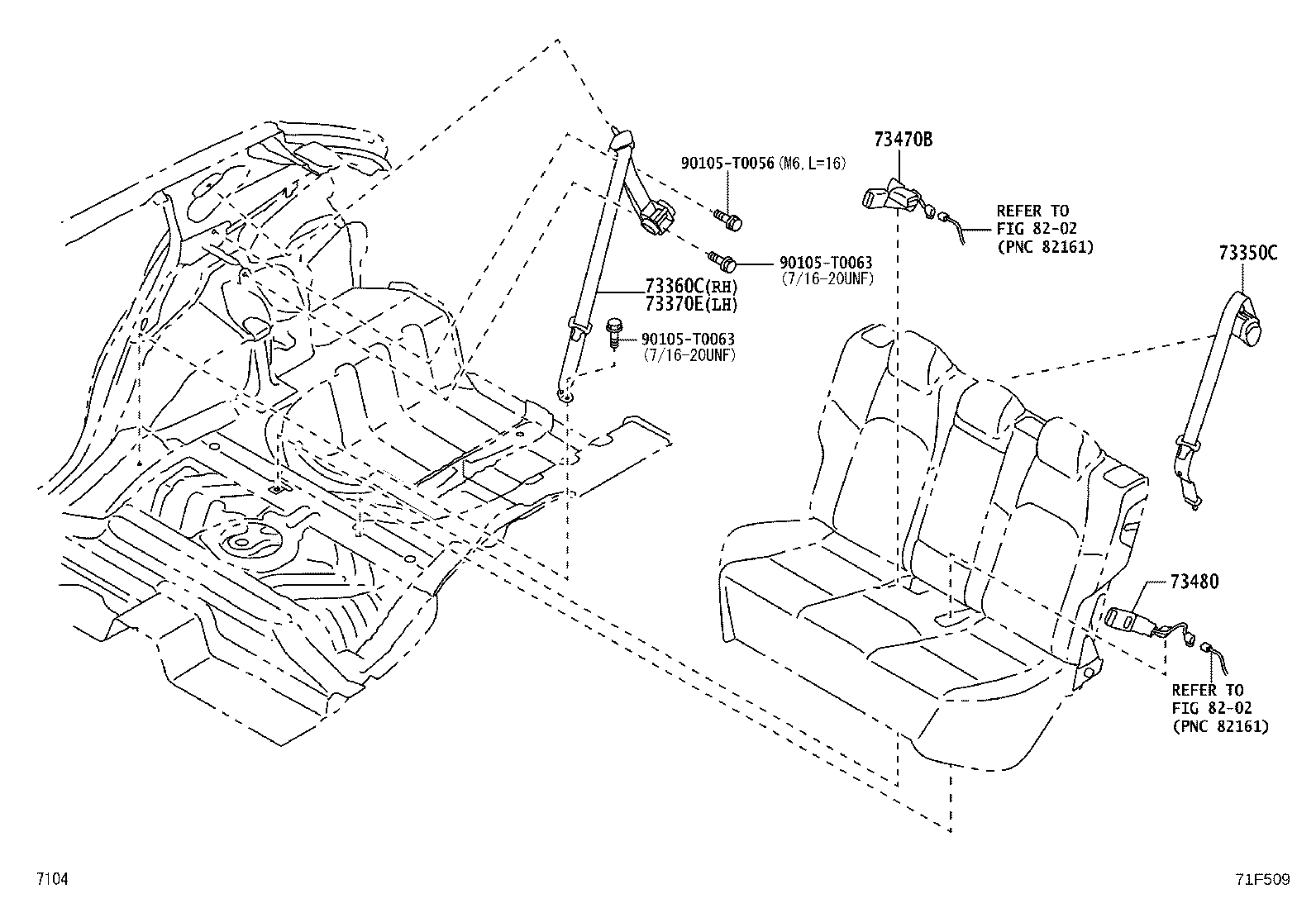

| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370E | Belt Assy, Rear Seat, Outer LH |
| 73470B | Belt Assy, Rear Seat Inner W/Center, RH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
