Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09
Armrest & Visor
18 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|

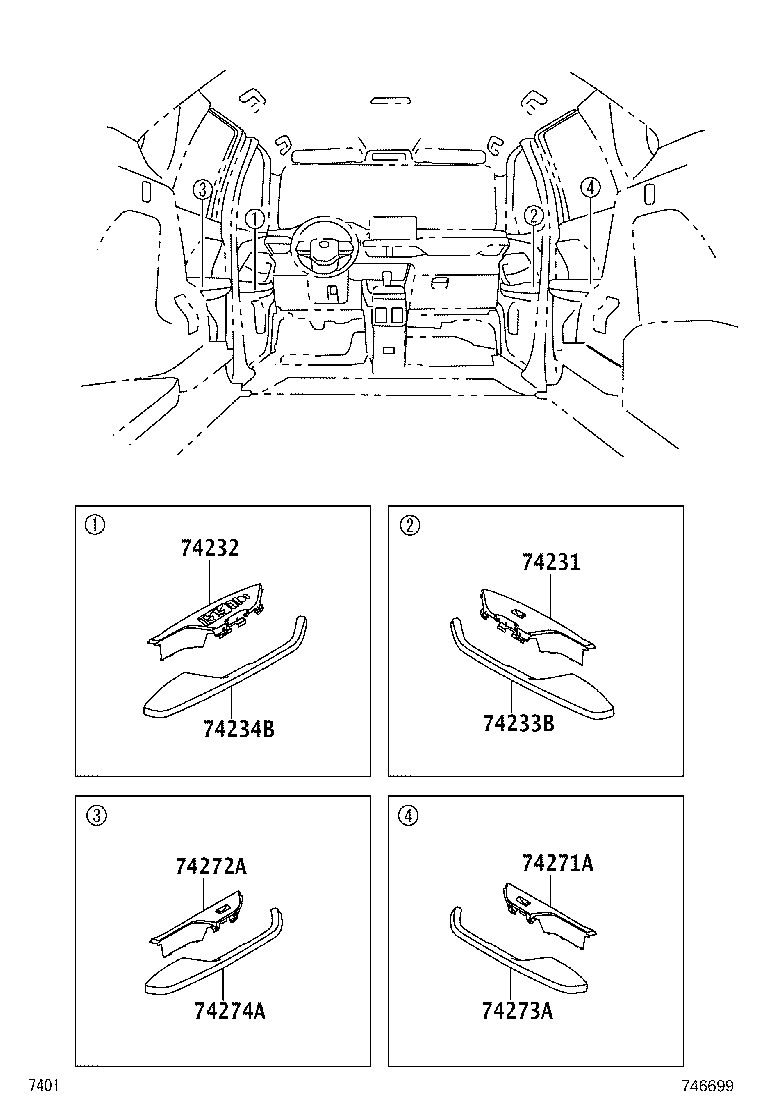

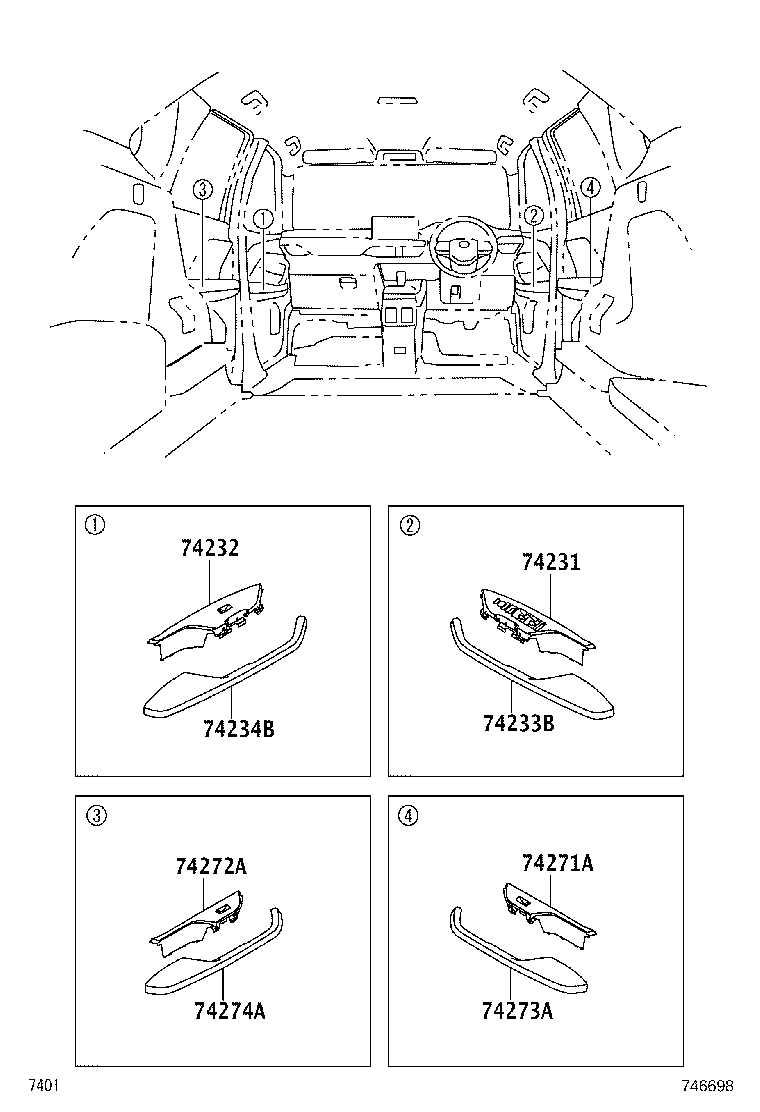

| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74233B | Panel, Front Door Armrest Base, Lower RH |
| 74234B | Panel, Front Door Armrest Base, Lower LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74273A | Panel, Rear Door Armrest Base, Lower RH |
| 74274A | Panel, Rear Door Armrest Base, Lower LH |

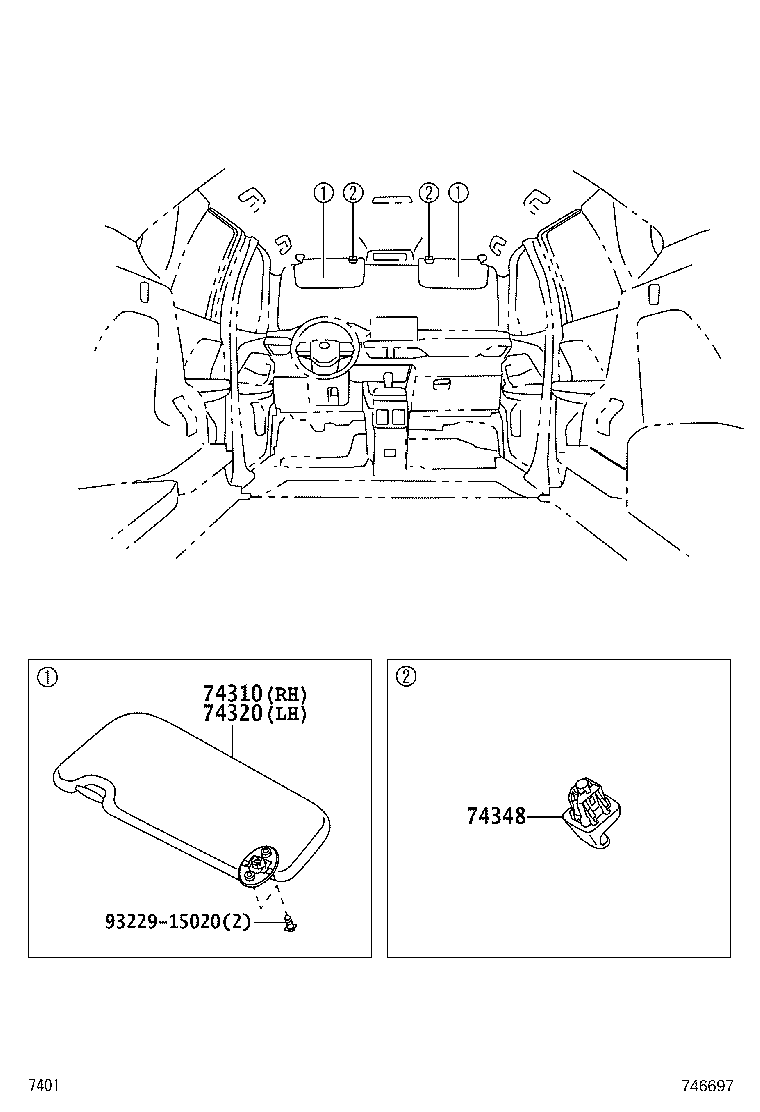

| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |

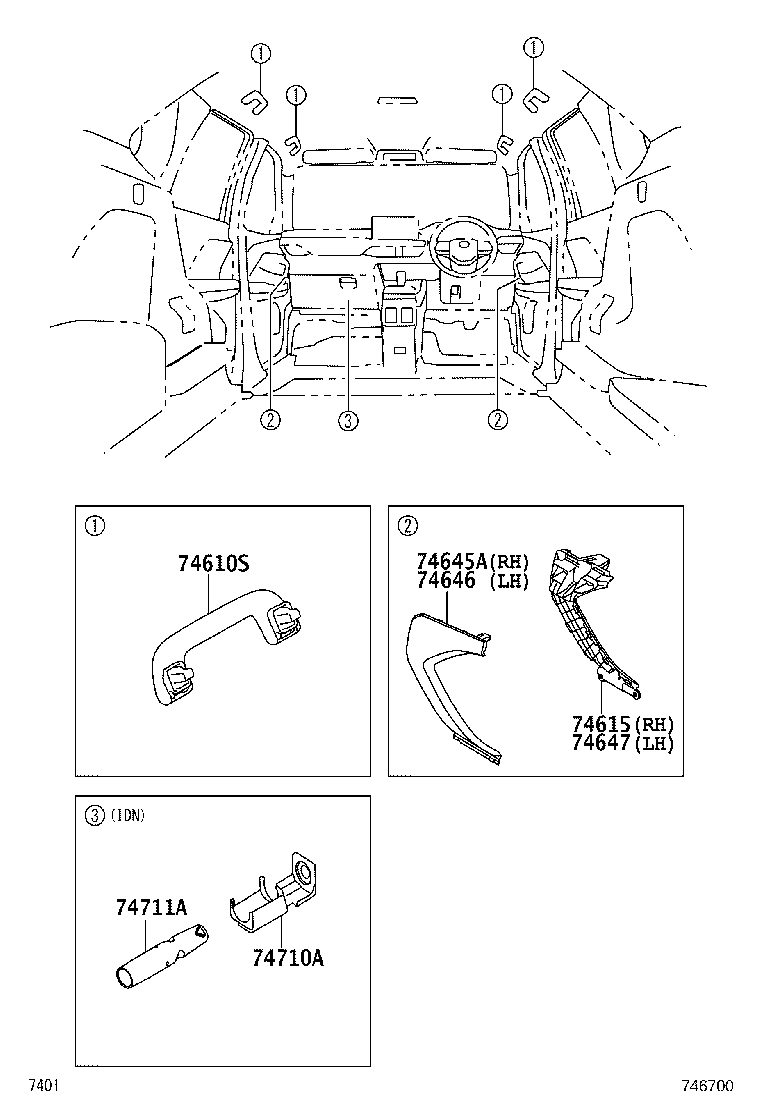

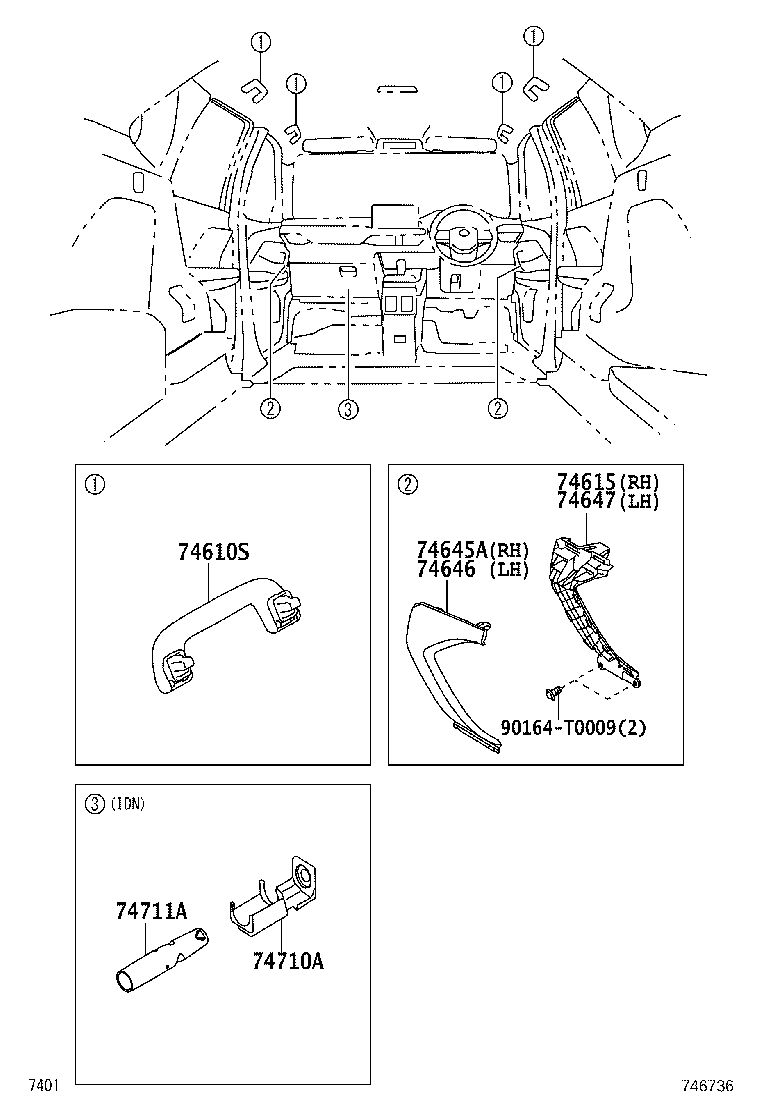

| 74610S | Grip Assy, Assist |
| 74615 | Base, Assist Grip |
| 74645A | Cover, Door Assist Grip, RH |
| 74646 | Cover, Door Assist Grip, LH |
| 74647 | Base, Door Assist Grip |
| 74710A | Bracket, Extinguisher |
| 74711A | Extinguisher |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
