Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

6 part groups · 2 illustrations

Illustrations

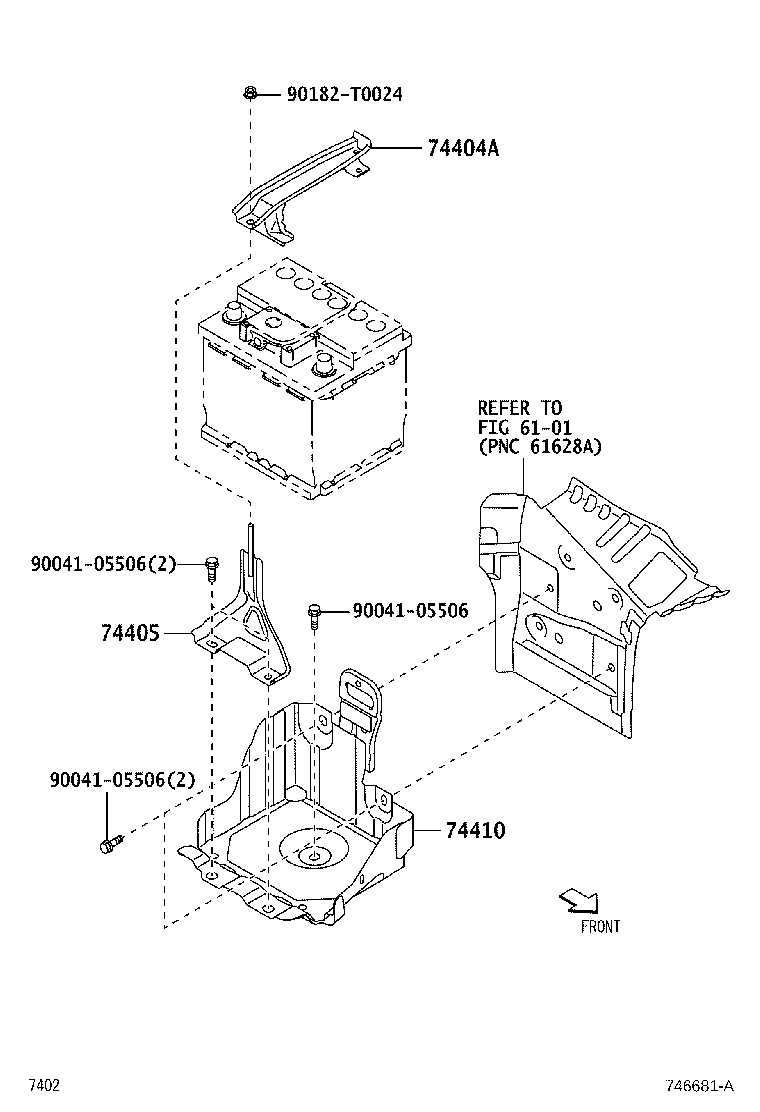

Figure 746680 746680 2023-06 → — Figure 746681A 746681A 2023-06 → —

Part groups

PNCDescription
74404A Clamp Sub-assy, Battery
74405 Clamp Sub-assy, Battery, NO.2
74405C Cover Sub-assy,Battery
74410 Carrier Assy, Battery
74411 Carrier, Battery
74451B Bolt, Battery Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
