Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

11 part groups · 10 illustrations

Illustrations

Figure 746722 746722 2023-06 → — Figure 746723A 746723A 2023-06 → — Figure 746724 746724 2023-10 → — Figure 746725 746725 2023-10 → — Figure 746726 746726 2023-06 → — Figure 746871 746871 2023-10 → — Figure 746727B 746727B 2023-06 → — Figure 746727B 746727B 2023-10 → — Figure 746727B 746727B 2024-06 → — Figure 746728 746728 2023-10 → —

Part groups

PNCDescription

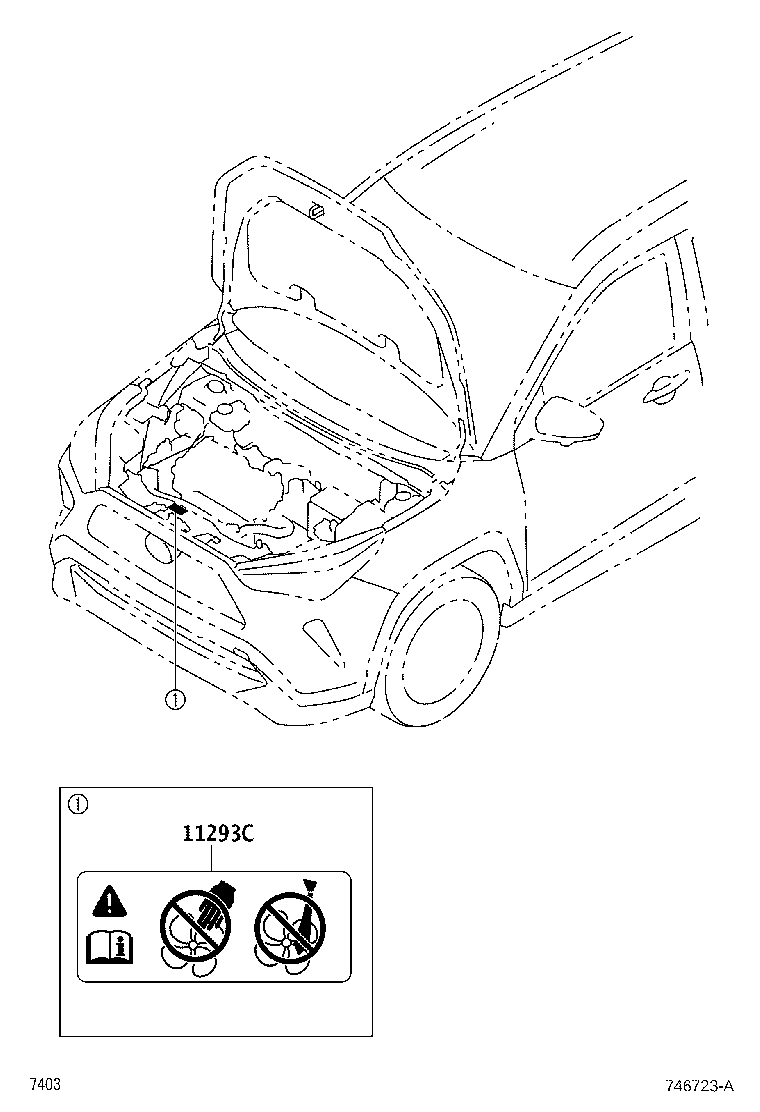

11293C Label, Tune-up Specification Information

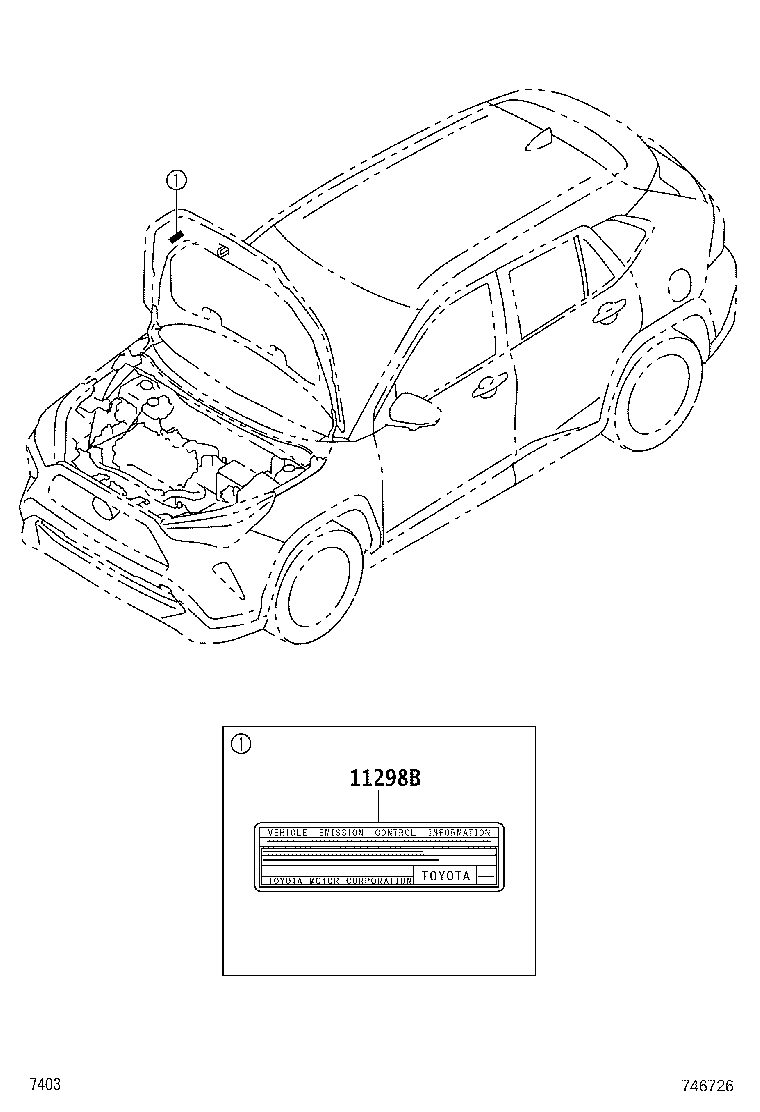

11298B Label, Emission Control Information
41991A Plate, Caution
41991G Label, Caution, NO.1
42661 Label, Tire Pressure Information

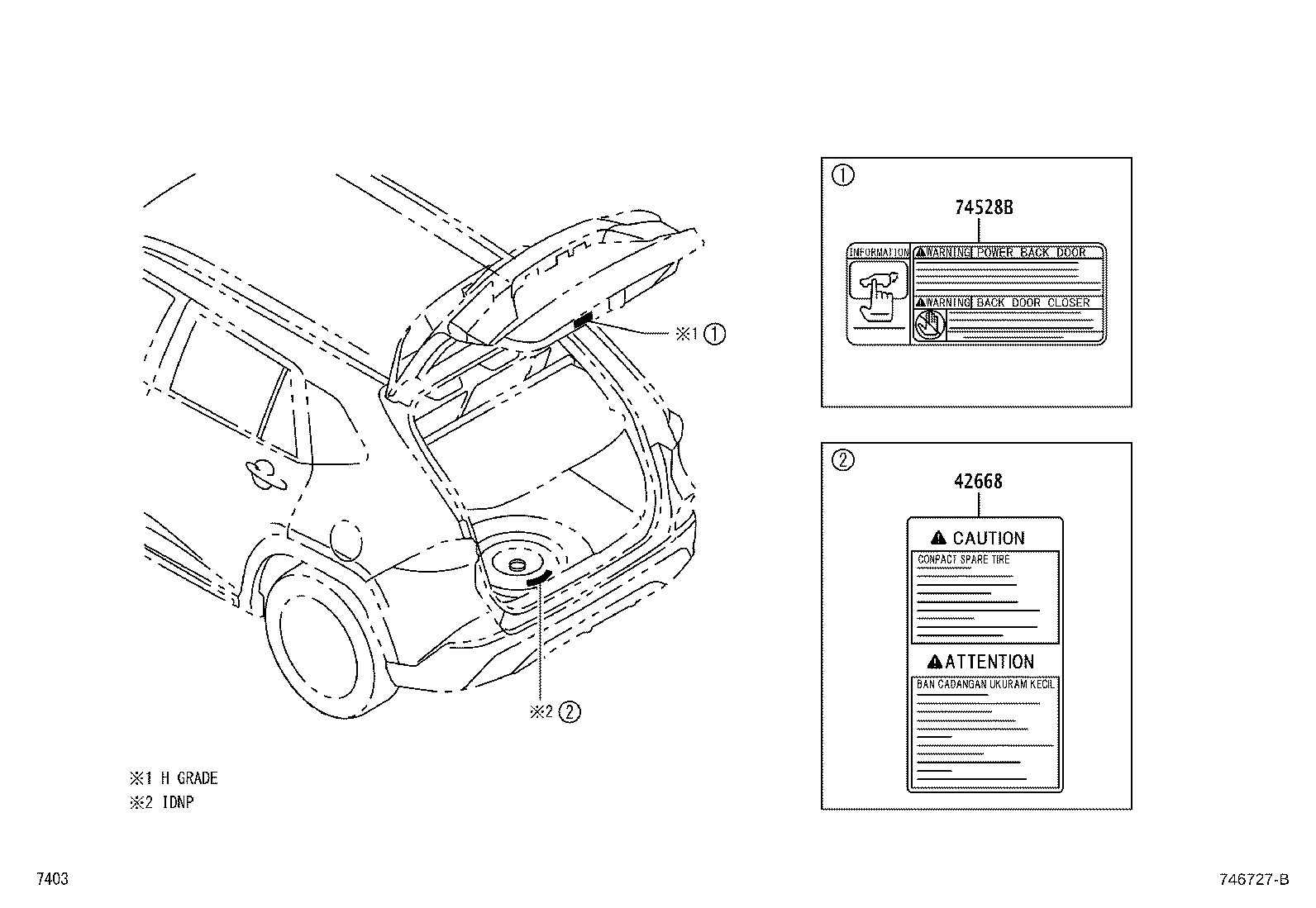

42668 Label, Compact Spare Tire Caution

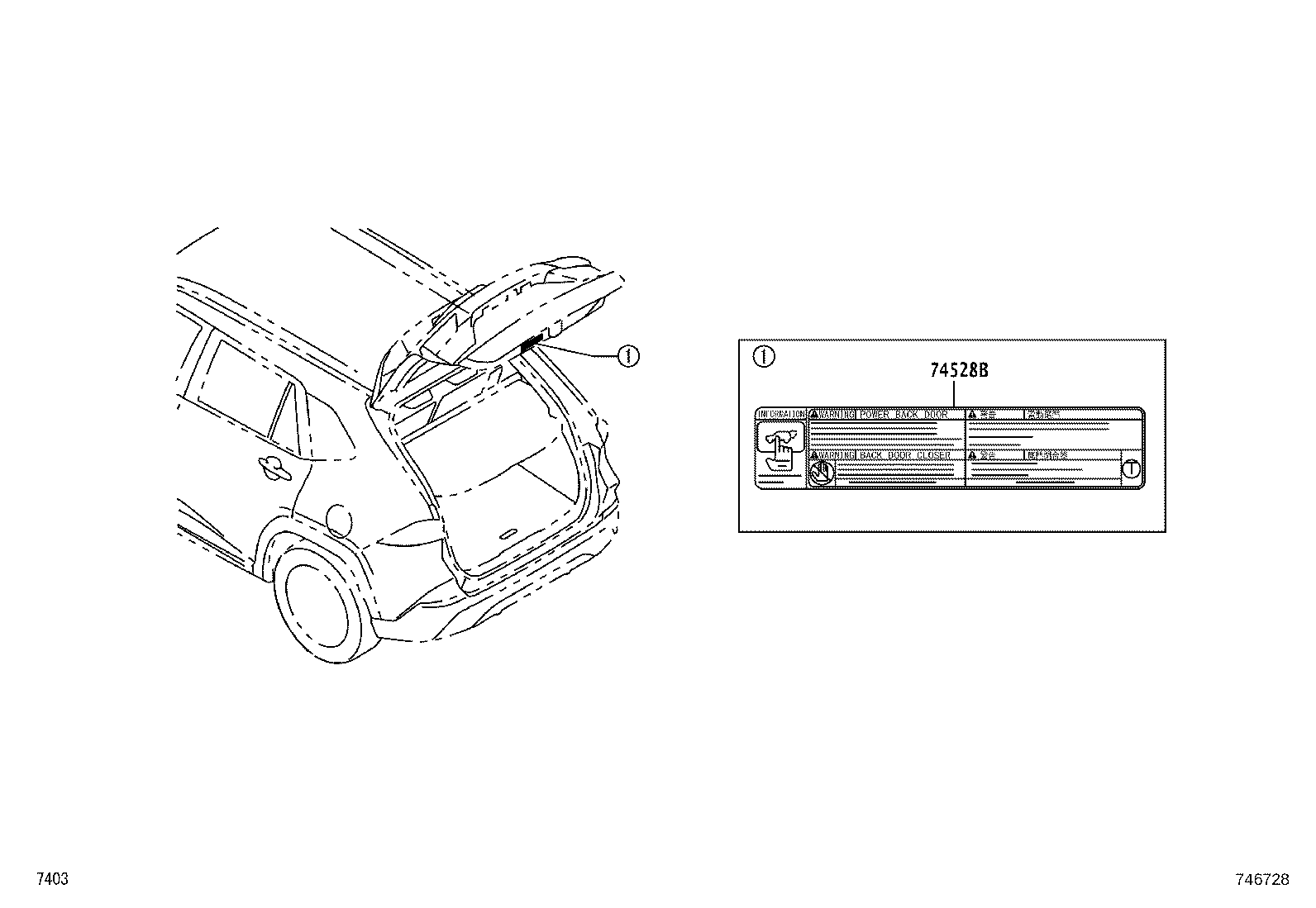

74528B Label, Back Door Caution

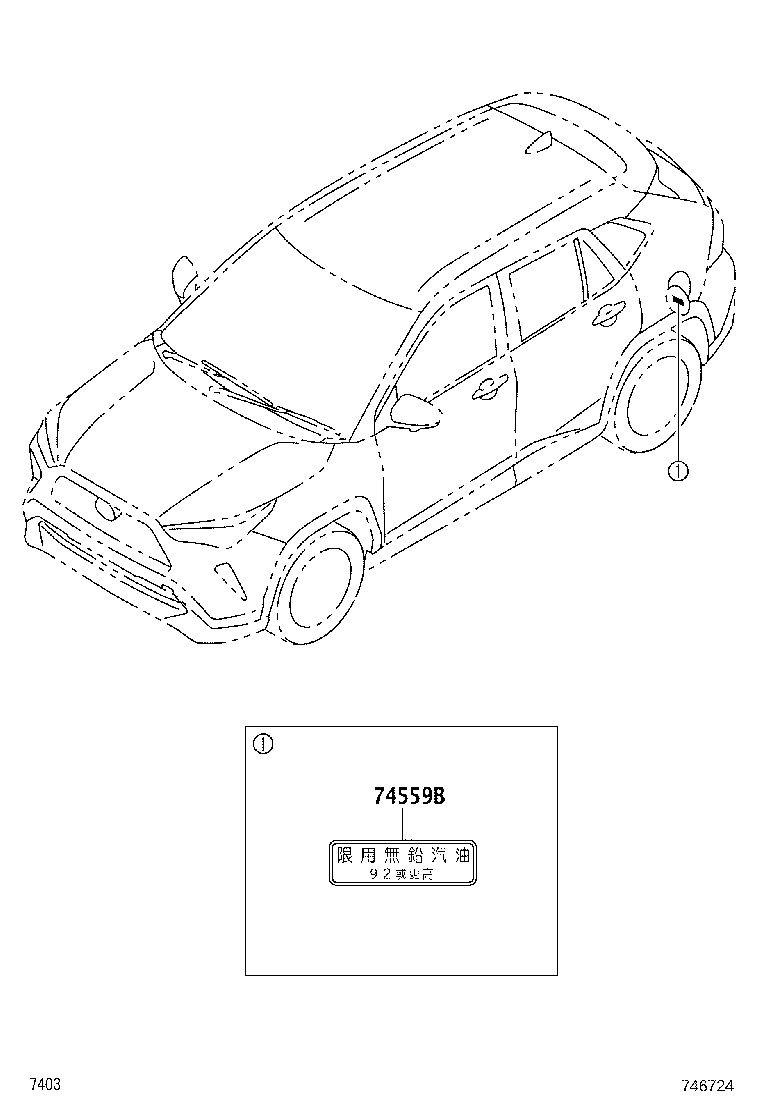

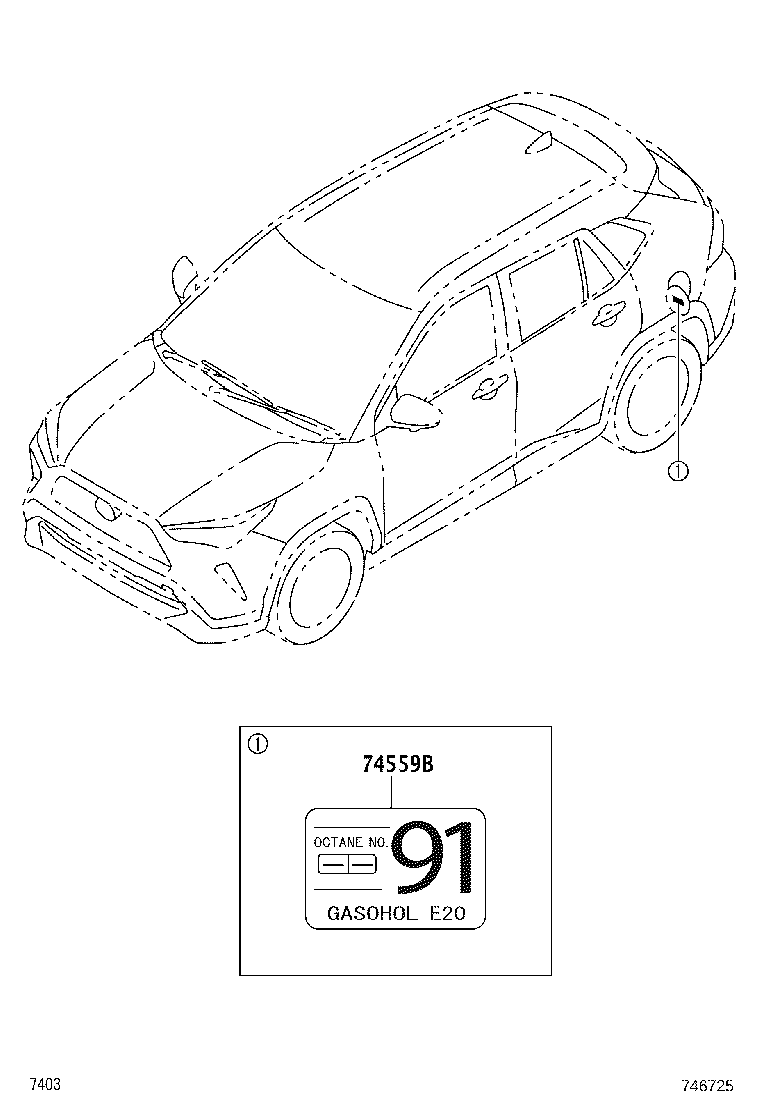

74559B Label, Fuel Information
86995B Plate, Caution

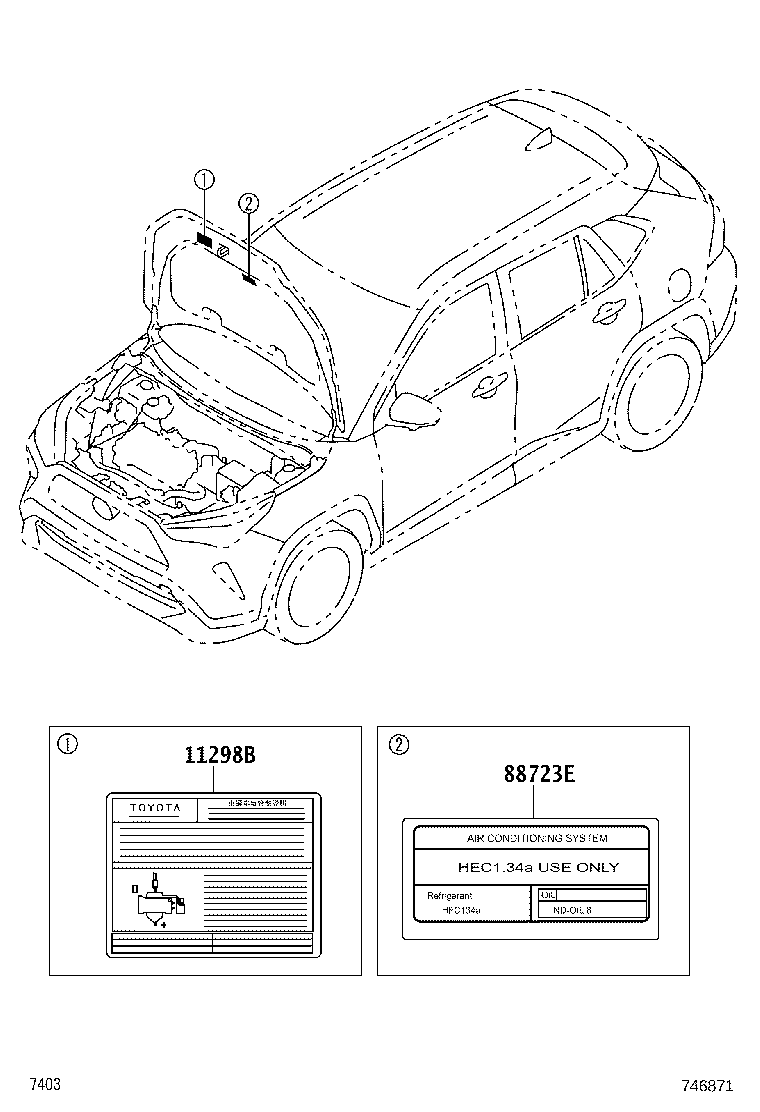

88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
