Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

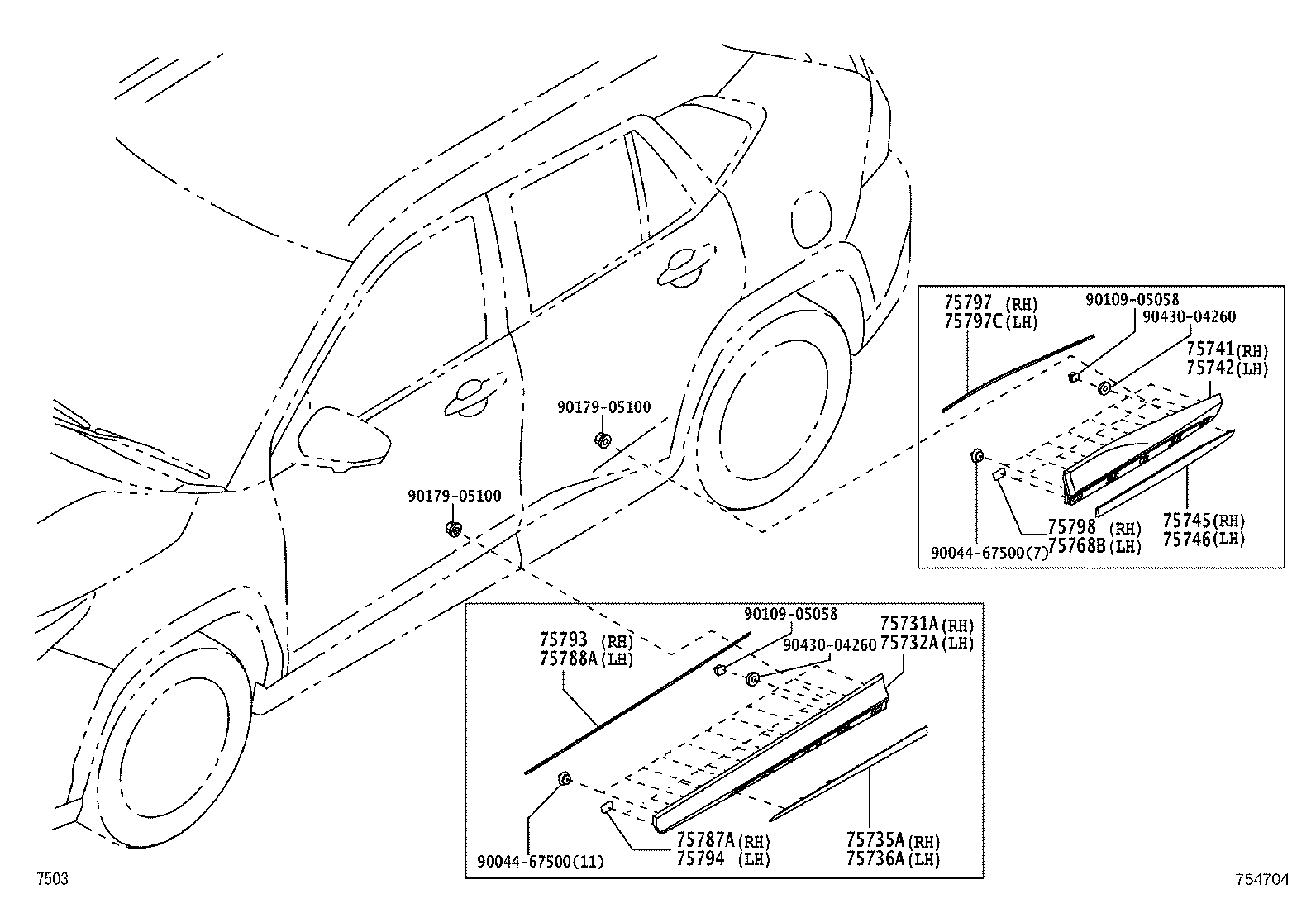

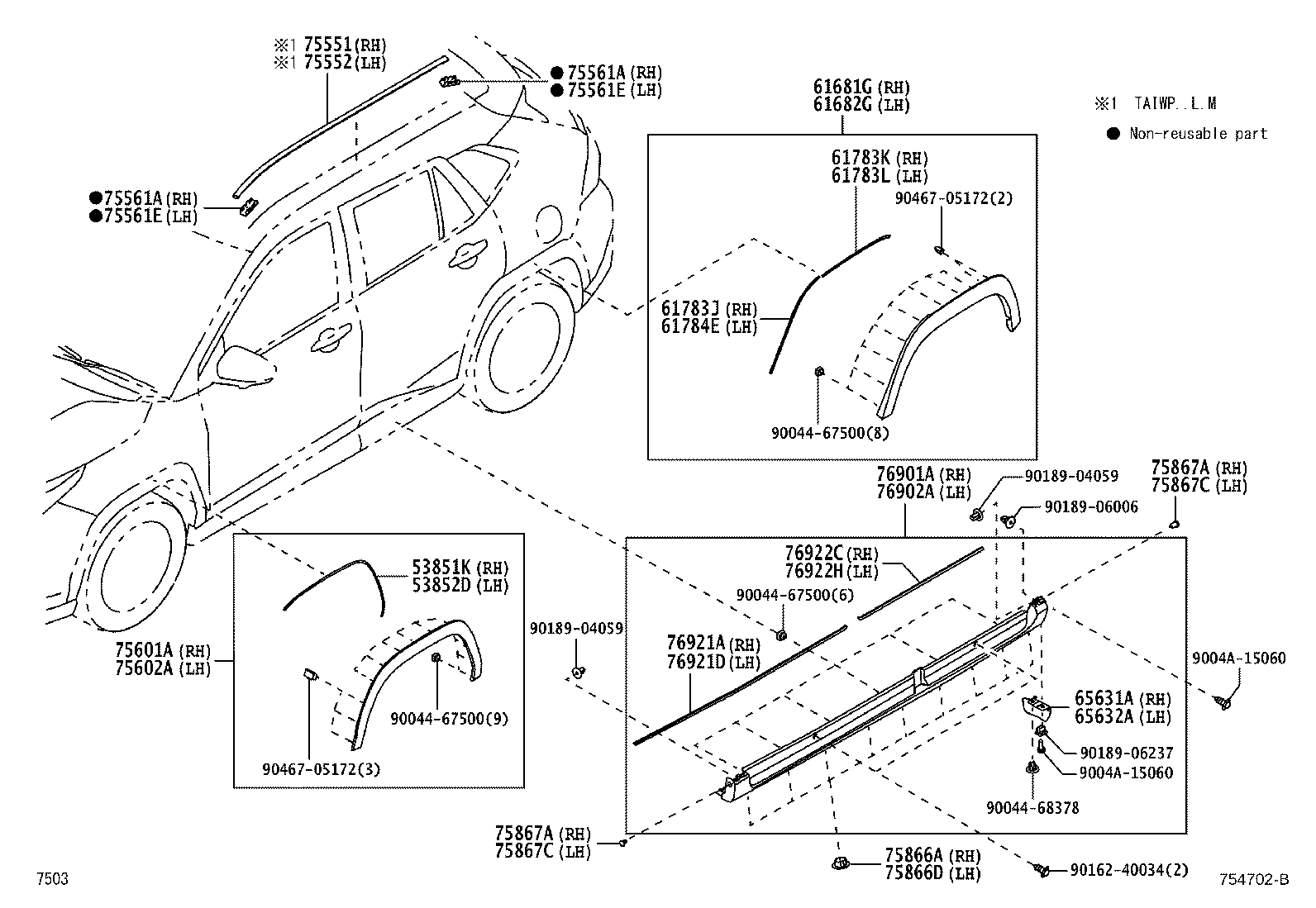

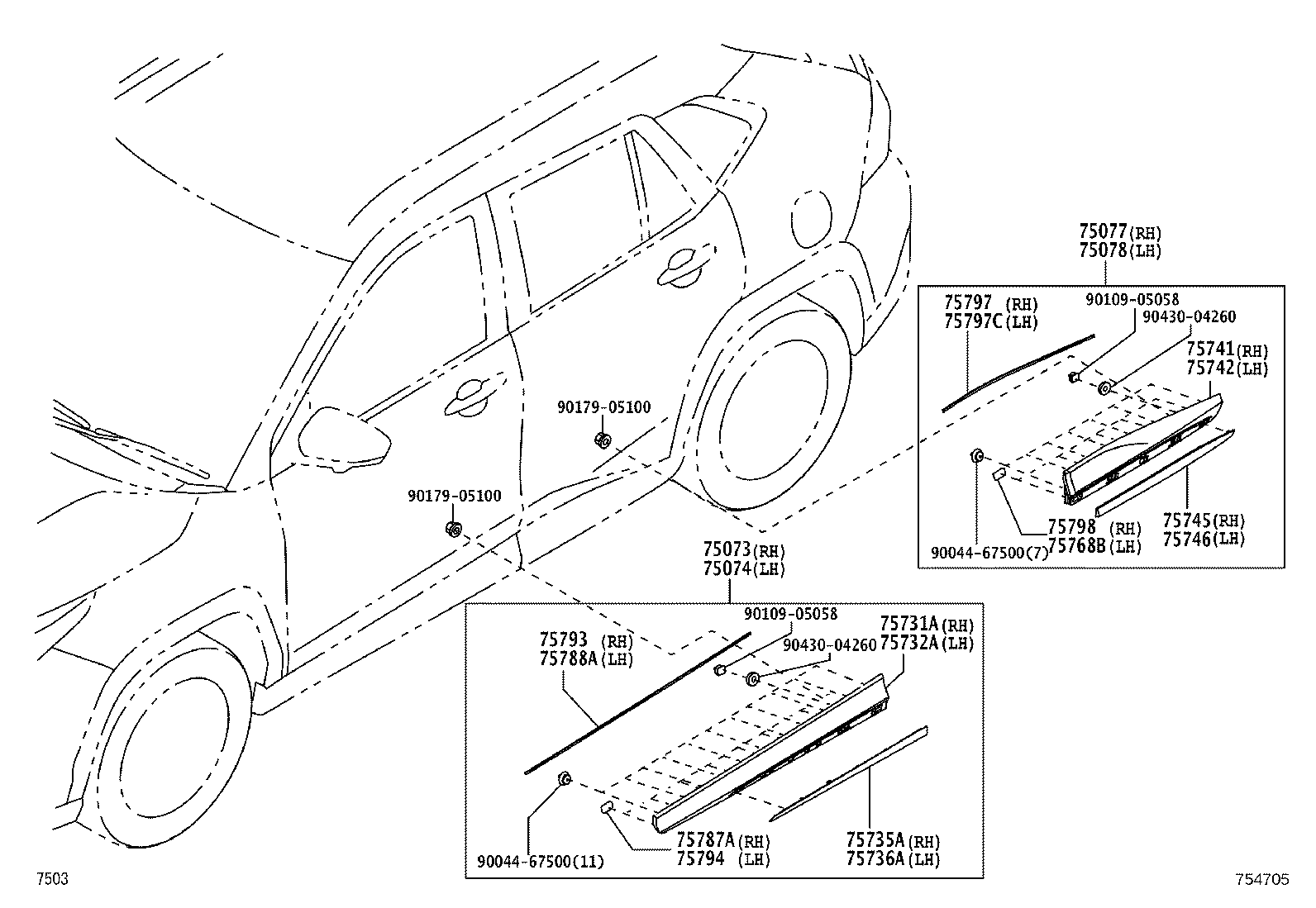

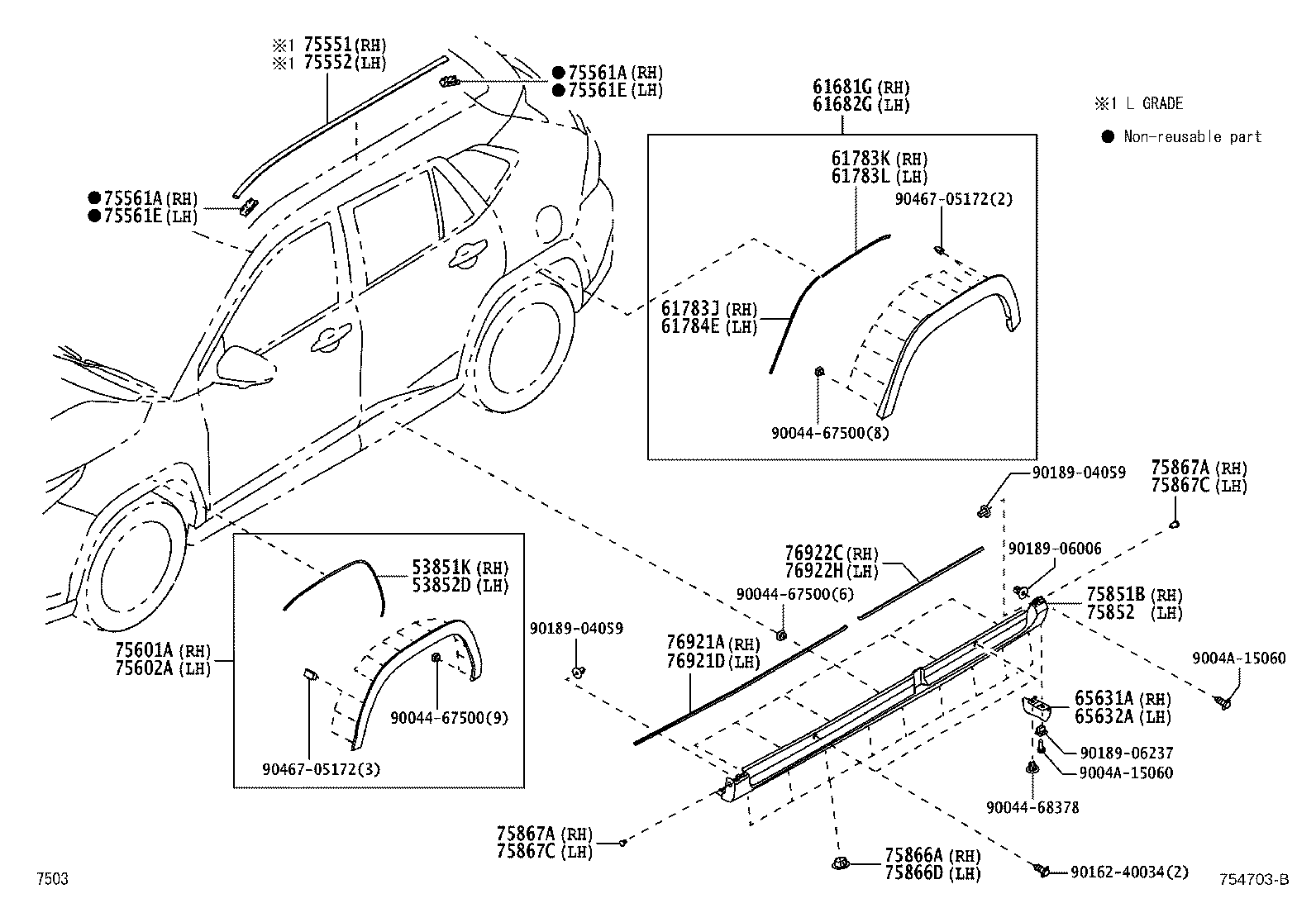

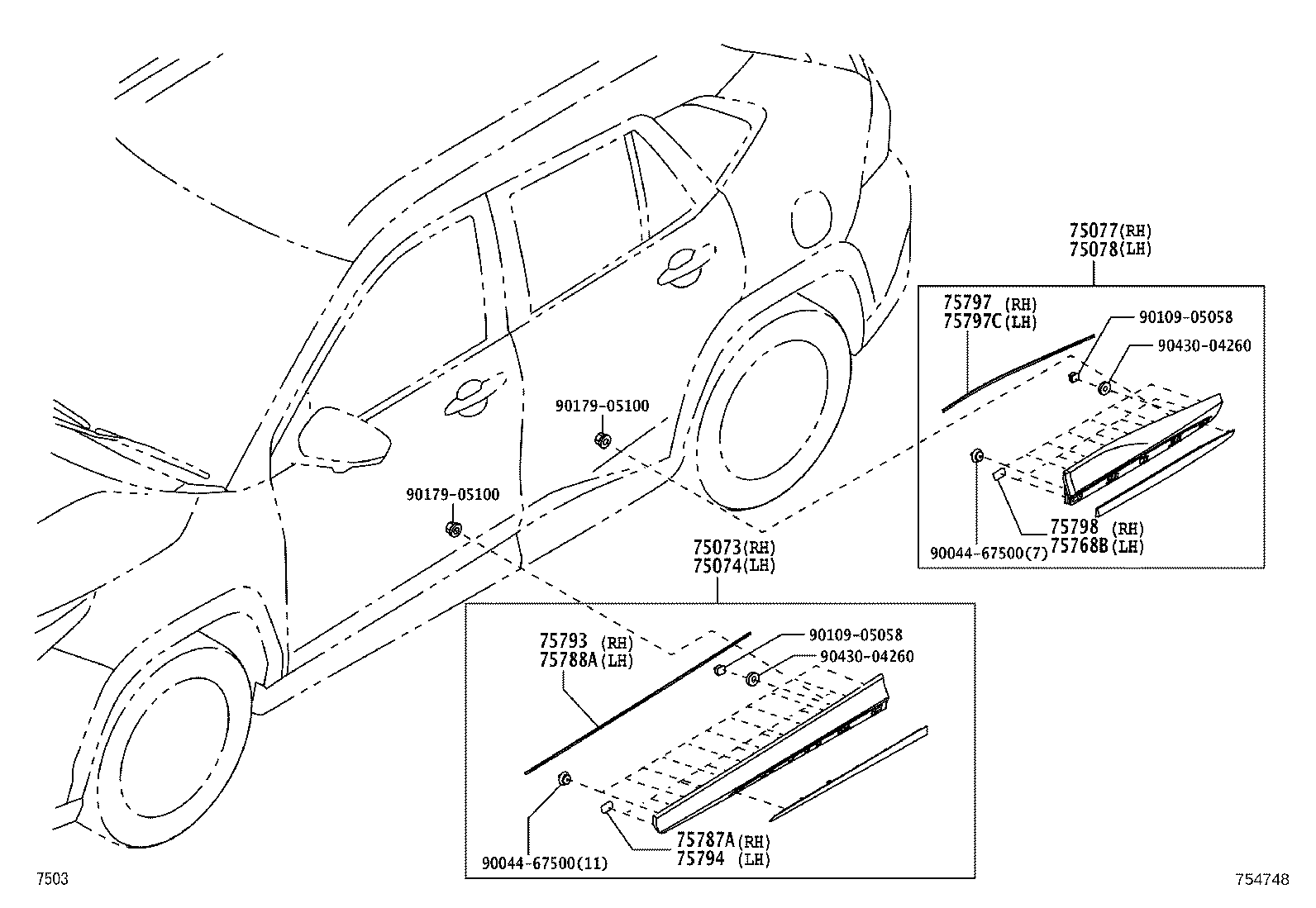

Side Moulding
48 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 53851K | Pad, Front Wheel Opening Extension, RH |
| 53852D | Pad, Front Wheel Opening Extension, LH |
| 61681G | Extension, Rear Wheel Opening, RH |
| 61682G | Extension, Rear Wheel Opening, LH |
| 61783J | Pad, Rear Wheel Opening Extension, NO.2 |
| 61783K | Pad, Rear Wheel Opening Extension, RH |
| 61783L | Pad, Rear Wheel Opening Extension, LH |
| 61784E | Pad, Rear Wheel Opening Extension, NO.2 |
| 65631A | Plate, Rear Wheel House, Front RH |
| 65632A | Plate, Rear Wheel House, Front LH |
| 75073 | Moulding Sub-assy, Front Door, Outside Lower RH |
| 75074 | Moulding Sub-assy, Front Door, Outside Lower LH |
| 75077 | Moulding Sub-assy, Rear Door Outside Lower RH |
| 75078 | Moulding Sub-assy, Rear Door Outside Lower LH |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75561E | Clip, Roof Drip Side Finish Moulding, LH |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75735A | Moulding, Front Door Outside, Lower RH |
| 75736A | Moulding, Front Door Outside, Lower LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75745 | Moulding, Rear Door Outside, Lower RH |
| 75746 | Moulding, Rear Door Outside, Lower LH |
| 75768B | Pad, Rear Door Moulding, LH |
| 75787A | Pad, Front Door Outside Moulding, RH |
| 75788A | Pad, Front Door Outside Moulding, LH |
| 75793 | Pad, Front Door Outside Moulding, Upper |
| 75794 | Pad, Front Door Outside Moulding, Rear |
| 75797 | Pad, Rear Door Outside Moulding, Upper |
| 75797C | Pad, Rear Door Outside Moulding, Upper |
| 75798 | Pad, Rear Door Outside Moulding, Rear |
| 75851B | Moulding, Body Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 75866A | Retainer, Rocker Panel Moulding |
| 75866D | Retainer, Rocker Panel Moulding |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
| 76901A | Mudguard Sub-assy, Side, RH |
| 76902A | Mudguard Sub-assy, Side, LH |
| 76921A | Protector, Side Mudguard, NO.1 |
| 76921D | Protector, Side Mudguard, NO.1 |
| 76922C | Protector, Side Mudguard, NO.2 |
| 76922H | Protector, Side Mudguard, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
