Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

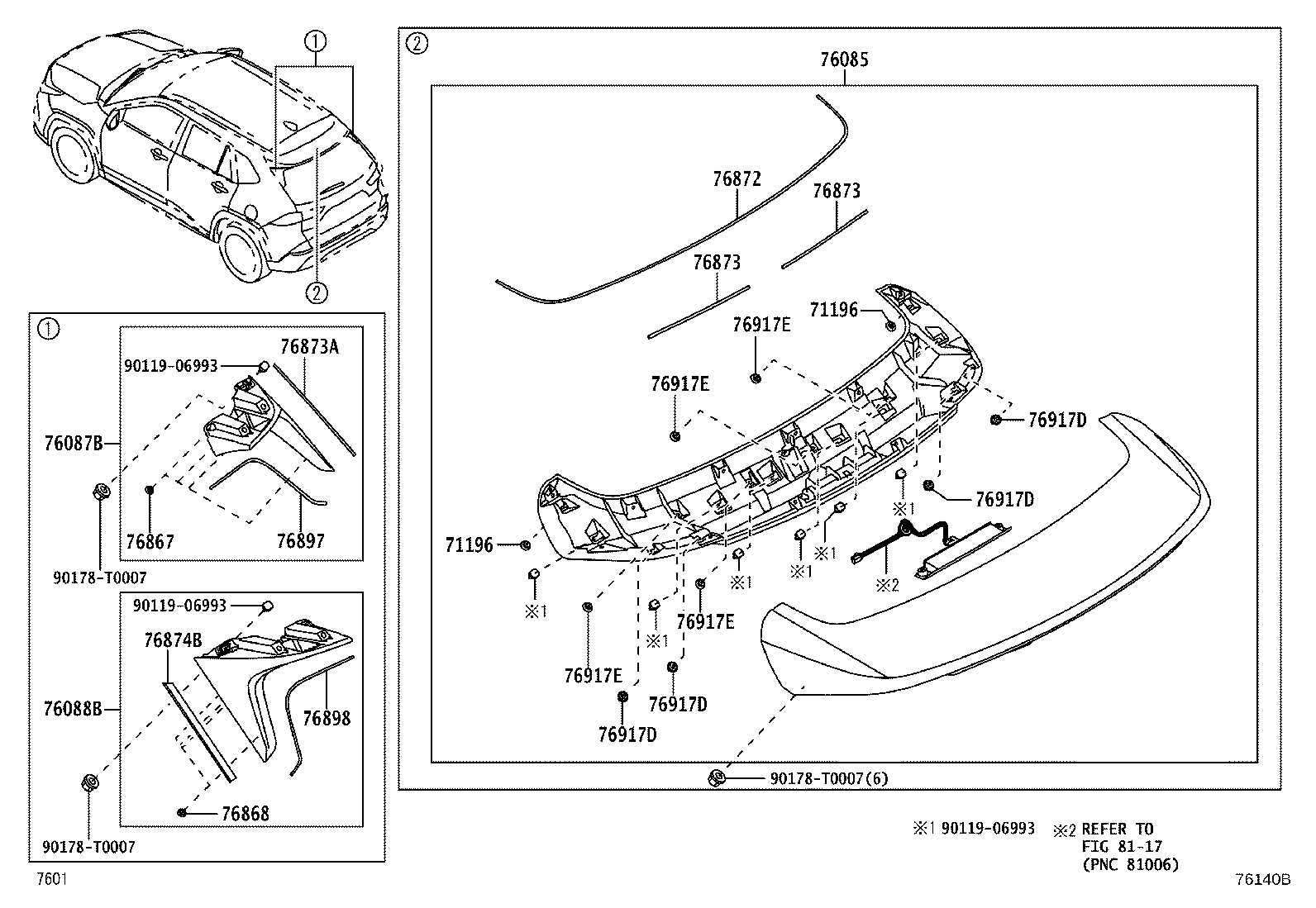

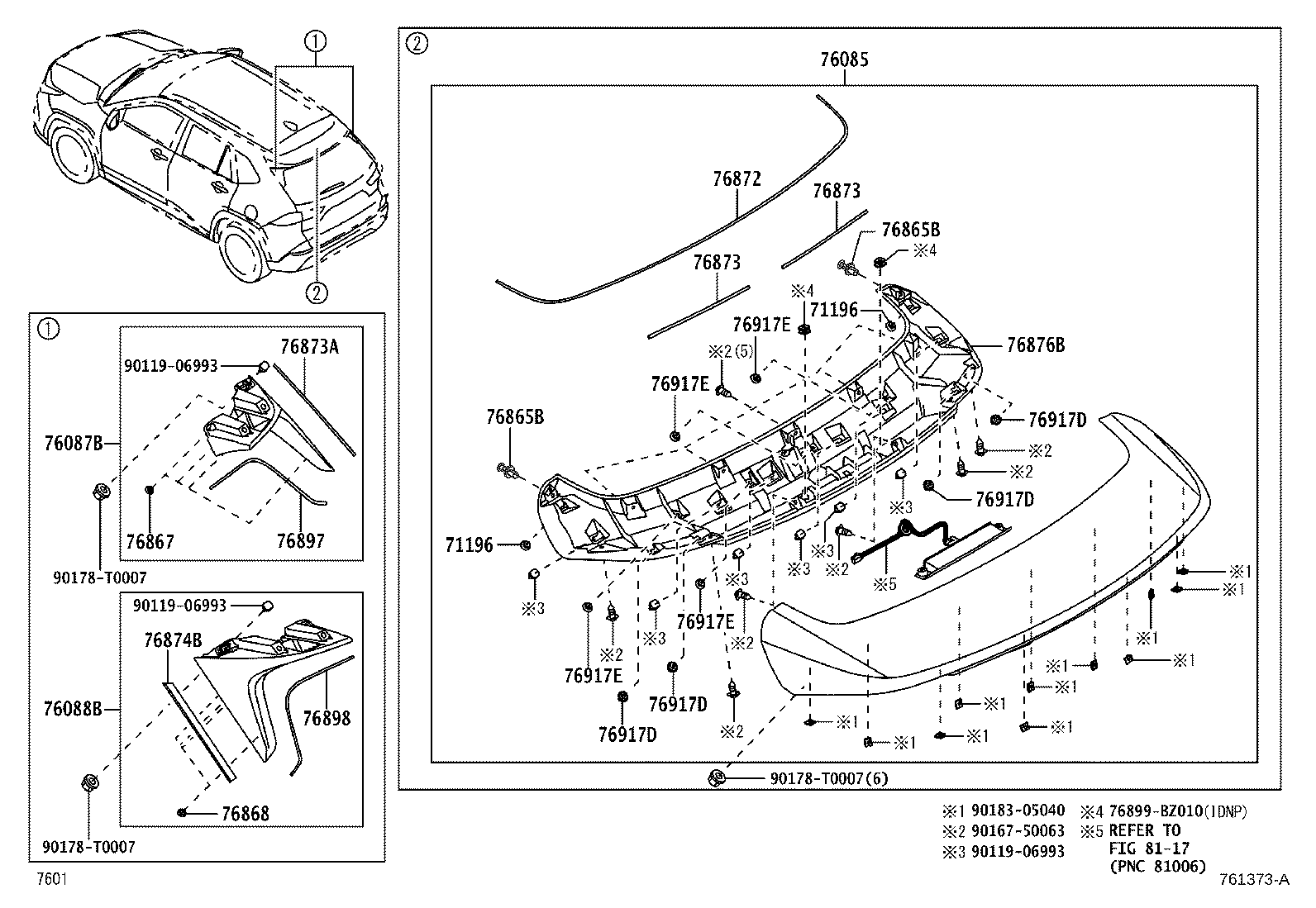

Mudguard & Spoiler
20 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71196 | Clip(FOR REAR SPOILER) |
| 76085 | Spoiler Sub-assy, Rear |
| 76087B | Spoiler Sub-assy, Rear Side, RH |
| 76088B | Spoiler Sub-assy, Rear Side, LH |
| 76851 | Cover, Front Spoiler |
| 76865B | Retainer, Rear Spoiler |
| 76867 | Retainer, Rear Spoiler Side, RH |
| 76868 | Retainer, Rear Spoiler Side, LH |
| 76871 | Spoiler, Rear |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76873A | Protector, Rear Spoiler, RH |
| 76874B | Protector, Rear Spoiler, LH |
| 76876B | Insert, Rear Spoiler |
| 76893A | Cover, Rear Spoiler, RH |
| 76894 | Cover, Rear Spoiler, LH |
| 76897 | Protector, Rear Spoiler, Side RH |
| 76898 | Protector, Rear Spoiler, Side LH |
| 76917D | Clip |
| 76917E | Clip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
