Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

12 part groups · 4 illustrations

Illustrations

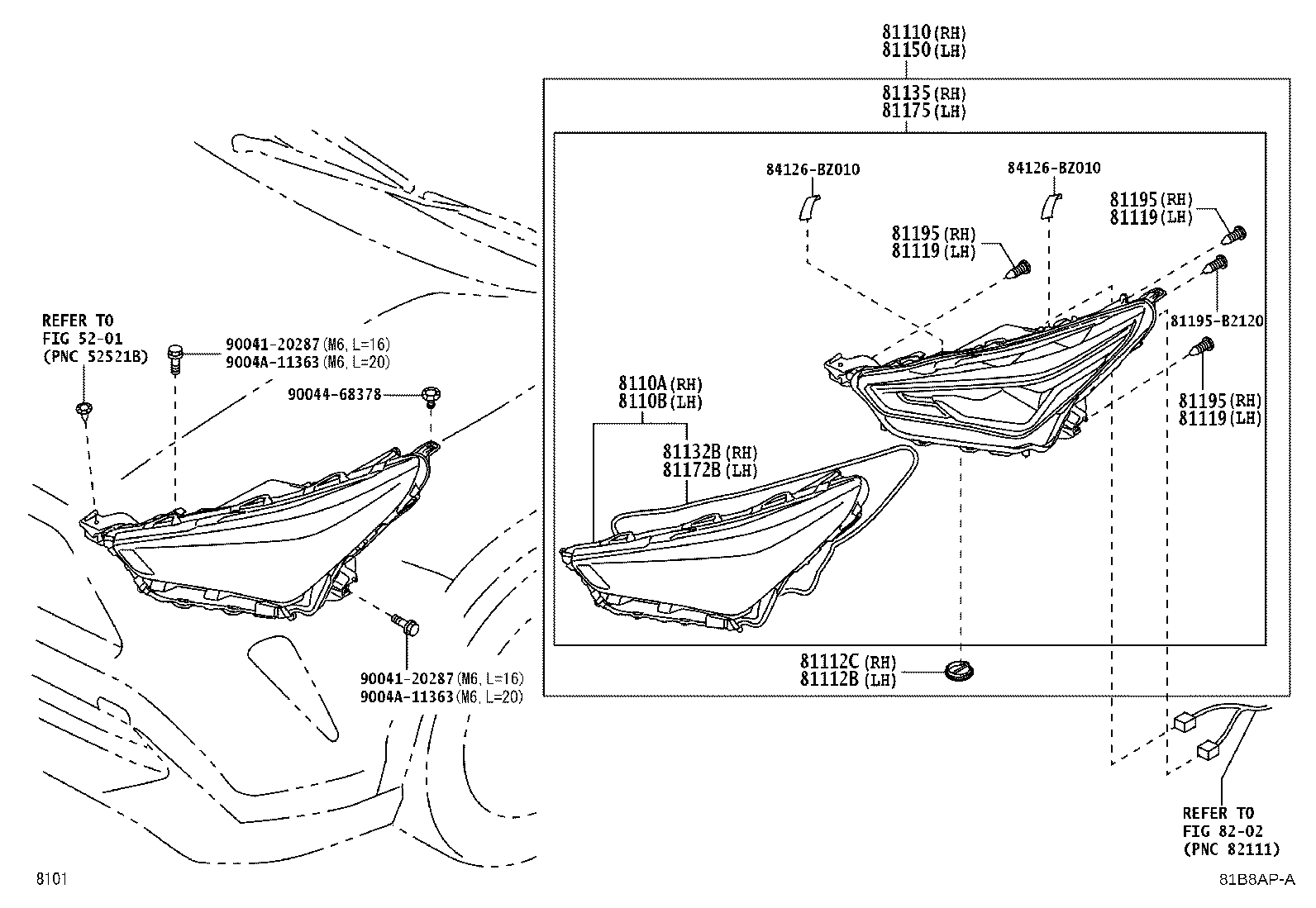

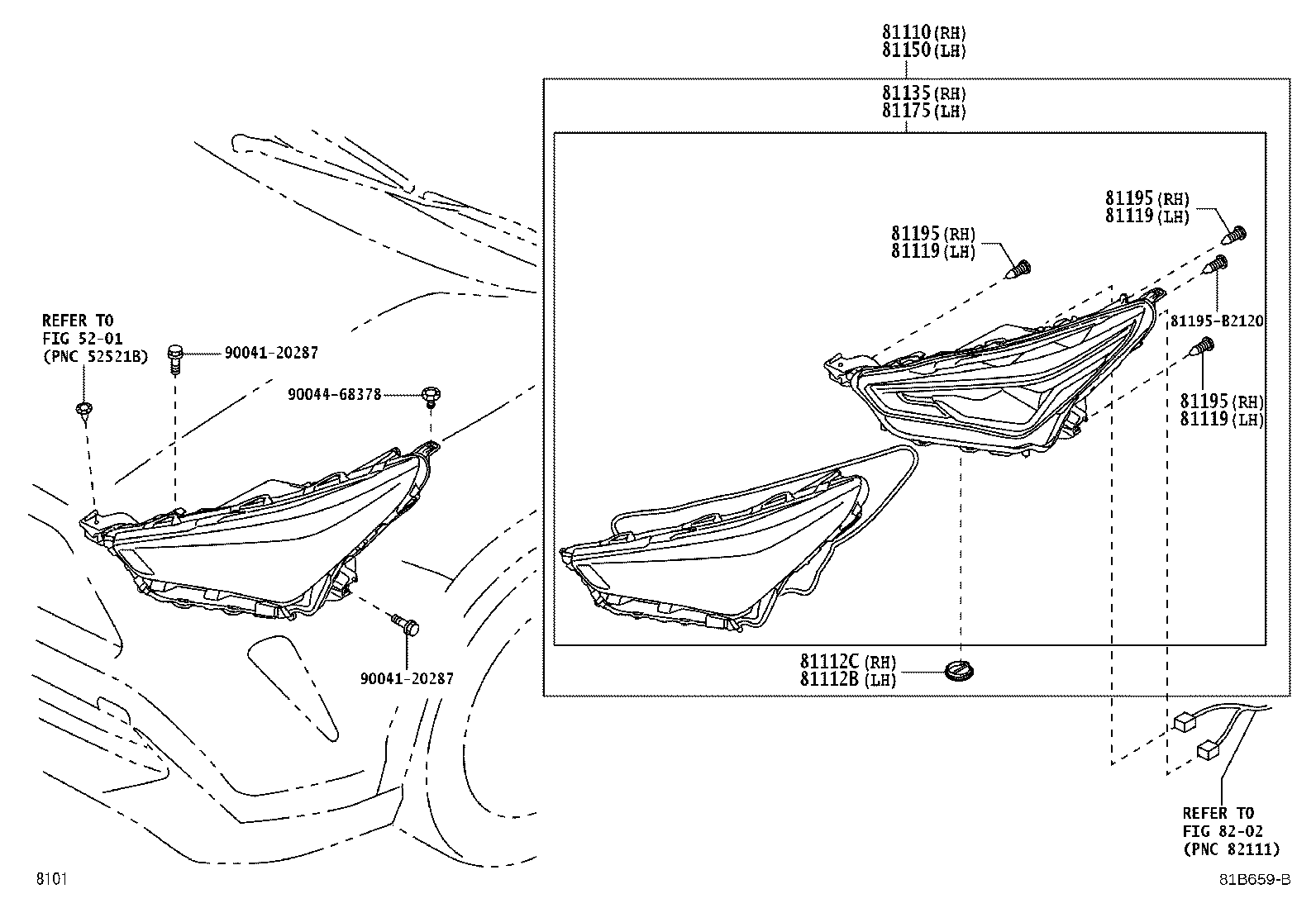

Figure 81B619C 81B619C 2023-06 → — Figure 81B87RA 81B87RA 2023-10 → — Figure 81B659B 81B659B 2023-10 → — Figure 81B8APA 81B8APA 2024-06 → —

Part groups

PNCDescription
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81112B Ring, Cover
81112C Ring, Cover, RH
81119 Screw, Headlamp
81132B Gasket, Headlamp Lens
81135 Unit Assy, Headlamp, RH
81150 Headlamp Assy, LH
81172B Gasket, Headlamp Lens
81175 Unit Assy, Headlamp, LH
81195 Screw, Headlamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
