Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

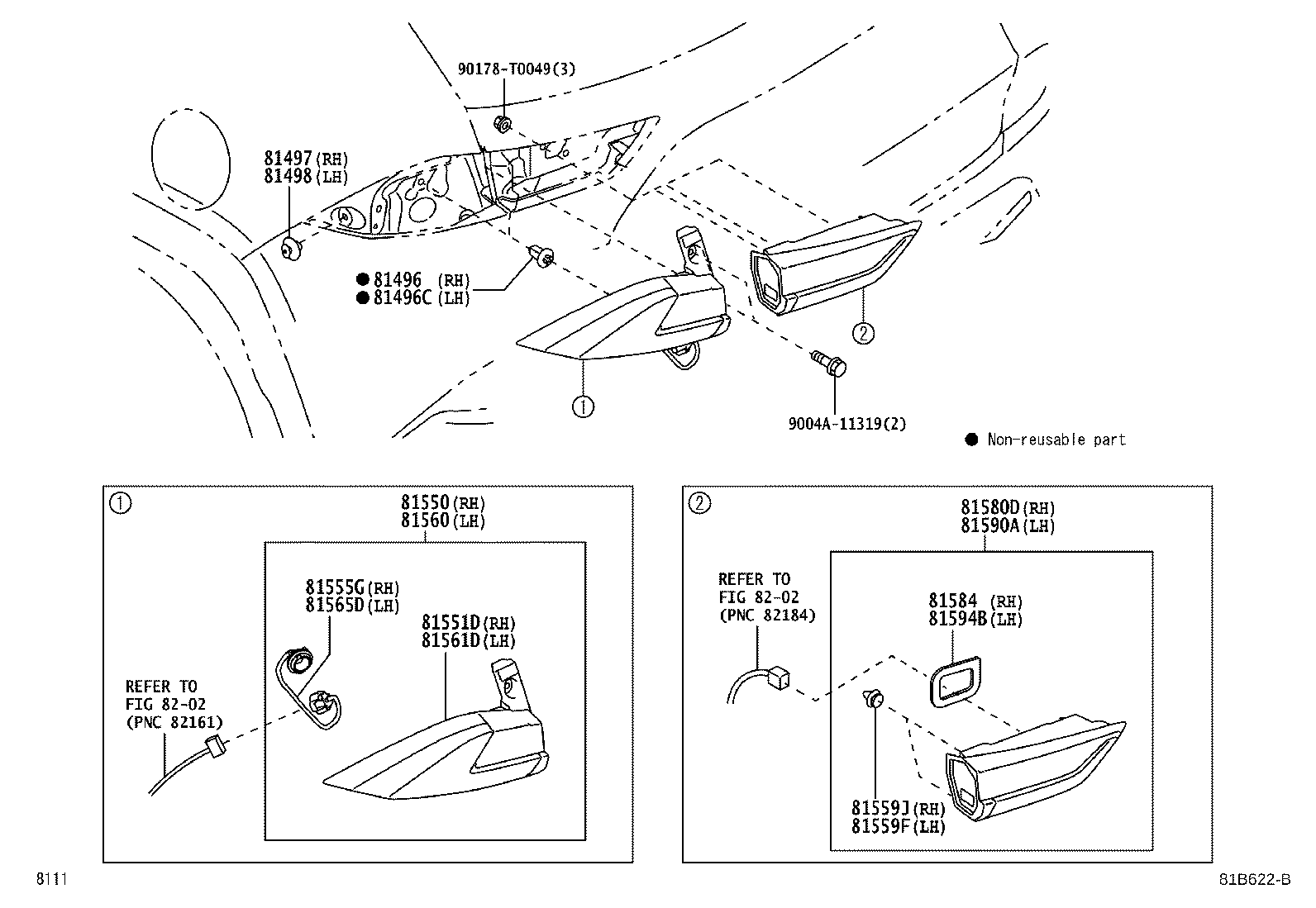

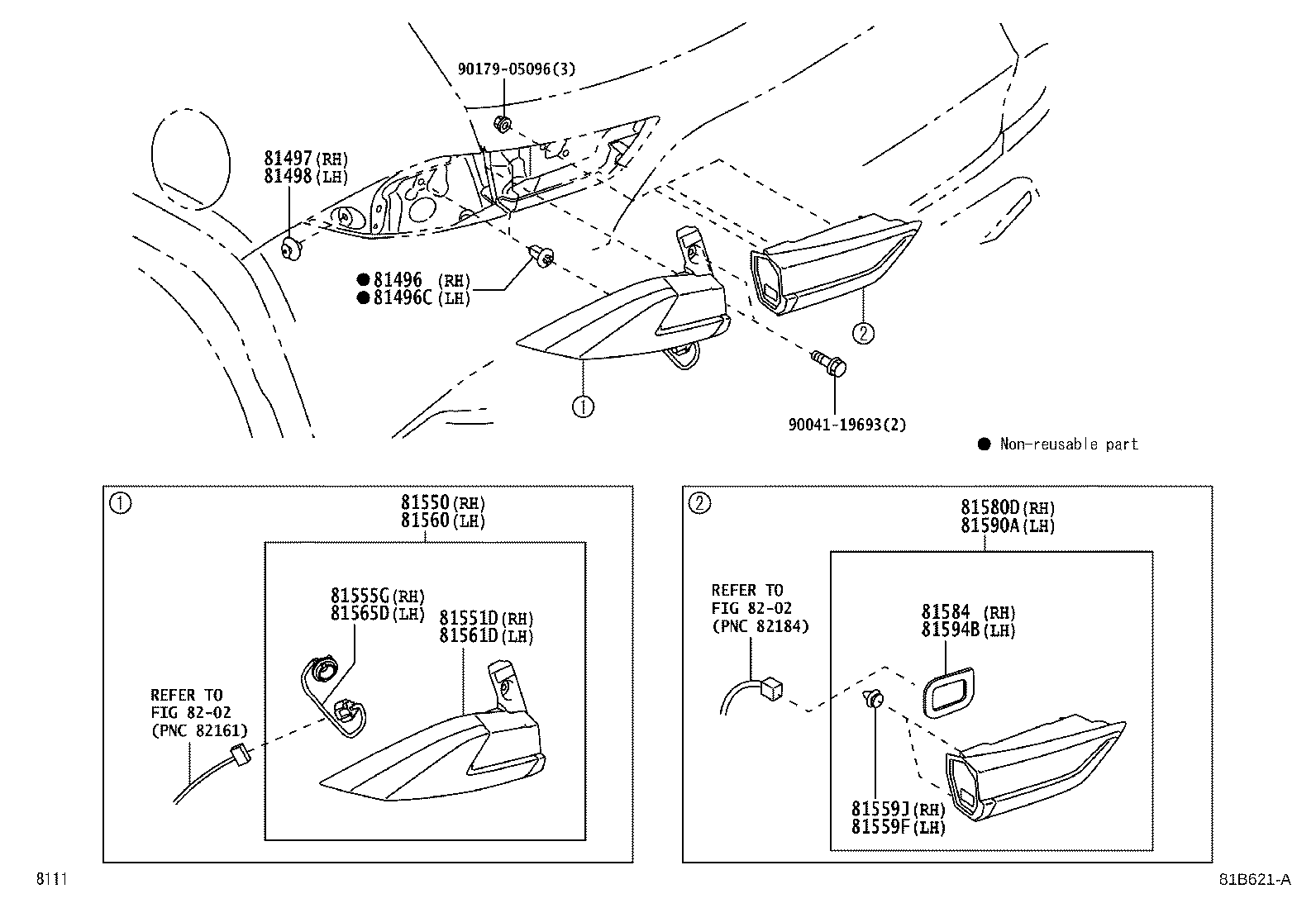

Rear Combination Lamp
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81555G | Cord, Rear Combination Lamp, RH |
| 81559F | Clip, RR Combination Lamp, LH |
| 81559J | Clip, RR Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81565D | Cord, Rear Combination Lamp, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81584 | Packing, Rear Lamp RH |
| 81590A | Lamp Assy, Rear, LH |
| 81594B | Packing, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
