Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09
Switch & Relay & Computer
72 part groups · 17 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28850 | Sensor Assy, Battery Current |
| 28859A | Holder, Battery Current Sensor |

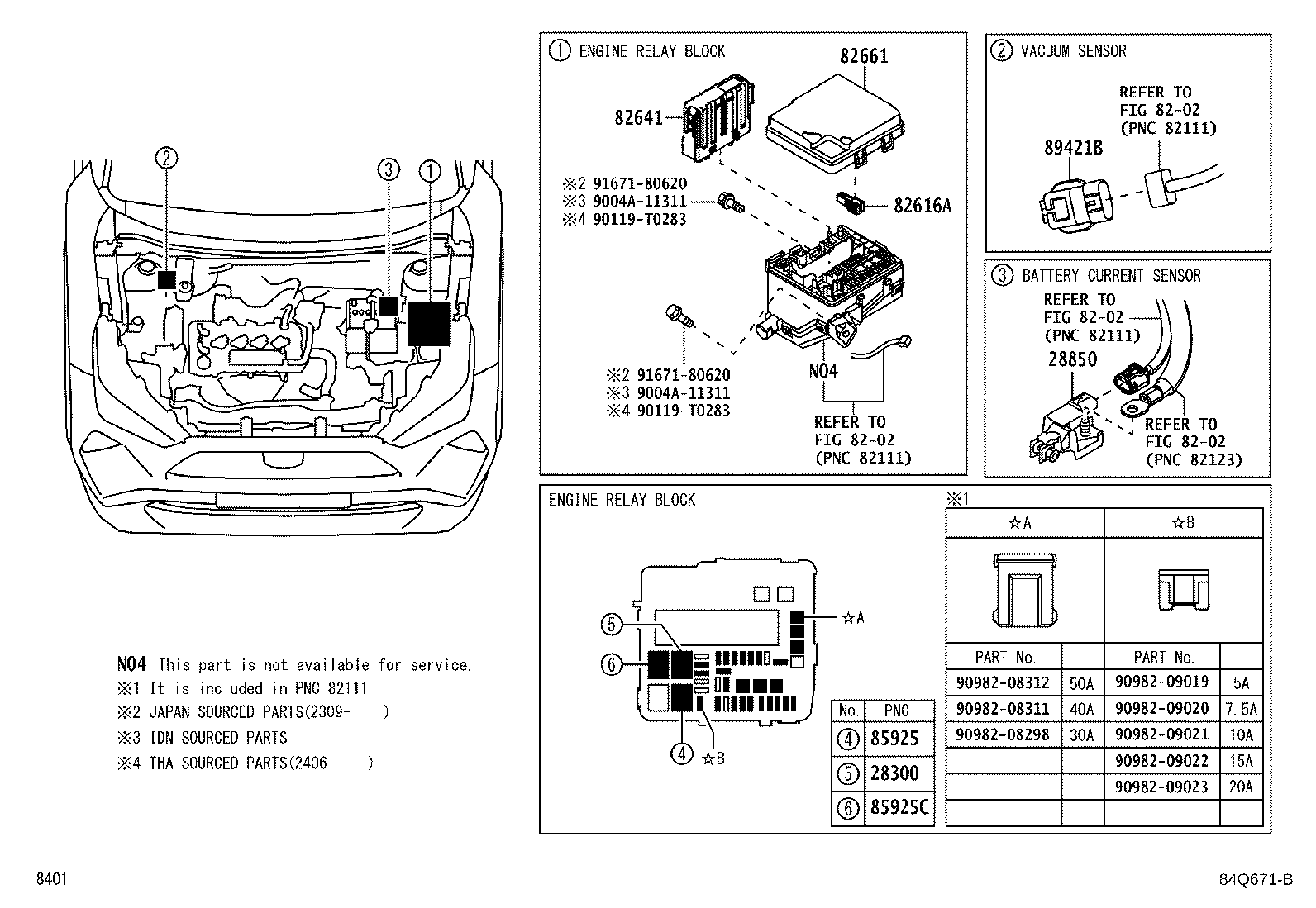

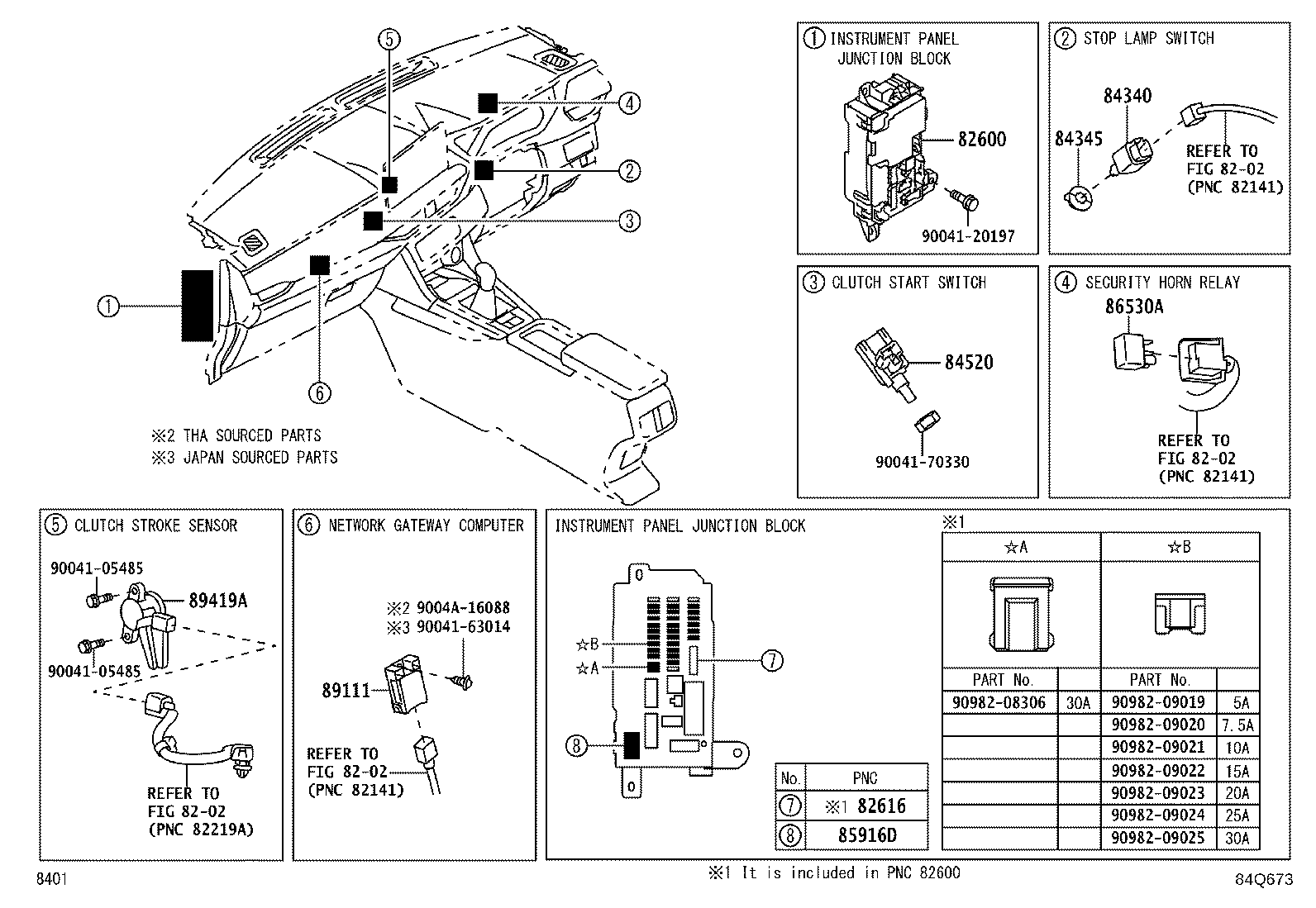

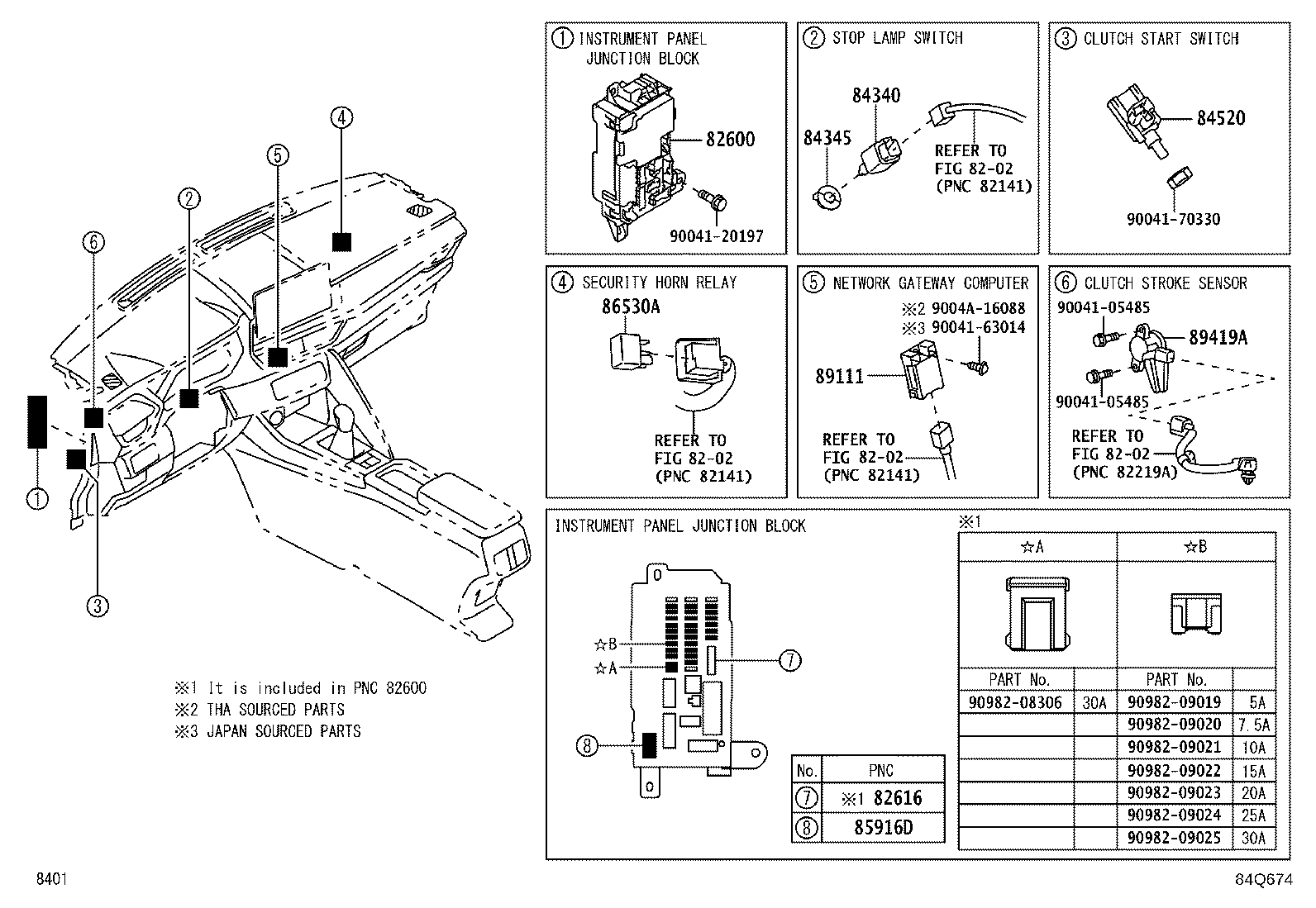

| 82600 | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82616A | Puller, Fuse, NO.2 |
| 82641 | Relay, Integration NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 83320 | Gage Assy, Fuel Sender |

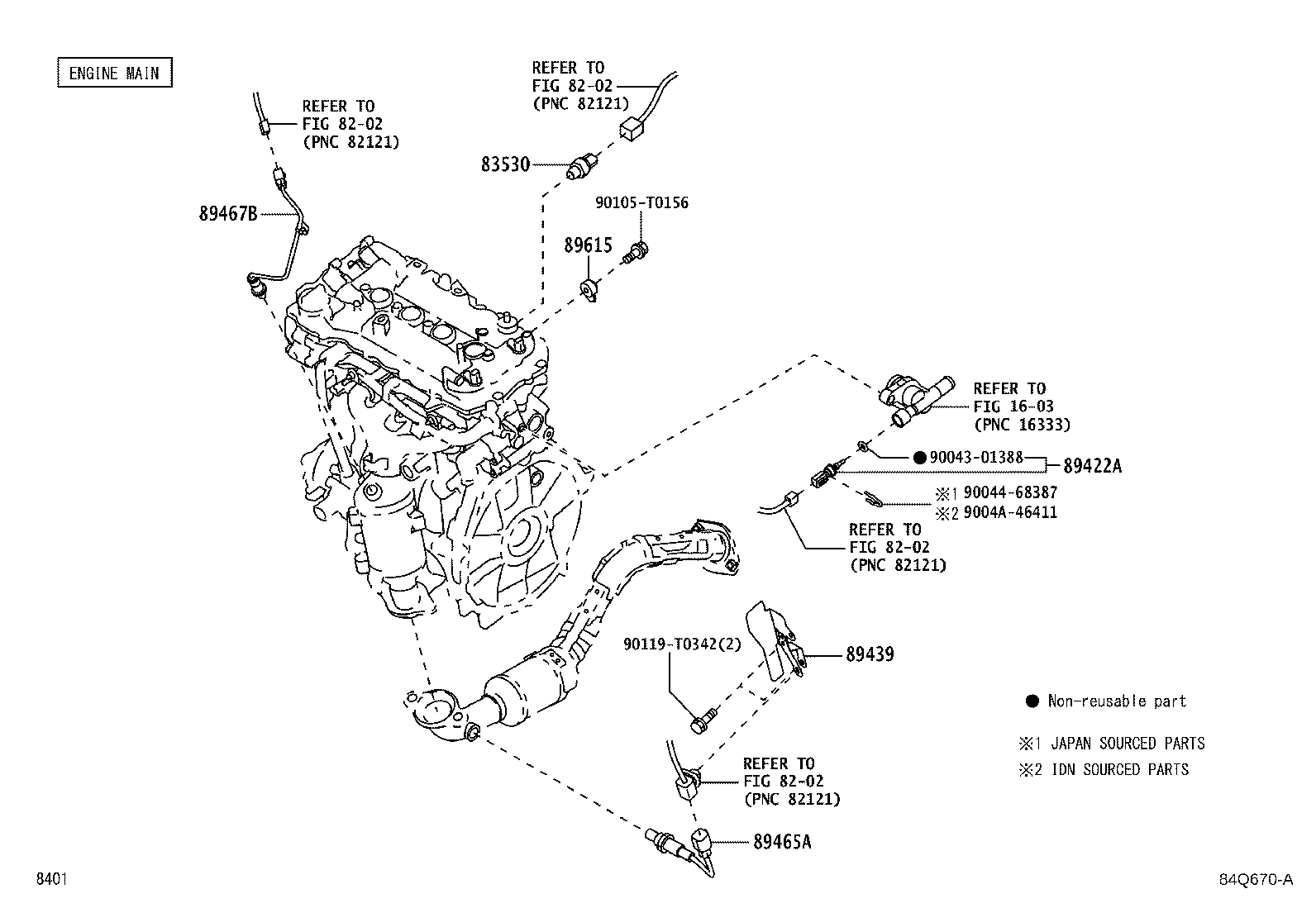

| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83950M | Lamp Assy, Telltale |

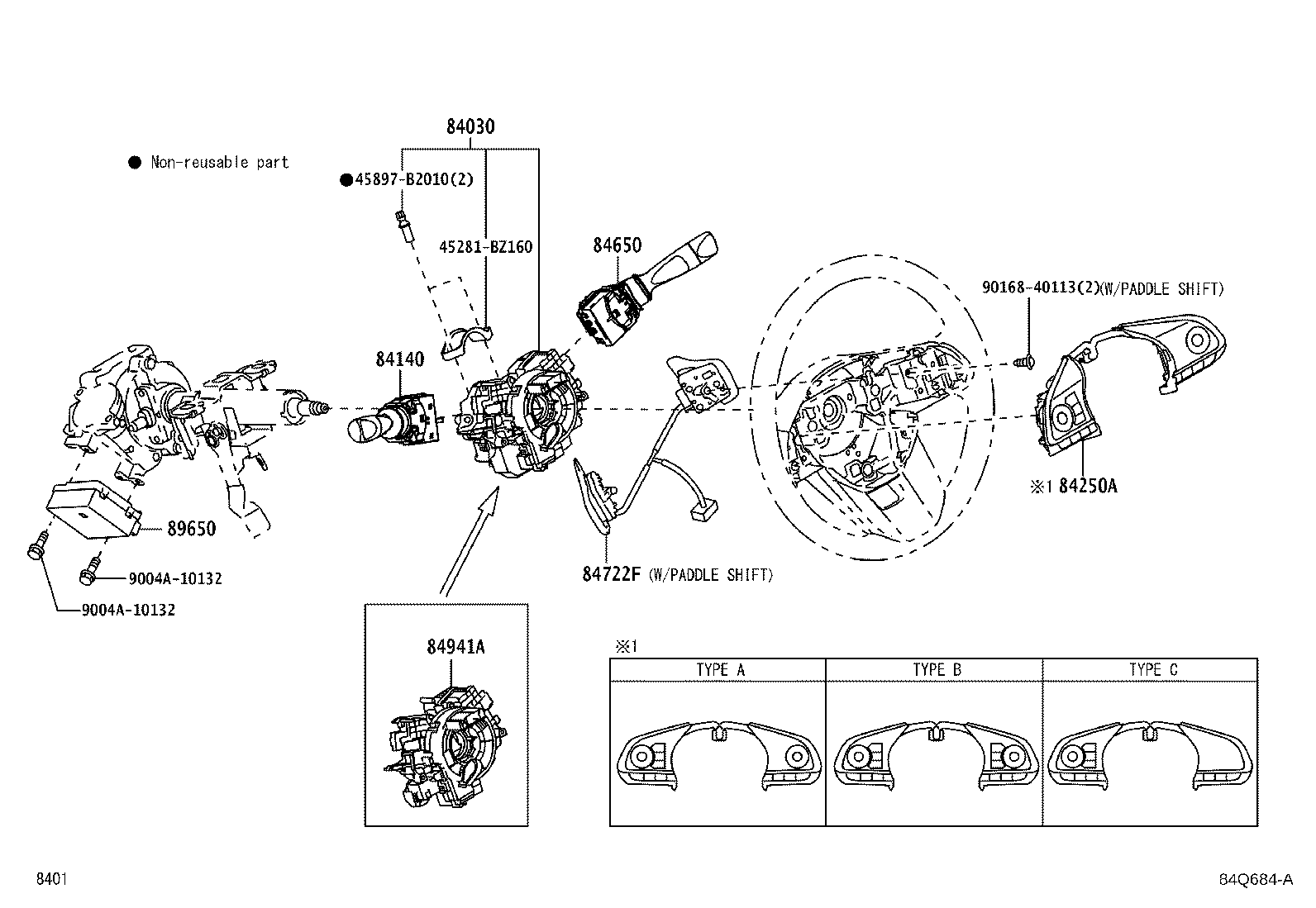

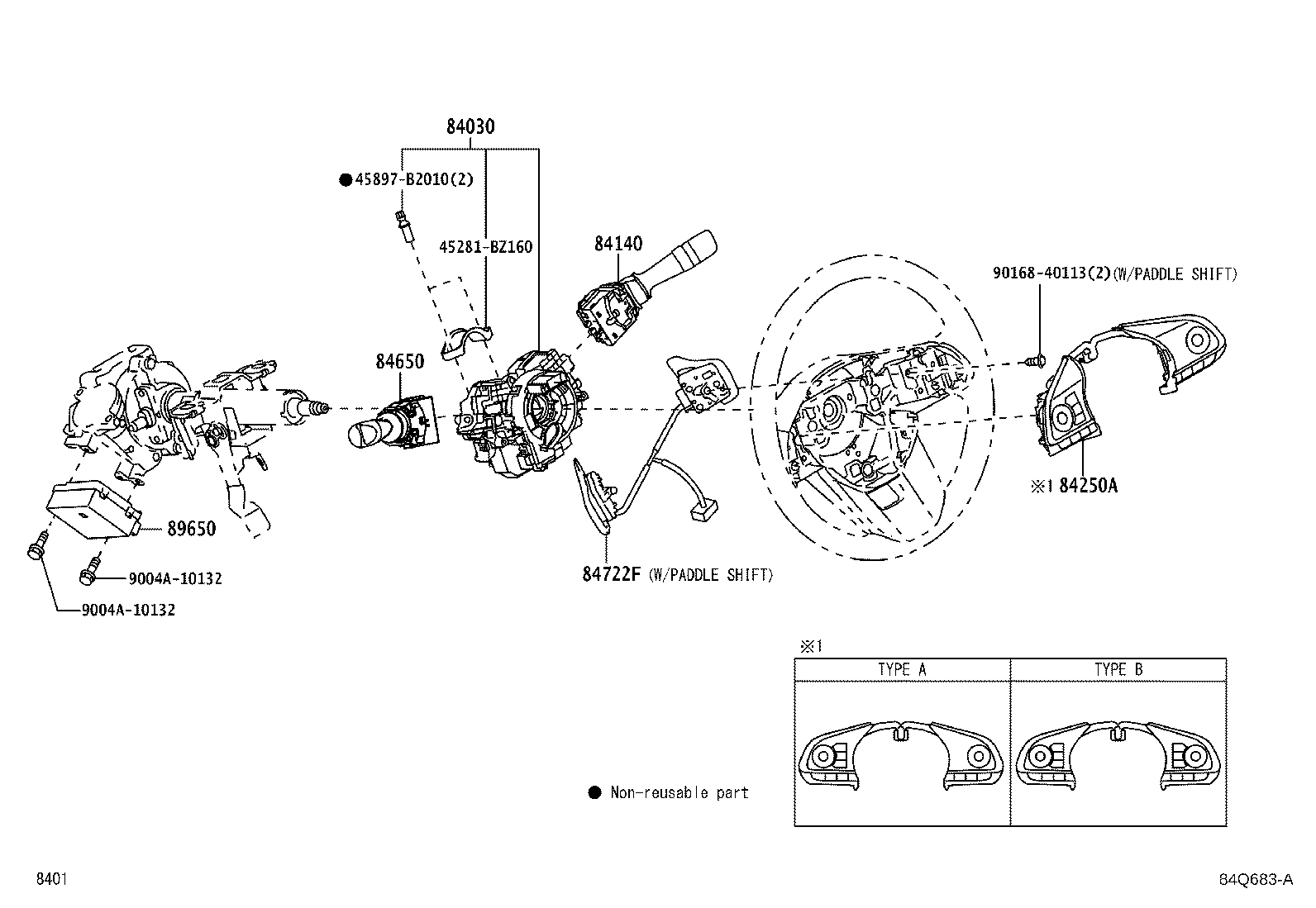

| 84030 | Switch Assy,Multiplex Network |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84210 | Switch Assy, Back-up Lamp |
| 84231A | Switch, Courtesy Lamp |
| 84248 | Clamp, Center Cluster Module Switch Harness |
| 84250A | Switch Assy, Steering Pad |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390B | Switch Assy, Electric Parking Brake |
| 84490H | Switch Assy, Corner Pole Sensor |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84545 | Switch, Neutral Position |
| 84650 | Switch Assy, Windshield Wiper |
| 84722F | Switch, Transmission Control |
| 84740B | Switch Assy, Air Purifier |

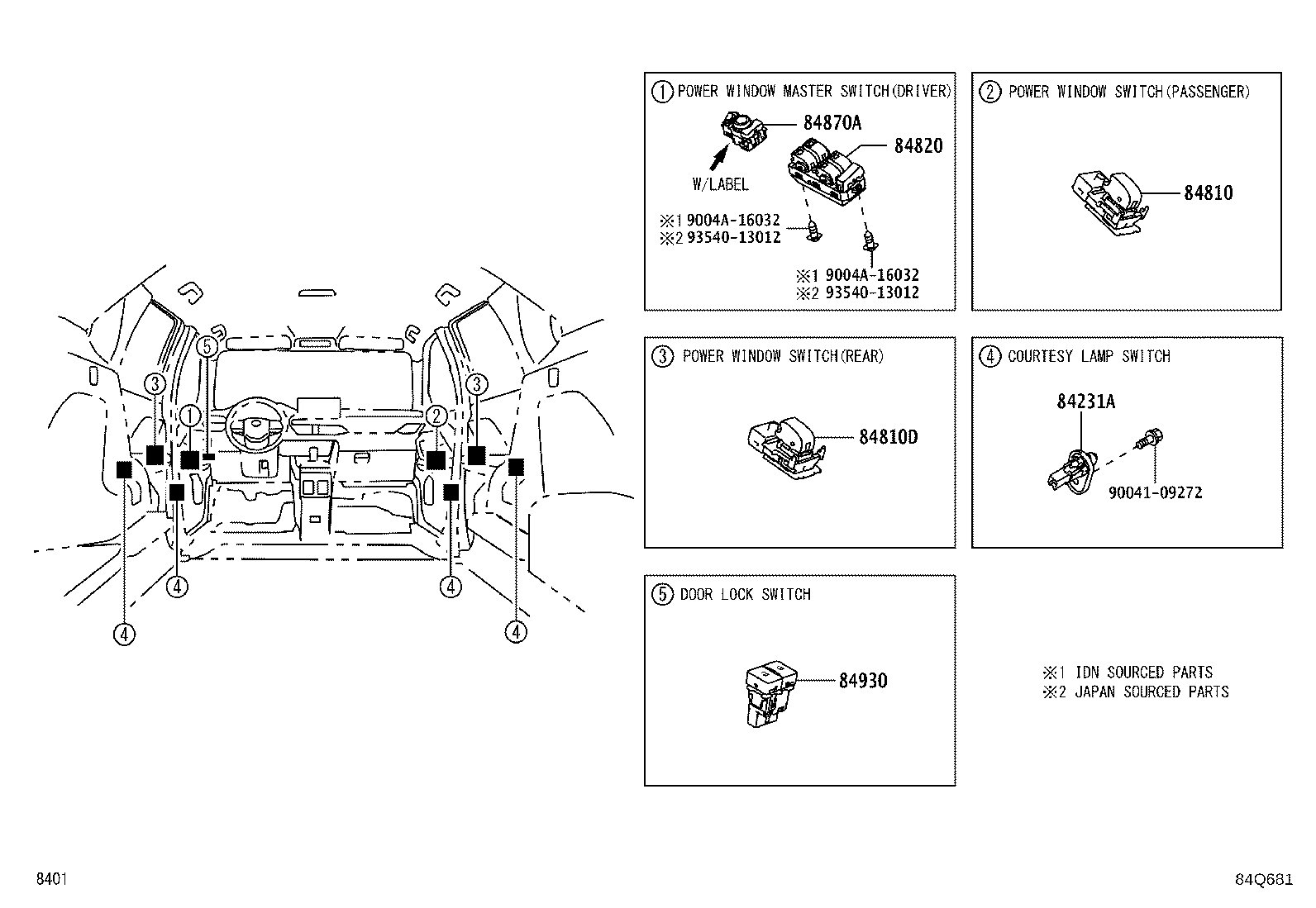

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |

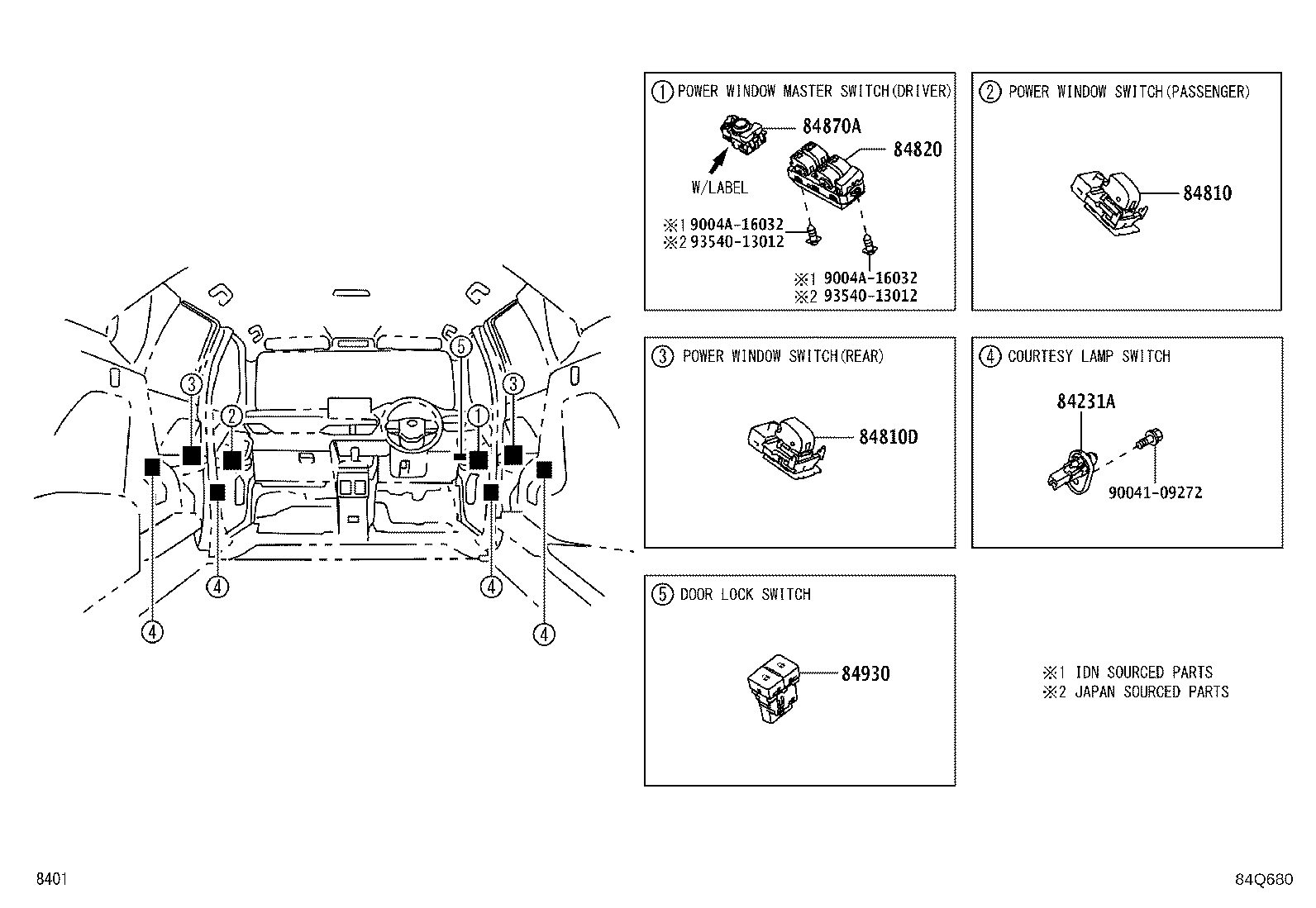

| 84820 | Master Switch Assy, Power Window Regulator |

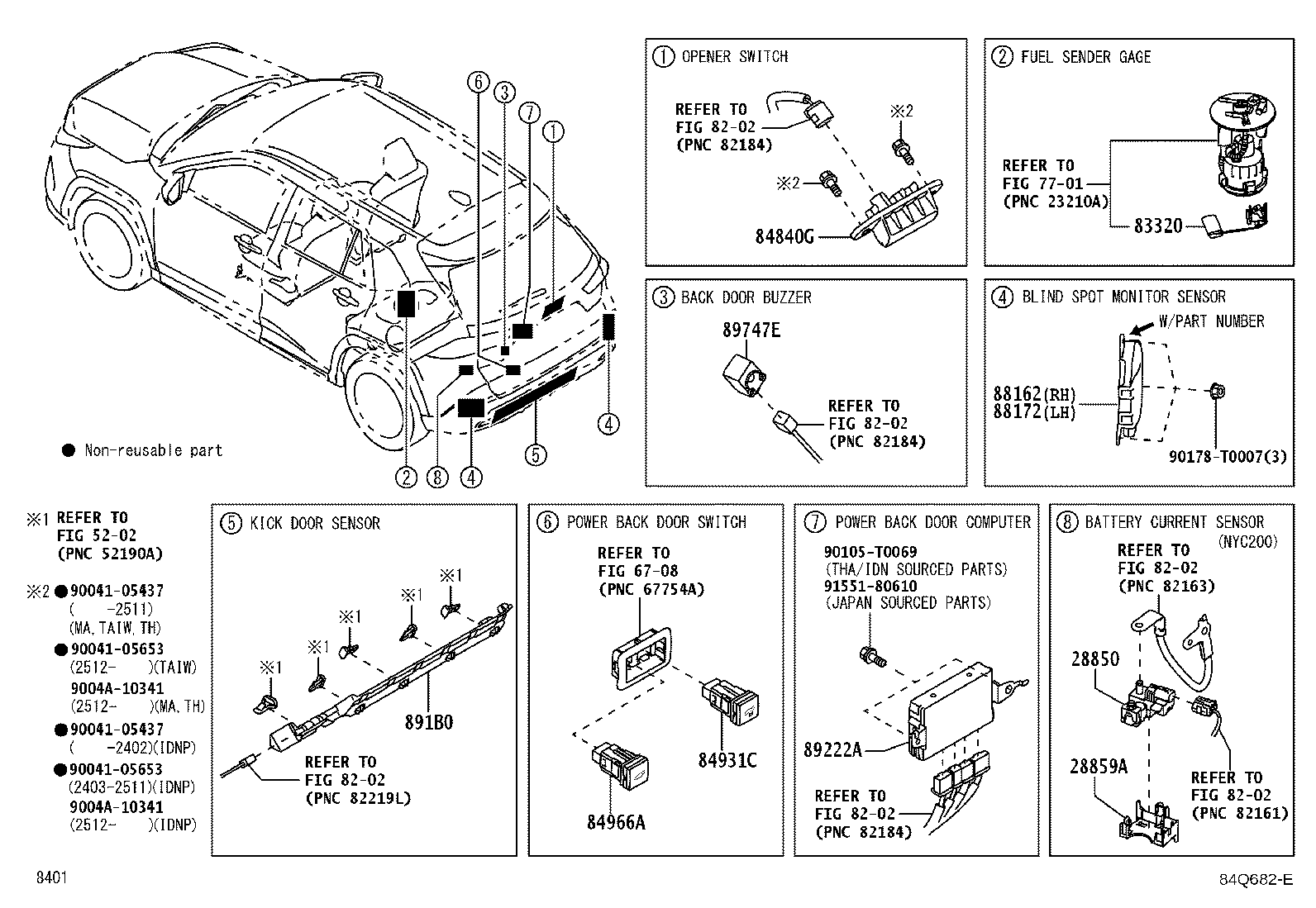

| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |

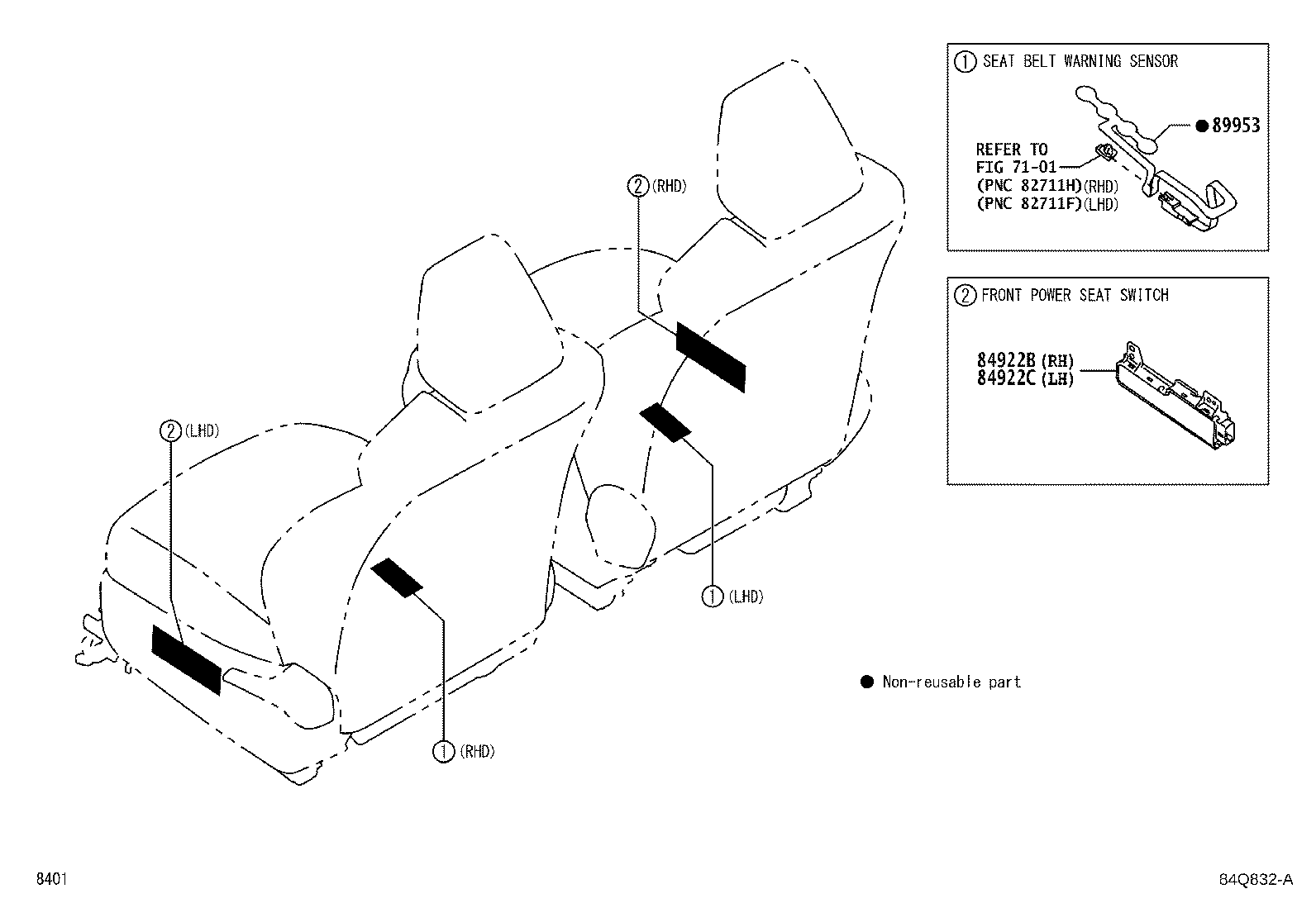

| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84930 | Switch Assy, Door Control |
| 84931C | Switch, Back Door Control |
| 84941A | Base, Switch |
| 84966 | Switch, Power Back Door Control |
| 84966A | Switch, Power Back Door Control, NO.1 |

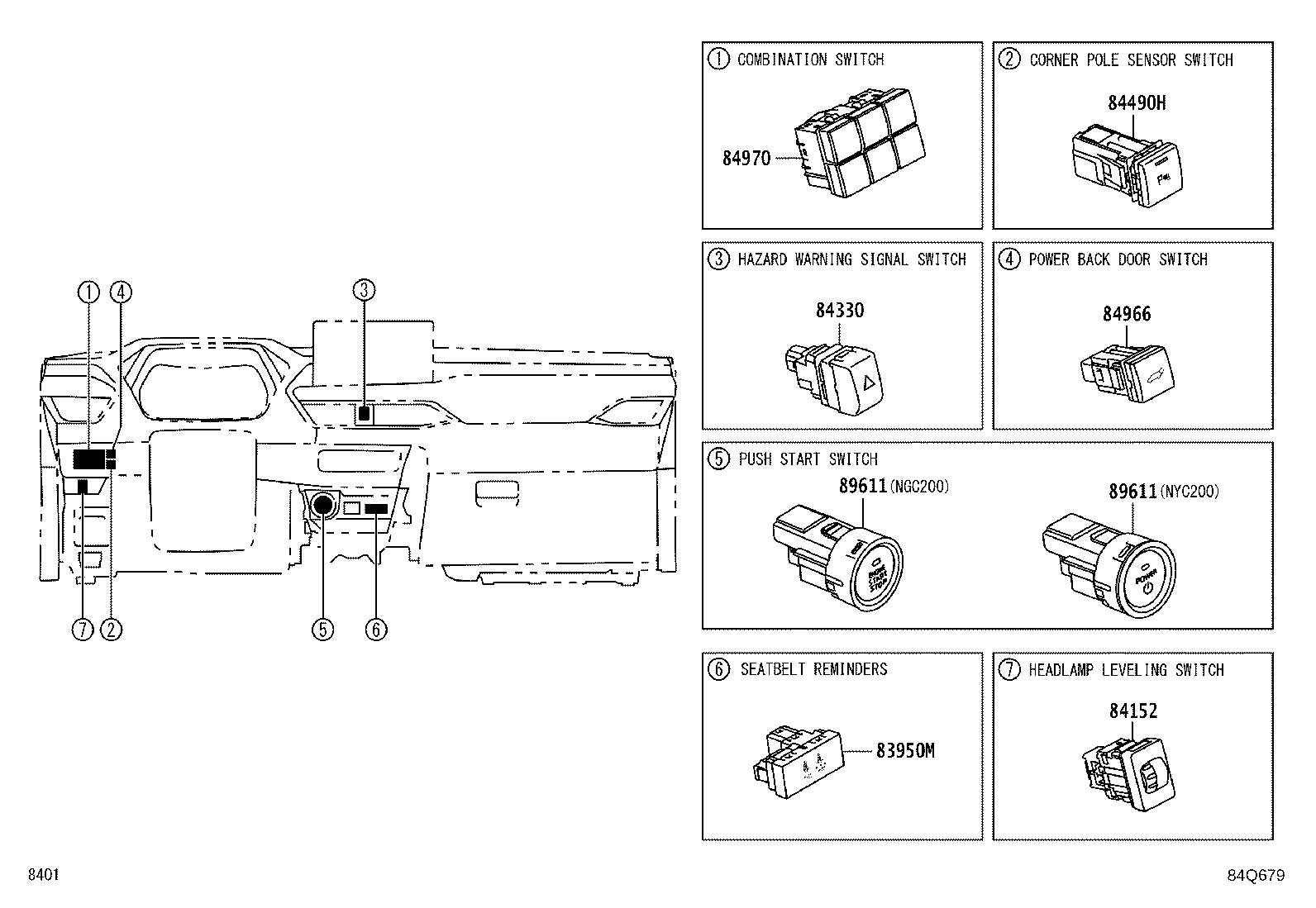

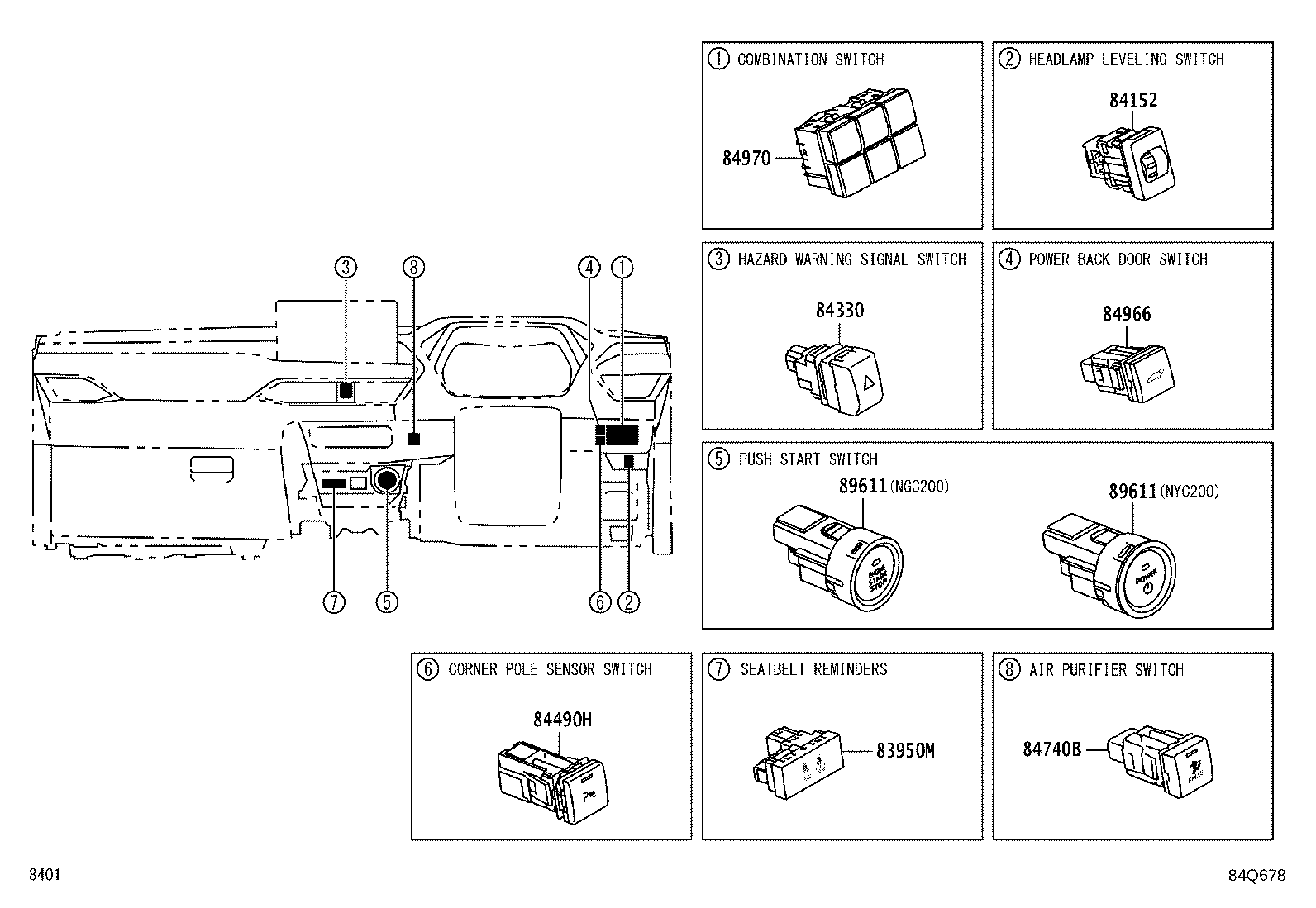

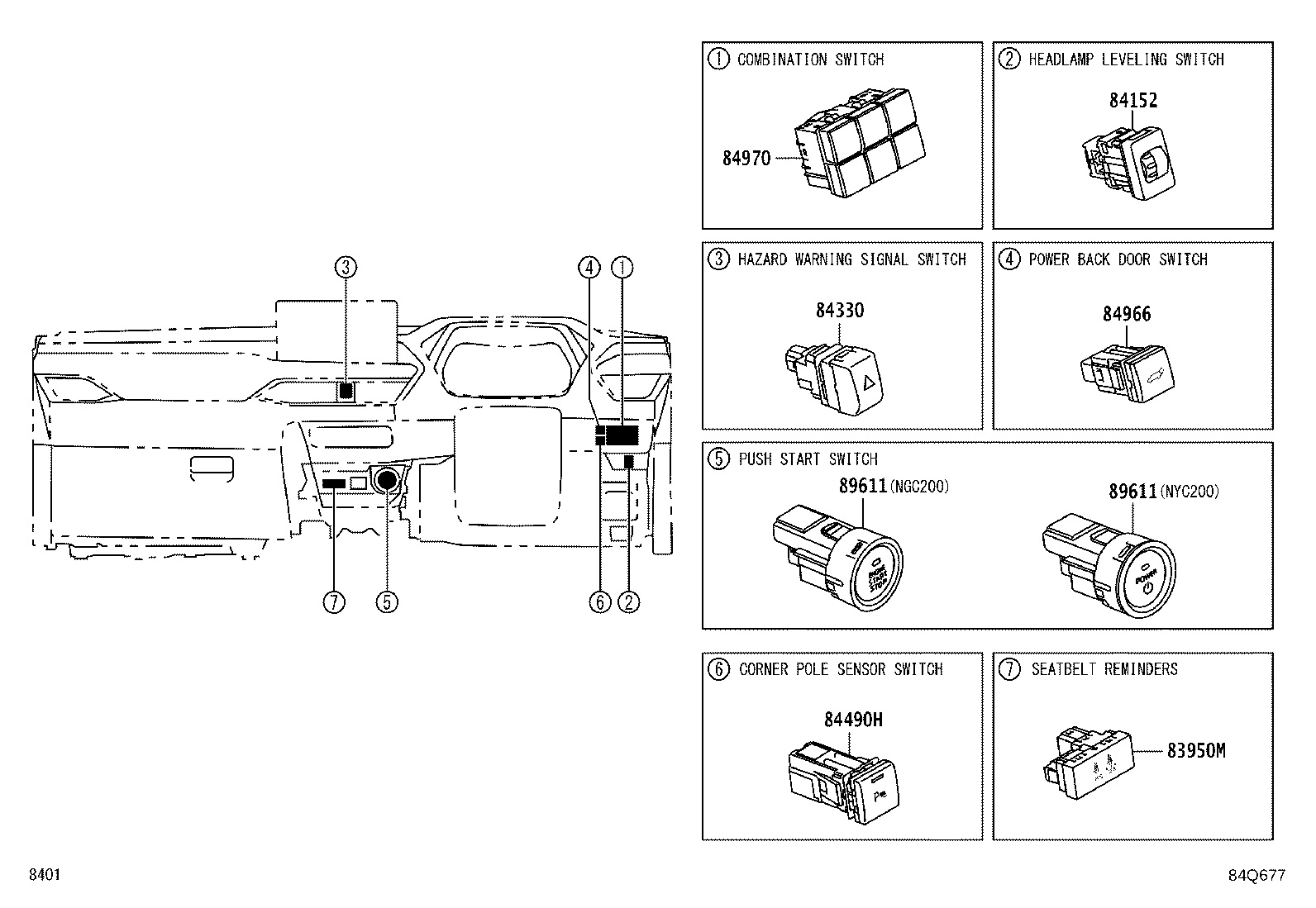

| 84970 | Switch Assy, Combination |
| 85530 | Socket Assy, Power Outlet, NO.1 |

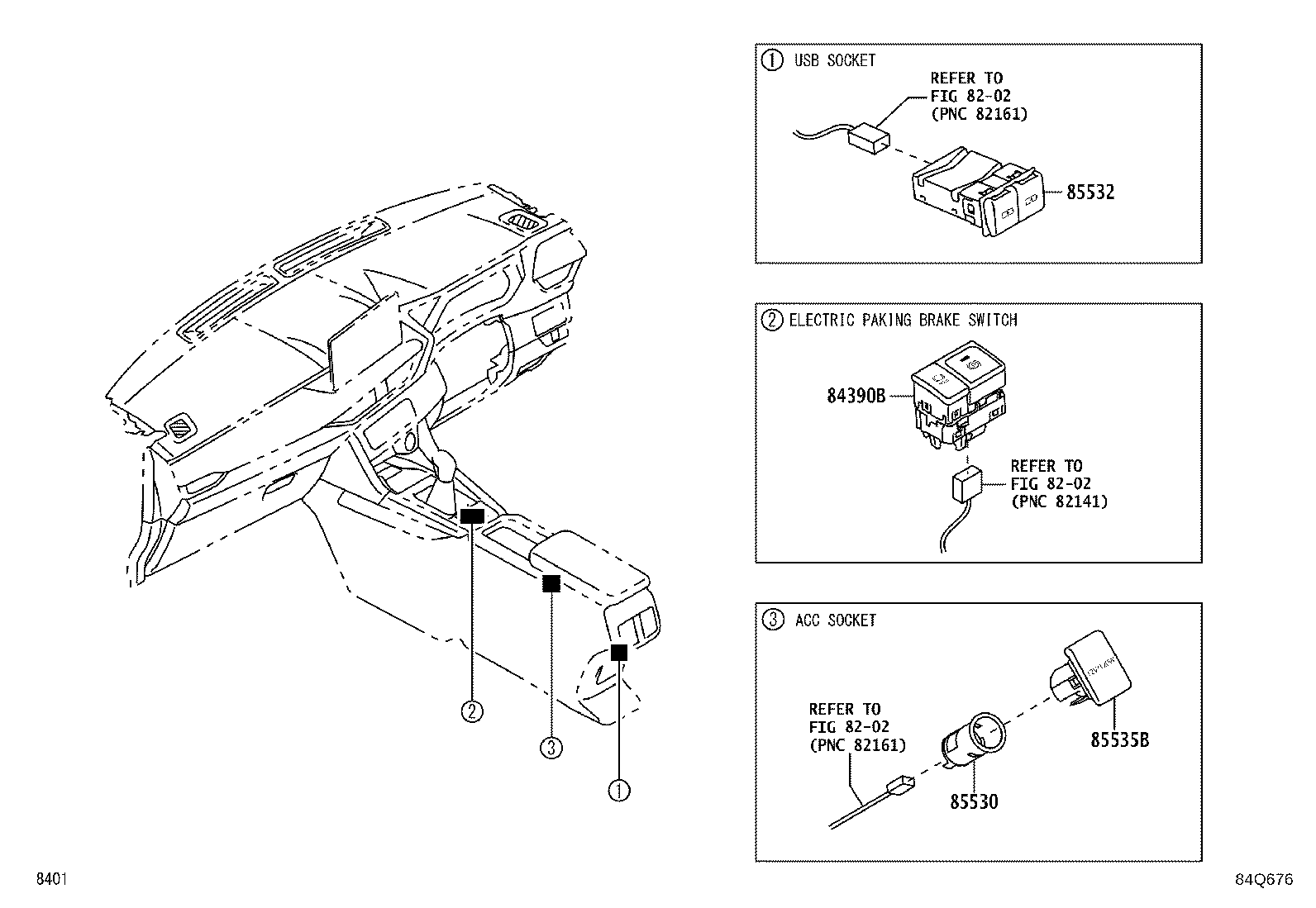

| 85532 | Socket, Usb Charger |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85912D | Relay |
| 85916D | Relay, Fog Lamp |
| 85924C | Relay, Igct |
| 85925 | Relay, Radiator Fan |
| 85925C | Relay, Radiator Fan, NO.2 |
| 86530A | Relay, Horn |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 891B0 | Sensor Assy, Kick Door Control |
| 89222A | Computer, Multiplex Network Door |

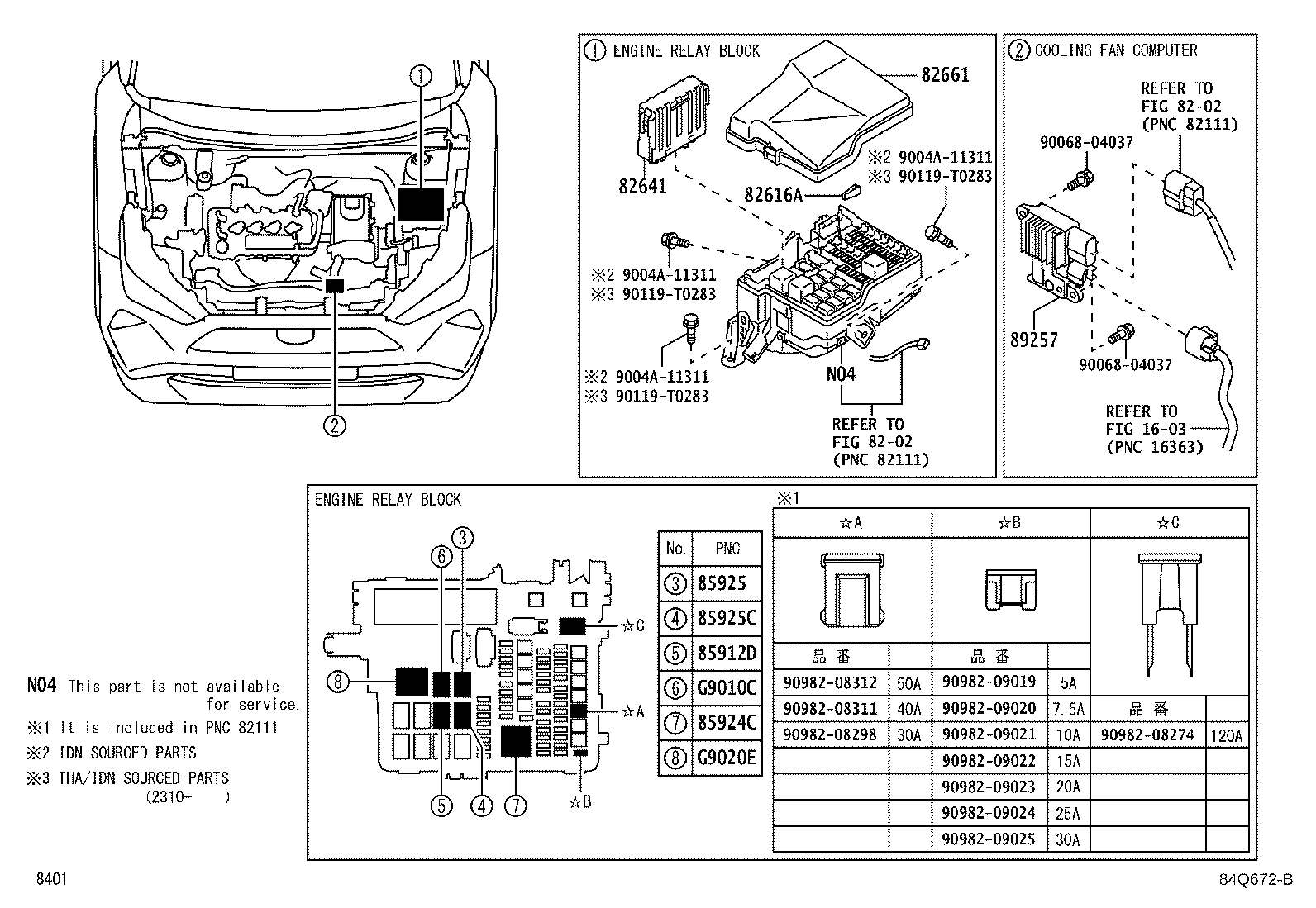

| 89257 | Computer, Cooling Fan |
| 89419A | Sensor, Clutch Stroke |
| 89421B | Sensor, Vacuum |
| 89422A | Sensor, Water Temperature |
| 89439 | Bracket, Sensor |
| 89439D | Bracket, Sensor, NO.1 |

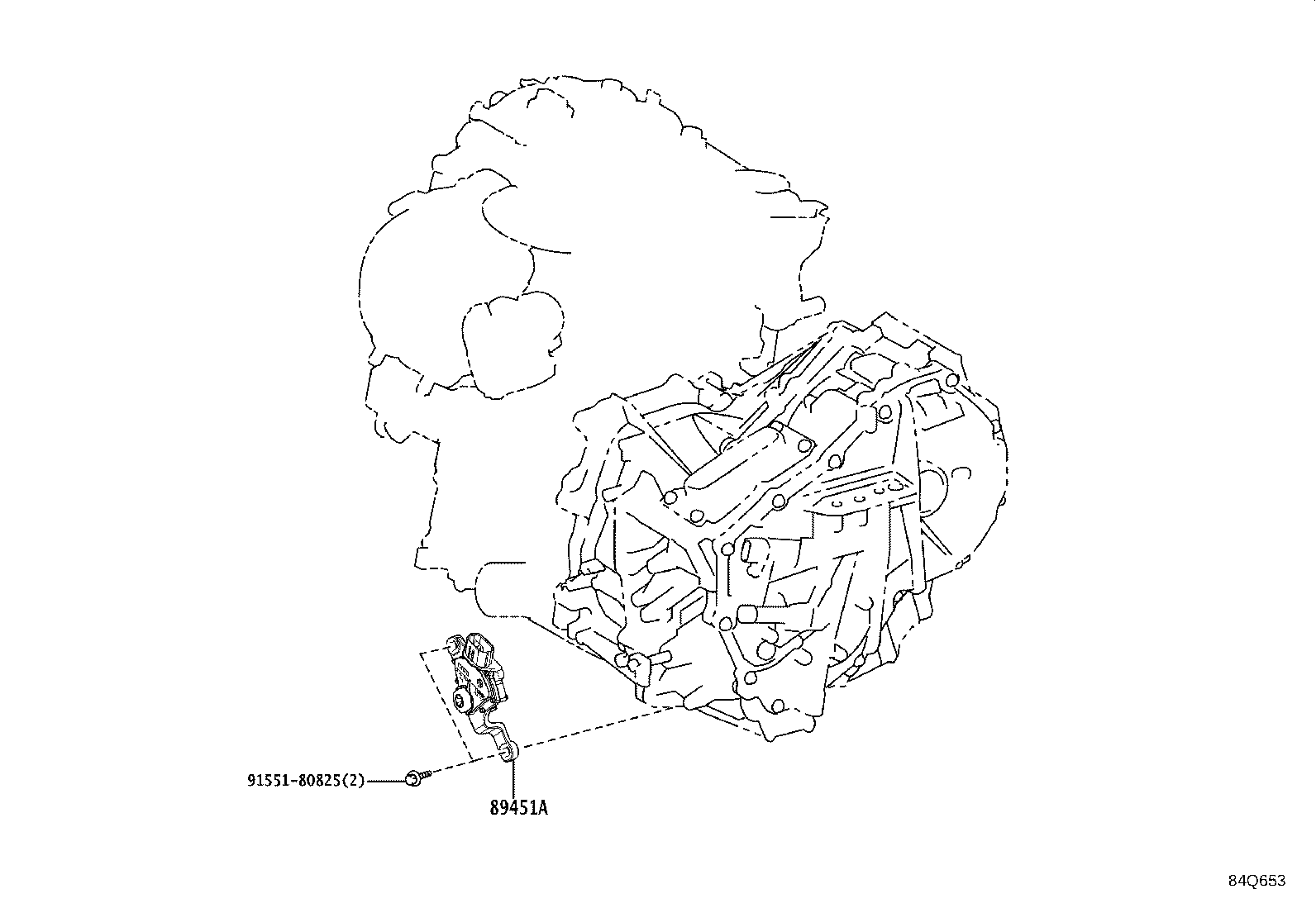

| 89451A | Sensor, Shift Lever Position |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89747E | Buzzer, Power Back Door Warning |
| 89953 | Sensor, Belt Warning Occupant Detection |
| G9010C | Relay, Pcu Radiator Fan |
| G9020E | Relay, Hybrid Water Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
