Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

5 part groups · 2 illustrations

Illustrations

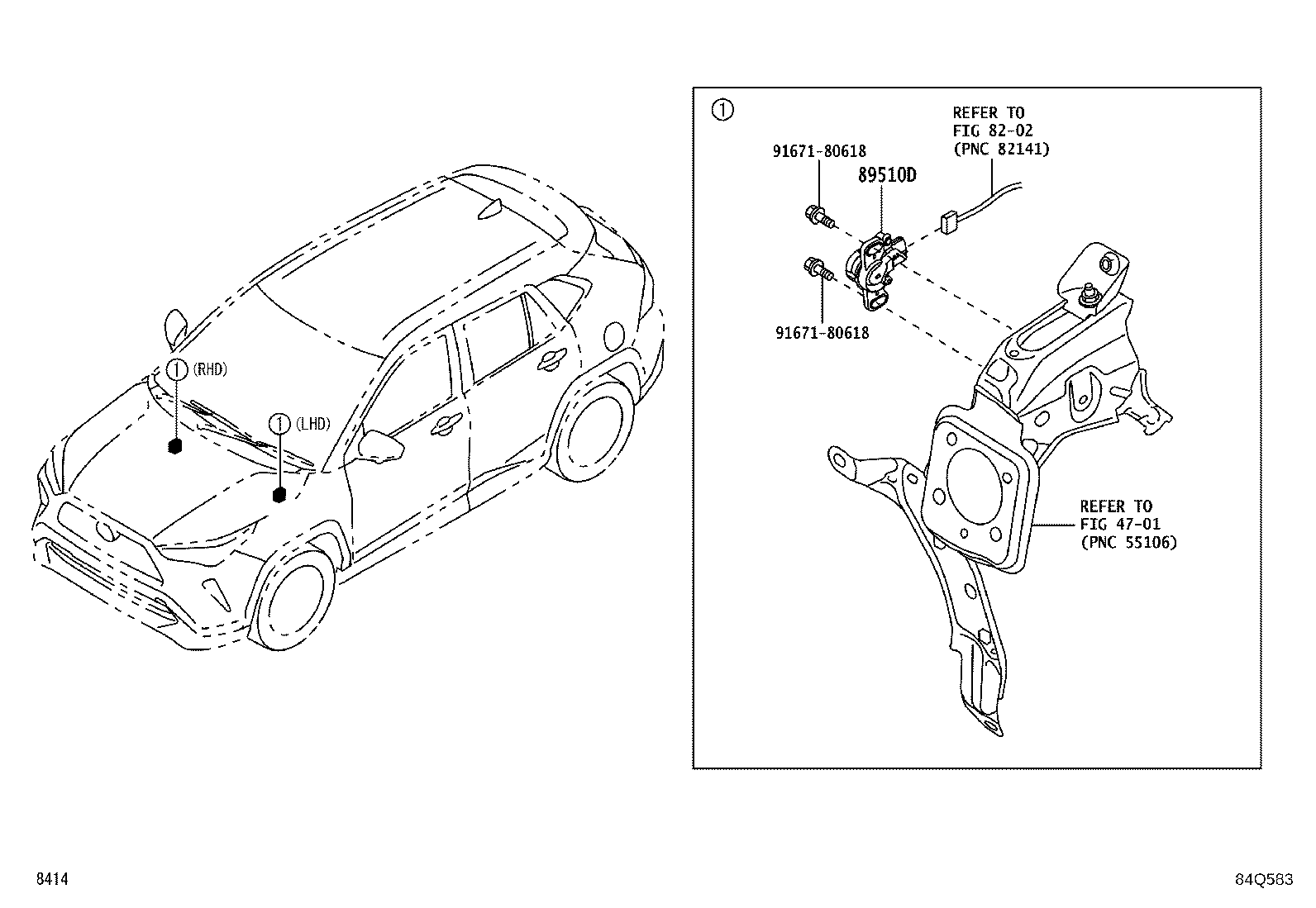

Figure 84Q582 84Q582 2023-06 → — Figure 84Q583 84Q583 2023-06 → —

Part groups

PNCDescription
82251D Wire, Speed Sensor, RH
82251E Wire, Speed Sensor, LH
89510D Sensor Assy, Brake Pedal Stroke
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
