Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 2 illustrations

Illustrations

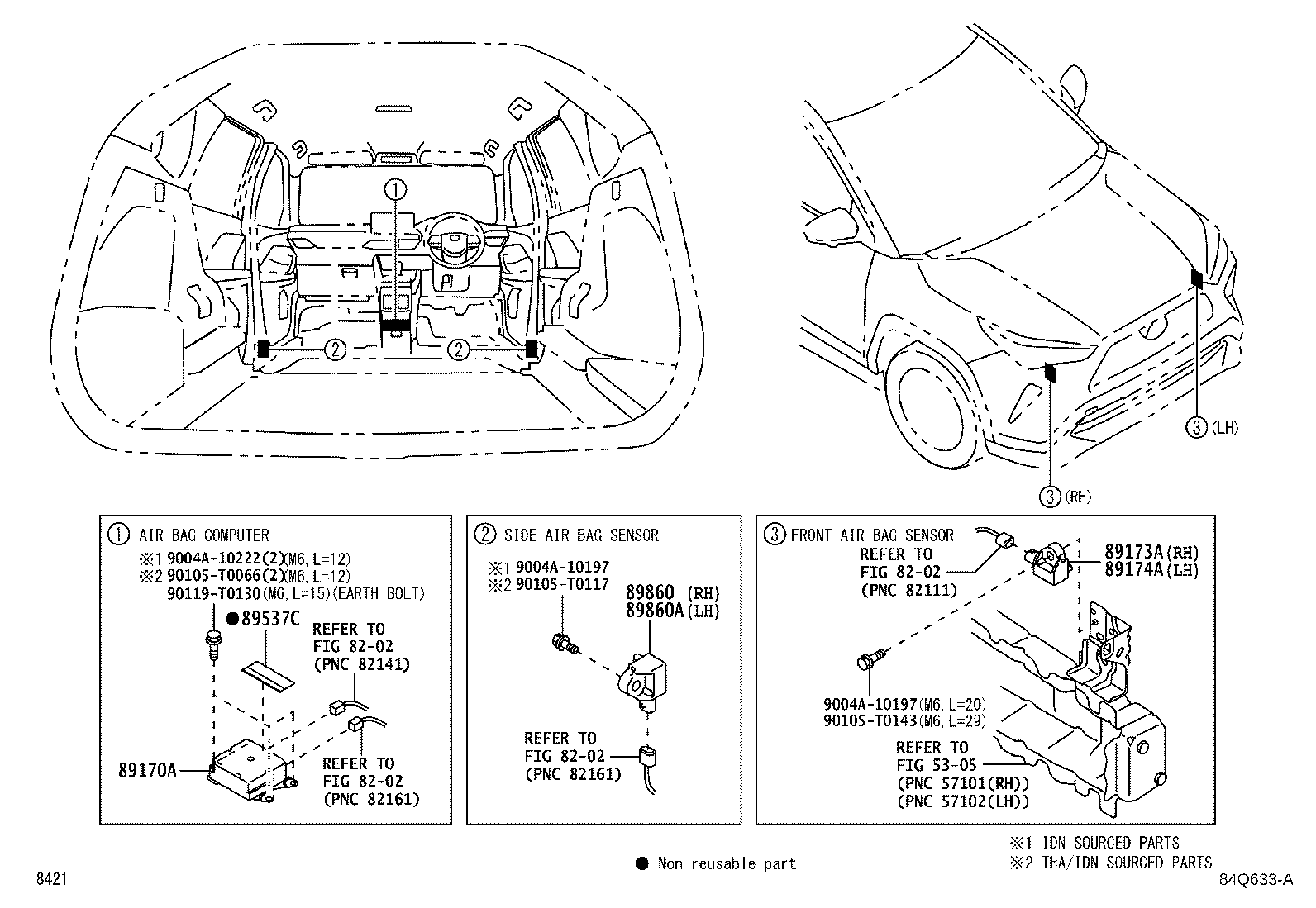

Figure 84Q569B 84Q569B 2023-06 → — Figure 84Q633A 84Q633A 2023-06 → —

Part groups

PNCDescription
89170A Computer Assy, Airbag
89173 Sensor, Airbag, Front
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89537C Cover, Computer
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
