Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

23 part groups · 3 illustrations

Illustrations

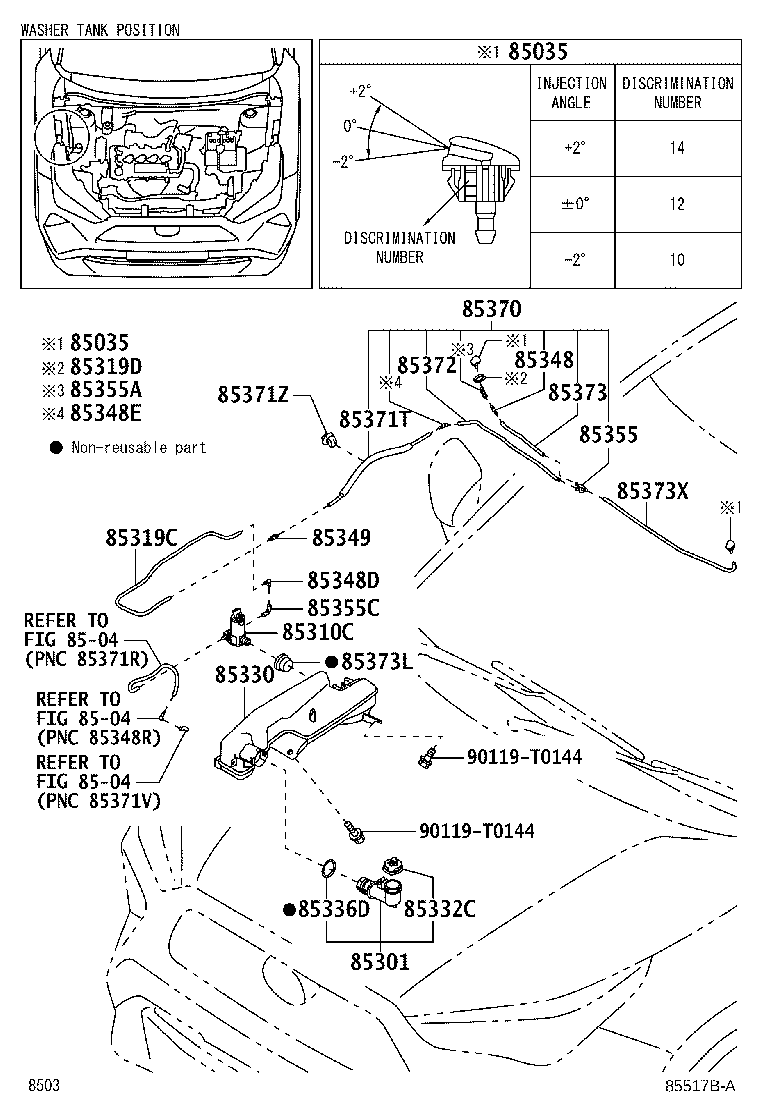

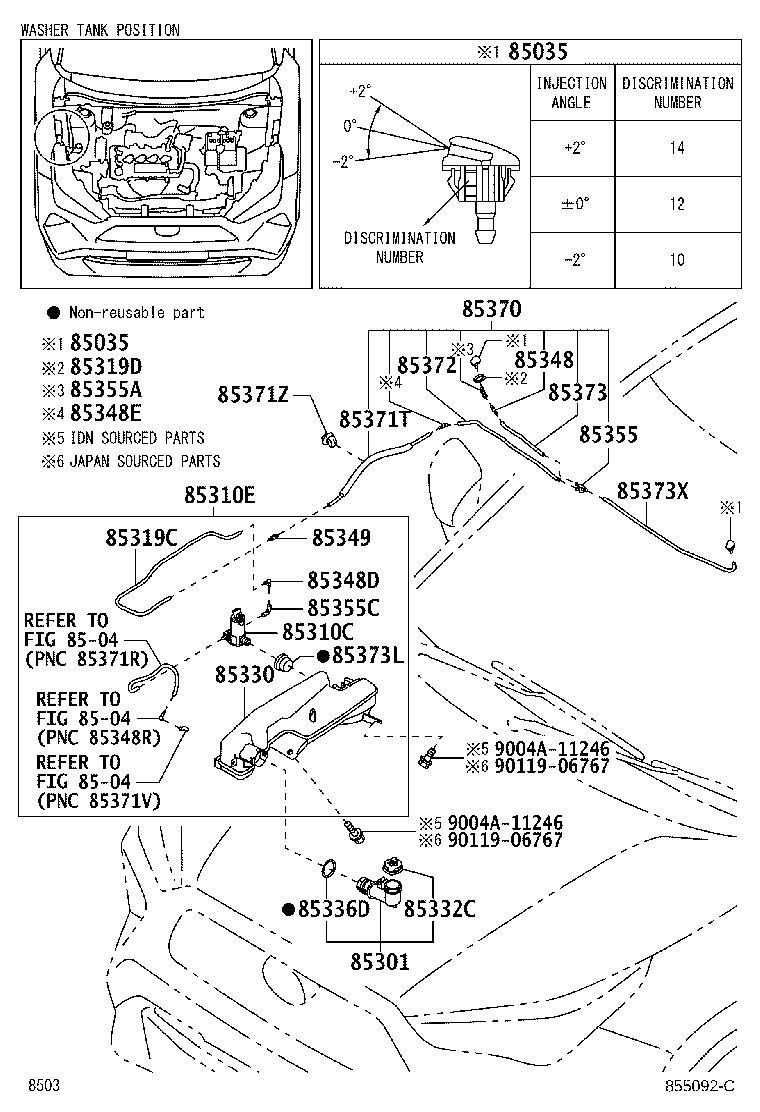

Figure 855093C 855093C 2023-06 → — Figure 855092C 855092C 2023-06 → — Figure 85517BA 85517BA 2023-10 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85301 Inlet Sub-assy, Washer
85310C Motor & Pump Assy, Washer
85310E Jar & Pump Assy, Washer
85319C Hose, Washer
85319D Packing, Front Washer
85330 Jar Assy, Windshield Washer
85332C Cap, Front Washer Tank
85336D Packing, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85349 Joint, Windshield Washer Hose, NO.1
85355 Valve, Windshield Washer Hose
85355A Joint, Windshield Washer Elbow
85355C Jar, Washer, C
85370 Hose Assy, Windshield Washer
85371T Hose, Windshield Washer (FROM JOINT TO JOINT)
85371Z Clamp, Washer Hose
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85373L Grommet, Washer
85373X Hose, Windshield Washer (FROM JOINT TO NOZZLE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
