Heating & Air Conditioning - Cooler Unit

24 part groups · 16 illustrations

Illustrations

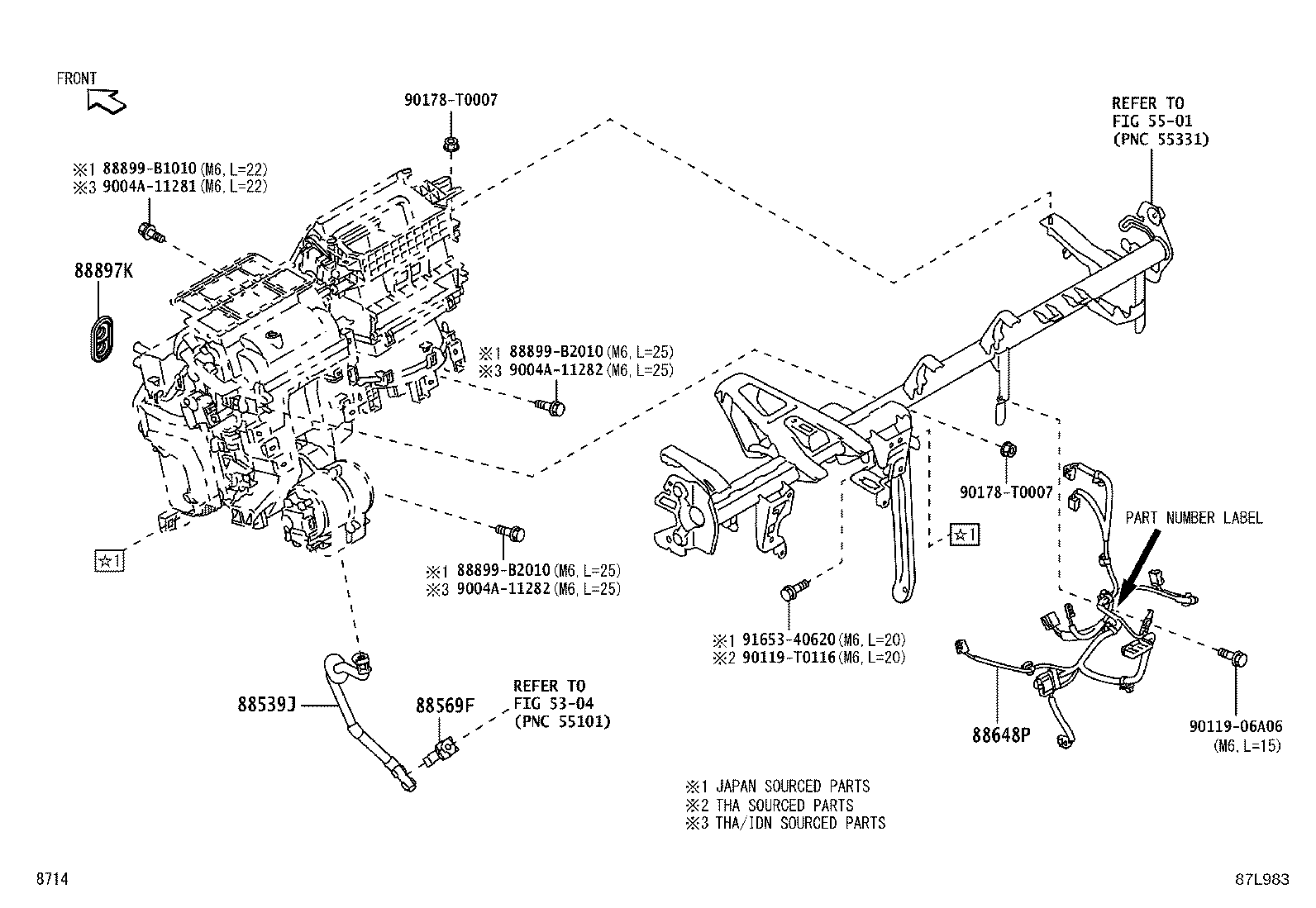

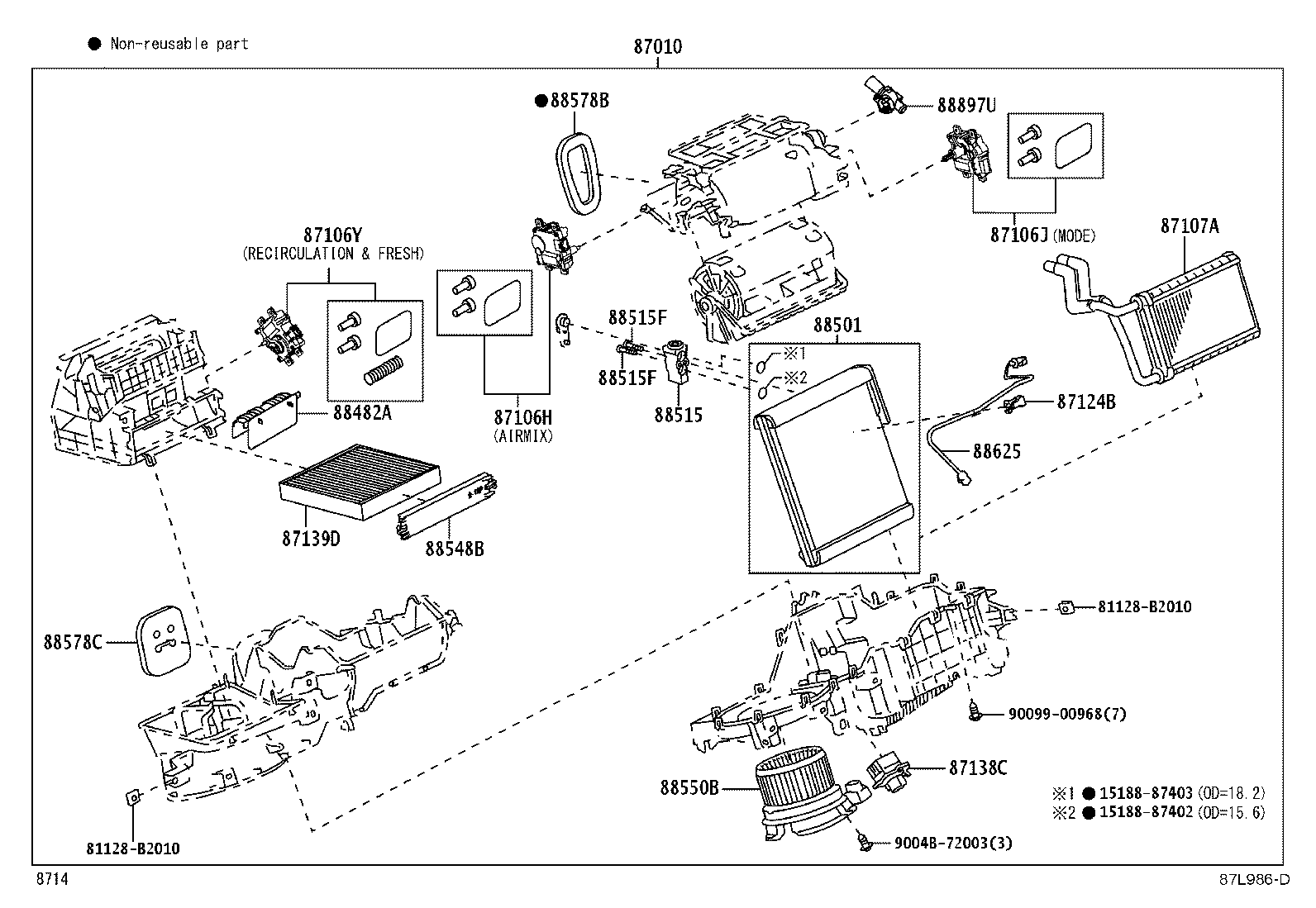

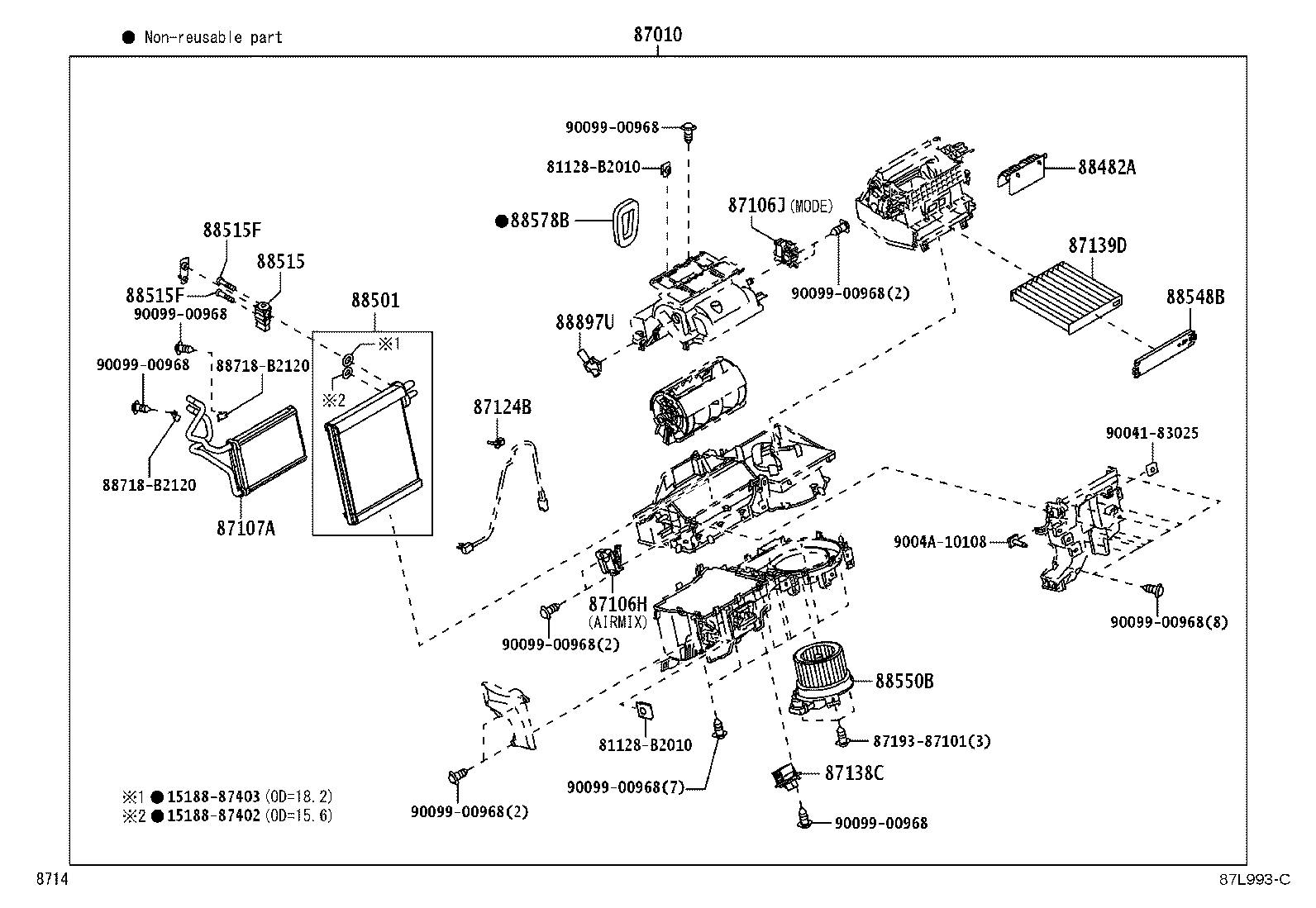

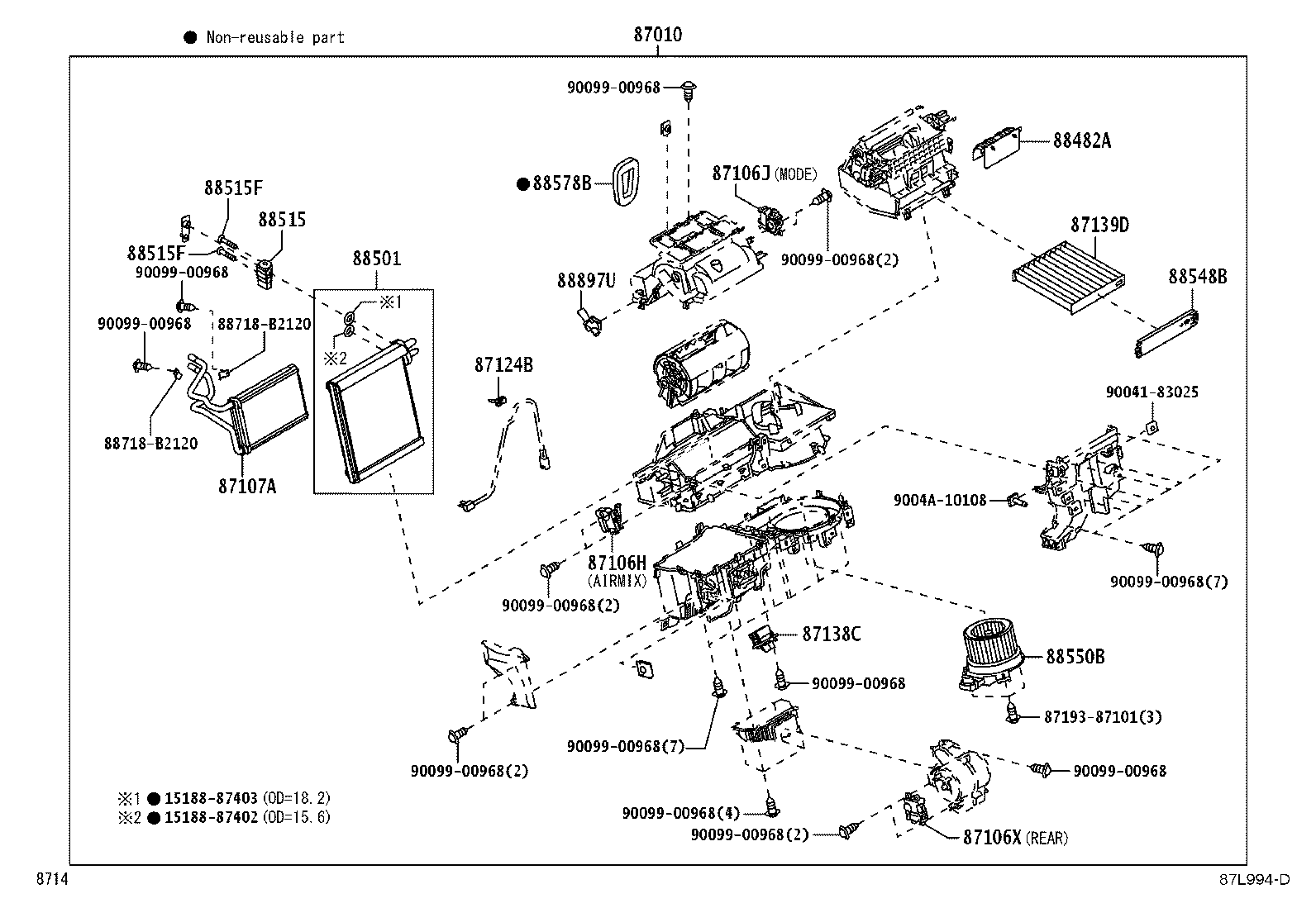

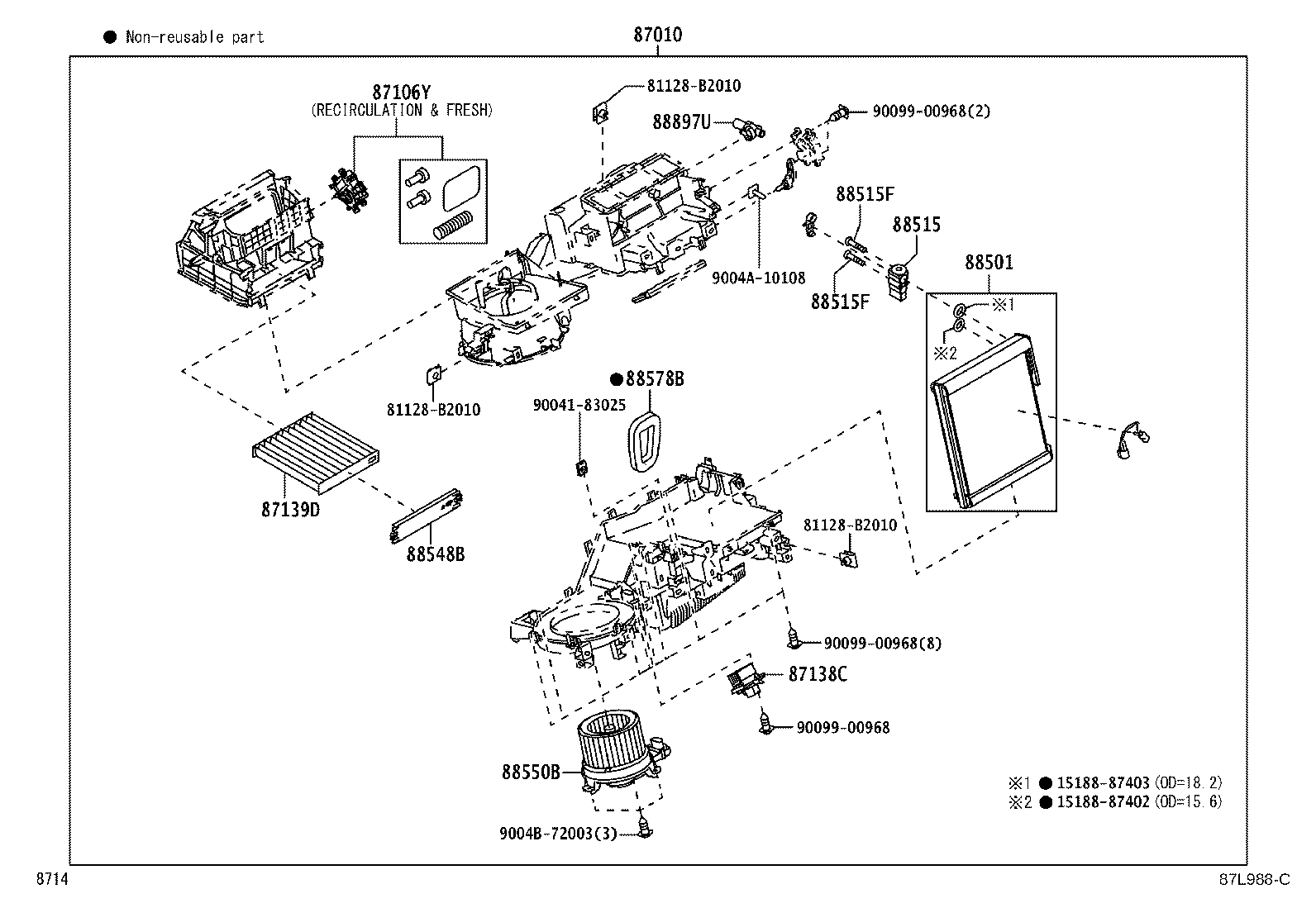

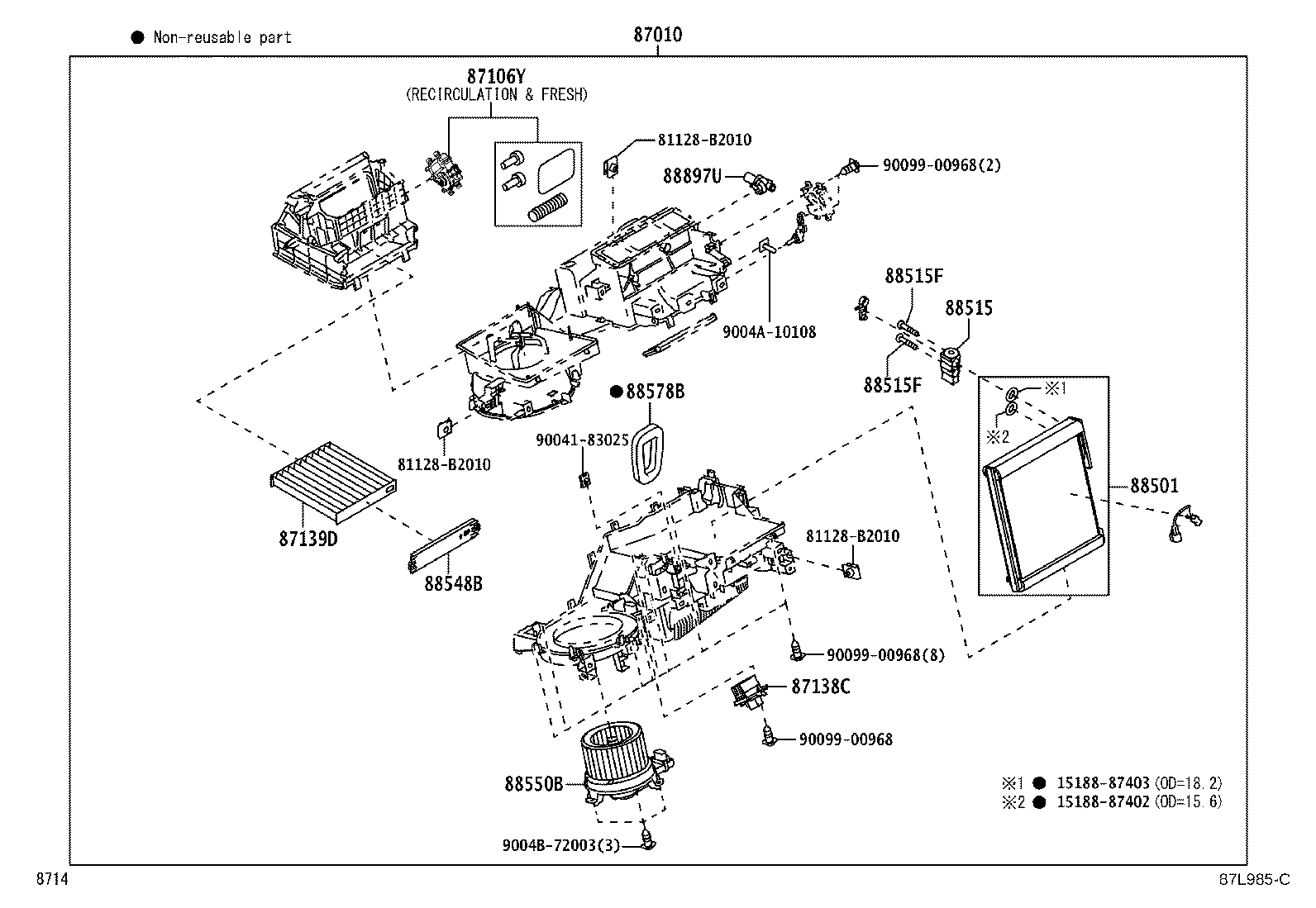

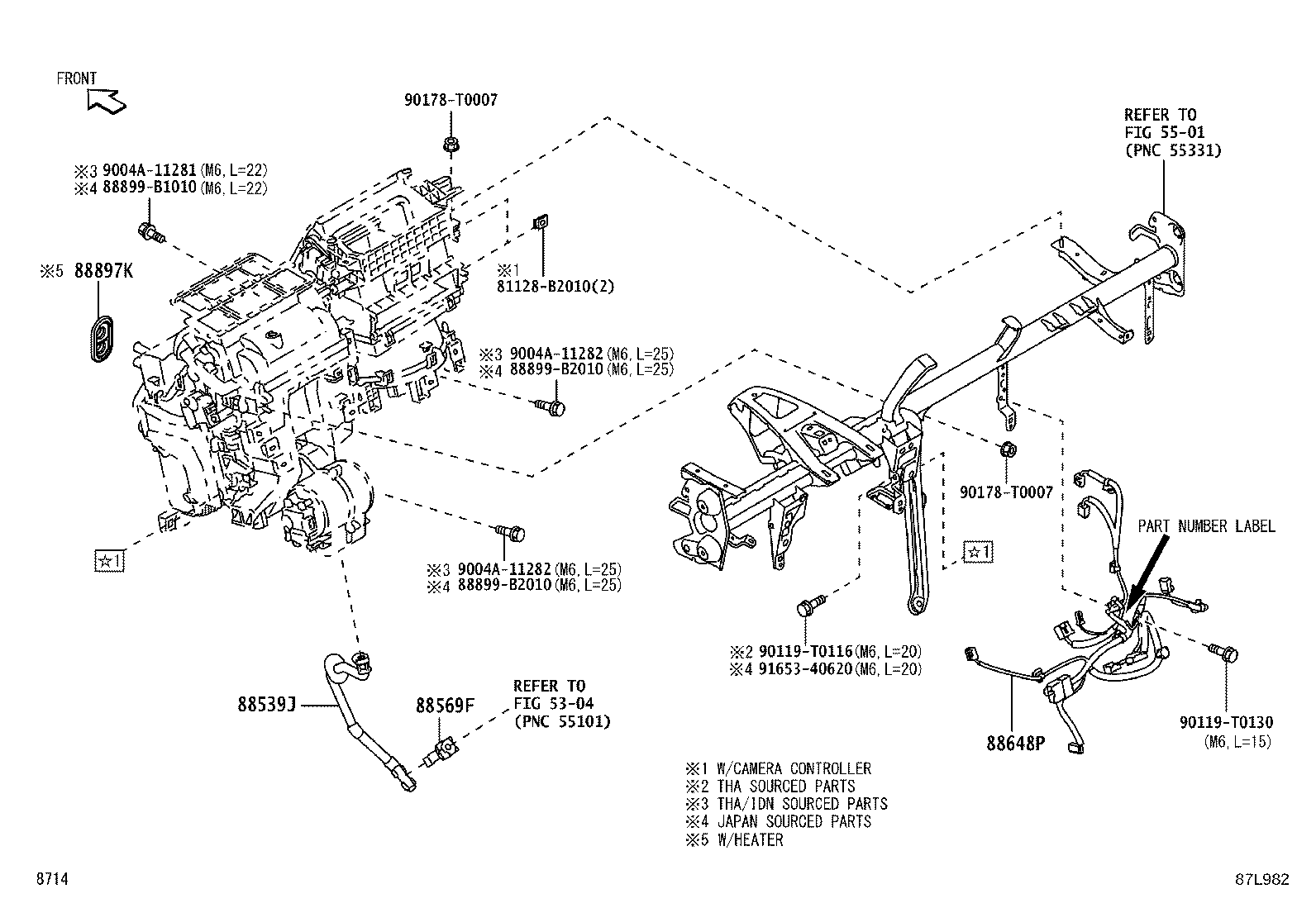

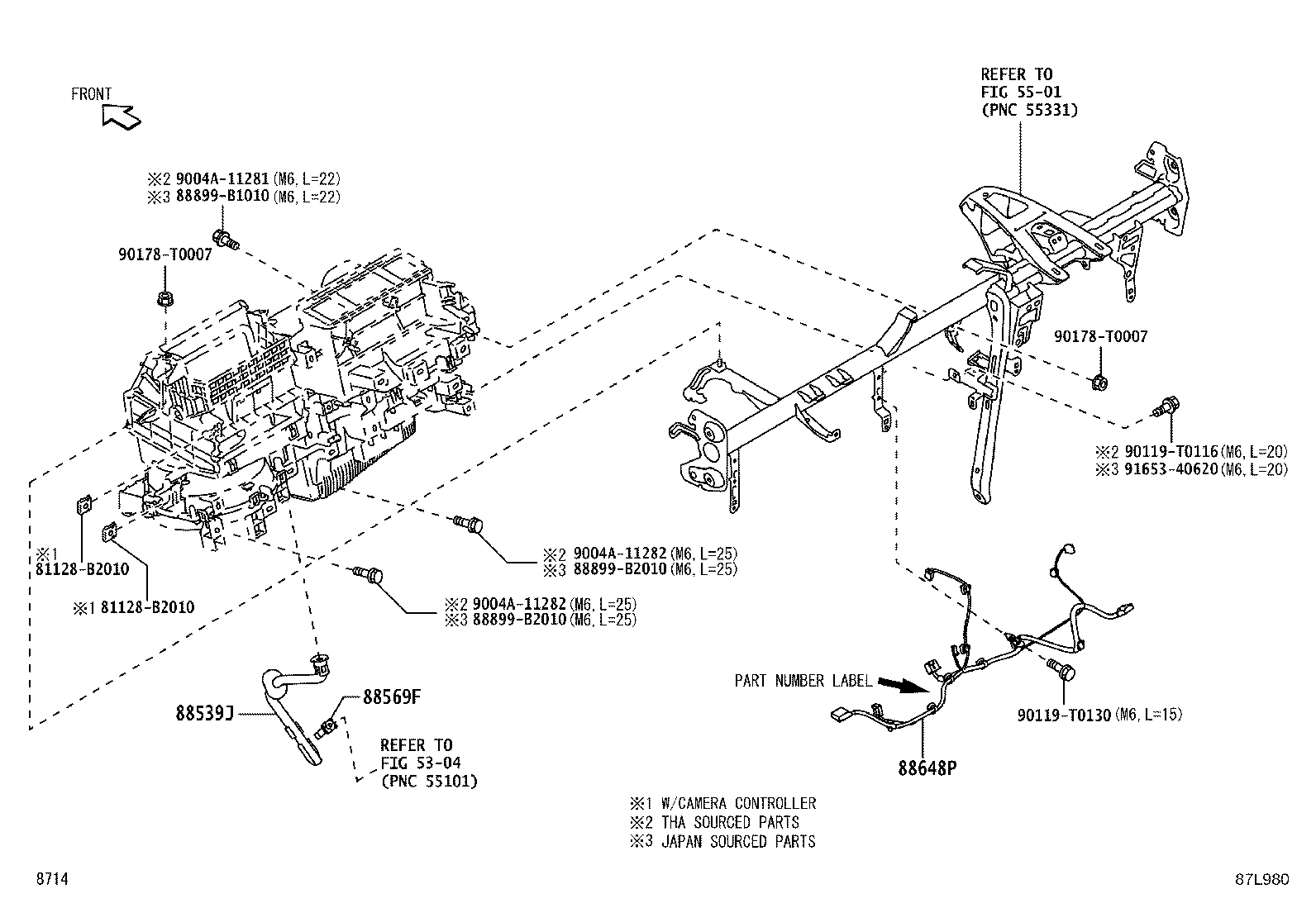

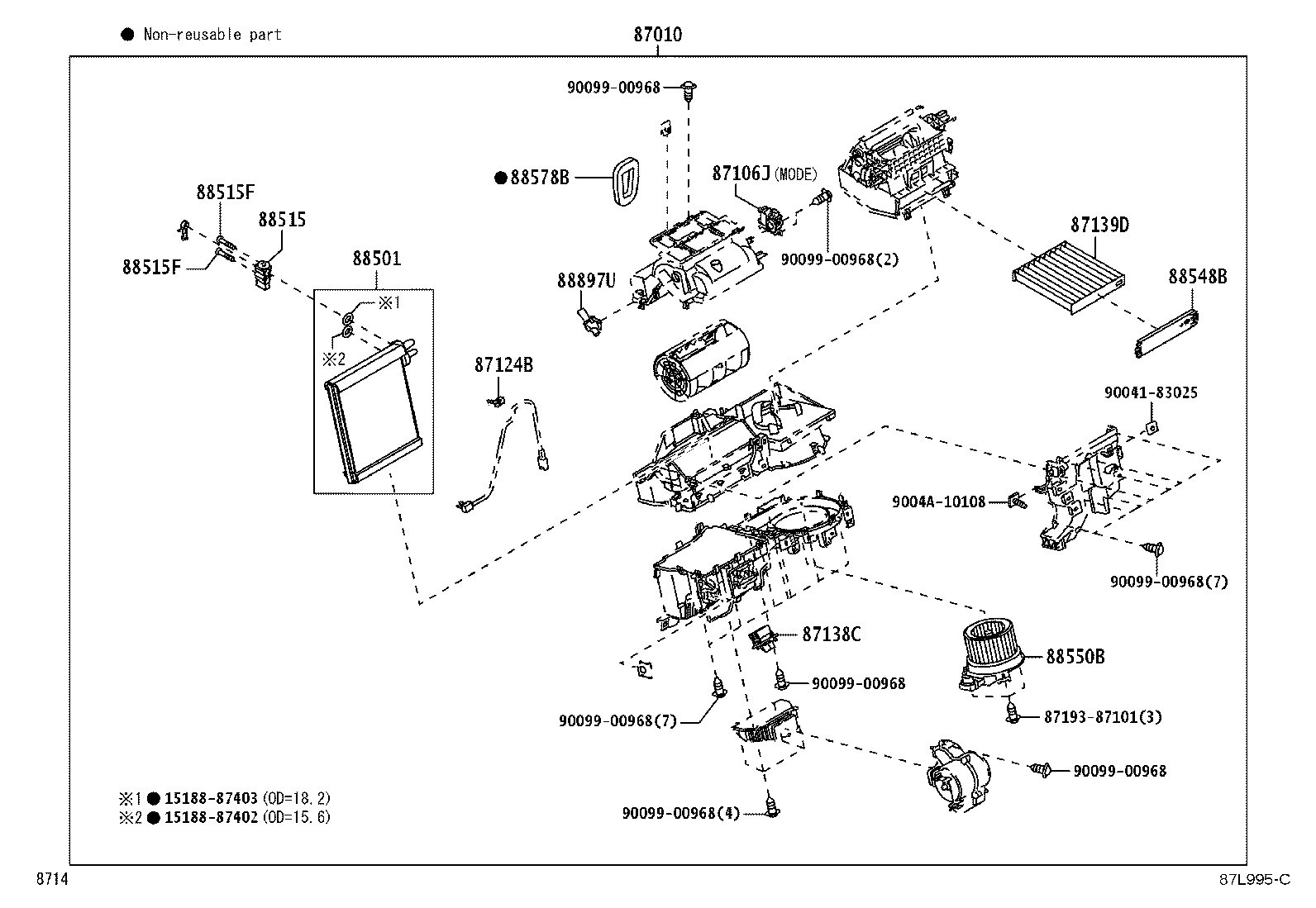

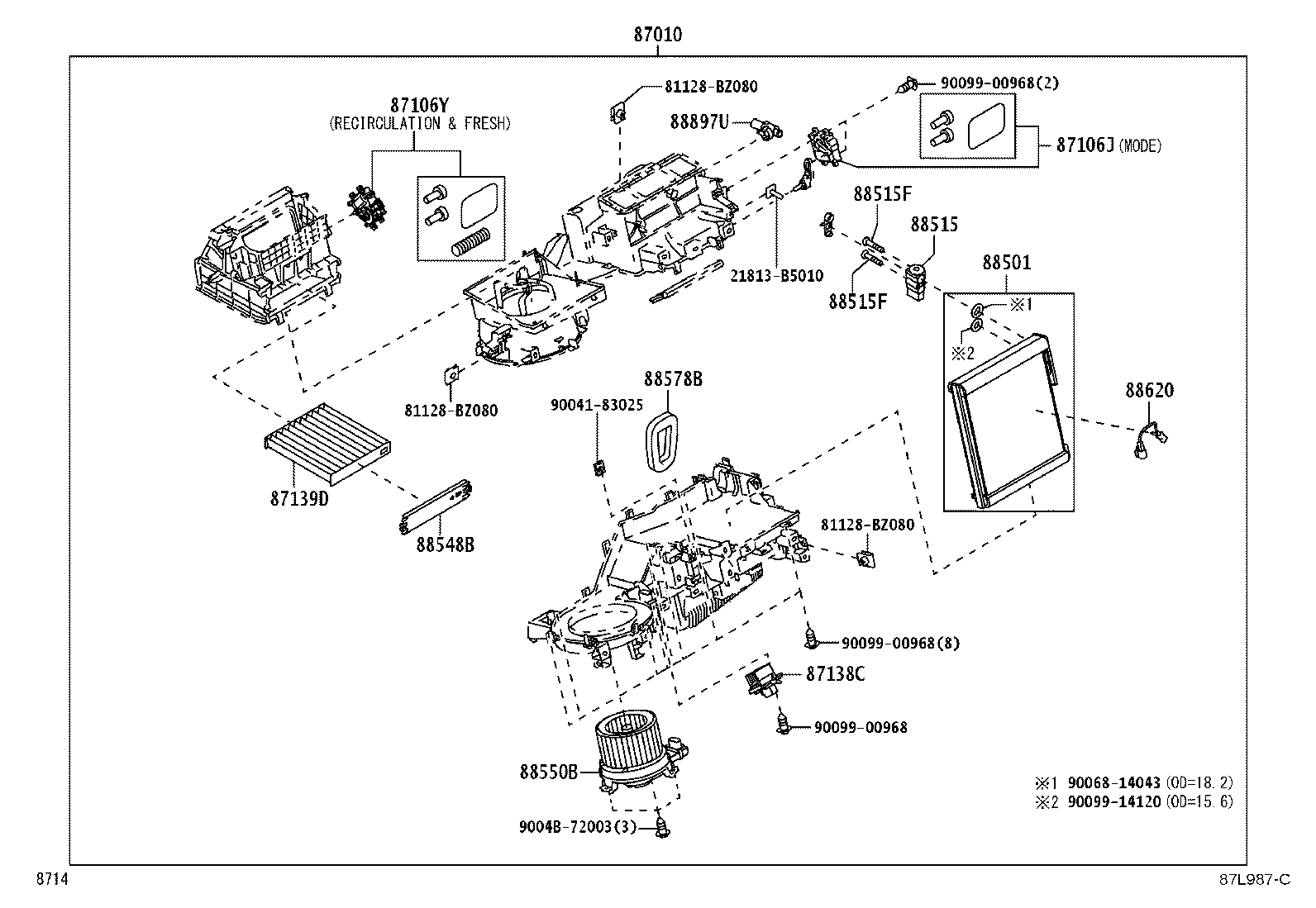

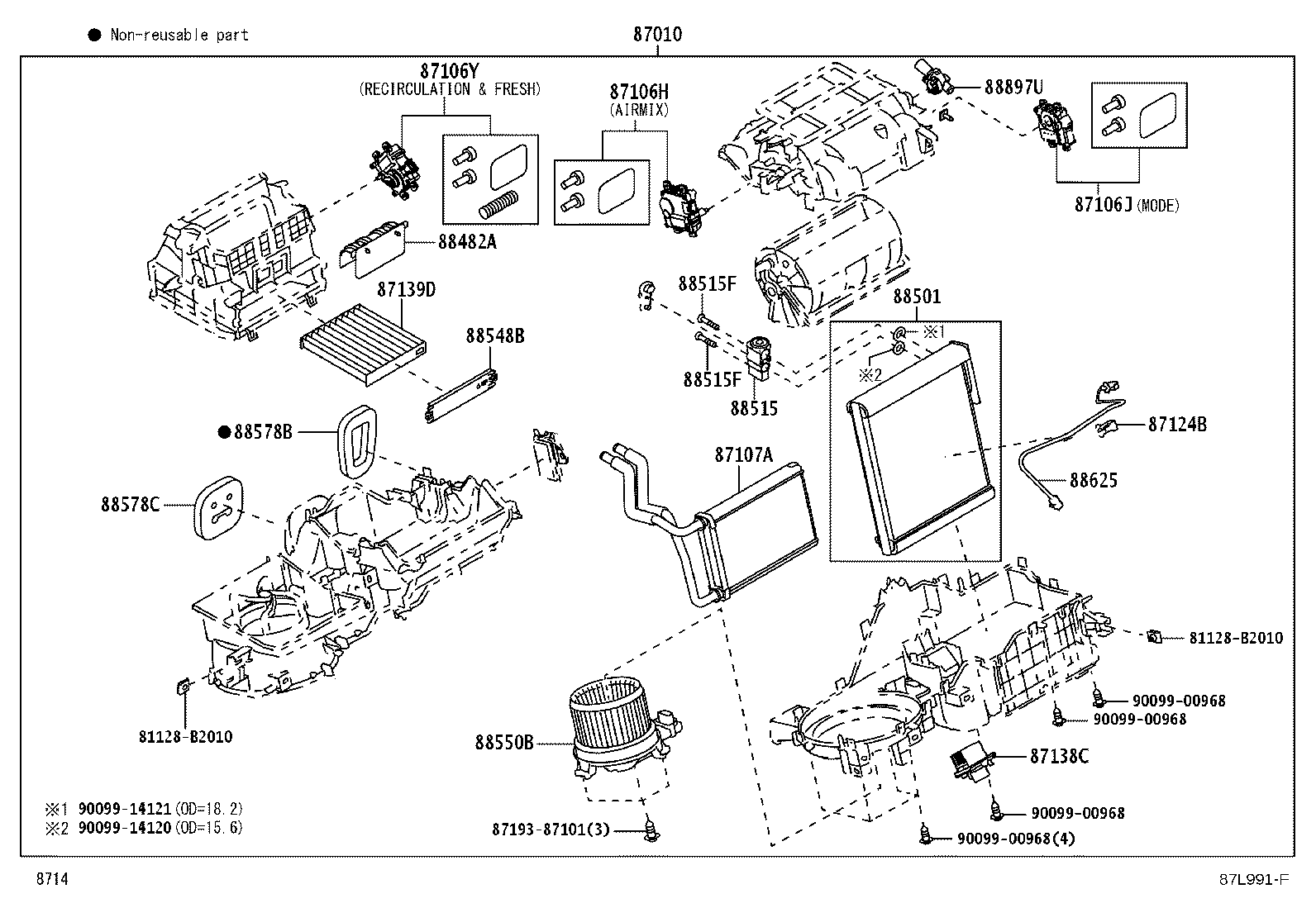

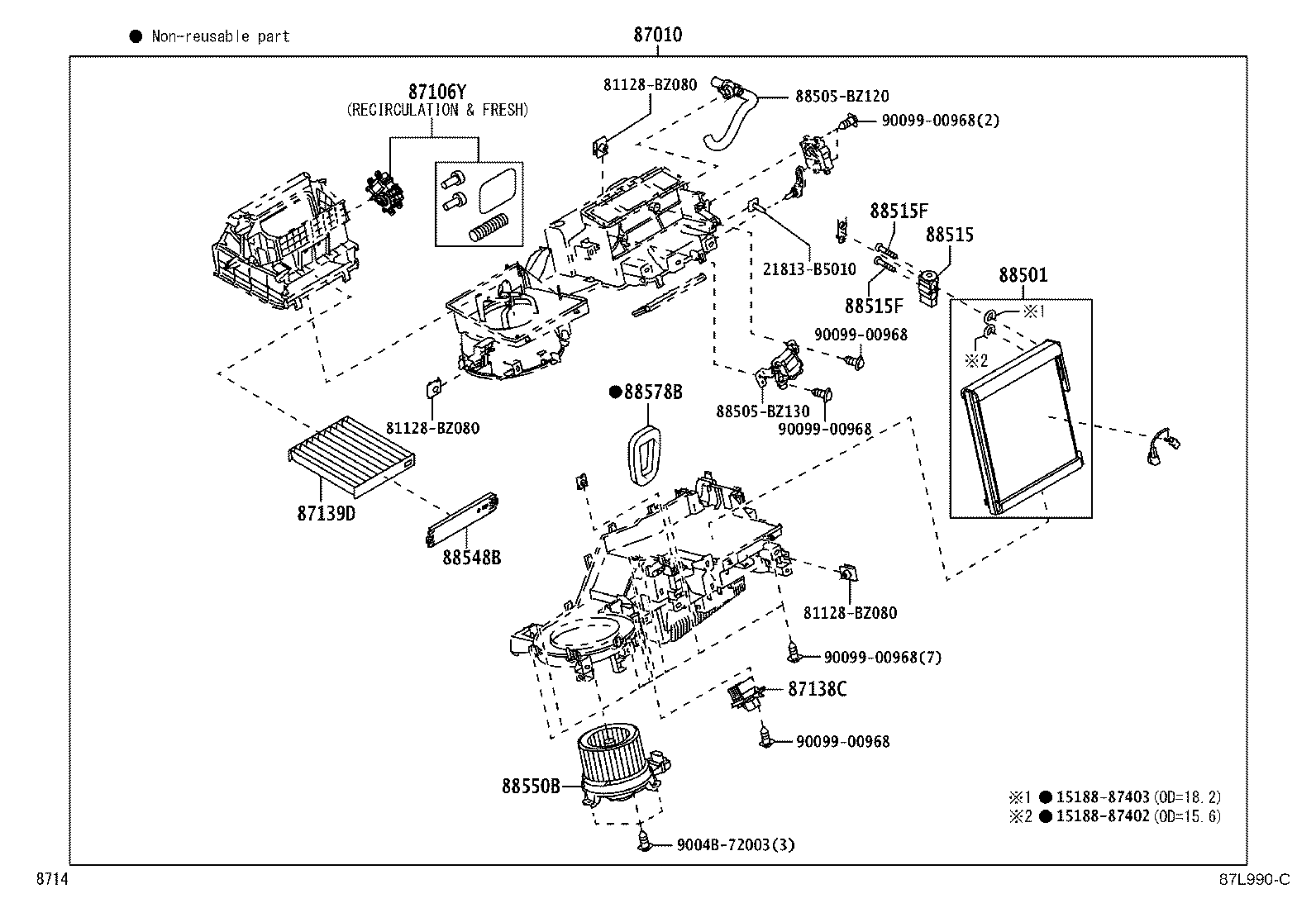

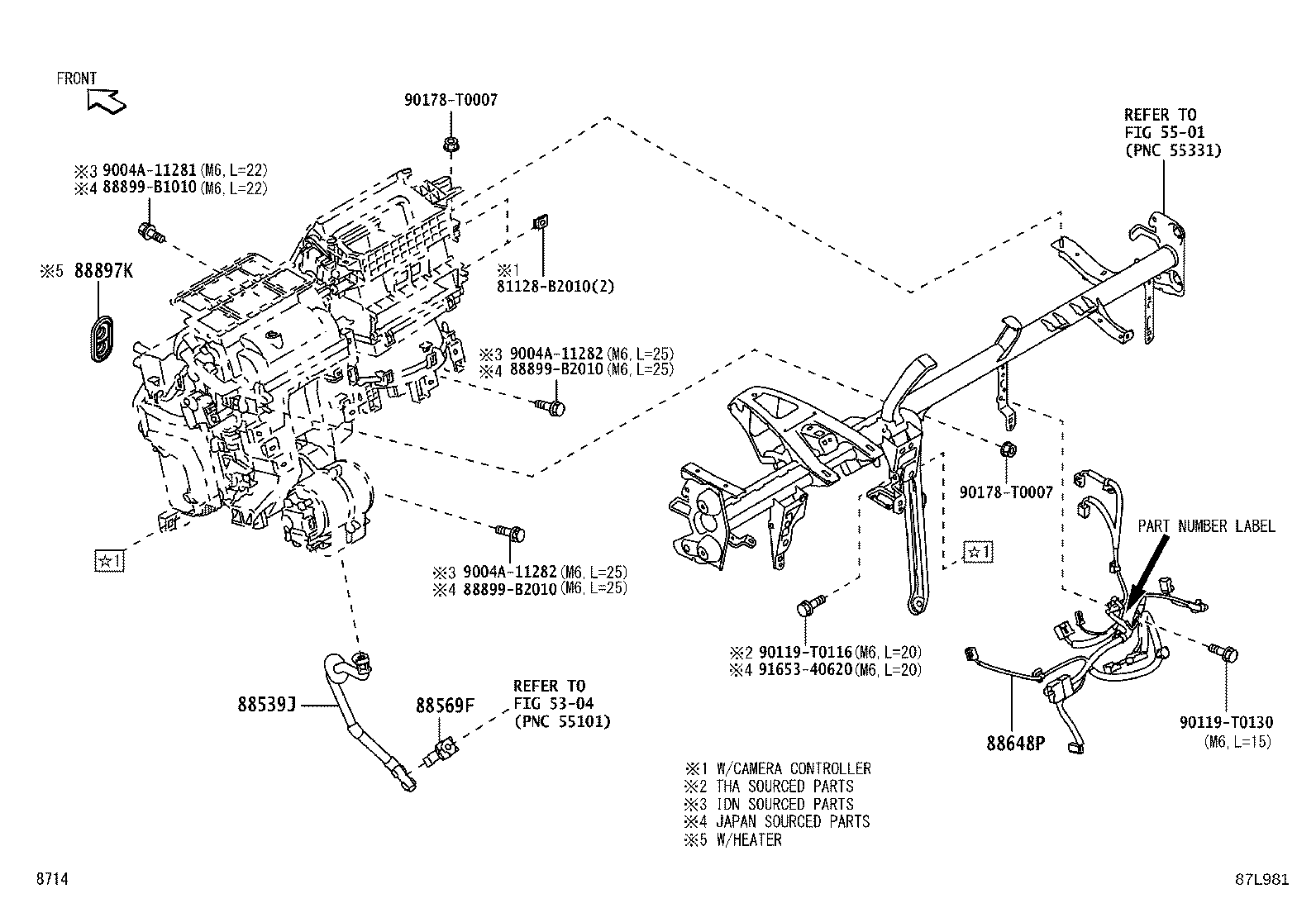

Figure 87L979 87L979 2023-06 → — Figure 87L980 87L980 2023-10 → — Figure 87L981 87L981 2023-06 → — Figure 87L982 87L982 2023-06 → — Figure 87L983 87L983 2023-10 → — Figure 87L985C 87L985C 2023-06 → — Figure 87L986D 87L986D 2023-06 → — Figure 87L987C 87L987C 2024-06 → — Figure 87L988C 87L988C 2023-06 → — Figure 87L990C 87L990C 2023-10 → — Figure 87L991F 87L991F 2023-06 → — Figure 87L993C 87L993C 2023-06 → — Figure 87L993C 87L993C 2023-10 → — Figure 87L994D 87L994D 2023-06 → — Figure 87L994D 87L994D 2023-10 → — Figure 87L995C 87L995C 2023-06 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106X Servo Sub-assy, Damper(FOR MODE REAR)
87106Y Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH)
87107A Unit Sub-assy, Heater Radiator
87124B Clamp, Heater
87138C Resistor, Blower
87139D Element, Air Refiner
88482A Cover
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539J Hose, Drain Cooler
88548B Case, Air Filter
88550B Motor Assy, Blower
88569F Clamp
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88620 Thermostat Sub-assy
88625 Thermistor, Cooler, NO.1
88648P Wire,Air Conditioner,NO.1
88897K Grommet, (FOR COOLER PIPE)
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
