Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

29 part groups · 9 illustrations

Illustrations

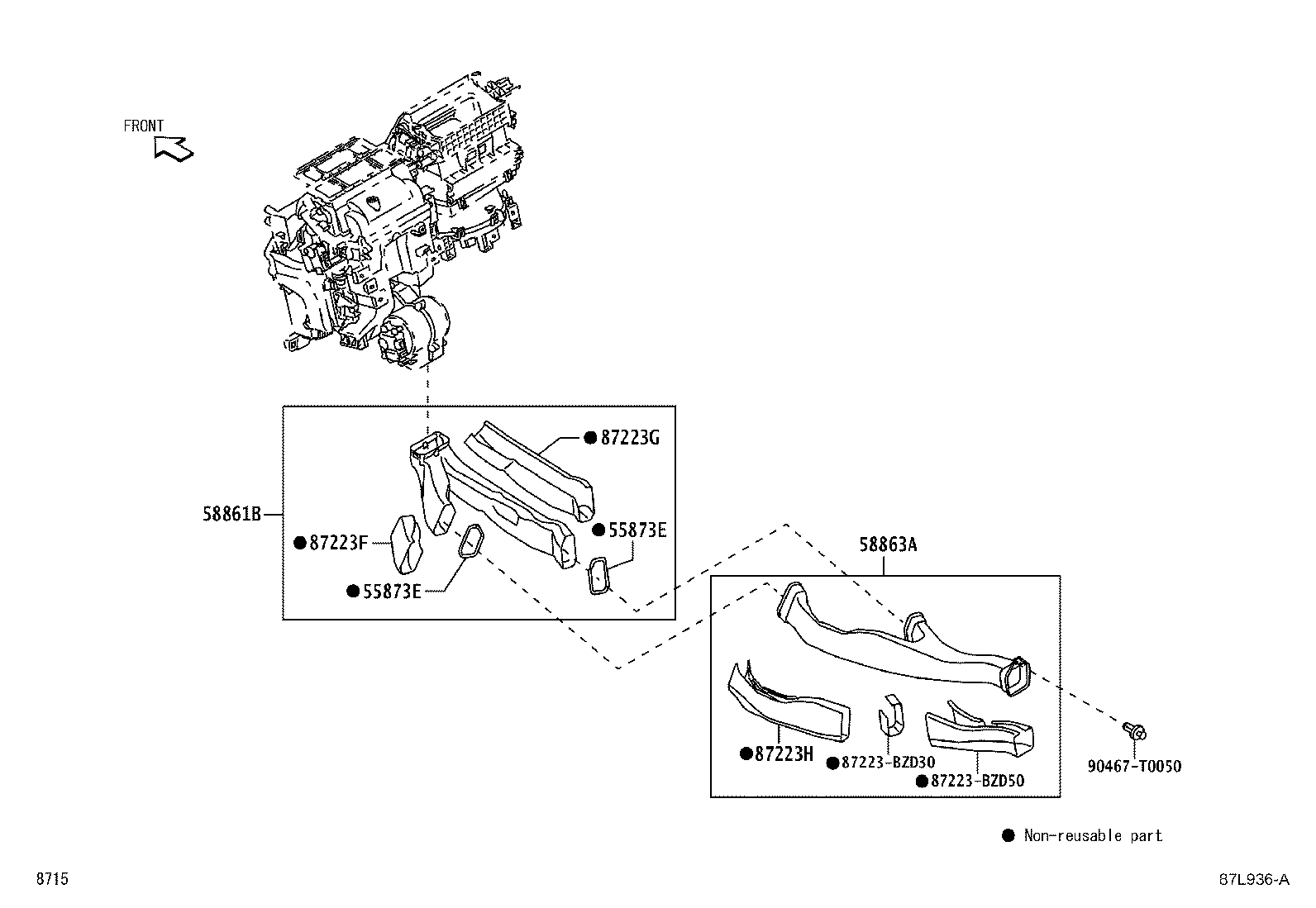

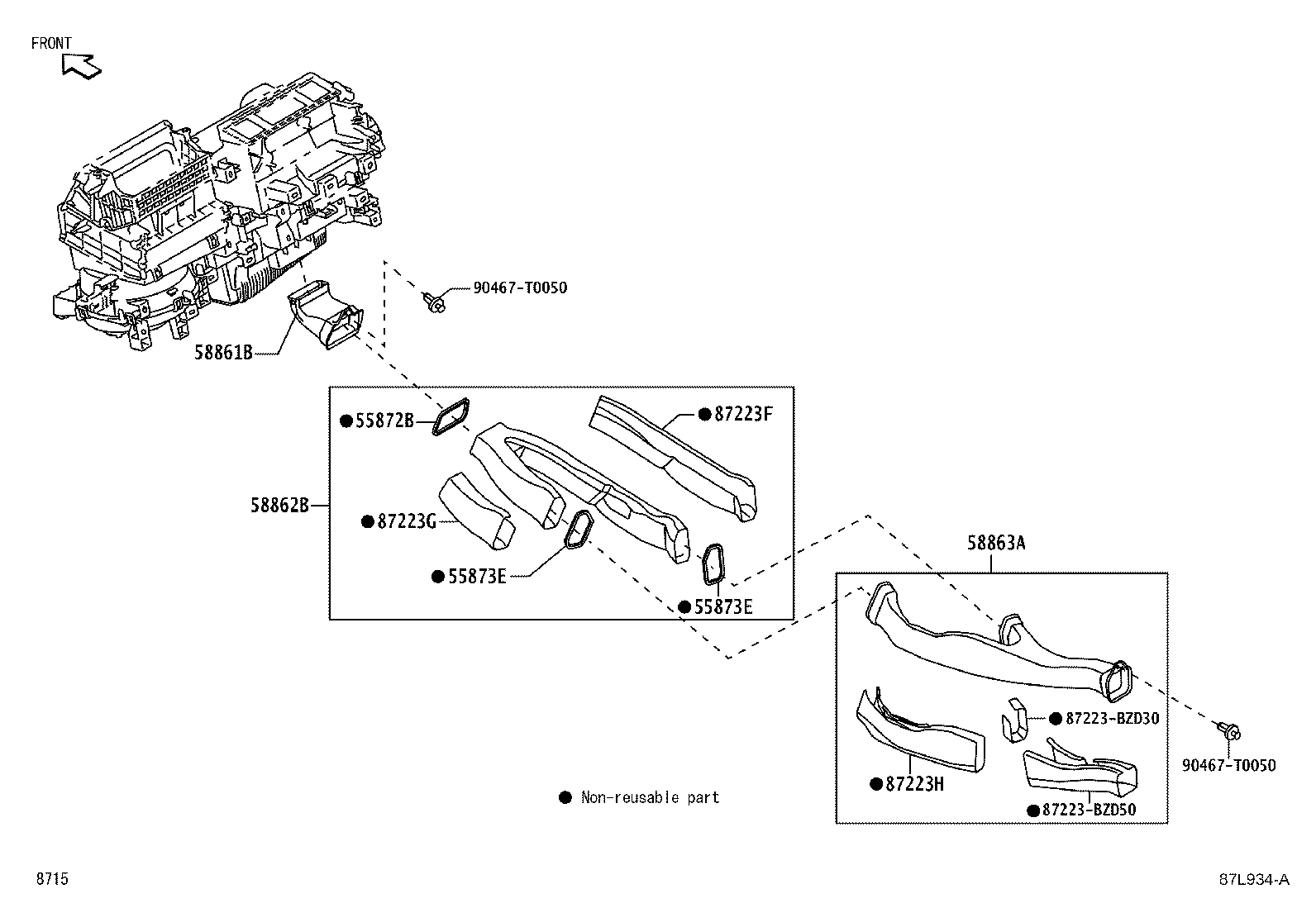

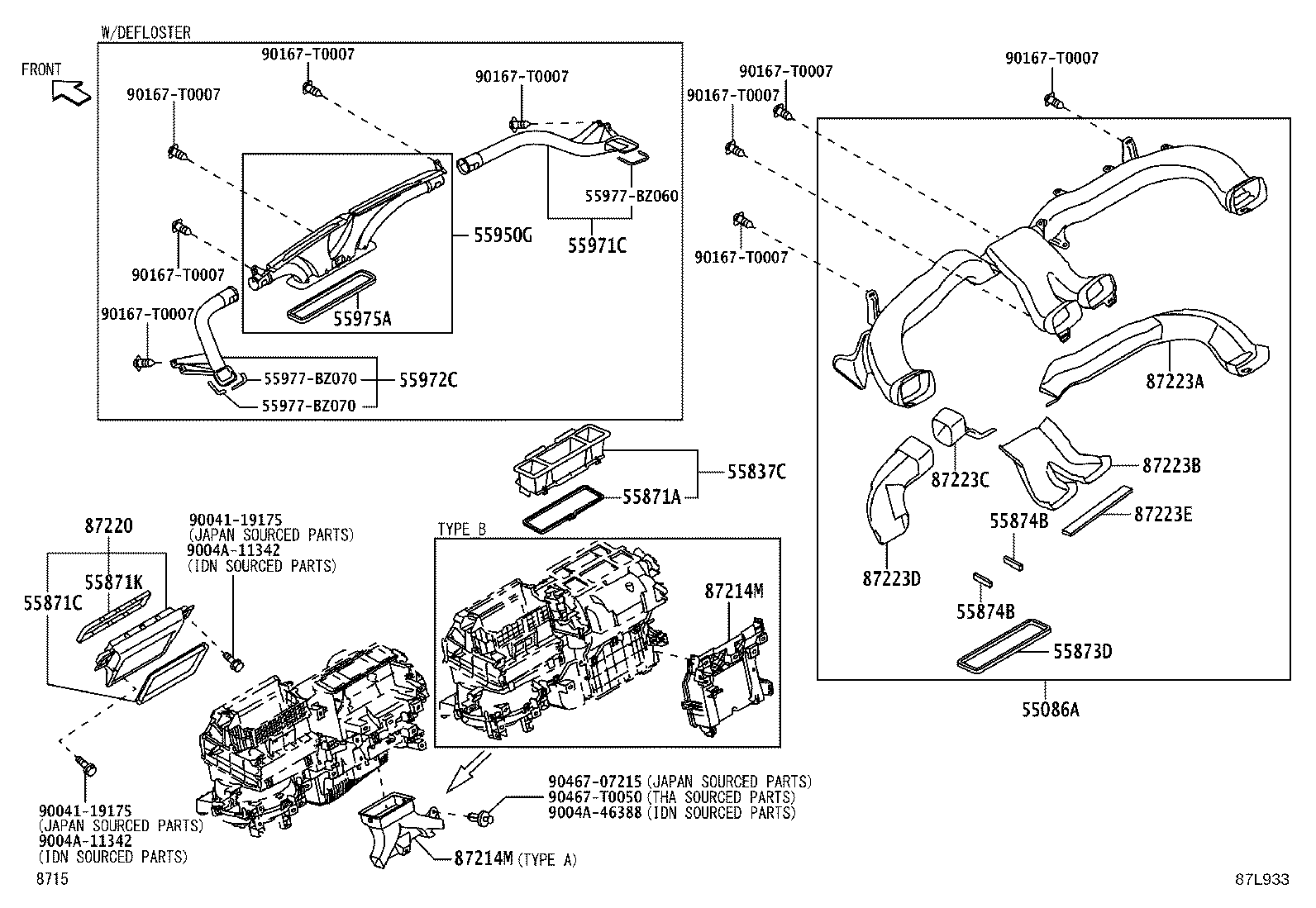

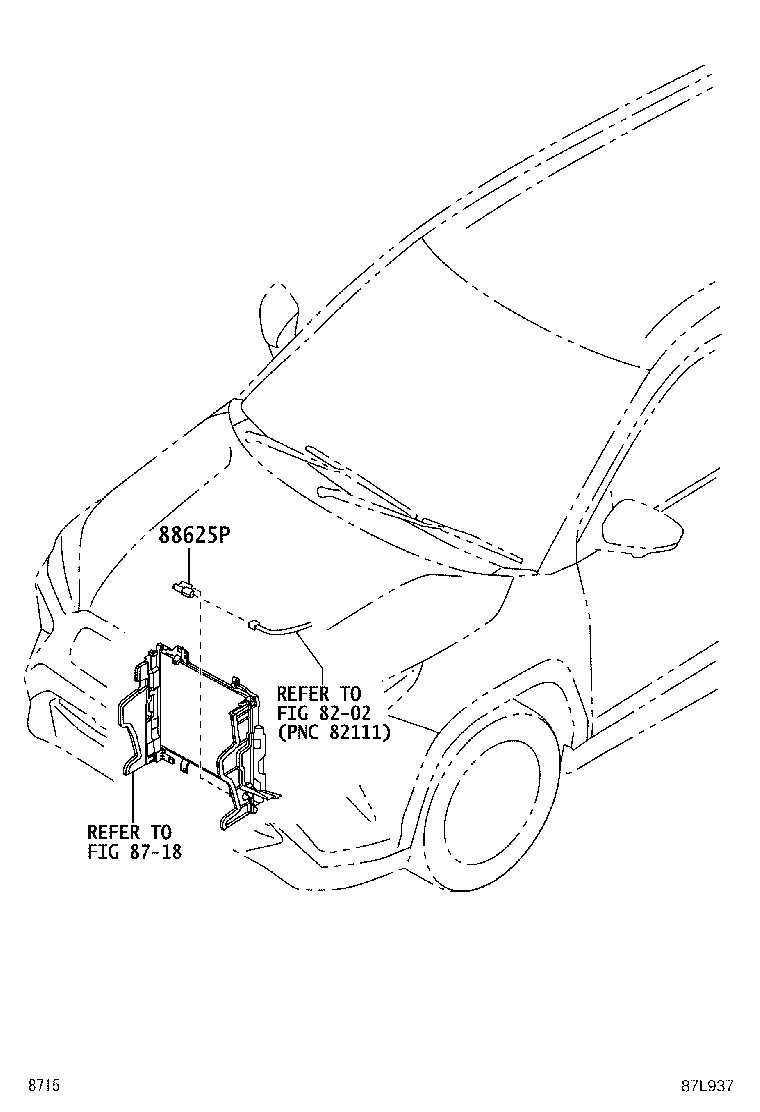

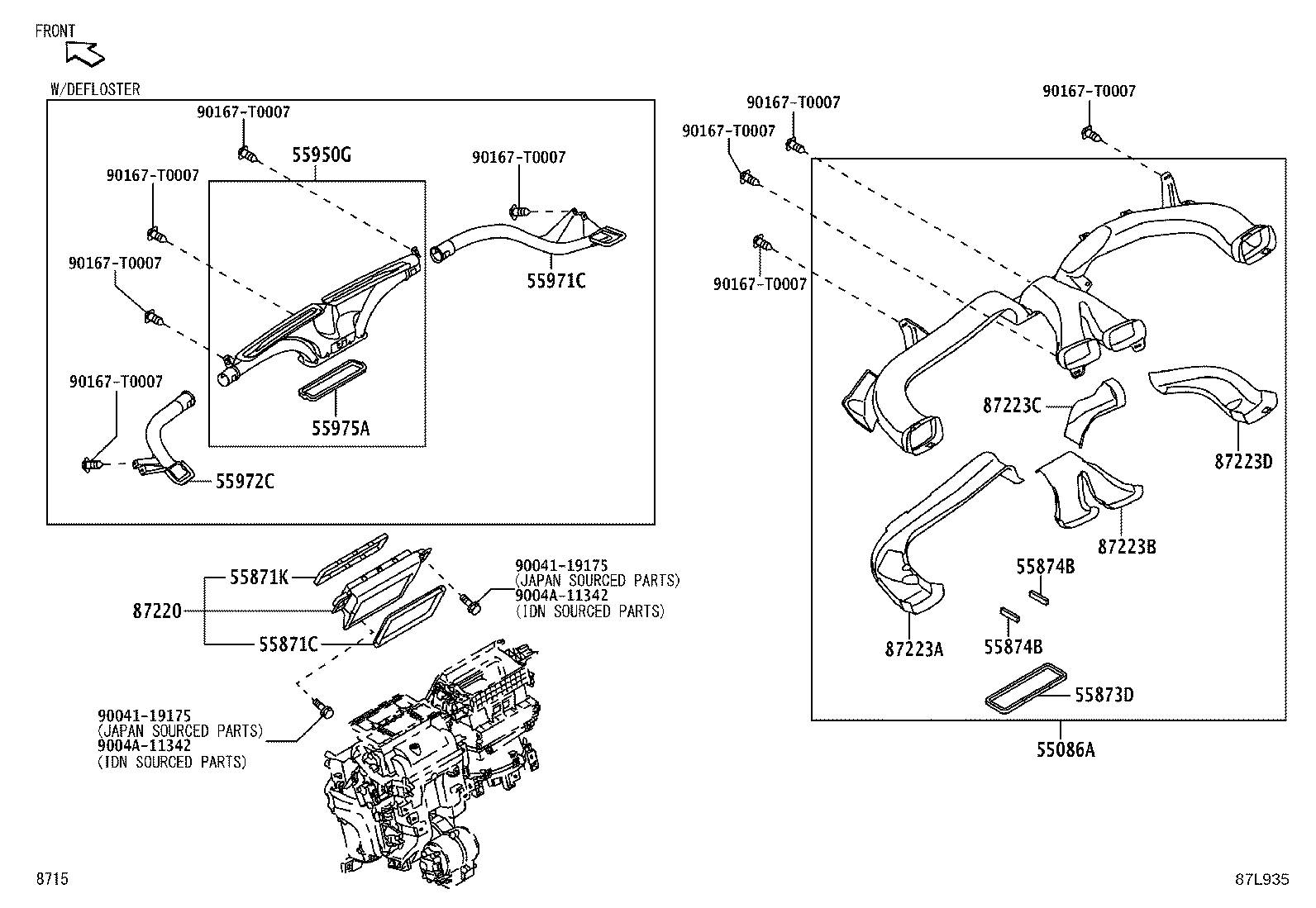

Figure 87L932 87L932 2023-06 → — Figure 87L933 87L933 2023-06 → — Figure 87L934A 87L934A 2023-06 → — Figure 87L934A 87L934A 2023-10 → — Figure 87L934A 87L934A 2024-06 → — Figure 87L935 87L935 2023-06 → — Figure 87L936A 87L936A 2023-06 → — Figure 87L936A 87L936A 2023-10 → — Figure 87L937 87L937 2023-06 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55837C Duct, Heater TO Register Center Sub
55871A Seal, Air Duct, NO.1
55871C Seal, Air Duct
55871K Seal, Air Duct
55872B Seal, Air Duct,NO.2
55873D Seal, Air Duct, Center
55873E Seal, Air Duct
55874B Seal, Air Duct, NO.4
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55975A Seal, Defroster Nozzle, NO.1
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
58863A Duct, Console Box, NO.3
87214M Duct, Heater TO Foot, NO.3
87220 Duct Assy, Air
87223A Pad, Air Duct
87223B Pad, Air Duct, NO.2
87223C Pad, Air Duct, NO.3
87223D Pad, Air Duct, NO.4
87223E Pad, Air Duct, NO.5
87223F Pad, Air Duct, NO.6
87223G Pad, Air Duct, NO.7
87223H Pad, Air Duct, NO.8
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88897A Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
