Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

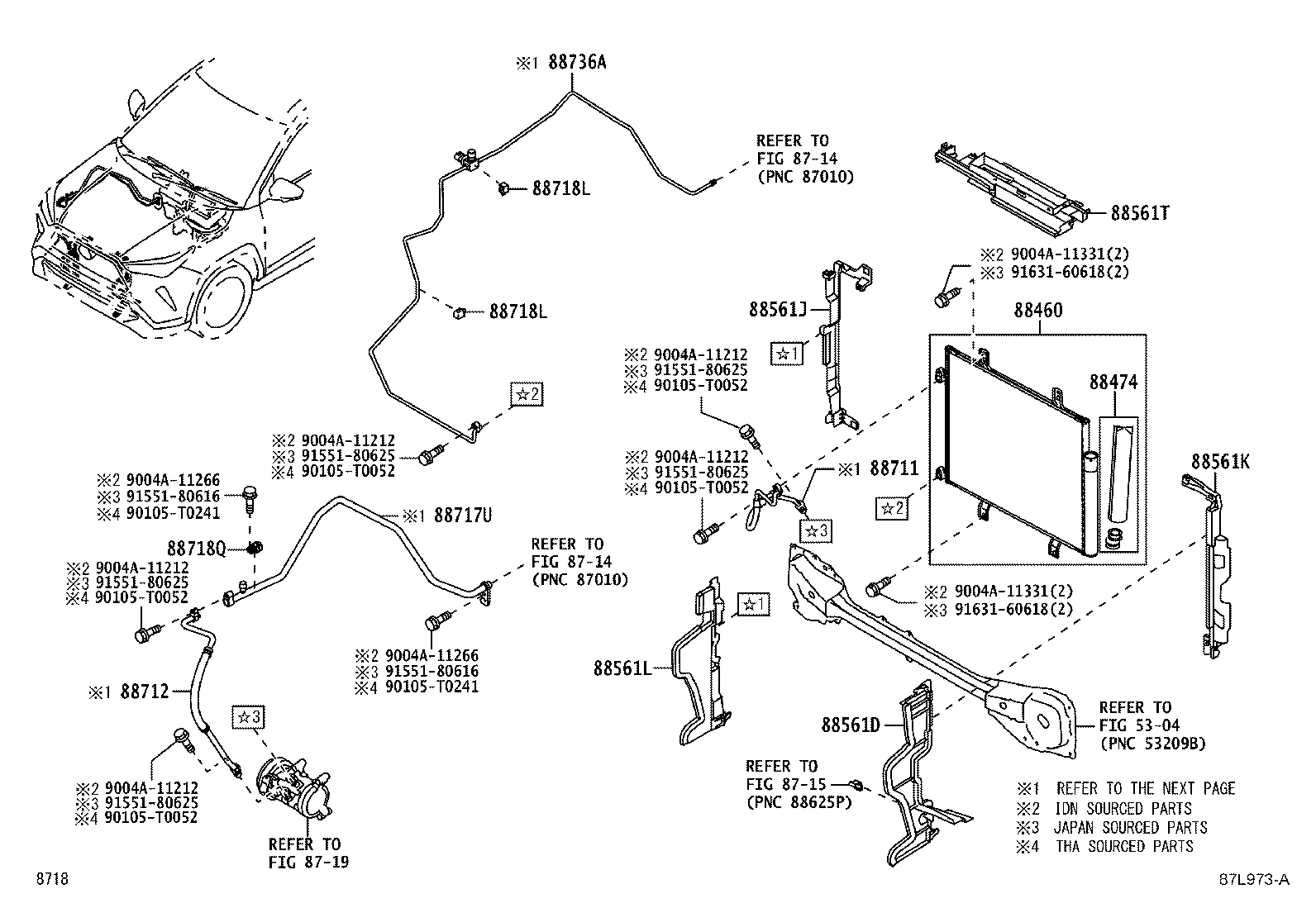

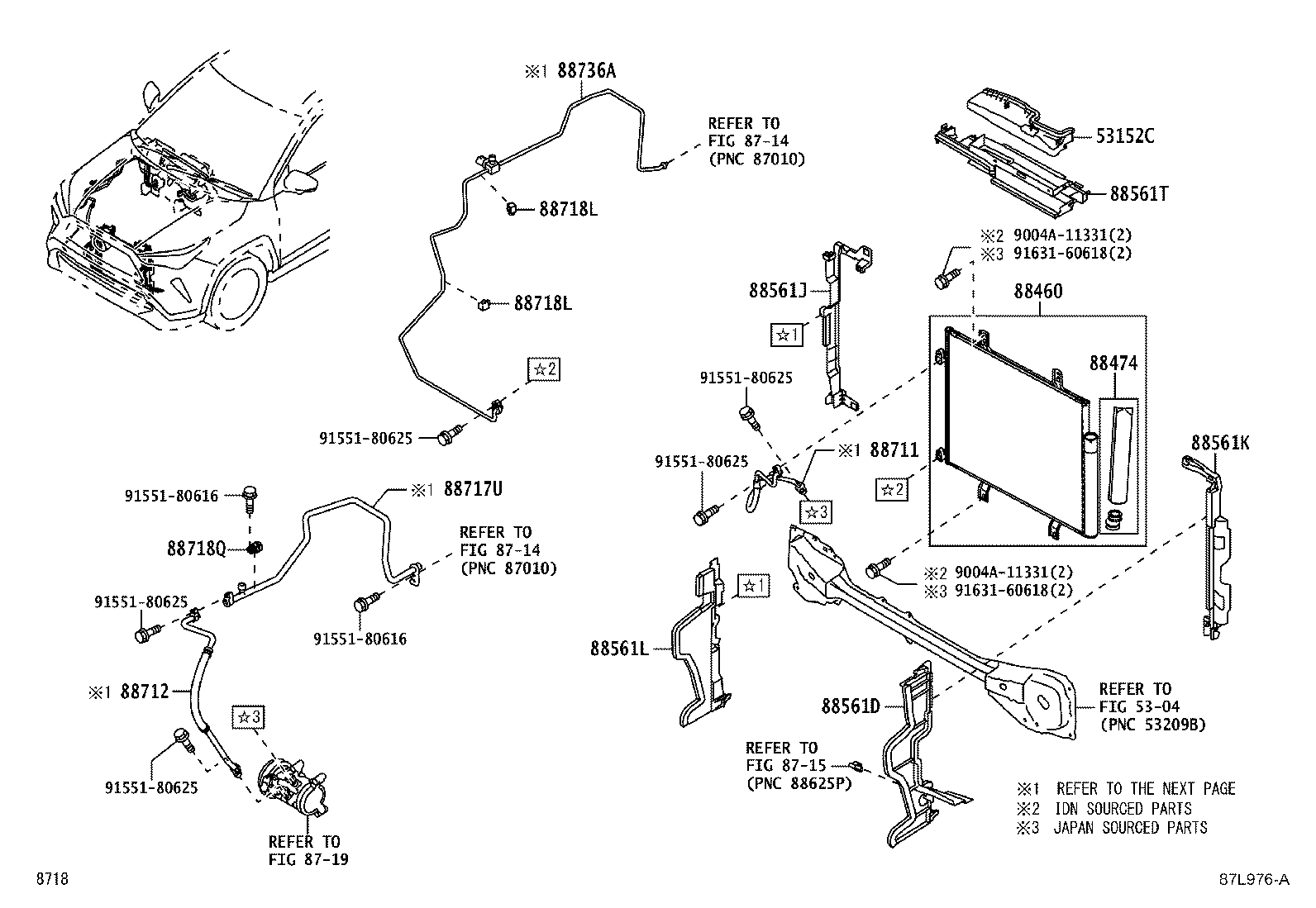

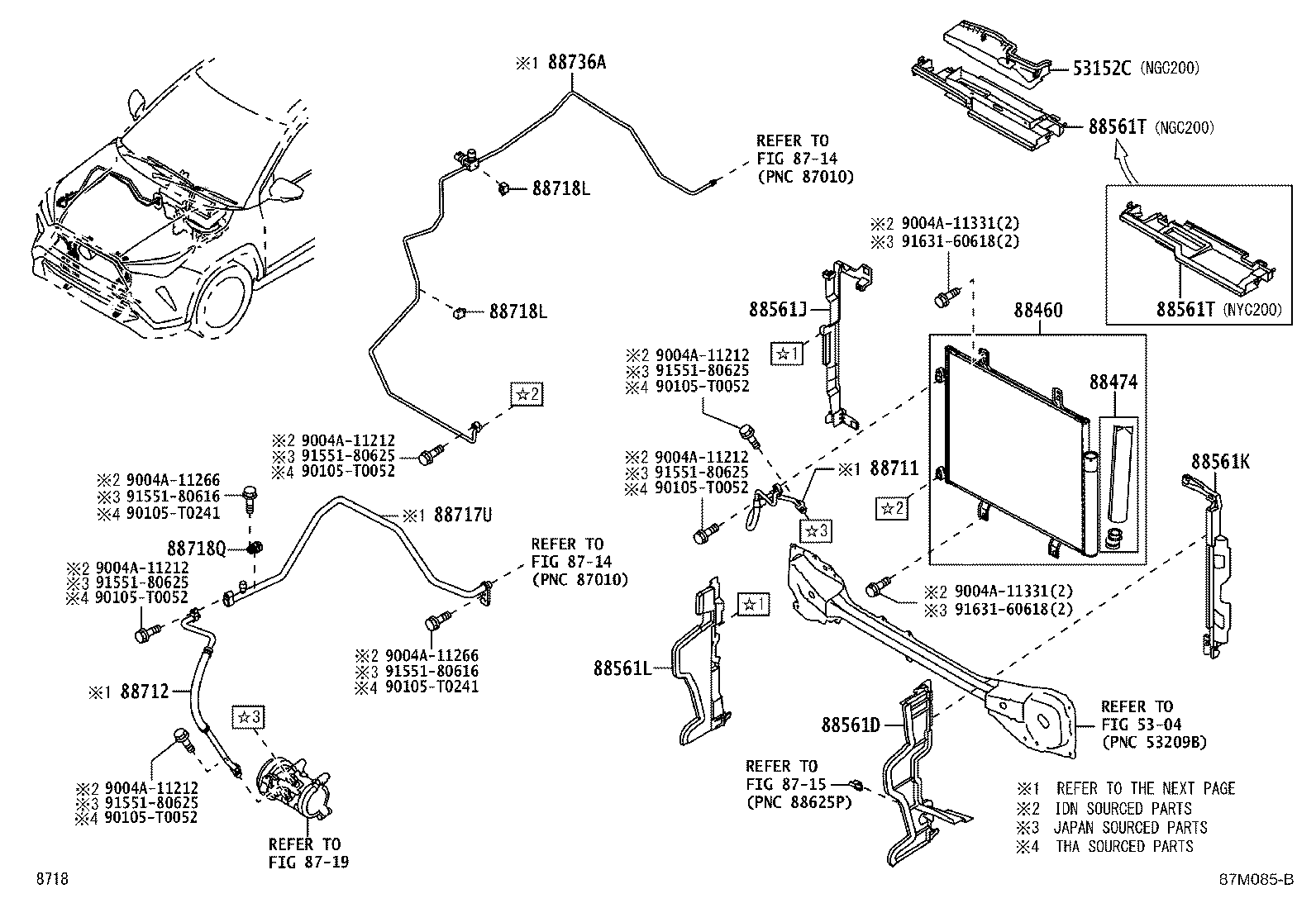

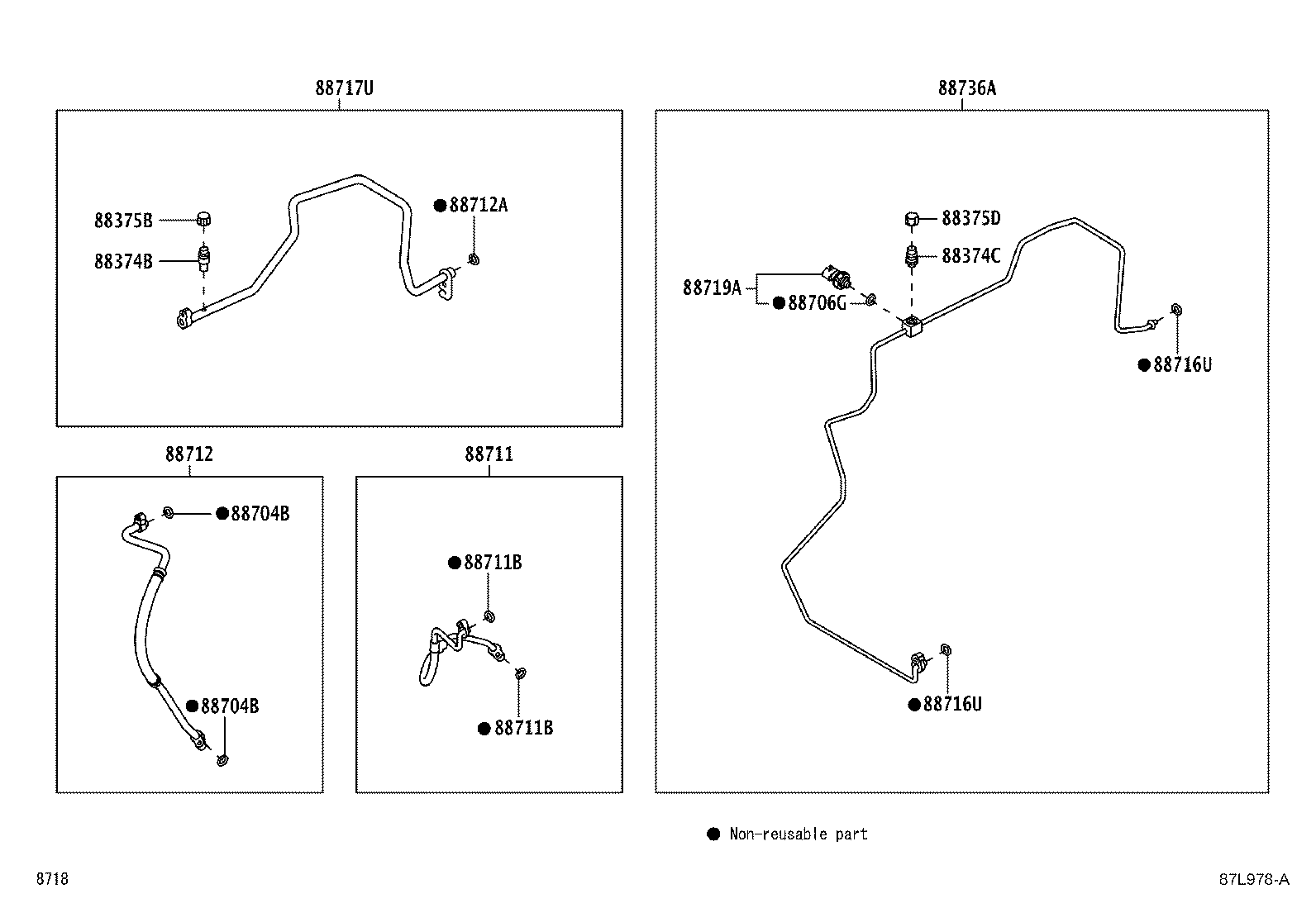

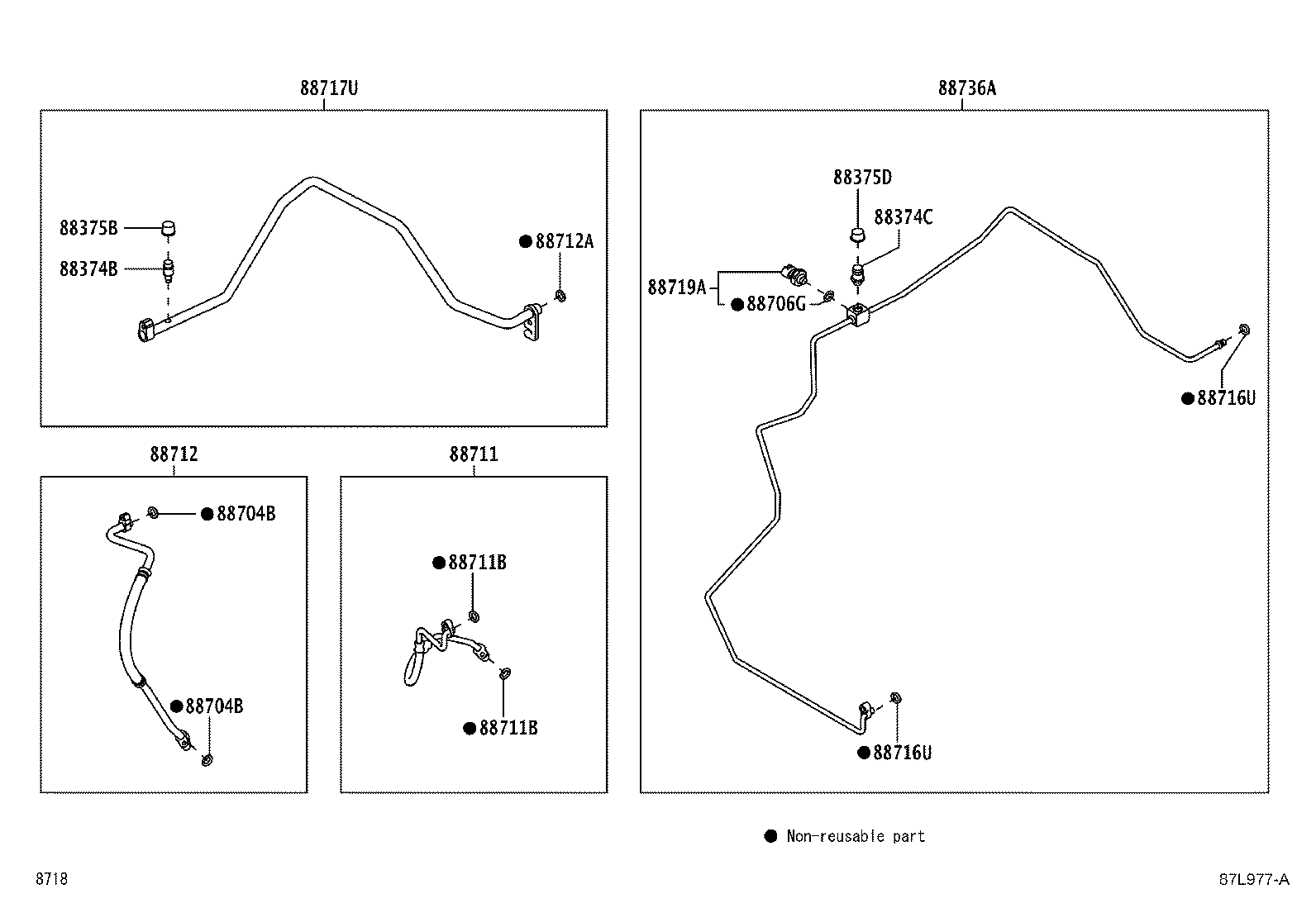

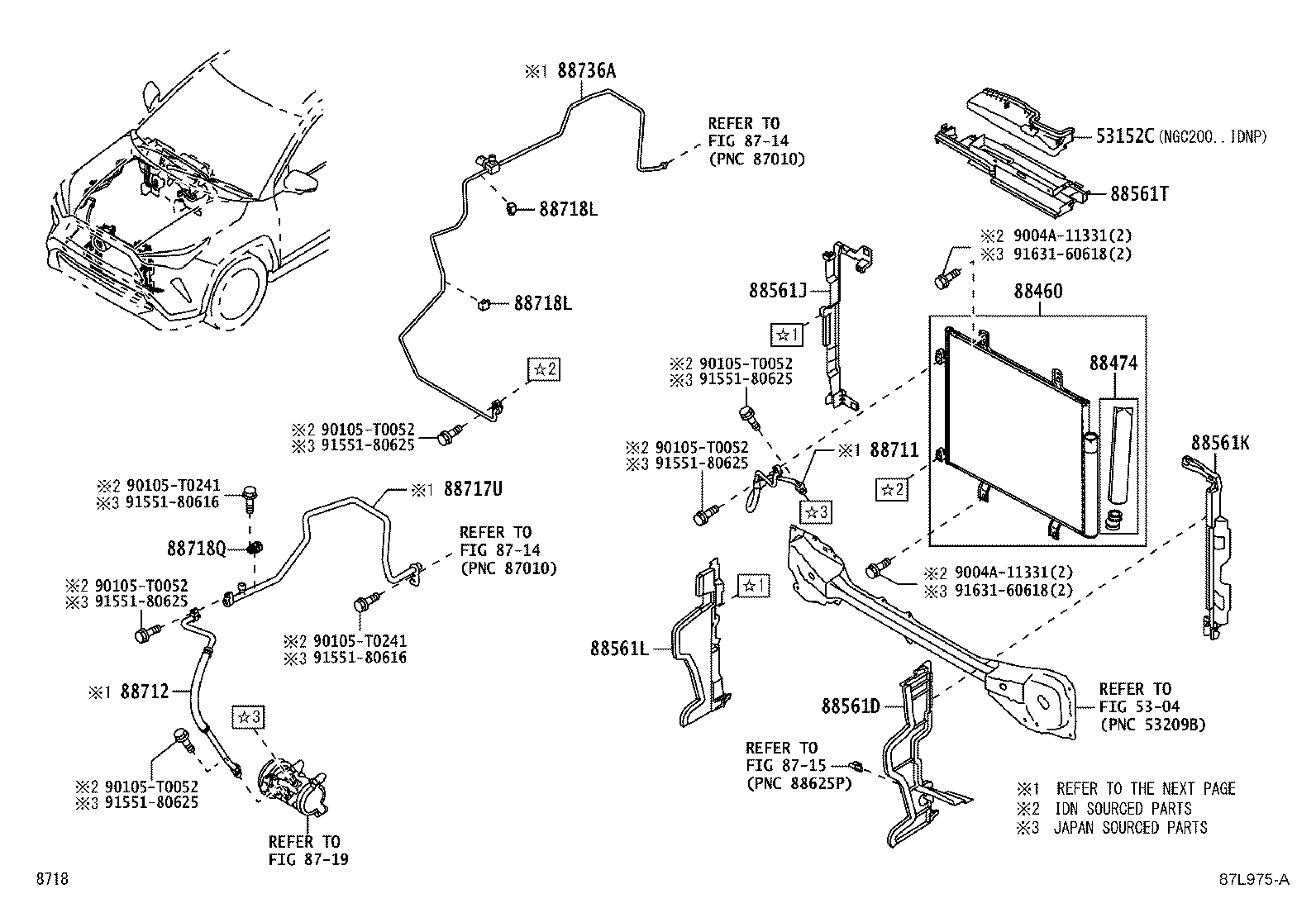

Heating & Air Conditioning - Cooler Piping
24 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 53152C | Guide, Radiator Grille Air |
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88561D | Grille, Air Inlet NO.3 |
| 88561J | Grille, Air Inlet NO.1 |
| 88561K | Grille, Air Inlet NO.2 |
| 88561L | Grille, Air Inlet NO.4 |
| 88561T | Grille, Air Inlet NO.5 |
| 88704B | Ring, O(FOR SUCTION HOSE) |
| 88706G | Ring, O(FOR LIQUID TUBE) |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711B | Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88712A | Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE) |
| 88716U | Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE) |
| 88717U | Tube, Suction, NO.1 |
| 88718L | Clamp, Piping |
| 88718Q | Clamp, Piping |
| 88719A | Sensor, Air Conditioner Pressure |
| 88736A | Tube, Liquid, A(FOR COOL BOX) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
