Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

13 part groups · 2 illustrations

Illustrations

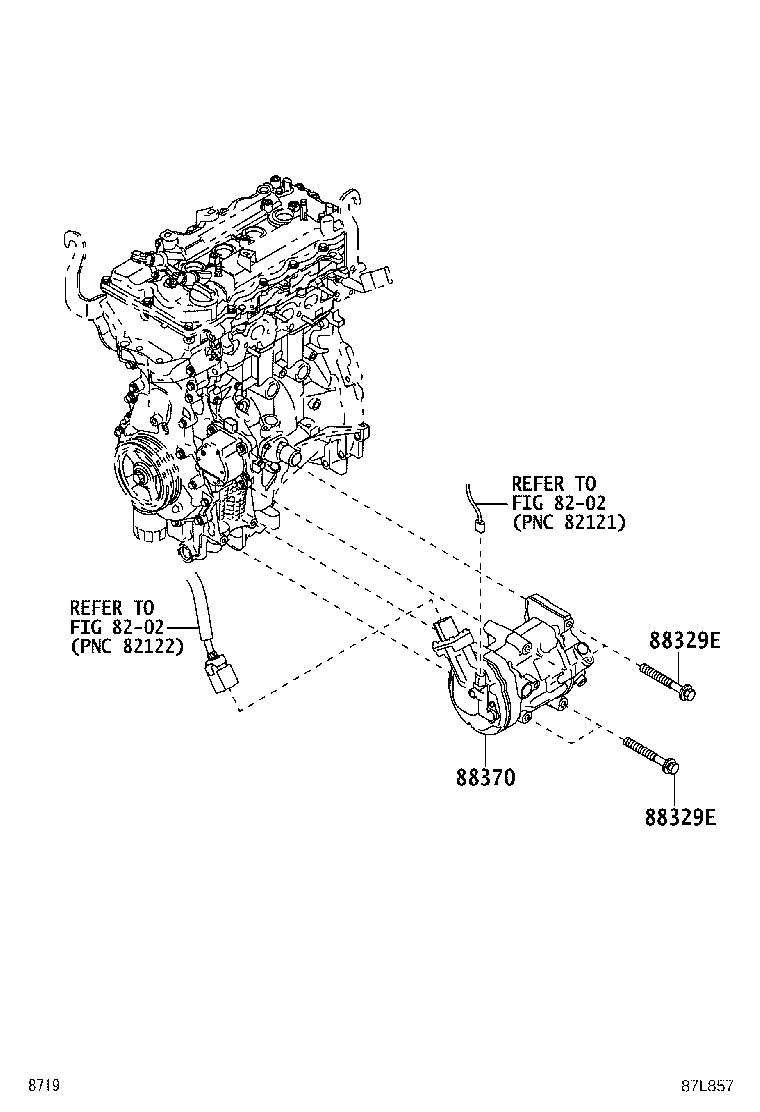

Figure 87L856 87L856 2023-06 → — Figure 87L857 87L857 2023-06 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302B Stator, Magnet Clutch
88320 Compressor Assy, Cooler
88329E Bolt, Compressor, NO.1
88335 Gasket Kit, Overhaul
88365 Ring, Snap
88365A Ring, Snap (FOR COMPRESSOR)
88370 Compressor Assy, W/Motor
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88446C Bolt, Magnet Clutch Setting
88605B Harness Sub-assy, Air Conditioner Wiring
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
