Brake Booster & Vacuum Tube

24 part groups · 3 illustrations

Illustrations

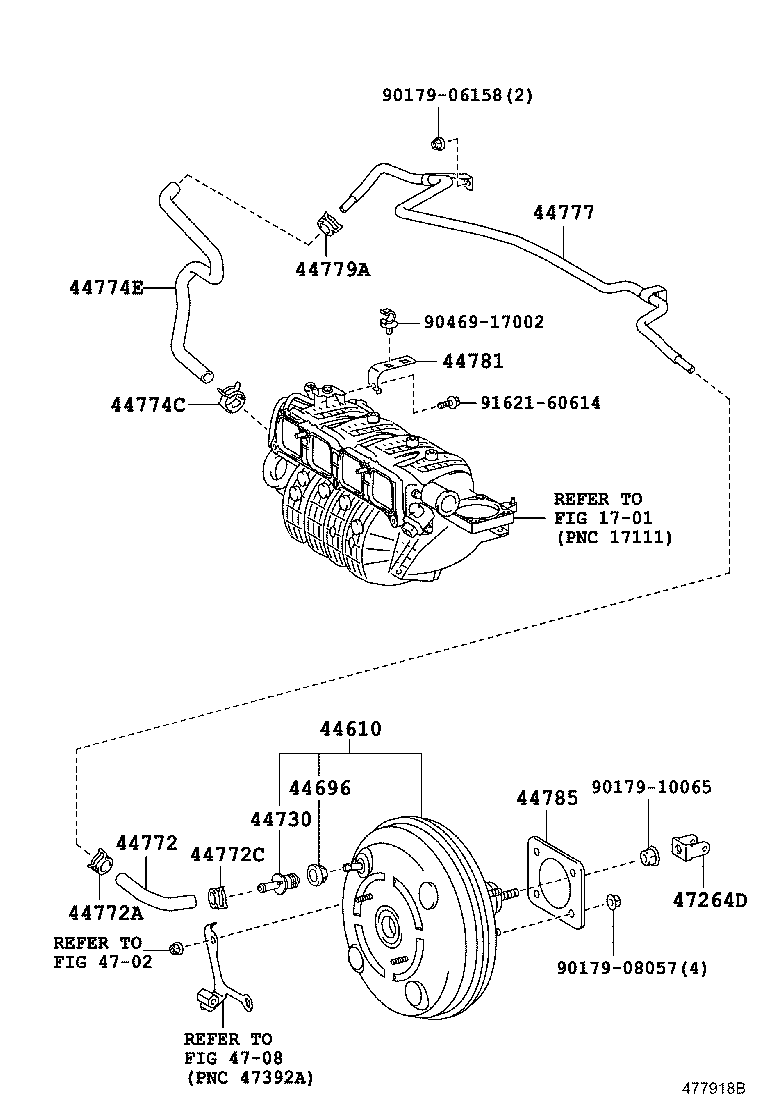

Figure 476934A 476934A 2009-05 → 2011-11 Figure 477918B 477918B 2011-11 → — Figure 476935A 476935A 2009-05 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730P Valve Assy, Vacuum Check, NO.1
44730Q Valve Assy, Vacuum Check, NO.2
4476B Ejector, Brake Booster Vacuum
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44773A Clip, NO.1(FOR VACUUM HOSE, NO.2)
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774B Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44777 Connector, Vacuum Hose, NO.1
44779A Clip(FOR UNION TO CONNECTOR HOSE)
44781 Bracket, Hose
44781C Bracket, Hose Clamp, NO.2
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
