Toyota Highlander (CHINA)

2009-05 → 2015-03 · chassis ASU40,GSU45 · catalogue 520310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

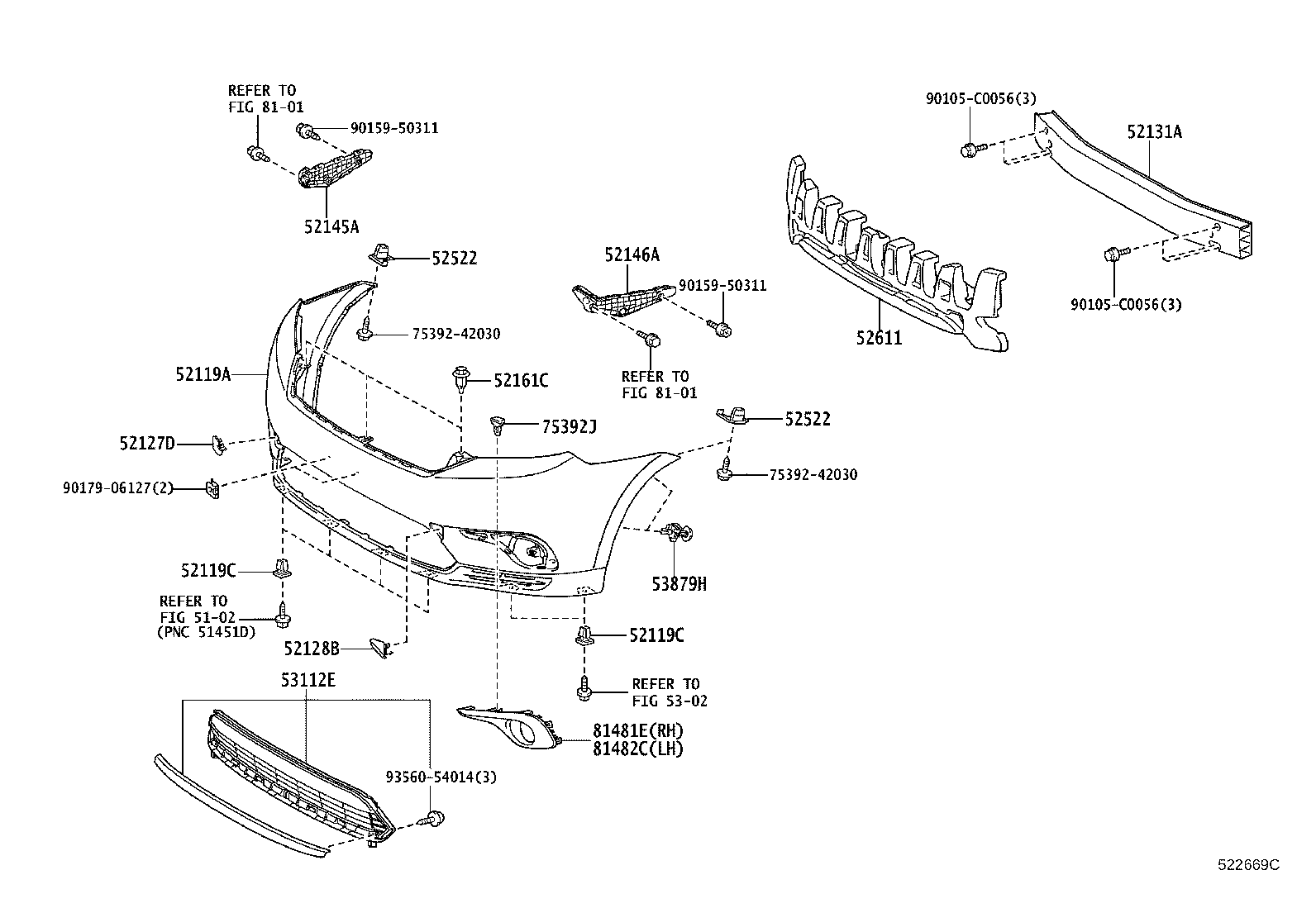

Figure 522106C 522106C 2009-05 → 2012-05 Figure 522669C 522669C 2012-05 → —

Part groups

PNCDescription
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52161C Piece, Front Bumper
52522 Retainer, Front Bumper Upper Side
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
