Toyota Highlander (CHINA)

2009-05 → 2015-03 · chassis ASU40,GSU45 · catalogue 520310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

9 part groups · 3 illustrations

Illustrations

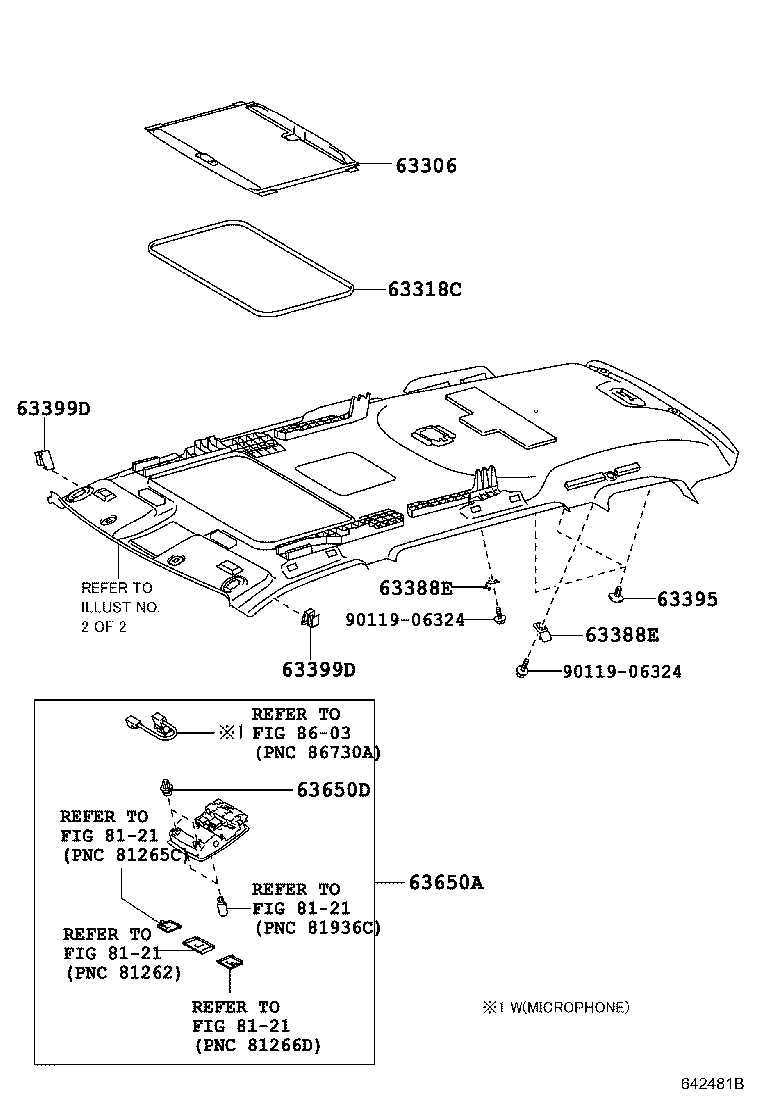

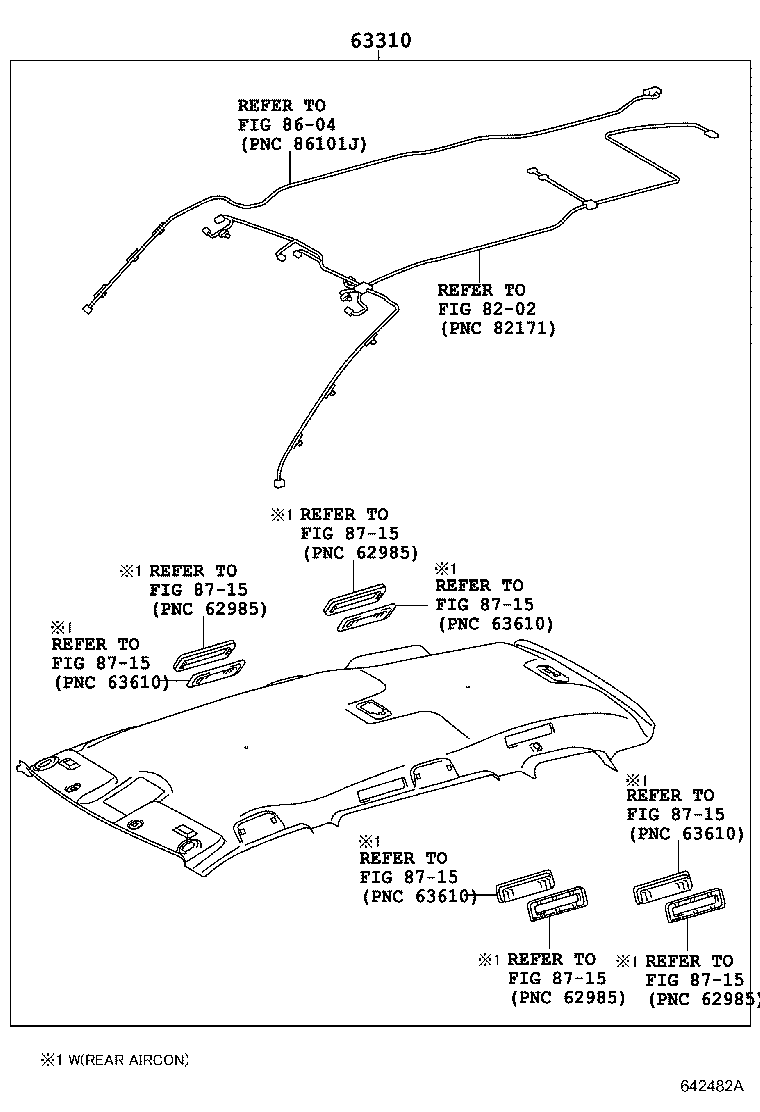

Figure 642480B 642480B 2009-05 → — Figure 642481B 642481B 2009-05 → — Figure 642482A 642482A 2009-05 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63318C Moulding, Sun Roof Opening Trim
63388E Stopper, Roof Headlining Trim Clip
63395 Clip, Roof Headlining Trim
63399D Clip, Roof Headlining
63412B Retainer, Roof Console
63650A Box Assy, Roof Console
63650D Clip(FOR ROOF CONSOLE BOX)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
