Toyota Highlander (CHINA)

2009-05 → 2015-03 · chassis ASU40,GSU45 · catalogue 520310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 3 illustrations

Illustrations

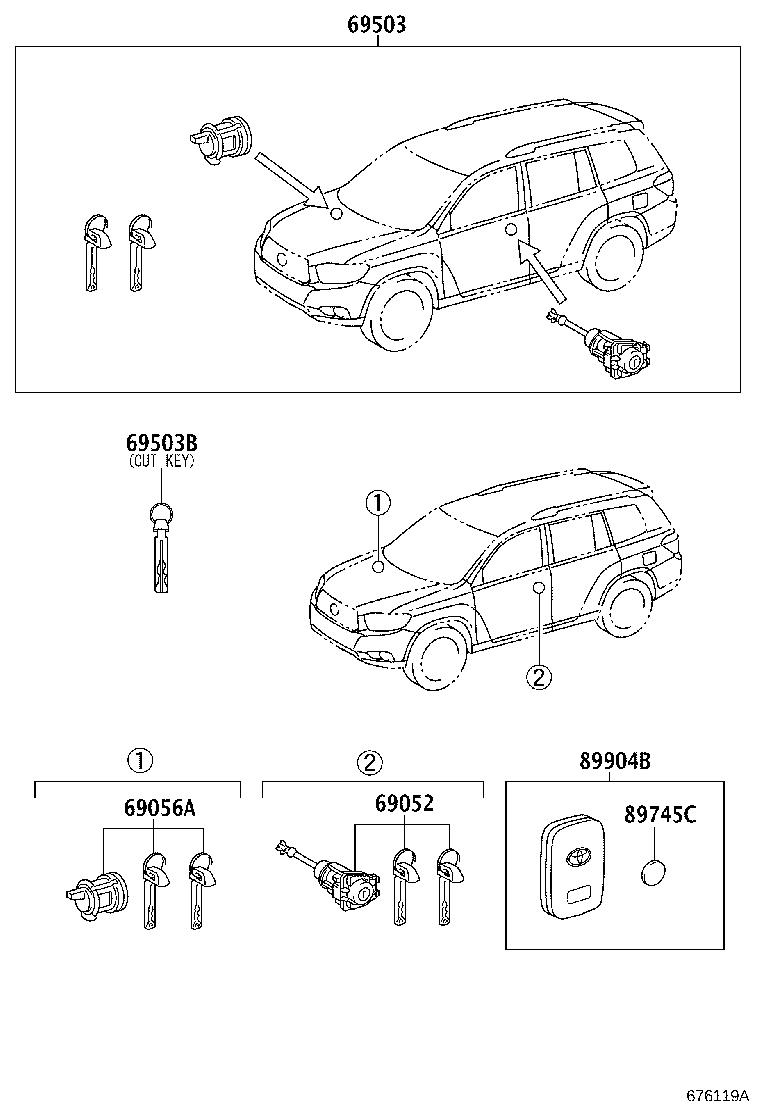

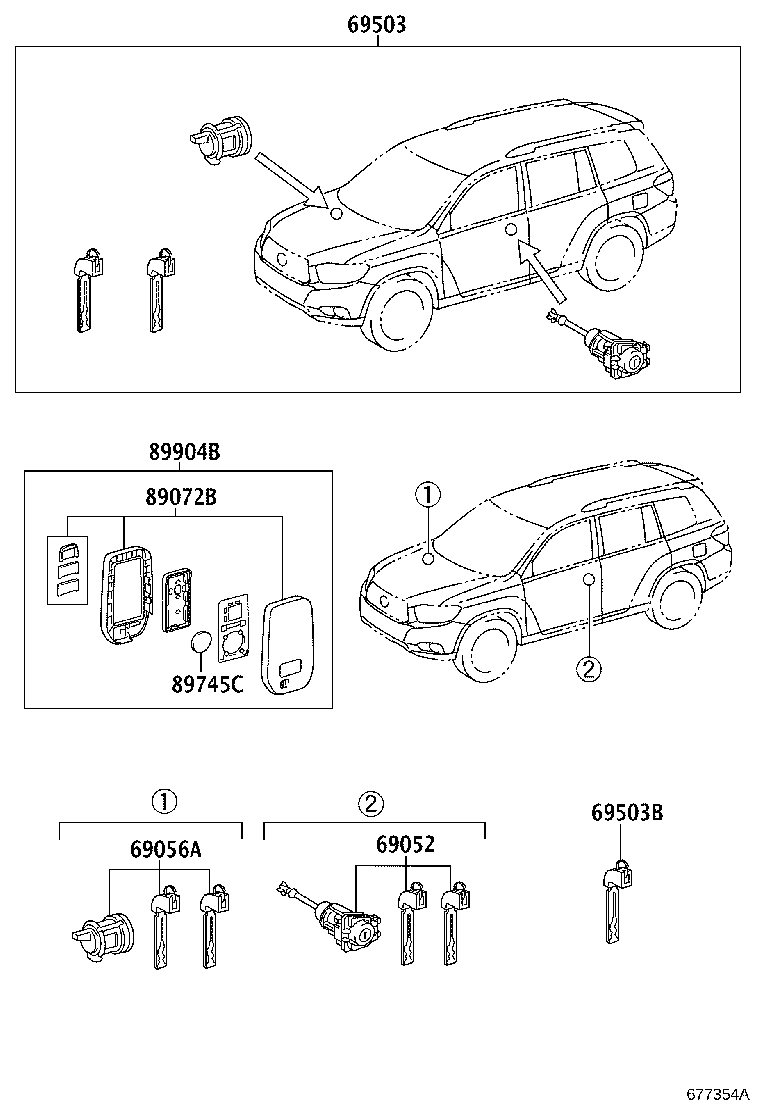

Figure 676120A 676120A 2009-05 → — Figure 676119A 676119A 2009-05 → 2012-05 Figure 677354A 677354A 2012-05 → —

Part groups

PNCDescription
69052 Cylinder & Key Set, Door Lock, LH
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89742A Transmitter, Door Control
89745A Battery, Transmitter
89745C Battery, Transmitter
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
