Toyota Highlander (CHINA)
2009-05 → 2015-03 · chassis ASU40,GSU45 · catalogue 520310 · General
Supported model
Data version 2015-01

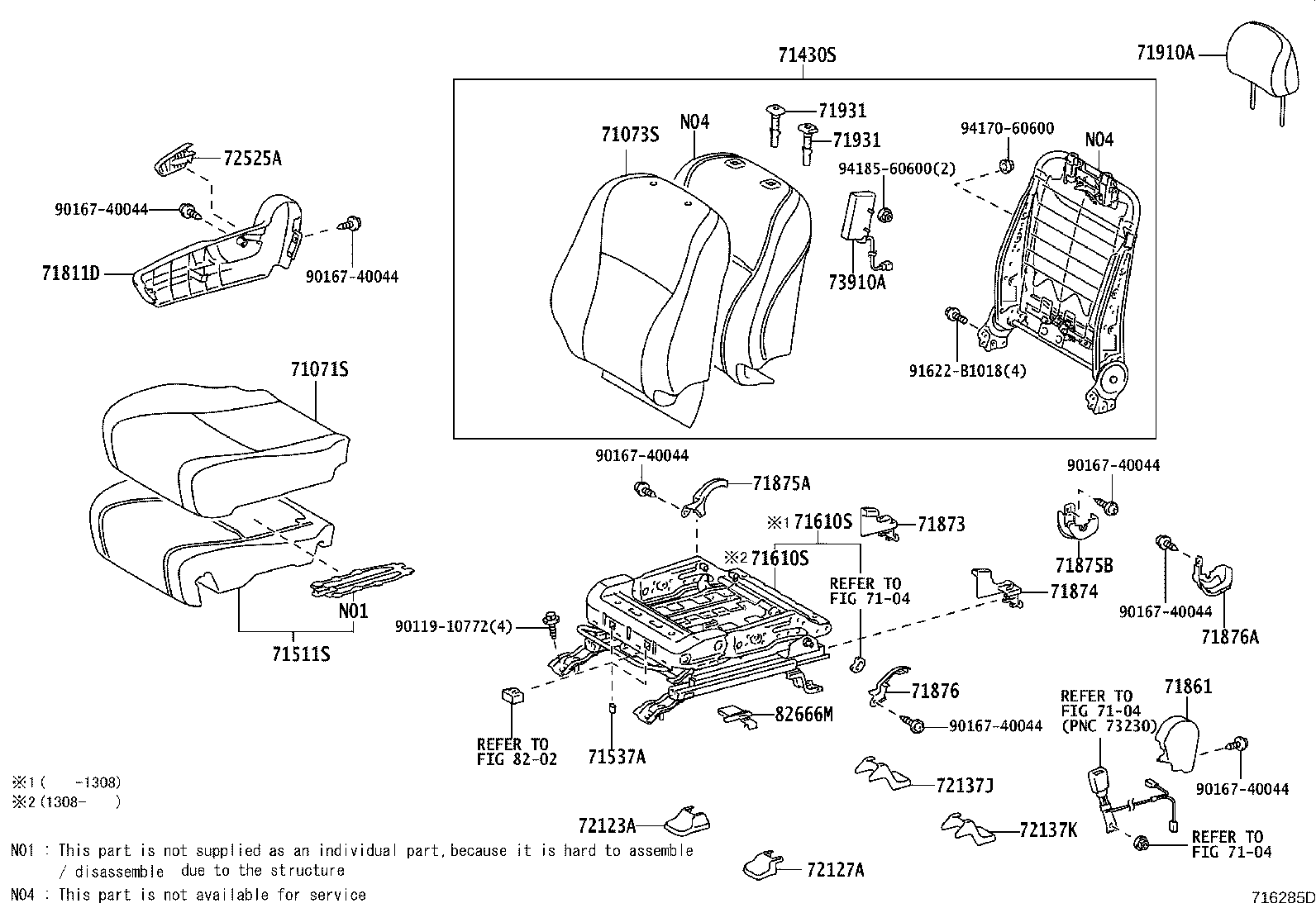

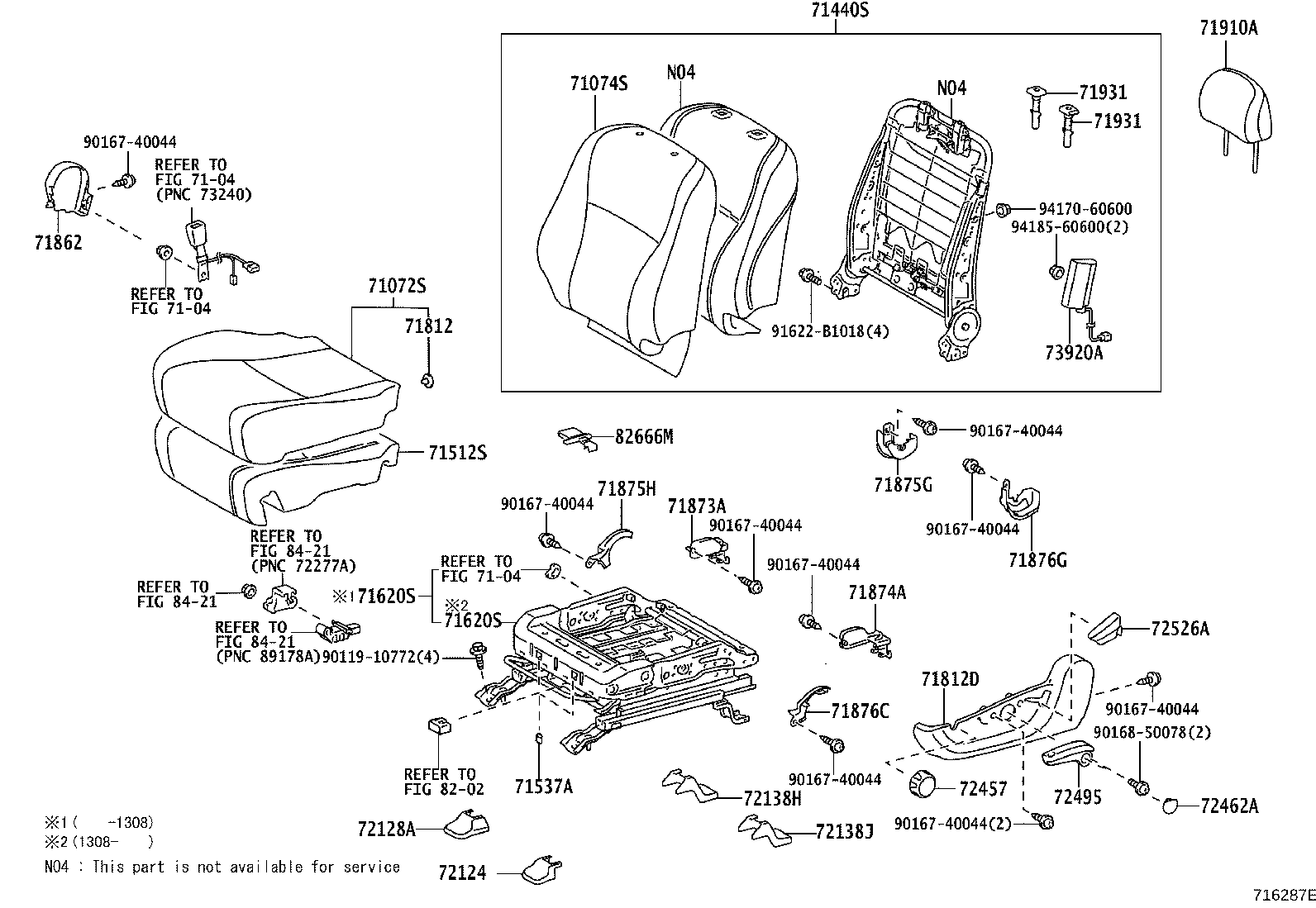

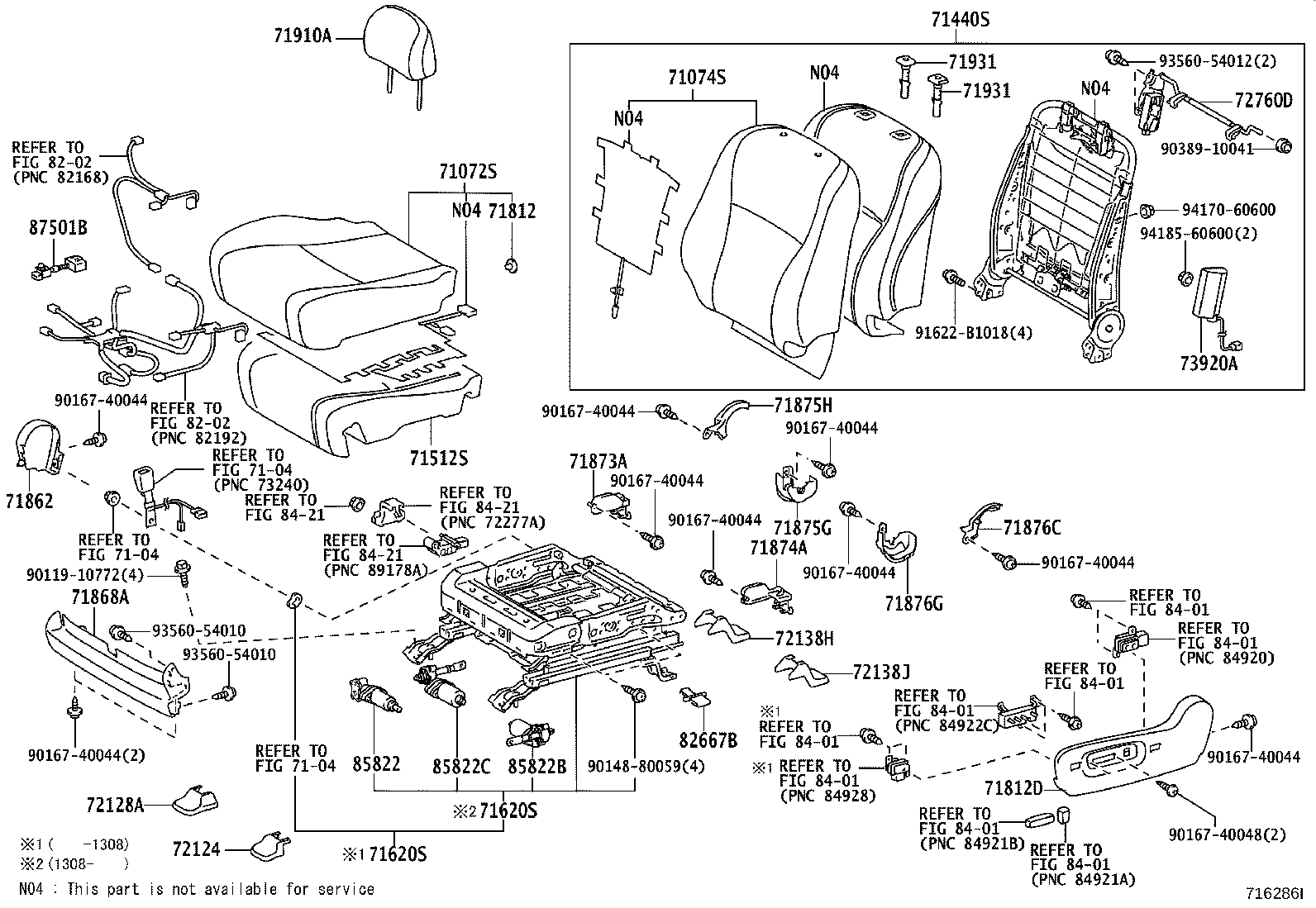

Front Seat & Seat Track
56 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812 | Clip (FOR FRONT SEAT CUSHION COVER) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71875H | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876C | Cover, Reclining Adjuster Inside, LH |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72137K | Cover, Front Seat Track, RH Rear Inner |
| 72138H | Cover, Front Seat Track, LH Rear Inner |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72457 | Knob, Vertical Seat Adjuster |
| 72462A | Cover, Vertical Adjuster LH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 82666M | Holder, Connector |
| 82667B | Holder, Connector |
| 85821H | Motor Assy, Power Seat Slide, RH |
| 85822 | Motor Assy, Power Seat Slide, LH |
| 85822B | Motor Assy, Power Seat Tilt, LH |
| 85822C | Motor Assy, Power Seat Lifter, LH |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
