Toyota Highlander (CHINA)

2009-05 → 2015-03 · chassis ASU40,GSU45 · catalogue 520310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

62 part groups · 14 illustrations

Illustrations

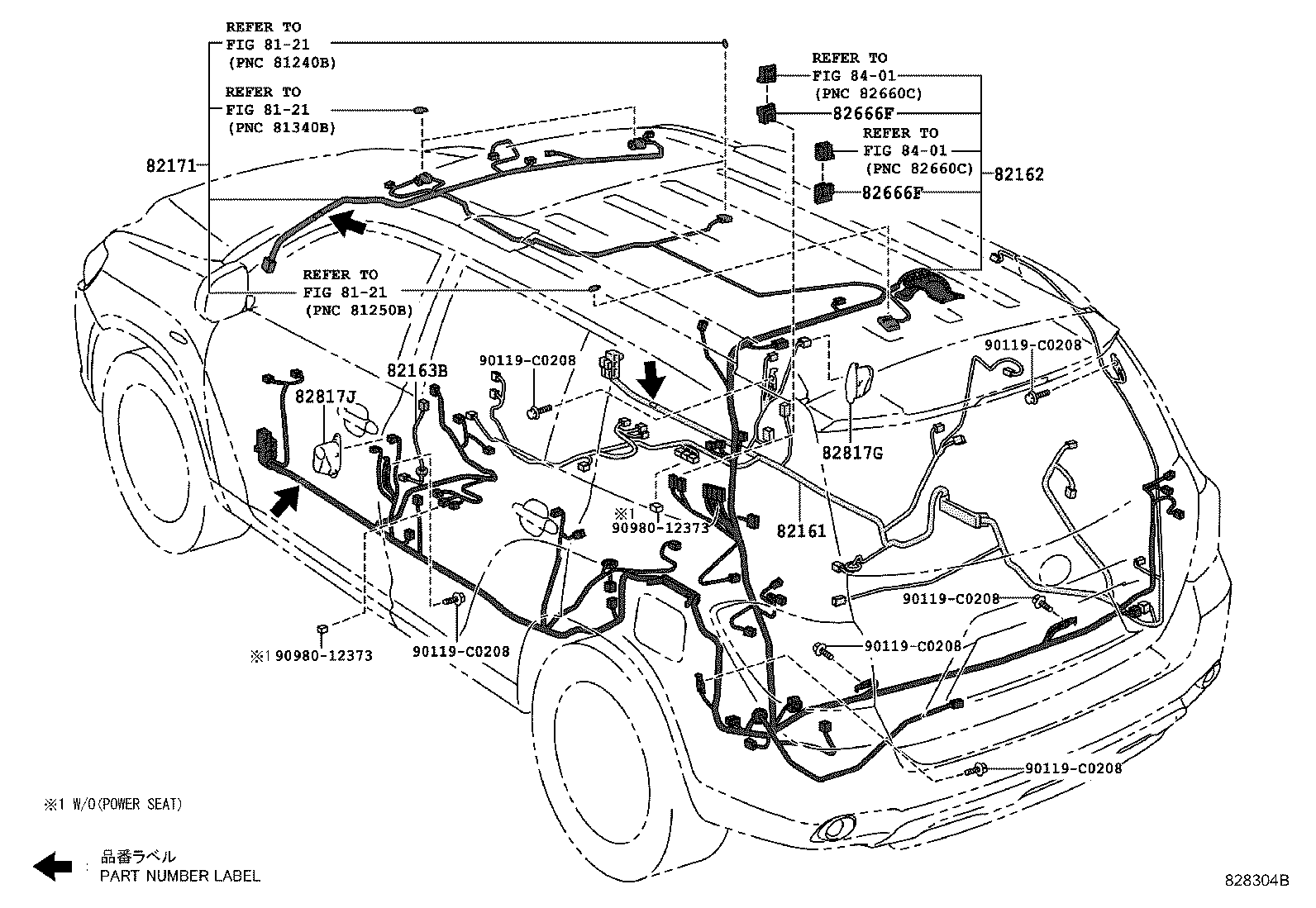

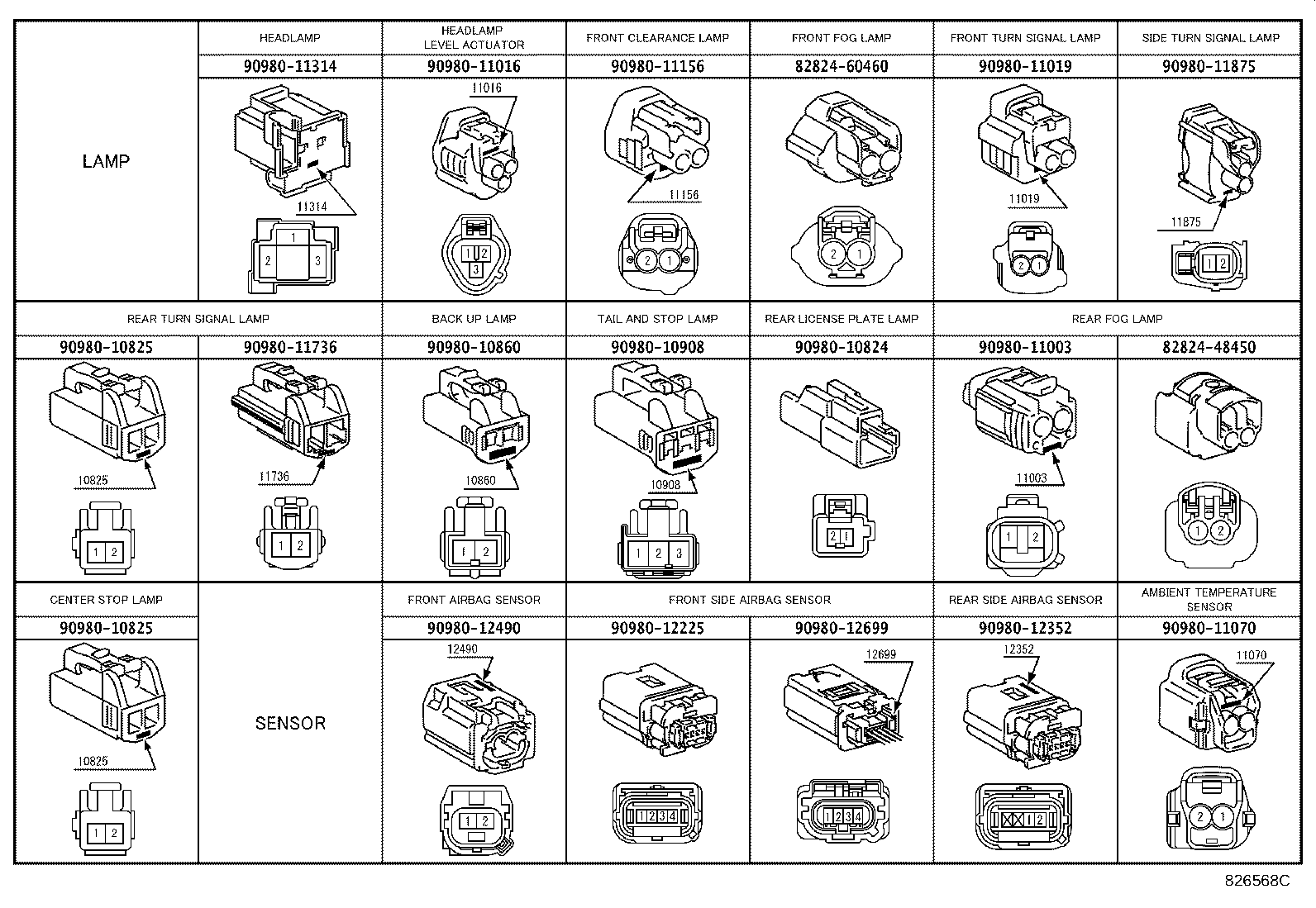

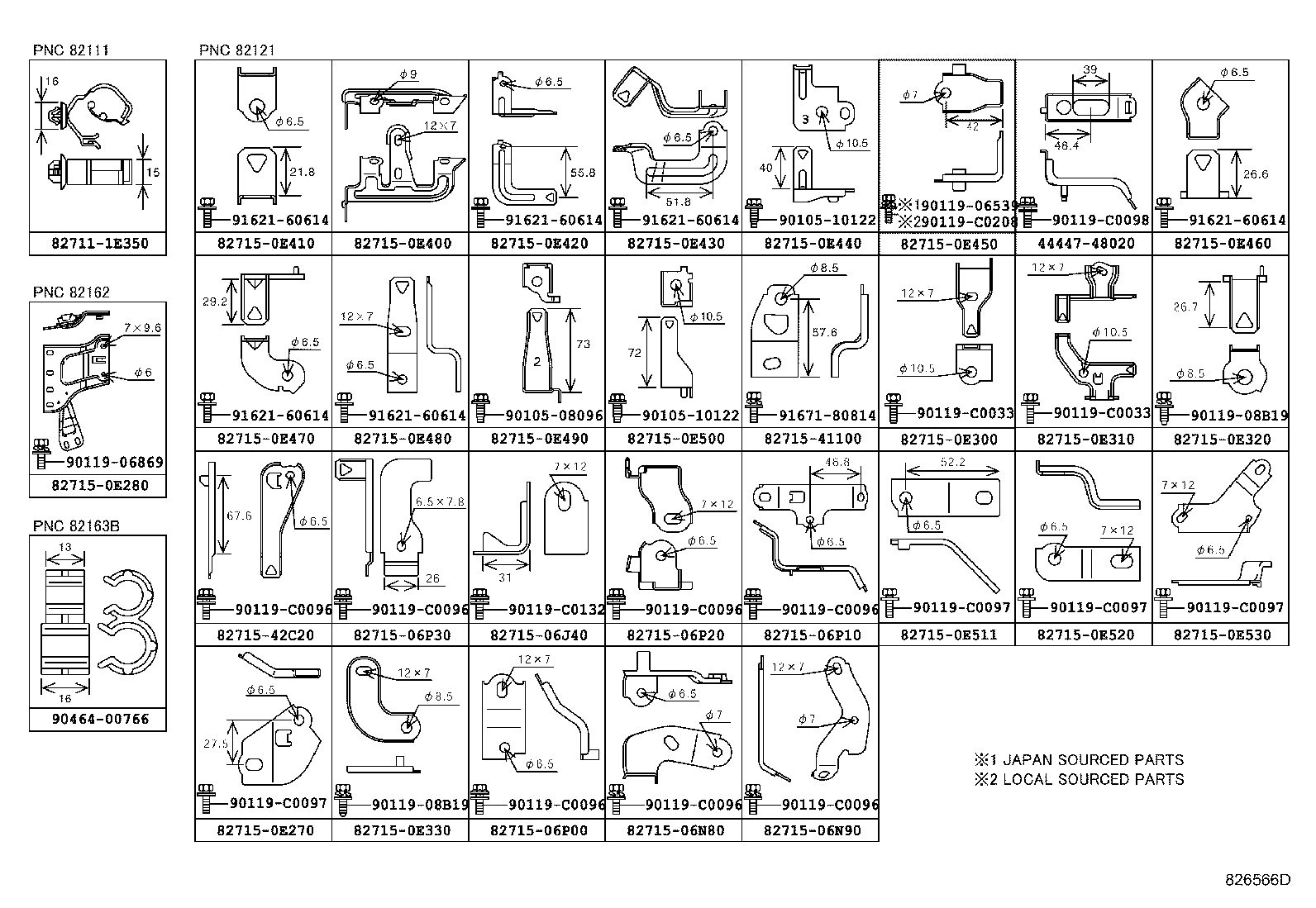

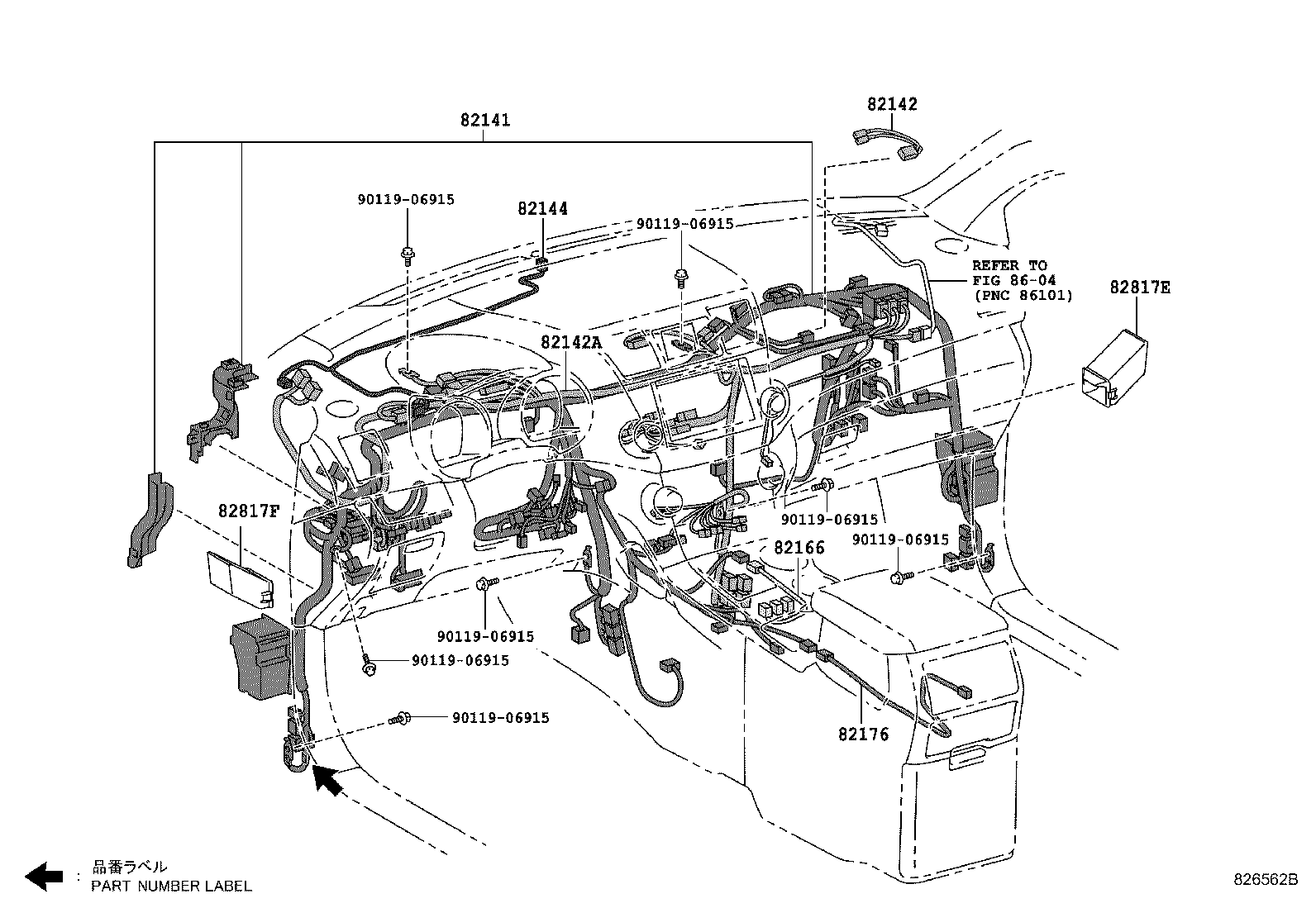

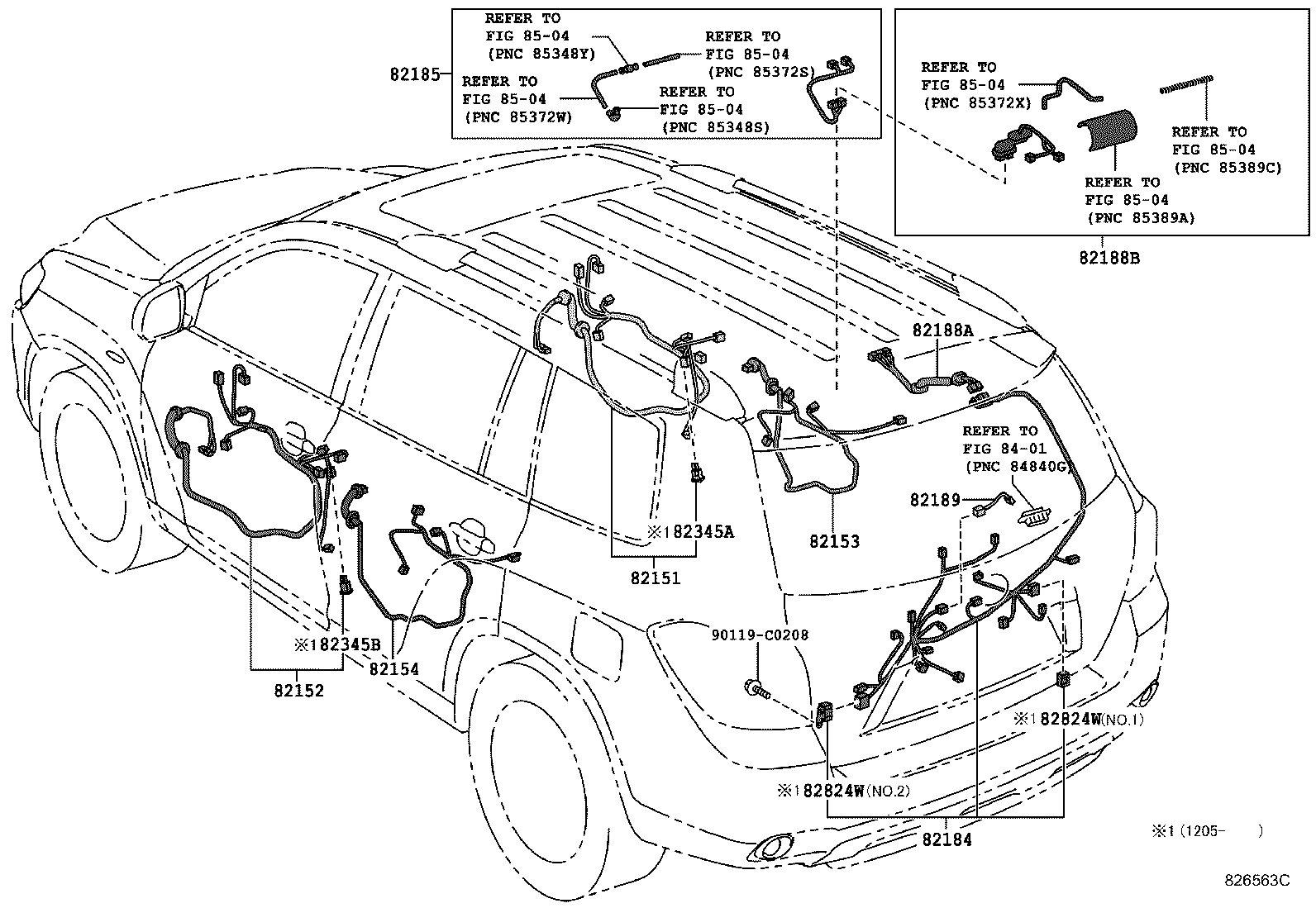

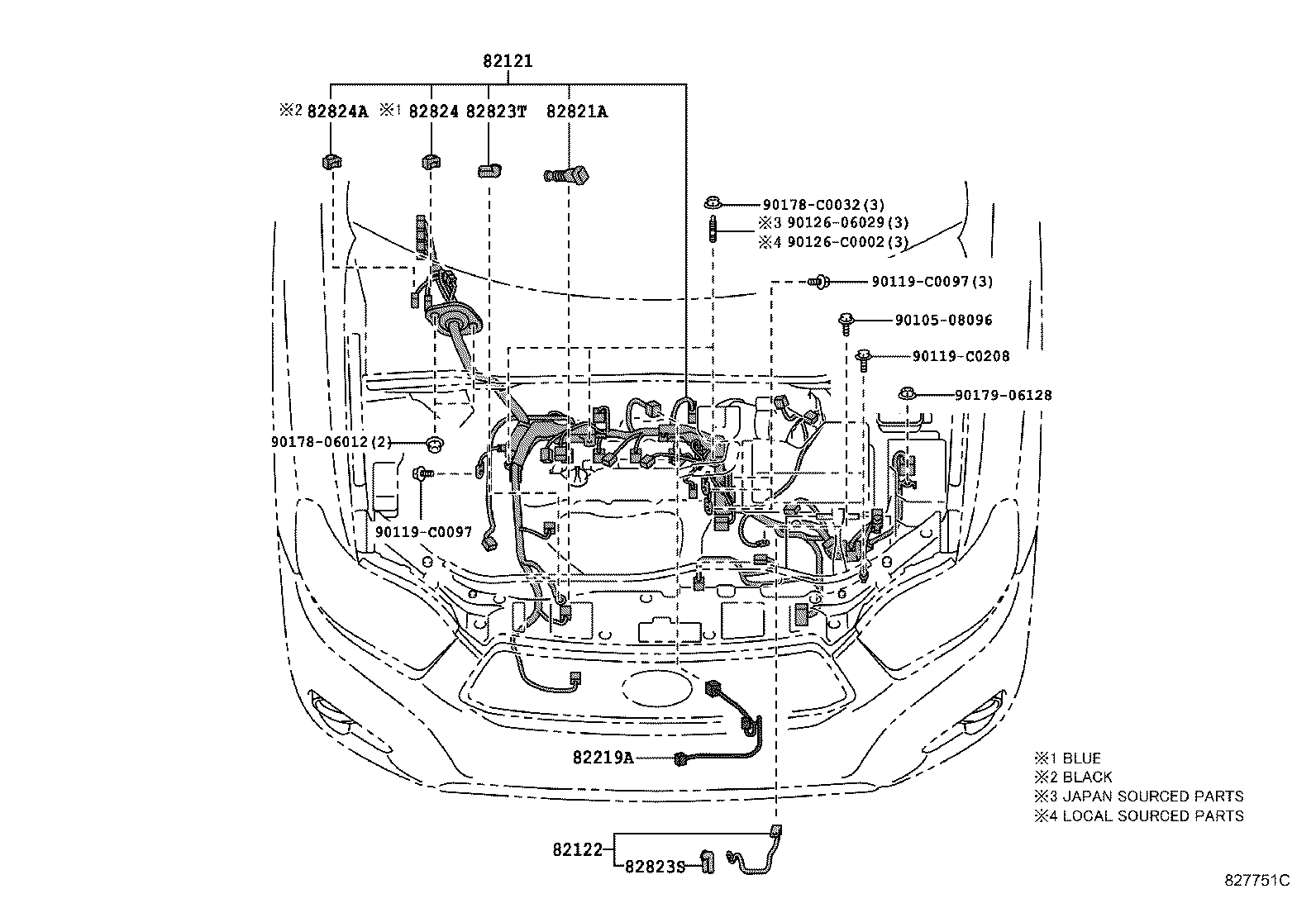

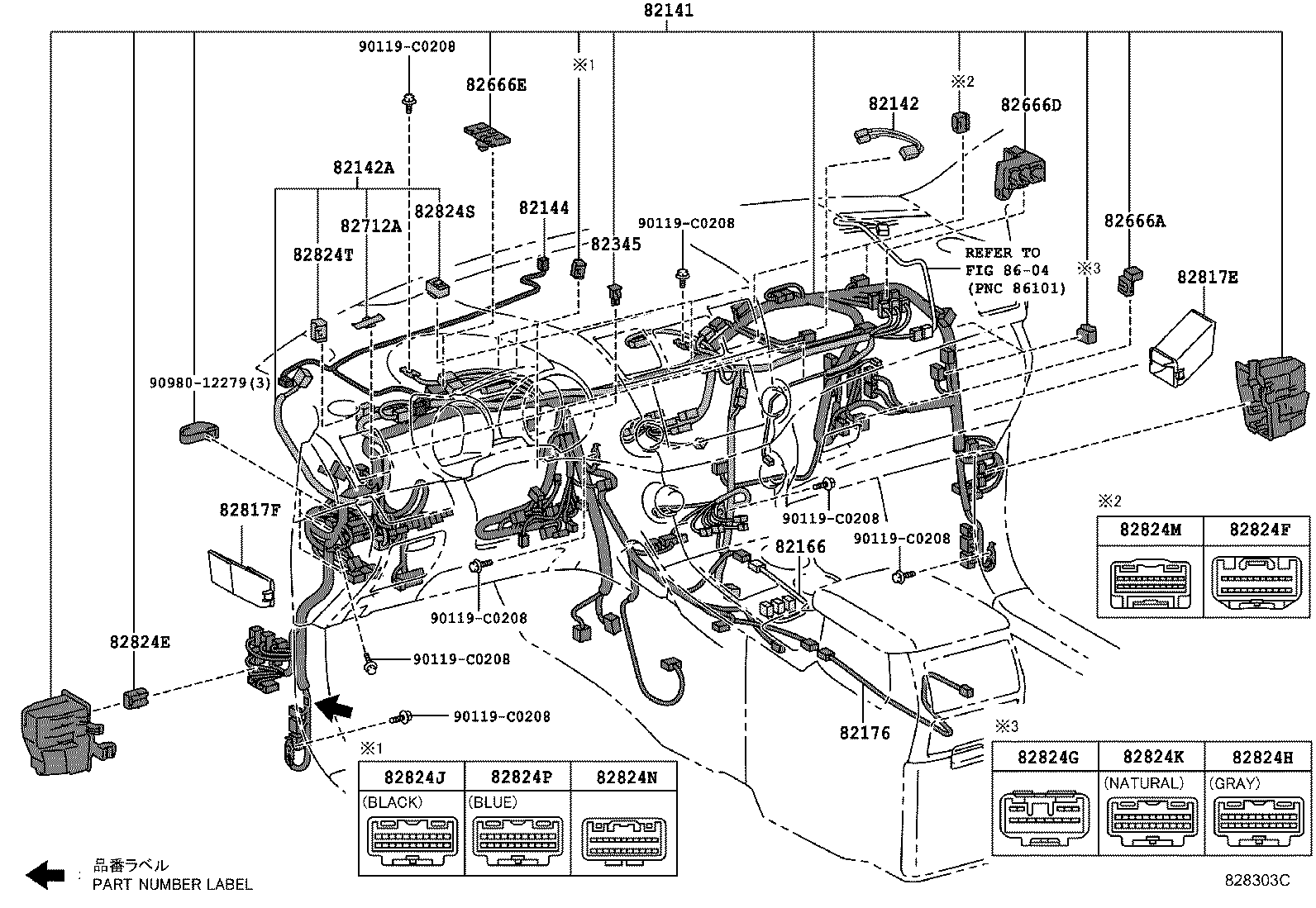

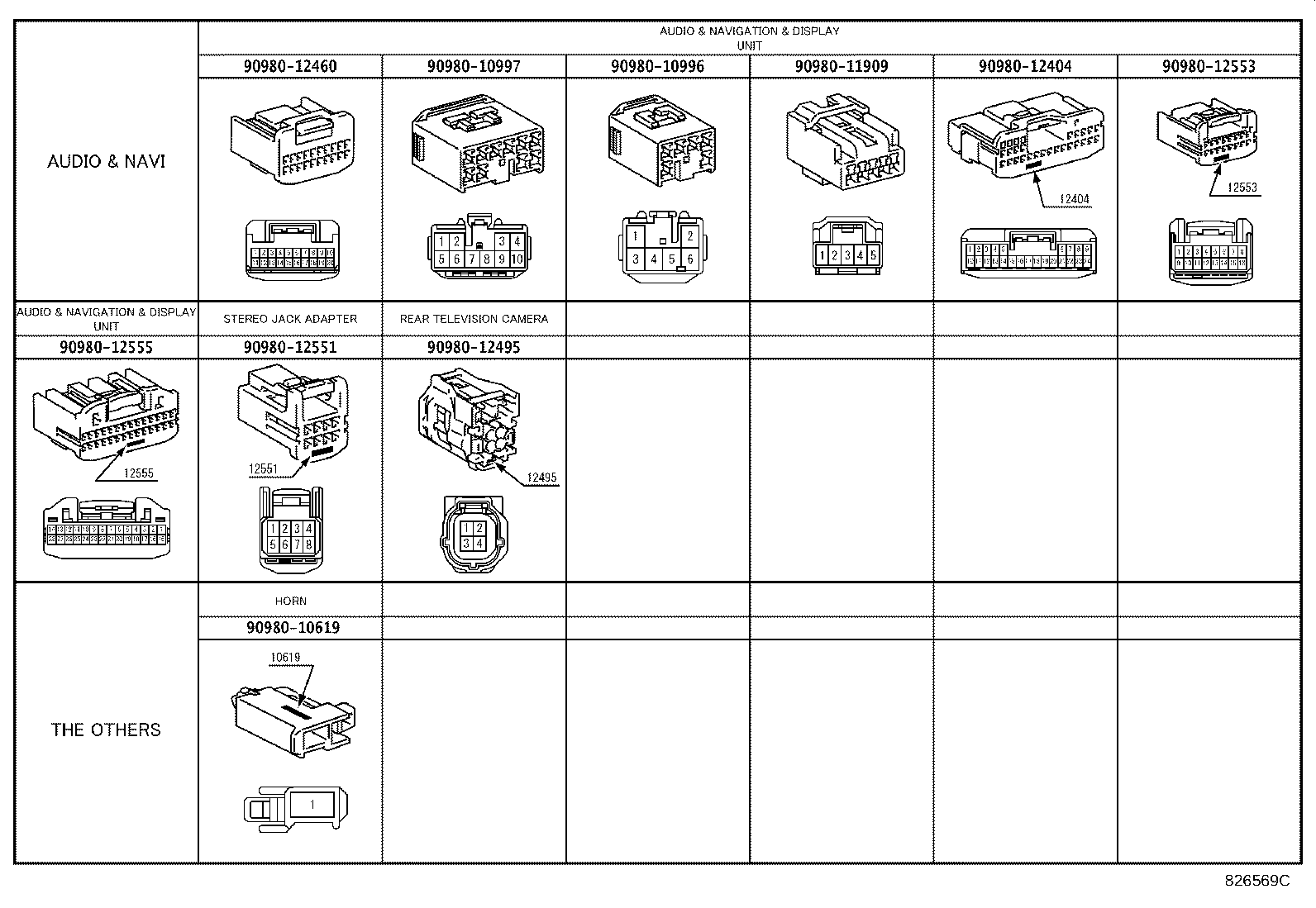

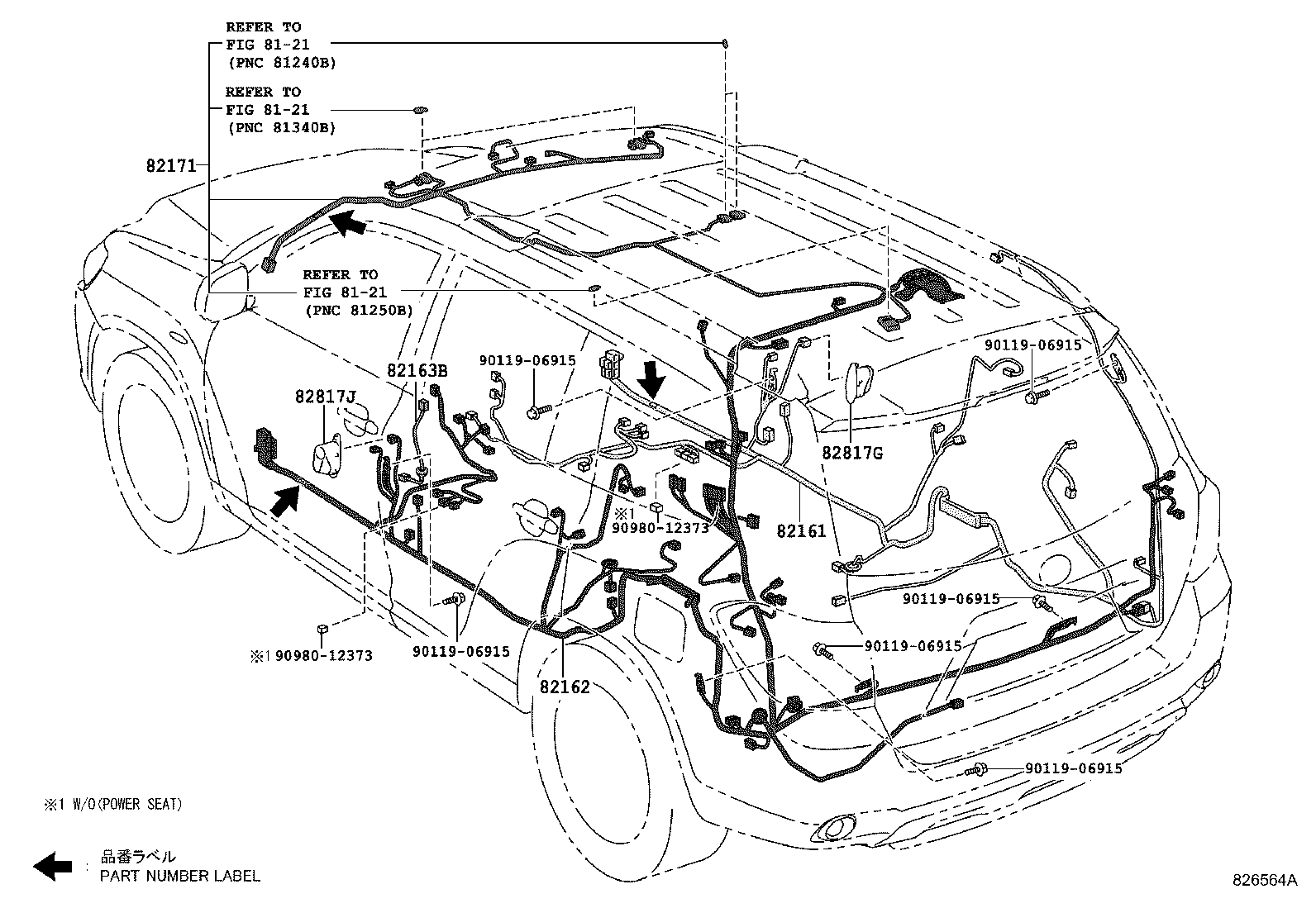

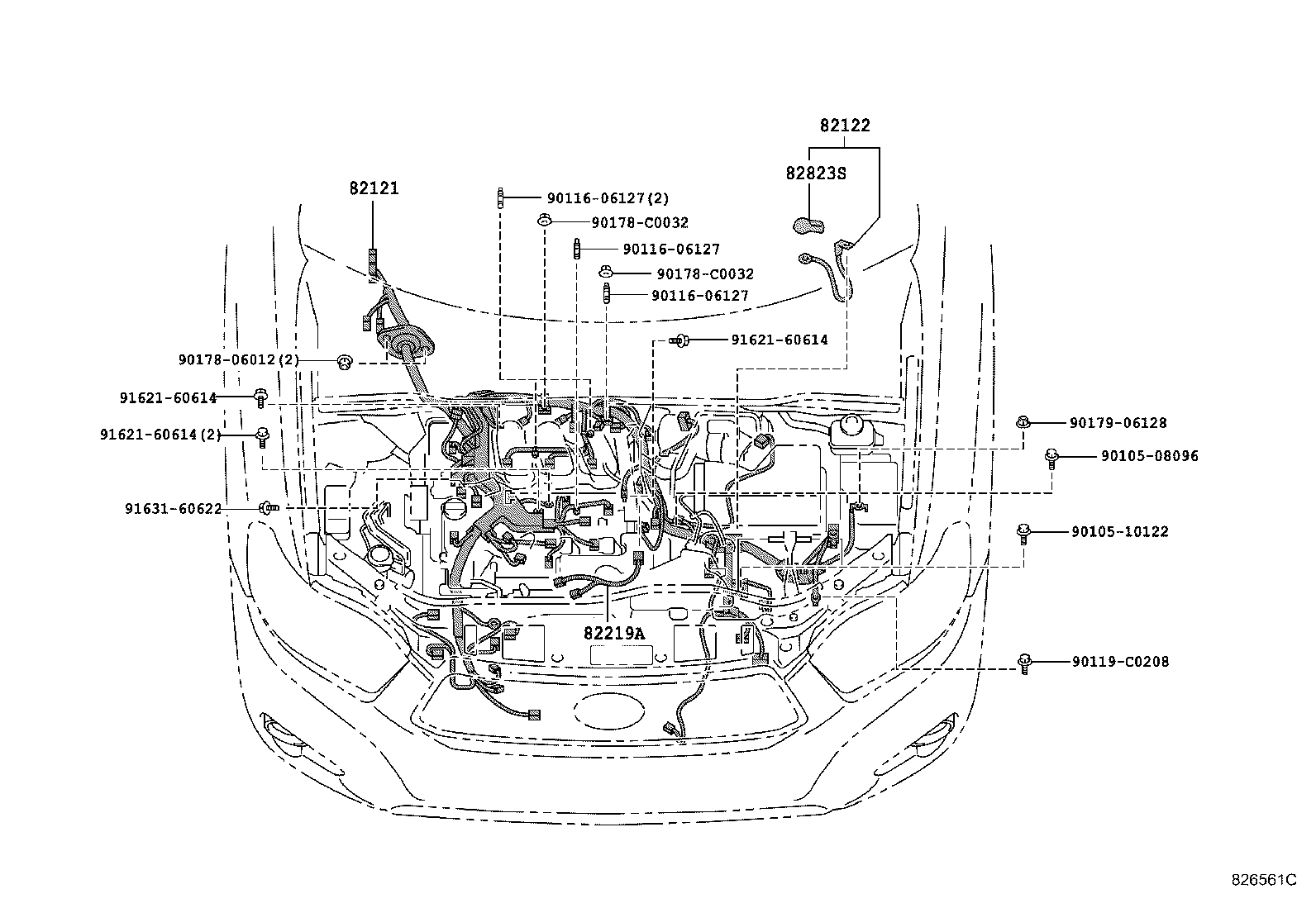

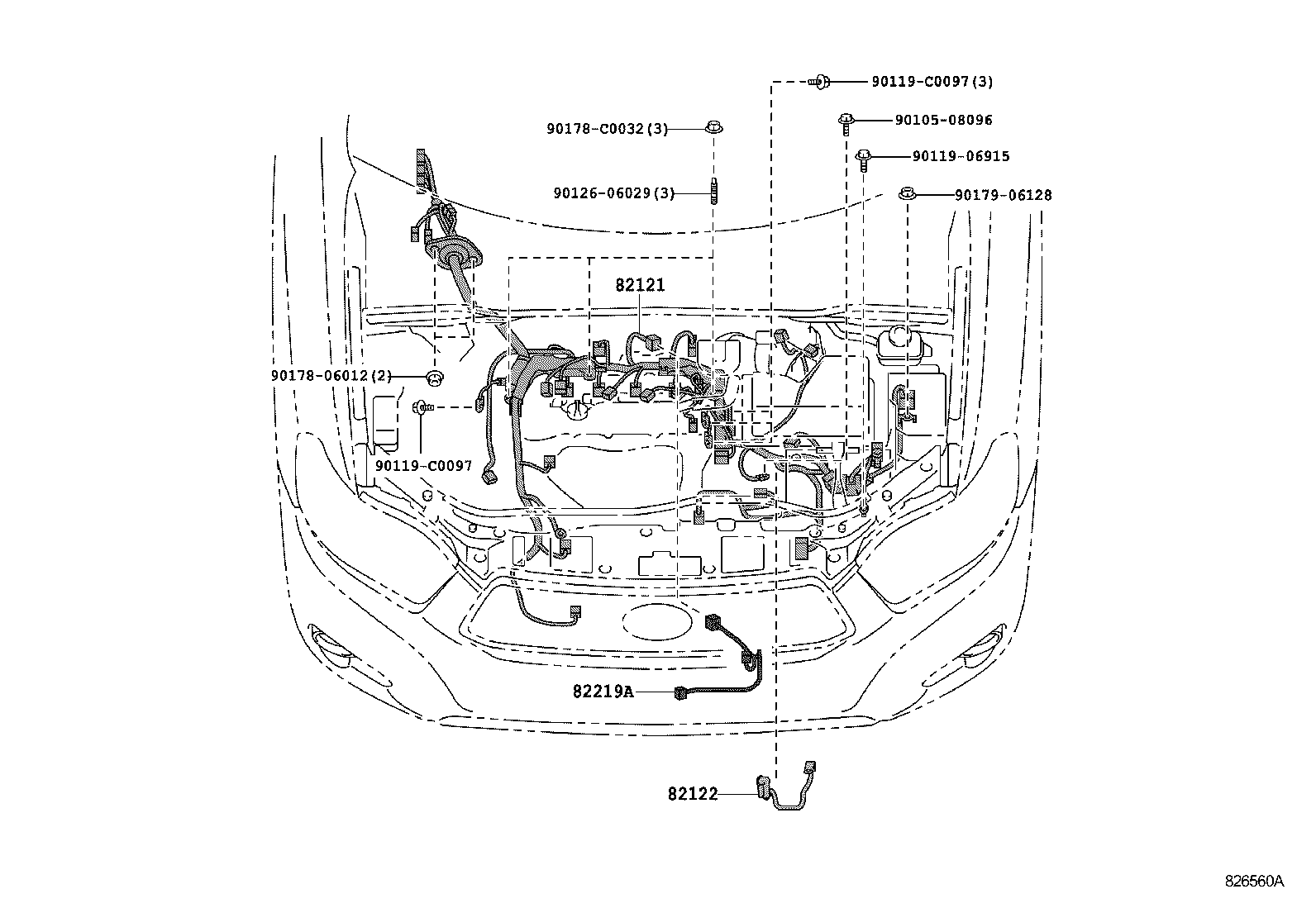

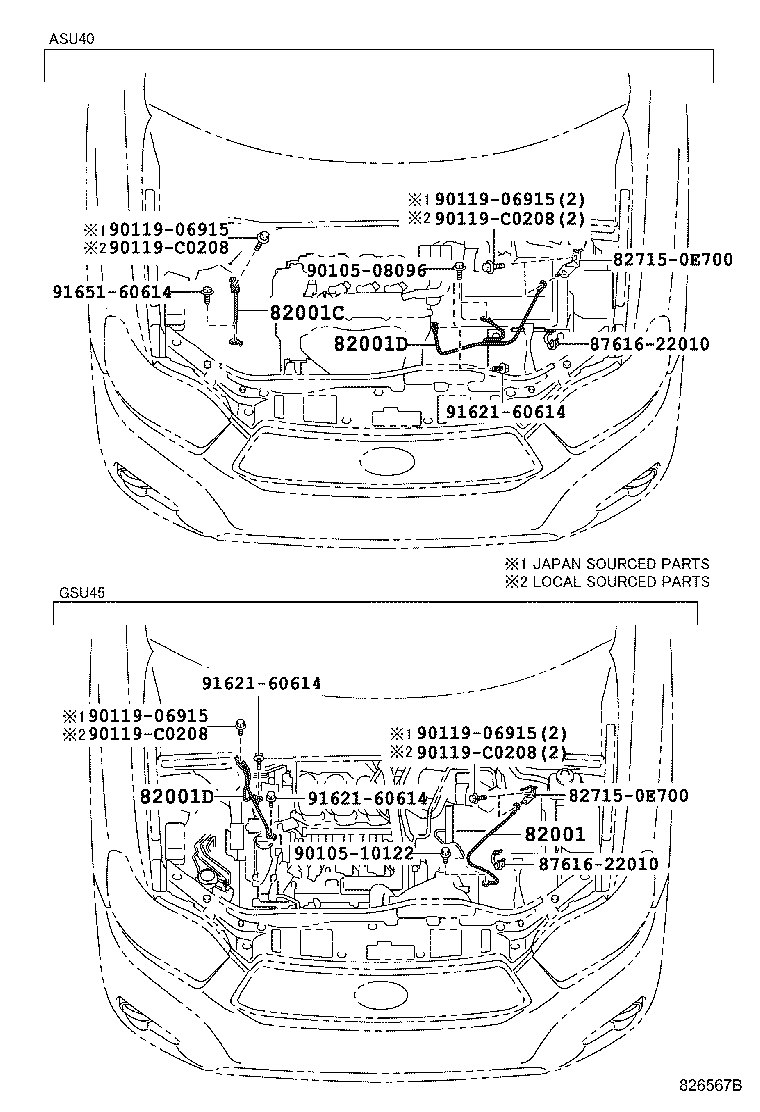

Figure 826559D 826559D 2009-05 → — Figure 826560A 826560A 2009-05 → 2011-11 Figure 826561C 826561C 2009-05 → — Figure 827751C 827751C 2011-11 → — Figure 826562B 826562B 2009-05 → 2012-05 Figure 828303C 828303C 2012-05 → — Figure 826563C 826563C 2009-05 → — Figure 826564A 826564A 2009-05 → 2012-05 Figure 828304B 828304B 2012-05 → — Figure 826565B 826565B 2009-05 → — Figure 826566D 826566D 2009-05 → — Figure 826567B 826567B 2009-05 → — Figure 826568C 826568C 2009-05 → — Figure 826569C 826569C 2009-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163B Wire, Floor NO.5
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82176 Wire, Rear Console Box
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82188A Wire, Back Door, NO.3
82188B Wire, Back Door, Upper
82189 Wire, Back Door, NO.4
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82345 Diode
82345A Diode
82345B Diode
82666A Holder, Connector NO.2
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82712A Support, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82824X Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
