Toyota Highlander (CHINA)

2009-05 → 2015-03 · chassis ASU40,GSU45 · catalogue 520310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 2 illustrations

Illustrations

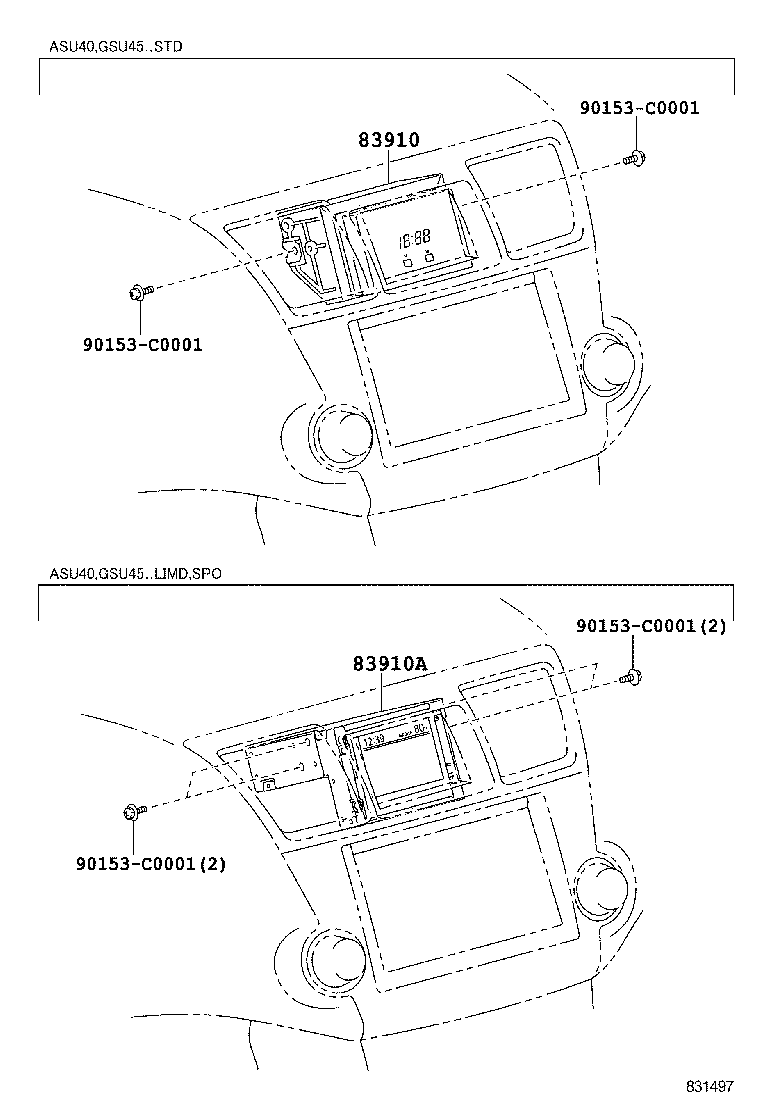

Figure 831496 831496 2009-05 → — Figure 831497 831497 2009-05 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83138G Glass, Combination Meter
83910 Clock Assy
83910A Clock Assy, W/Multi Information Display
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
