Heating & Air Conditioning - Water Piping

11 part groups · 4 illustrations

Illustrations

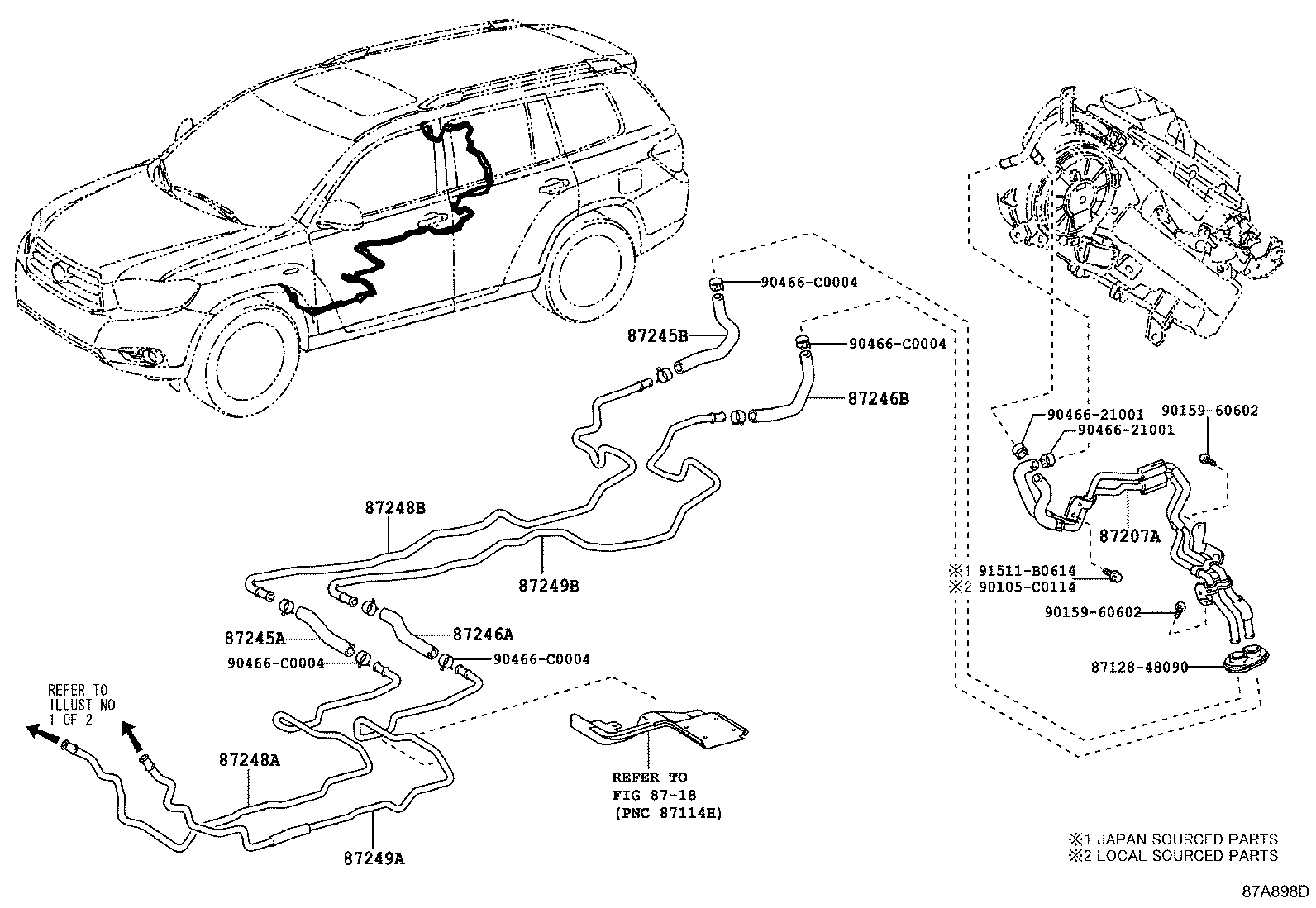

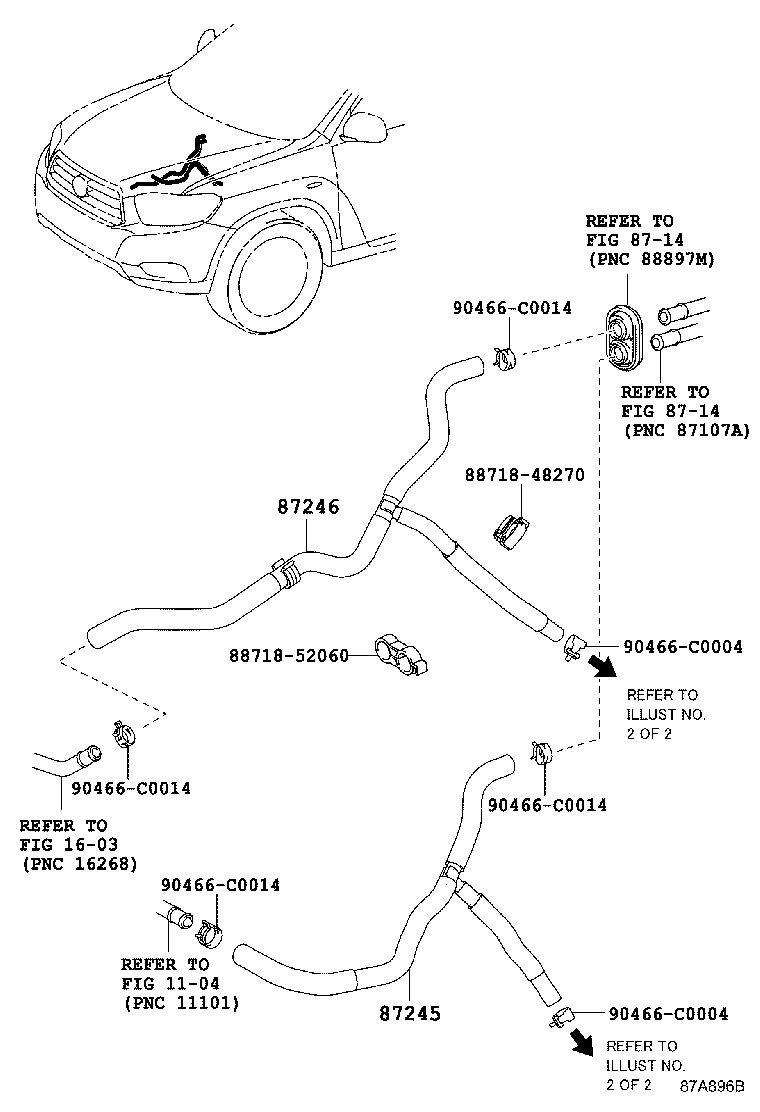

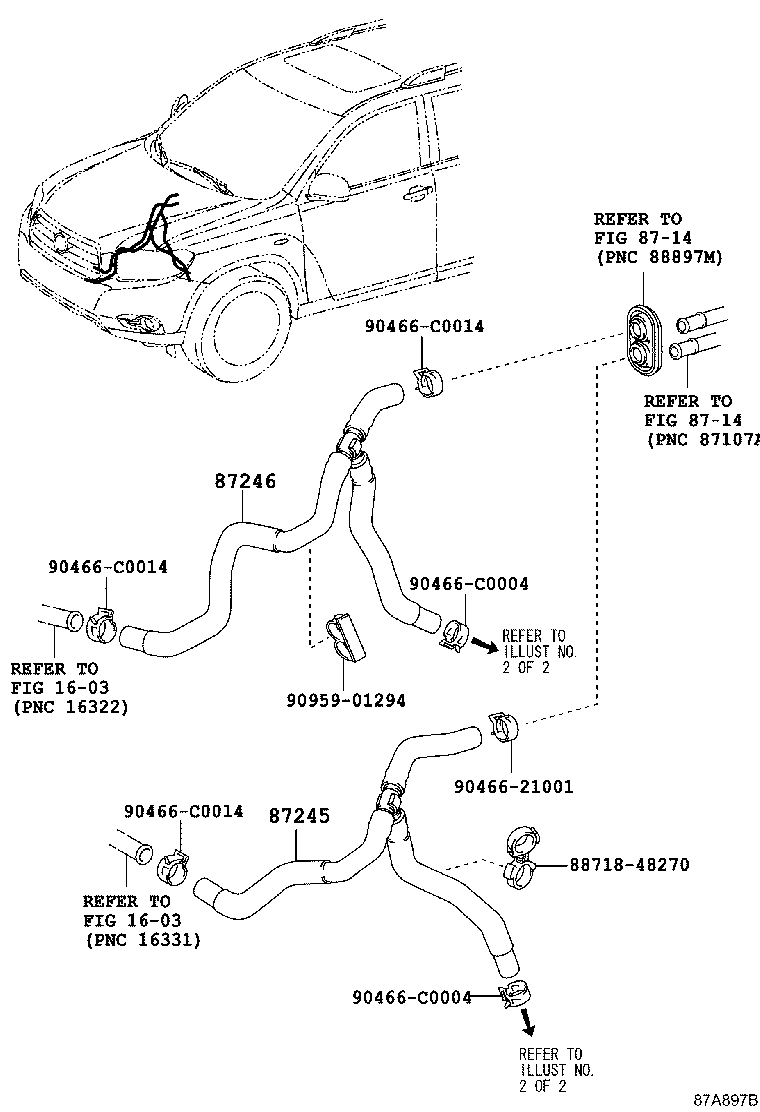

Figure 87A895B 87A895B 2009-05 → — Figure 87A896B 87A896B 2009-05 → — Figure 87A897B 87A897B 2009-05 → — Figure 87A898D 87A898D 2009-05 → —

Part groups

PNCDescription
87207A Pipe & Hose Sub-assy, Water A
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
