Toyota Highlander (CHINA)

2009-05 → 2015-03 · chassis ASU40,GSU45 · catalogue 520310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

22 part groups · 8 illustrations

Illustrations

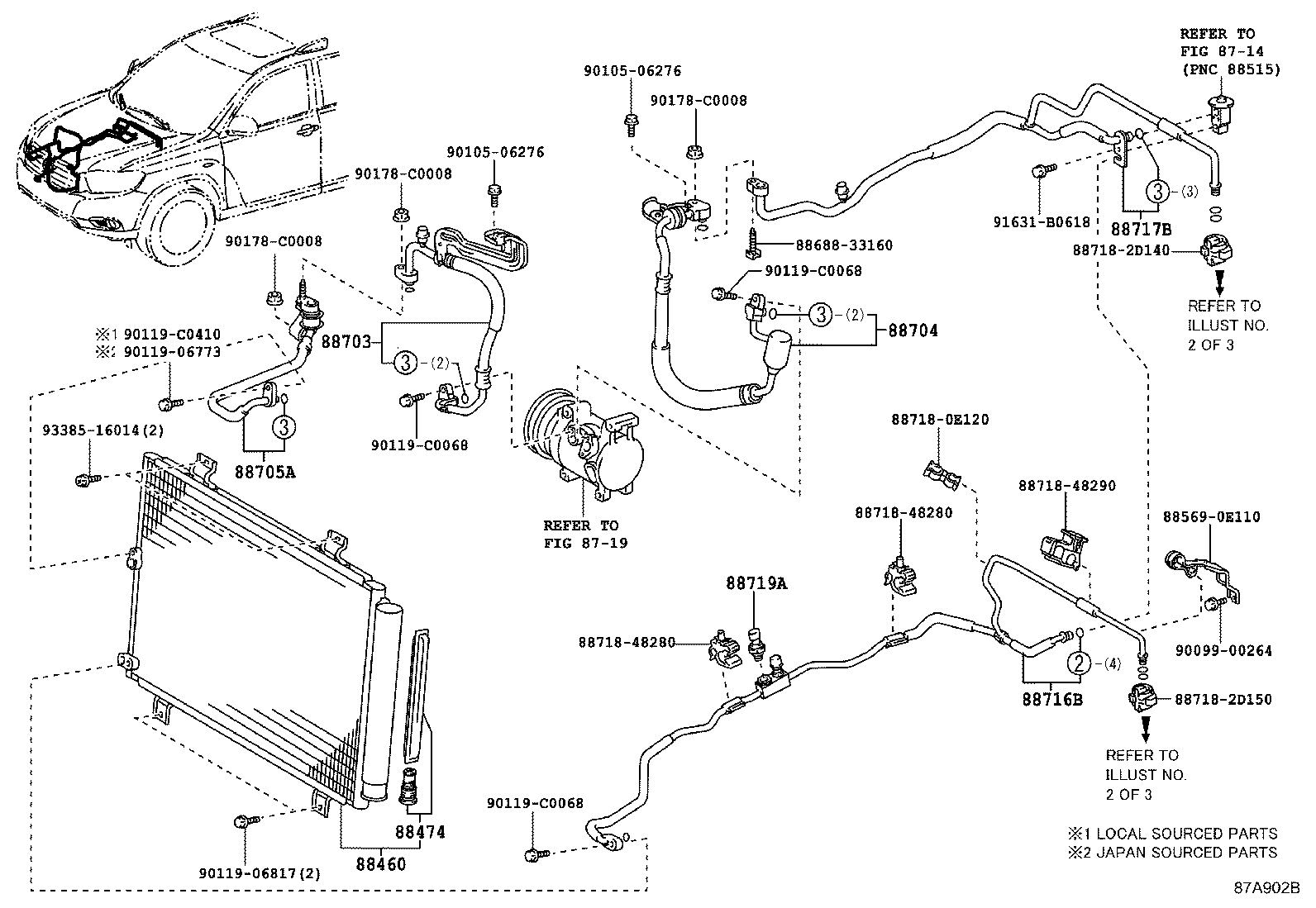

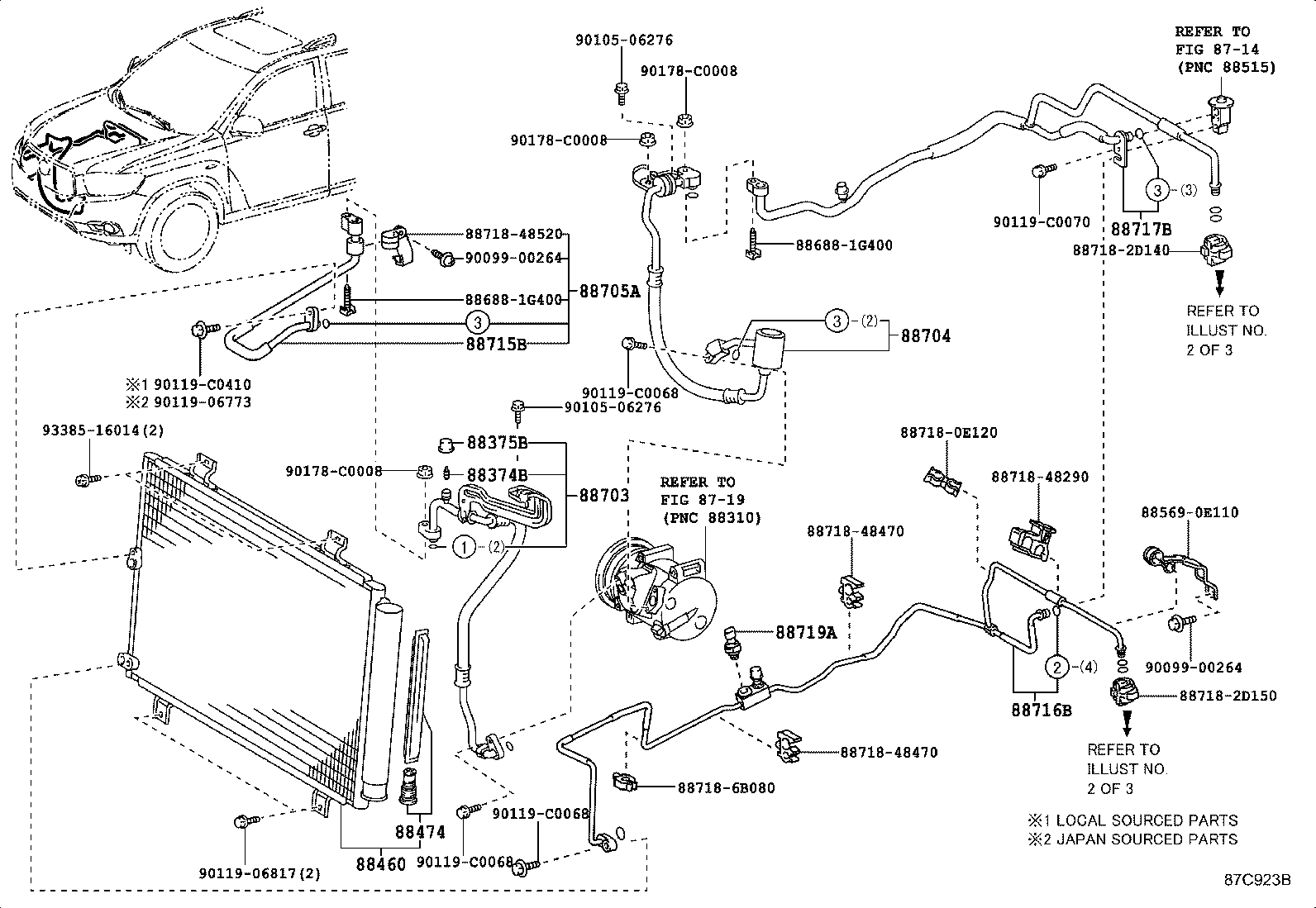

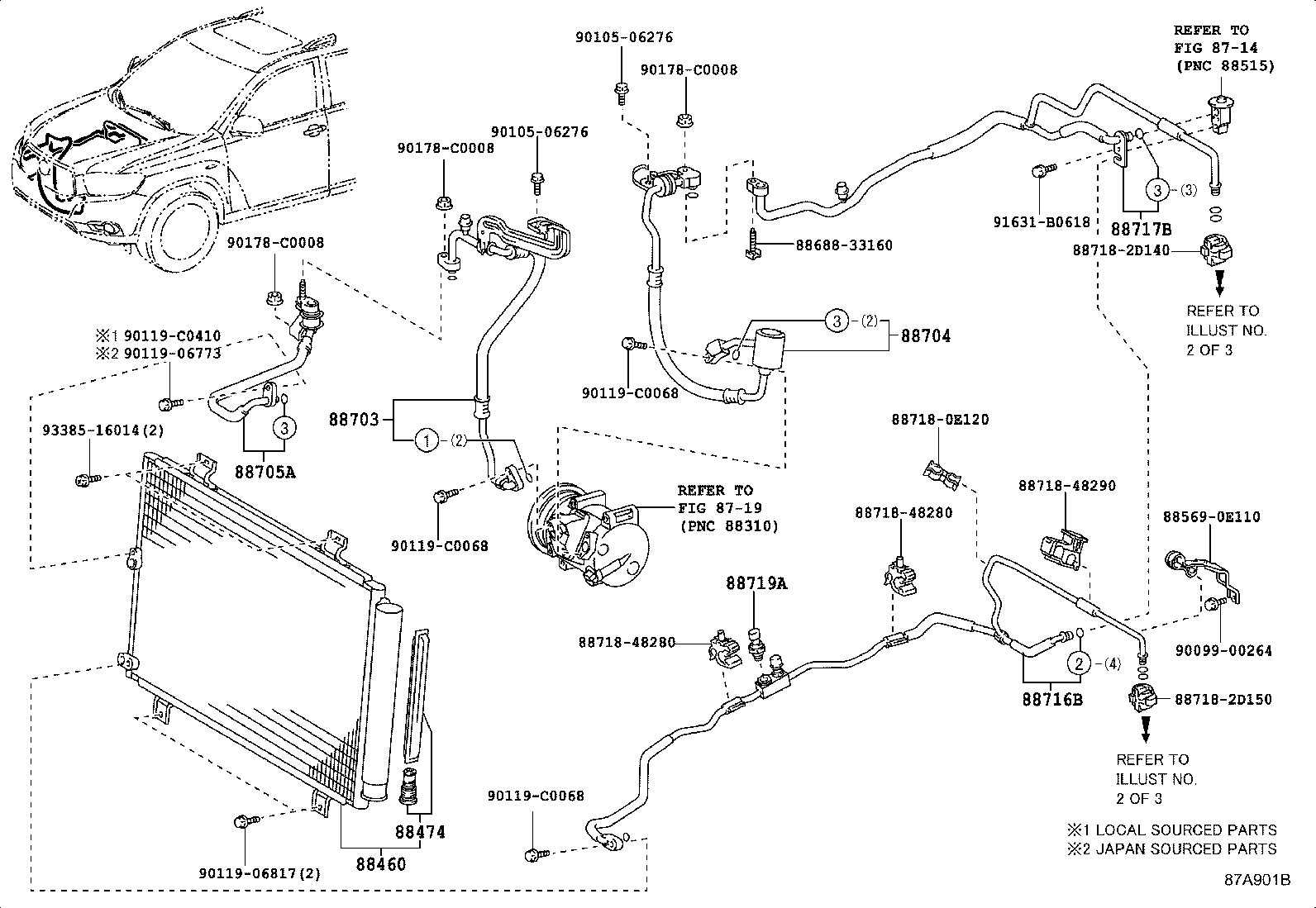

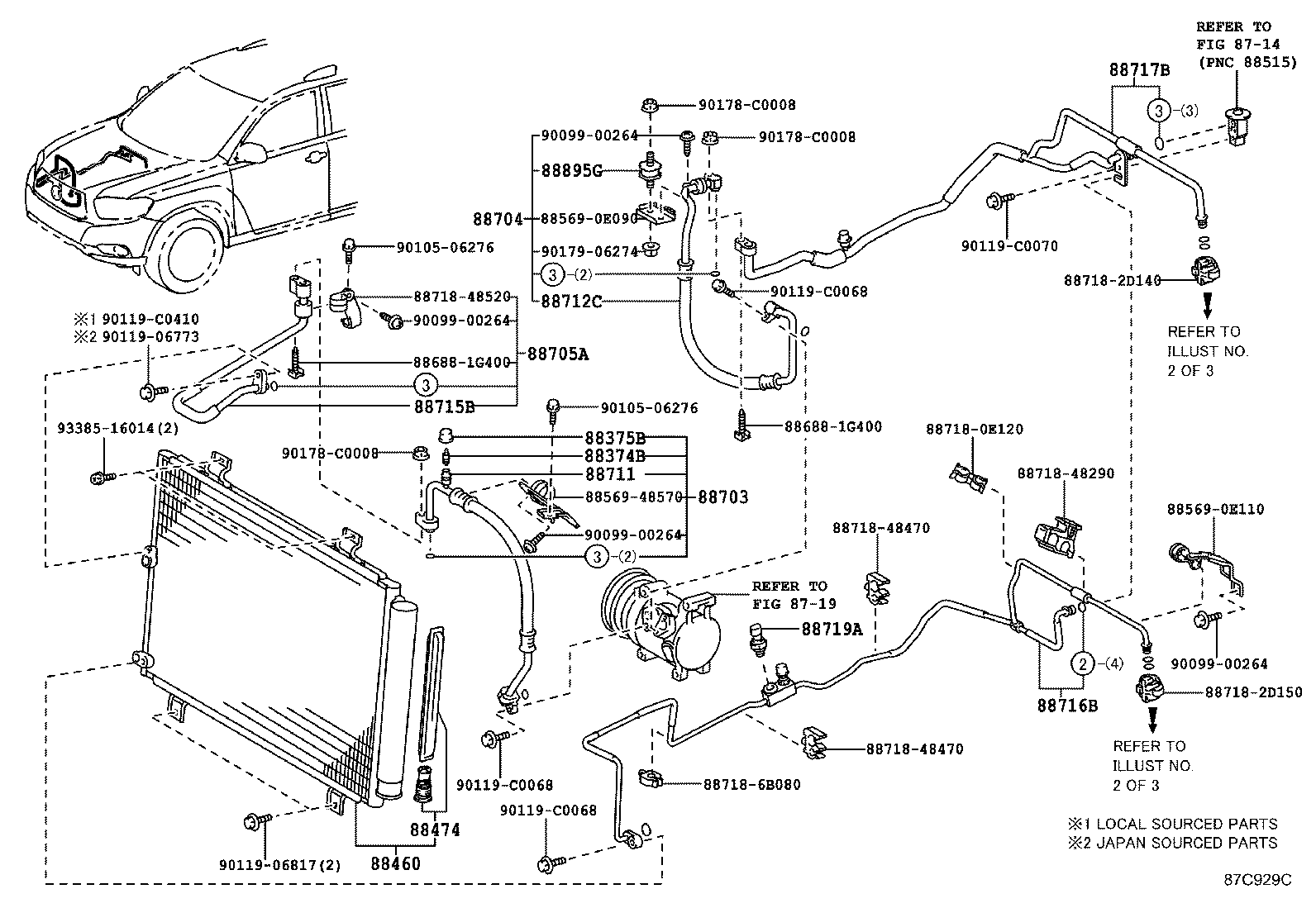

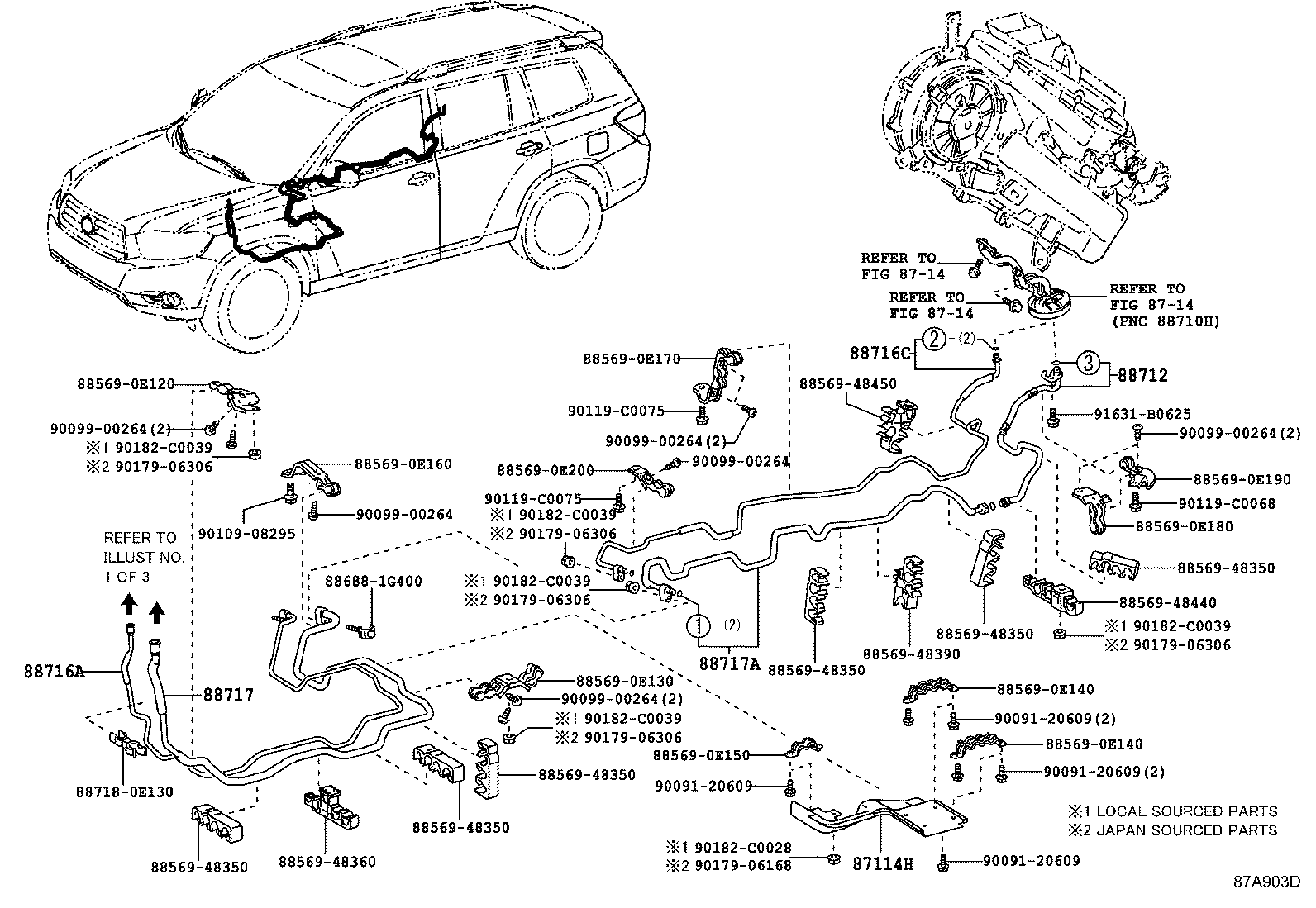

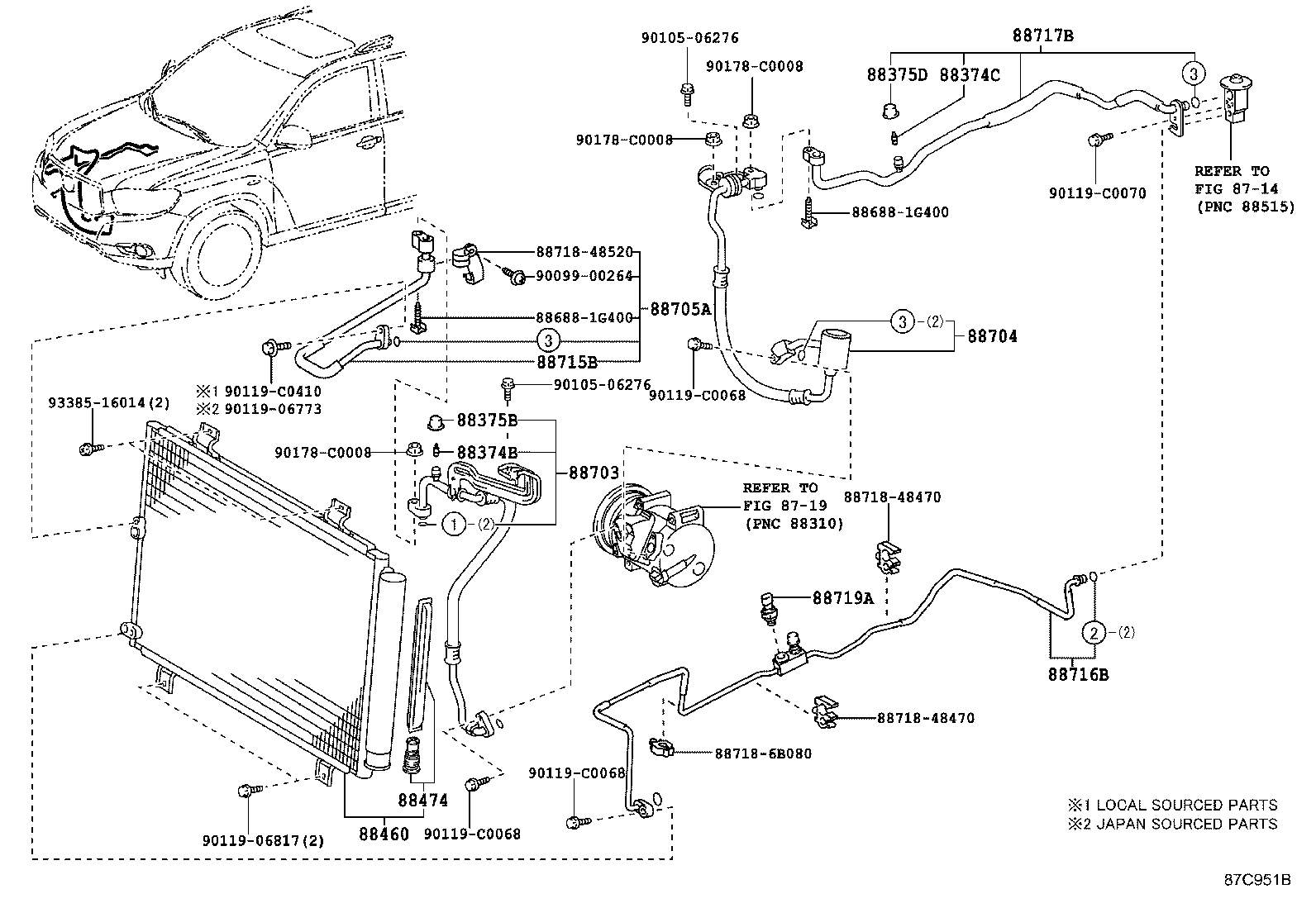

Figure 87A900C 87A900C 2009-05 → 2012-05 Figure 87C951B 87C951B 2012-05 → — Figure 87A901B 87A901B 2009-05 → 2012-05 Figure 87C923B 87C923B 2012-05 → — Figure 87A902B 87A902B 2009-05 → 2012-05 Figure 87C929C 87C929C 2012-05 → — Figure 87A903D 87A903D 2009-05 → — Figure 874585 874585 2009-05 → —

Part groups

PNCDescription
87114H Cover, Heater
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712C Hose, Suction
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88719A Sensor, Air Conditioner Pressure
88895G Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
