Toyota Highlander (CHINA)

2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

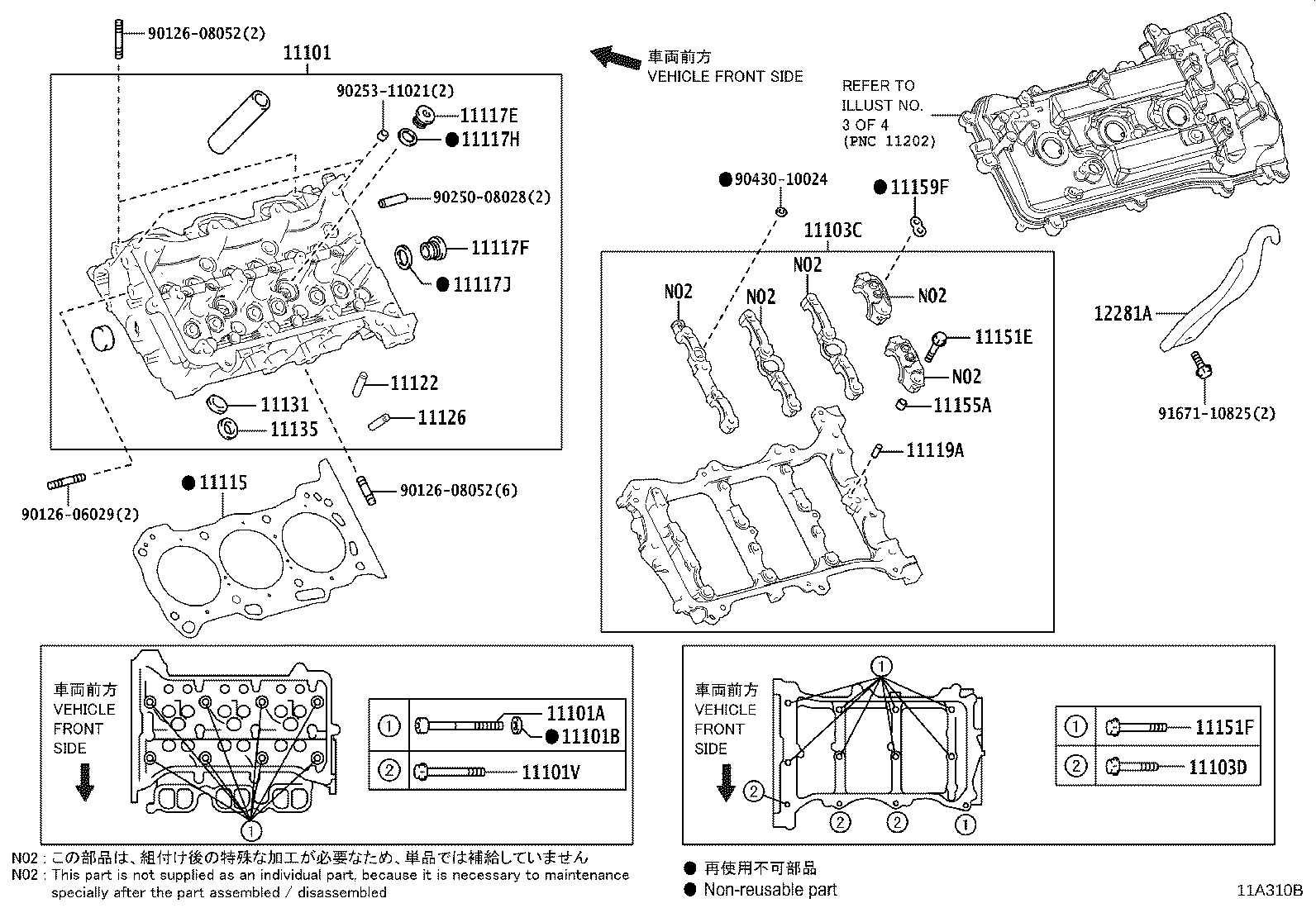

Exploded illustration 11A310B 9043010024 — not listed in this catalogue 9012608052 — not listed in this catalogue 9025008028 — not listed in this catalogue 9167110825 — not listed in this catalogue 11119A — PIN, STRAIGHT, NO.1 (1 parts) 9012608052 — not listed in this catalogue 11151F — BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) (1 parts) 11103D — BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) (1 parts) 11101V — BOLT(FOR CYLINDER HEAD SET SUB) (1 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (4 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (2 parts) 12281A — HANGER, ENGINE, NO.1 (3 parts) 11103C — HOUSING SUB-ASSY, CAMSHAFT, RH (1 parts) 11151E — BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) (1 parts) 11117E — PLUG, W/HEAD STRAIGHT SCREW, NO.1 (3 parts) 11117H — GASKET(FOR WATER HOLE) (1 parts) 11117J — GASKET(FOR CYLINDER HEAD SCREW PLUG) (3 parts) 11117F — PLUG, W/HEAD STRAIGHT SCREW, NO.2 (1 parts) 11135 — SEAT, EXHAUST VALVE (8 parts) 11131 — SEAT, INTAKE VALVE (6 parts) 11115 — GASKET, CYLINDER HEAD (4 parts) 11101 — HEAD SUB-ASSY, CYLINDER (7 parts) 9025311021 — not listed in this catalogue 11122 — BUSH, INTAKE VALVE GUIDE (6 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (10 parts) 11159F — GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH (1 parts) 11155A — PIN, RING W/HEAD (1 parts) 9012606029 — not listed in this catalogue
11A310B · 21 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
66 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-39537 Head Sub-assy, Cylinder
2015-03 → 2017-10 ended
2GRFE GSU55 —
11101-39845 Head Sub-assy, Cylinder
2015-03 → 2017-08 ended
8ARFTS ASU5# —
11101-39846 Head Sub-assy, Cylinder
2017-08 → 2018-03 ended
8ARFTS ASU5# —
11101-39846 Head Sub-assy, Cylinder
2018-03 → 2018-08 ended
8ARFTS ASU5# —
11101-39847 Head Sub-assy, Cylinder
2018-08 → 2020-03 ended
8ARFTS ASU5# —
11101-39848 Head Sub-assy, Cylinder
2020-03 → 2021-10 ended
8ARFTS ASU5# —
11101-80014 Head Sub-assy, Cylinder
2021-10 → —
8ARFTS ASU5# —
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02164 Bolt(FOR CYLINDER HEAD SET)
2015-03 → 2017-10 ended
2GRFE GSU55 —
90910-02189 Bolt(FOR CYLINDER HEAD SET)
2015-03 → 2017-12 ended
8ARFTS ASU5# —
90910-02204 Bolt(FOR CYLINDER HEAD SET)
2017-12 → 2018-03 ended
8ARFTS ASU5# —
90910-02204 Bolt(FOR CYLINDER HEAD SET)
2018-03 → —
8ARFTS ASU5# —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2015-03 → 2017-10 ended
2GRFE GSU55 —
90201-13042 Washer, Plate(FOR CYLINDER HEAD SET)
2015-03 → 2017-12 ended
8ARFTS ASU5# —
11101V — Bolt(FOR CYLINDER HEAD SET SUB)
90105-10521 Bolt(FOR CYLINDER HEAD SET SUB)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11103C — Housing Sub-assy, Camshaft, RH
11103-31032 Housing Sub-assy, Camshaft, RH
2015-03 → 2017-10 ended
2GRFE GSU55 —
11103D — Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)
90105-08465 Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11115 — Gasket, Cylinder Head
11115-31080 Gasket, Cylinder Head
2015-03 → 2017-10 ended
2GRFE GSU55 —
11115-36060 Gasket, Cylinder Head
2015-03 → 2017-04 ended
8ARFTS ASU5# —
11115-36061 Gasket, Cylinder Head
2017-05 → 2018-03 ended
8ARFTS ASU5# —
11115-36061 Gasket, Cylinder Head
2018-03 → —
8ARFTS ASU5# —
11117E — Plug, W/Head Straight Screw, NO.1
90341-20012 Plug, W/Head Straight Screw, NO.1
2015-03 → 2017-10 ended
2GRFE GSU55 —
90341-27010 Plug, W/Head Straight Screw, NO.1
2015-03 → 2018-03 ended
8ARFTS ASU5# —
90341-27010 Plug, W/Head Straight Screw, NO.1
2018-03 → —
8ARFTS ASU5# —
11117F — Plug, W/Head Straight Screw, NO.2
90341-27006 Plug, W/Head Straight Screw, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11117H — Gasket(FOR WATER HOLE)
90430-20004 Gasket(FOR WATER HOLE)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11117J — Gasket(FOR CYLINDER HEAD SCREW PLUG)
16258-36110 Gasket(FOR CYLINDER HEAD SCREW PLUG)
2015-03 → 2018-03 ended
8ARFTS ASU5# —
90430-27005 Gasket(FOR CYLINDER HEAD SCREW PLUG)
2015-03 → 2017-10 ended
2GRFE GSU55 —
16258-36110 Gasket(FOR CYLINDER HEAD SCREW PLUG)
2018-03 → —
8ARFTS ASU5# —
11119A — Pin, Straight, NO.1
90250-05021 note Pin, Straight, NO.1
2015-03 → 2017-10 ended
2GRFE GSU55 —
11122 — Bush, Intake Valve Guide
11122-31050 note Bush, Intake Valve Guide
2015-03 → 2018-03 ended
8ARFTS ASU5# —
11122-31070 note Bush, Intake Valve Guide
2015-03 → 2017-10 ended
2GRFE GSU55 —
11123-31050 note Bush, Intake Valve Guide
2015-03 → 2018-03 ended
8ARFTS ASU5# —
11123-31070 note Bush, Intake Valve Guide
2015-03 → 2017-10 ended
2GRFE GSU55 —
11122-31050 note Bush, Intake Valve Guide
2018-03 → —
8ARFTS ASU5# —
11123-31050 note Bush, Intake Valve Guide
2018-03 → —
8ARFTS ASU5# —
11126 — Bush, Exhaust Valve Guide
11122-47010 note Bush, Exhaust Valve Guide
2017-08 → 2018-03 ended
8ARFTS ASU5# —
11123-47010 note Bush, Exhaust Valve Guide
2017-08 → 2018-03 ended
8ARFTS ASU5# —
11126-31030 note Bush, Exhaust Valve Guide
2015-03 → 2017-10 ended
2GRFE GSU55 —
11126-36010 note Bush, Exhaust Valve Guide
2015-03 → 2017-08 ended
8ARFTS ASU5# —
11127-31030 note Bush, Exhaust Valve Guide
2015-03 → 2017-10 ended
2GRFE GSU55 —
11127-36010 note Bush, Exhaust Valve Guide
2015-03 → 2017-08 ended
8ARFTS ASU5# —
11122-47010 note Bush, Exhaust Valve Guide
2018-03 → 2020-03 ended
8ARFTS ASU5# —
11123-47010 note Bush, Exhaust Valve Guide
2018-03 → 2020-03 ended
8ARFTS ASU5# —
11126-80010 note Bush, Exhaust Valve Guide
2020-03 → —
8ARFTS ASU5# —
11127-80010 note Bush, Exhaust Valve Guide
2020-03 → —
8ARFTS ASU5# —
11131 — Seat, Intake Valve
11131-31050 note Seat, Intake Valve
2015-03 → 2017-10 ended
2GRFE GSU55 —
11131-36050 note Seat, Intake Valve
2015-03 → 2018-03 ended
8ARFTS ASU5# —
11132-31050 note Seat, Intake Valve
2015-03 → 2017-10 ended
2GRFE GSU55 —
11132-36050 note Seat, Intake Valve
2015-03 → 2018-03 ended
8ARFTS ASU5# —
11131-36050 note Seat, Intake Valve
2018-03 → —
8ARFTS ASU5# —
11132-36050 note Seat, Intake Valve
2018-03 → —
8ARFTS ASU5# —
11135 — Seat, Exhaust Valve
11135-31080 note Seat, Exhaust Valve
2015-03 → 2017-10 ended
2GRFE GSU55 —
11135-36020 note Seat, Exhaust Valve
2015-03 → 2017-08 ended
8ARFTS ASU5# —
11135-36040 note Seat, Exhaust Valve
2017-08 → 2018-03 ended
8ARFTS ASU5# —
11136-31080 note Seat, Exhaust Valve
2015-03 → 2017-10 ended
2GRFE GSU55 —
11136-36020 note Seat, Exhaust Valve
2015-03 → 2017-08 ended
8ARFTS ASU5# —
11136-36040 note Seat, Exhaust Valve
2017-08 → 2018-03 ended
8ARFTS ASU5# —
11135-36040 note Seat, Exhaust Valve
2018-03 → —
8ARFTS ASU5# —
11136-36040 note Seat, Exhaust Valve
2018-03 → —
8ARFTS ASU5# —
11151E — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
90119-07009 Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11151F — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
90105-08464 Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11155A — Pin, Ring W/Head
90253-11021 Pin, Ring W/Head
2015-03 → 2017-10 ended
2GRFE GSU55 —
11159F — Gasket, Camshaft Bearing Cap Oil Hole, RH
11159-31010 Gasket, Camshaft Bearing Cap Oil Hole, RH
2015-03 → 2017-10 ended
2GRFE GSU55 —
12281A — Hanger, Engine, NO.1
12281-31121 Hanger, Engine, NO.1
2015-03 → 2017-10 ended
2GRFE GSU55 —
12281-36100 Hanger, Engine, NO.1
2015-03 → 2018-03 ended
8ARFTS ASU5# —
12281-36100 Hanger, Engine, NO.1
2018-03 → —
8ARFTS ASU5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
