Toyota Highlander (CHINA)

2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 11A312E 11201B — WASHER, SEAL(FOR CYLINDER HEAD COVER) (1 parts) 9155180660 — not listed in this catalogue 9155180870 — not listed in this catalogue 9010508456 — not listed in this catalogue 9155180625 — not listed in this catalogue 9155180660 — not listed in this catalogue 9155180870 — not listed in this catalogue 9155180625 — not listed in this catalogue 9010508456 — not listed in this catalogue 11202B — WASHER, SEAL(FOR CYLINDER HEAD COVER, LH) (1 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (6 parts) 11213 — GASKET, CYLINDER HEAD COVER (3 parts) 23292D — PROTECTOR, FUEL HOSE (1 parts) 15678D — FILTER, OIL CONTROL VALVE, RH (1 parts) 11401M — SENSOR, CRANK POSITION, NO.2 (1 parts) 11401M — SENSOR, CRANK POSITION, NO.2 (1 parts) 11202 — COVER SUB-ASSY, CYLINDER HEAD, LH (1 parts) 15678E — FILTER, OIL CONTROL VALVE, LH (1 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 12108 — CAP SUB-ASSY, OIL FILLER (4 parts) 11401M — SENSOR, CRANK POSITION, NO.2 (1 parts) 11401M — SENSOR, CRANK POSITION, NO.2 (1 parts) 15330B — VALVE ASSY, CAM TIMING OIL CONTROL, RH (2 parts) 15330B — VALVE ASSY, CAM TIMING OIL CONTROL, RH (2 parts) 15330A — RING, O(FOR CAM TIMING OIL CONTROL VALVE) (3 parts) 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 15340A — RING, O(FOR CAM TIMING OIL CONTROL VALVE) (1 parts) 15340 — VALVE ASSY, CAM TIMING OIL CONTROL, LH (2 parts) 15340A — RING, O(FOR CAM TIMING OIL CONTROL VALVE) (1 parts) 15340 — VALVE ASSY, CAM TIMING OIL CONTROL, LH (2 parts) 9155180616 — not listed in this catalogue 9155180616 — not listed in this catalogue 9155180616 — not listed in this catalogue 90119C0132 — not listed in this catalogue 9413060600 — not listed in this catalogue 9155180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 11193A — GASKET, SPARK PLUG TUBE, LH (1 parts) 11193 — GASKET, SPARK PLUG TUBE (1 parts) 11254 — BRACKET, V-BANK COVER, NO.1 (1 parts) 12108A — GASKET(FOR OIL FILLER CAP) (4 parts) 15330A — RING, O(FOR CAM TIMING OIL CONTROL VALVE) (3 parts)

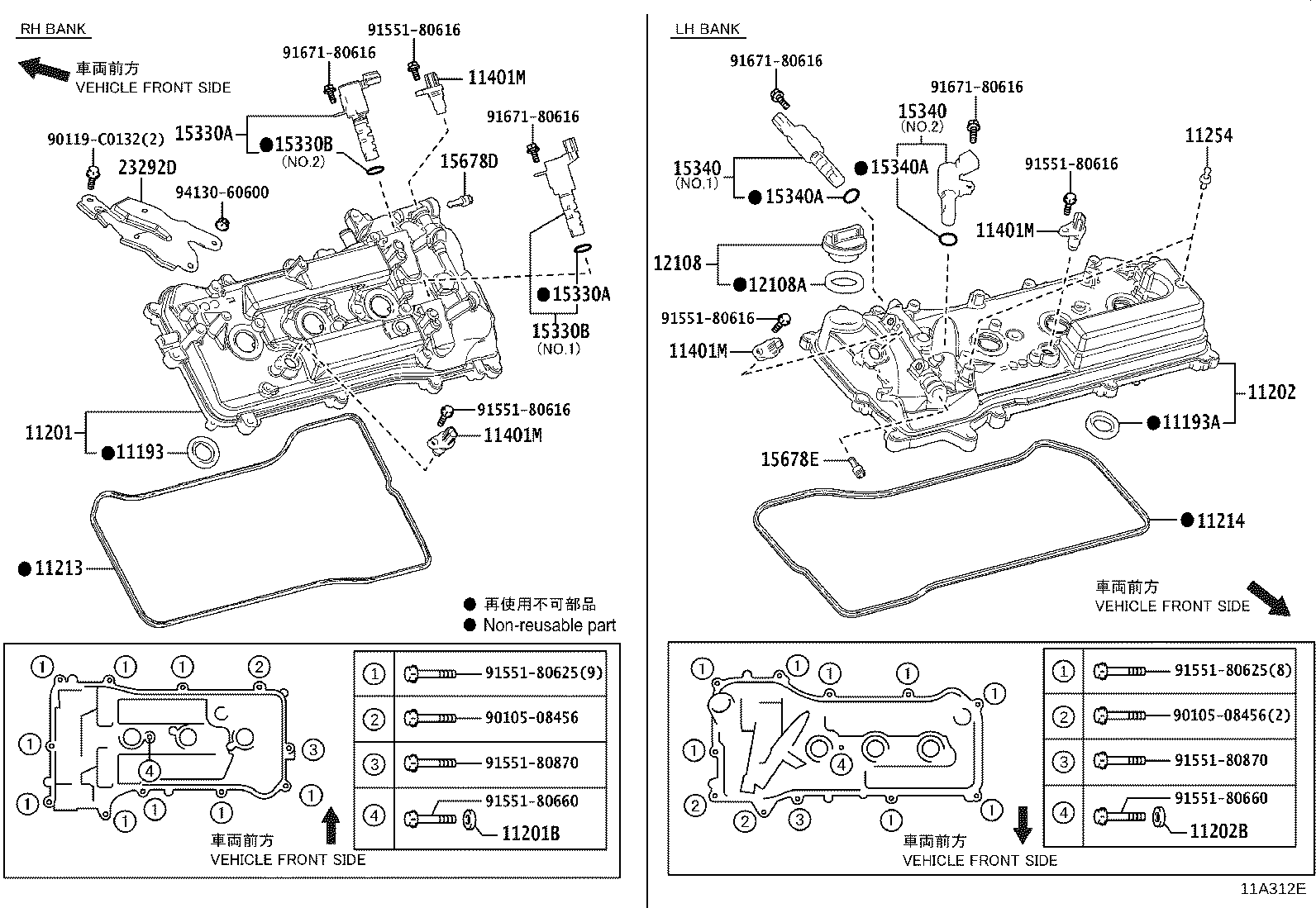

11A312E · 26 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
11193 — Gasket, Spark Plug Tube
11193-70010 Gasket, Spark Plug Tube
2015-03 → 2017-10 ended
2GRFE GSU55 —
11193A — Gasket, Spark Plug Tube, LH
11193-70010 Gasket, Spark Plug Tube, LH
2015-03 → 2017-10 ended
2GRFE GSU55 —
11201 — Cover Sub-assy, Cylinder Head
11201-31250 Cover Sub-assy, Cylinder Head
2015-03 → 2017-10 ended
2GRFE GSU55 —
11201-36060 Cover Sub-assy, Cylinder Head
2015-03 → 2015-05 ended
8ARFTS ASU5# —
11201-36061 Cover Sub-assy, Cylinder Head
2015-06 → 2018-03 ended
8ARFTS ASU5# —
11201-36061 Cover Sub-assy, Cylinder Head
2018-03 → 2020-04 ended
8ARFTS ASU5# —
11210-36010 note Cover Sub-assy, Cylinder Head
2018-10 → 2020-04 ended
8ARFTS ASU5# —
11210-36010 Cover Sub-assy, Cylinder Head
2020-04 → —
8ARFTS ASU5# —
11201B — Washer, Seal(FOR CYLINDER HEAD COVER)
90210-06013 Washer, Seal(FOR CYLINDER HEAD COVER)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11202 — Cover Sub-assy, Cylinder Head, LH
11202-31030 Cover Sub-assy, Cylinder Head, LH
2015-03 → 2017-10 ended
2GRFE GSU55 —
11202B — Washer, Seal(FOR CYLINDER HEAD COVER, LH)
90210-06013 Washer, Seal(FOR CYLINDER HEAD COVER, LH)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11213 — Gasket, Cylinder Head Cover
11213-31050 Gasket, Cylinder Head Cover
2015-03 → 2017-10 ended
2GRFE GSU55 —
11213-36050 Gasket, Cylinder Head Cover
2015-03 → 2018-03 ended
8ARFTS ASU5# —
11213-36050 Gasket, Cylinder Head Cover
2018-03 → —
8ARFTS ASU5# —
11214 — Gasket, Cylinder Head Cover, NO.2
11214-31020 Gasket, Cylinder Head Cover, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11214-36020 Gasket, Cylinder Head Cover, NO.2
2015-03 → 2018-03 ended
8ARFTS ASU5# —
11214-36020 Gasket, Cylinder Head Cover, NO.2
2018-03 → —
8ARFTS ASU5# —
11254 — Bracket, V-bank Cover, NO.1
11254-31020 Bracket, V-bank Cover, NO.1
2015-03 → 2017-10 ended
2GRFE GSU55 —
11401M — Sensor, Crank Position, NO.2
90919-05060 Sensor, Crank Position, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
12108 — Cap Sub-assy, Oil Filler
12180-28010 Cap Sub-assy, Oil Filler
2015-03 → 2015-04 ended
2GRFE GSU55 —
12180-38010 Cap Sub-assy, Oil Filler
2015-03 → 2018-03 ended
8ARFTS ASU5# —
12180-38010 Cap Sub-assy, Oil Filler
2015-05 → 2017-10 ended
2GRFE GSU55 —
12180-38010 Cap Sub-assy, Oil Filler
2018-03 → —
8ARFTS ASU5# —
12108A — Gasket(FOR OIL FILLER CAP)
90430-35001 Gasket(FOR OIL FILLER CAP)
2015-05 → 2017-10 ended
2GRFE GSU55 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2015-03 → 2018-03 ended
8ARFTS ASU5# —
90430-37004 Gasket(FOR OIL FILLER CAP)
2015-03 → 2015-05 ended
2GRFE GSU55 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2018-03 → —
8ARFTS ASU5# —
15330A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137 Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2015-03 → 2017-10 ended
2GRFE GSU55 —
90099-14137 Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2015-03 → 2018-03 ended
8ARFTS ASU5# —
90099-14137 Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2018-03 → —
8ARFTS ASU5# —
15330B — Valve Assy, Cam Timing Oil Control, RH
15330-31020 note Valve Assy, Cam Timing Oil Control, RH
2015-03 → 2017-10 ended
2GRFE GSU55 —
15330-31030 note Valve Assy, Cam Timing Oil Control, RH
2015-03 → 2017-10 ended
2GRFE GSU55 —
15340 — Valve Assy, Cam Timing Oil Control, LH
15330-31020 note Valve Assy, Cam Timing Oil Control, LH
2015-03 → 2017-10 ended
2GRFE GSU55 —
15340-31020 note Valve Assy, Cam Timing Oil Control, LH
2015-03 → 2017-10 ended
2GRFE GSU55 —
15340A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137 Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2015-03 → 2017-10 ended
2GRFE GSU55 —
15678D — Filter, Oil Control Valve, RH
15678-46020 Filter, Oil Control Valve, RH
2015-03 → 2017-10 ended
2GRFE GSU55 —
15678E — Filter, Oil Control Valve, LH
15678-46020 Filter, Oil Control Valve, LH
2015-03 → 2017-10 ended
2GRFE GSU55 —
23292D — Protector, Fuel Hose
23292-0P020 Protector, Fuel Hose
2015-03 → 2017-10 ended
2GRFE GSU55 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
