Toyota Highlander (CHINA)

2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

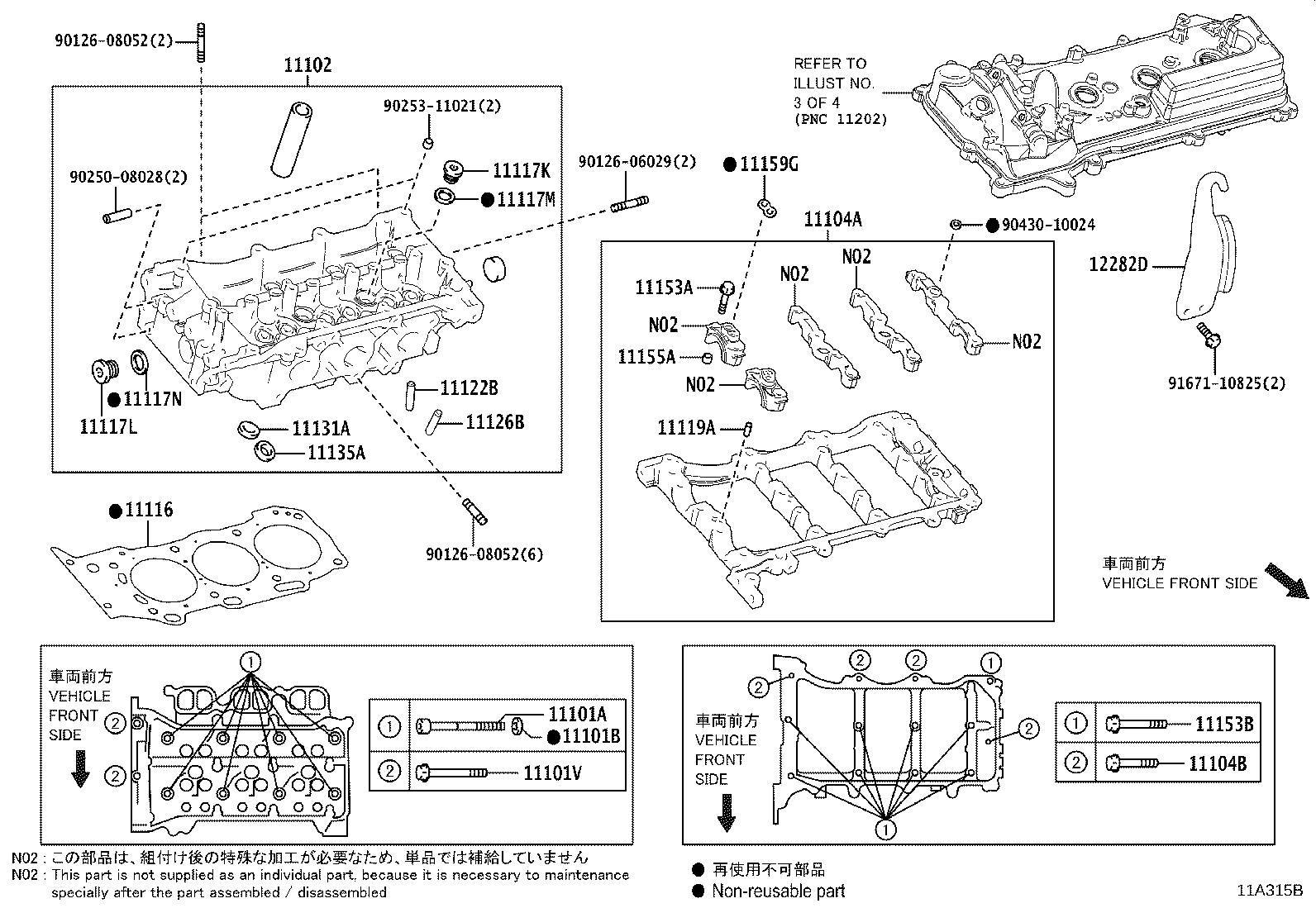

Exploded illustration 11A315B 11102 — HEAD, CYLINDER, LH (1 parts) 11116 — GASKET, CYLINDER HEAD, NO.2 (1 parts) 11117L — PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 (1 parts) 11117N — GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) (1 parts) 11131A — SEAT, INTAKE VALVE, NO.2 (2 parts) 11135A — SEAT, EXHAUST VALVE, NO.2 (2 parts) 11117K — PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 (1 parts) 11117M — GASKET(FOR WATER HOLE NO.2) (1 parts) 11159G — GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH (1 parts) 11153A — BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) (1 parts) 12282D — HANGER, ENGINE, NO.2 (4 parts) 11104A — HOUSING SUB-ASSY, CAMSHAFT, LH (1 parts) 9043010024 — not listed in this catalogue 9012608052 — not listed in this catalogue 9025008028 — not listed in this catalogue 9025311021 — not listed in this catalogue 11122B — BUSH, INTAKE VALVE GUIDE, NO.2 (2 parts) 11126B — BUSH, EXHAUST VALVE GUIDE, NO.2 (2 parts) 9167110825 — not listed in this catalogue 11155A — PIN, RING W/HEAD (1 parts) 11119A — PIN, STRAIGHT, NO.1 (1 parts) 9012608052 — not listed in this catalogue 11153B — BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) (1 parts) 11104B — BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) (1 parts) 11101V — BOLT(FOR CYLINDER HEAD SET SUB) (1 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (4 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (2 parts) 9012606029 — not listed in this catalogue
11A315B · 21 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02164 Bolt(FOR CYLINDER HEAD SET)
2015-03 → 2017-10 ended
2GRFE GSU55 —
90910-02189 Bolt(FOR CYLINDER HEAD SET)
2015-03 → 2017-12 ended
8ARFTS ASU5# —
90910-02204 Bolt(FOR CYLINDER HEAD SET)
2017-12 → 2018-03 ended
8ARFTS ASU5# —
90910-02204 Bolt(FOR CYLINDER HEAD SET)
2018-03 → —
8ARFTS ASU5# —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2015-03 → 2017-10 ended
2GRFE GSU55 —
90201-13042 Washer, Plate(FOR CYLINDER HEAD SET)
2015-03 → 2017-12 ended
8ARFTS ASU5# —
11101V — Bolt(FOR CYLINDER HEAD SET SUB)
90105-10521 Bolt(FOR CYLINDER HEAD SET SUB)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11102 — Head, Cylinder, LH
11102-39057 Head, Cylinder, LH
2015-03 → 2017-10 ended
2GRFE GSU55 —
11104A — Housing Sub-assy, Camshaft, LH
11104-31043 Housing Sub-assy, Camshaft, LH
2015-03 → 2017-10 ended
2GRFE GSU55 —
11104B — Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH)
90105-08465 Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11116 — Gasket, Cylinder Head, NO.2
11116-31060 Gasket, Cylinder Head, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11117K — Plug, W/Head Straight Screw, LH NO.1
90341-20012 Plug, W/Head Straight Screw, LH NO.1
2015-03 → 2017-10 ended
2GRFE GSU55 —
11117L — Plug, W/Head Straight Screw, LH NO.2
90341-27006 Plug, W/Head Straight Screw, LH NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11117M — Gasket(FOR WATER HOLE NO.2)
90430-20004 Gasket(FOR WATER HOLE NO.2)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11117N — Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
90430-27005 Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11119A — Pin, Straight, NO.1
90250-05021 note Pin, Straight, NO.1
2015-03 → 2017-10 ended
2GRFE GSU55 —
11122B — Bush, Intake Valve Guide, NO.2
11122-31070 note Bush, Intake Valve Guide, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11123-31070 note Bush, Intake Valve Guide, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11126B — Bush, Exhaust Valve Guide, NO.2
11126-31030 note Bush, Exhaust Valve Guide, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11127-31030 note Bush, Exhaust Valve Guide, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11131A — Seat, Intake Valve, NO.2
11131-31050 note Seat, Intake Valve, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11132-31050 note Seat, Intake Valve, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11135A — Seat, Exhaust Valve, NO.2
11135-31080 note Seat, Exhaust Valve, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11136-31080 note Seat, Exhaust Valve, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
11153A — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
90119-07009 Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11153B — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
90105-08464 Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11155A — Pin, Ring W/Head
90253-11021 Pin, Ring W/Head
2015-03 → 2017-10 ended
2GRFE GSU55 —
11159G — Gasket, Camshaft Bearing Cap Oil Hole, LH
11159-31010 Gasket, Camshaft Bearing Cap Oil Hole, LH
2015-03 → 2017-10 ended
2GRFE GSU55 —
12282D — Hanger, Engine, NO.2
12282-31100 Hanger, Engine, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
12282-36100 Hanger, Engine, NO.2
2015-03 → 2016-03 ended
8ARFTS ASU5# —
12282-36101 Hanger, Engine, NO.2
2016-04 → 2018-03 ended
8ARFTS ASU5# —
12282-36101 Hanger, Engine, NO.2
2018-03 → —
8ARFTS ASU5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
