Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

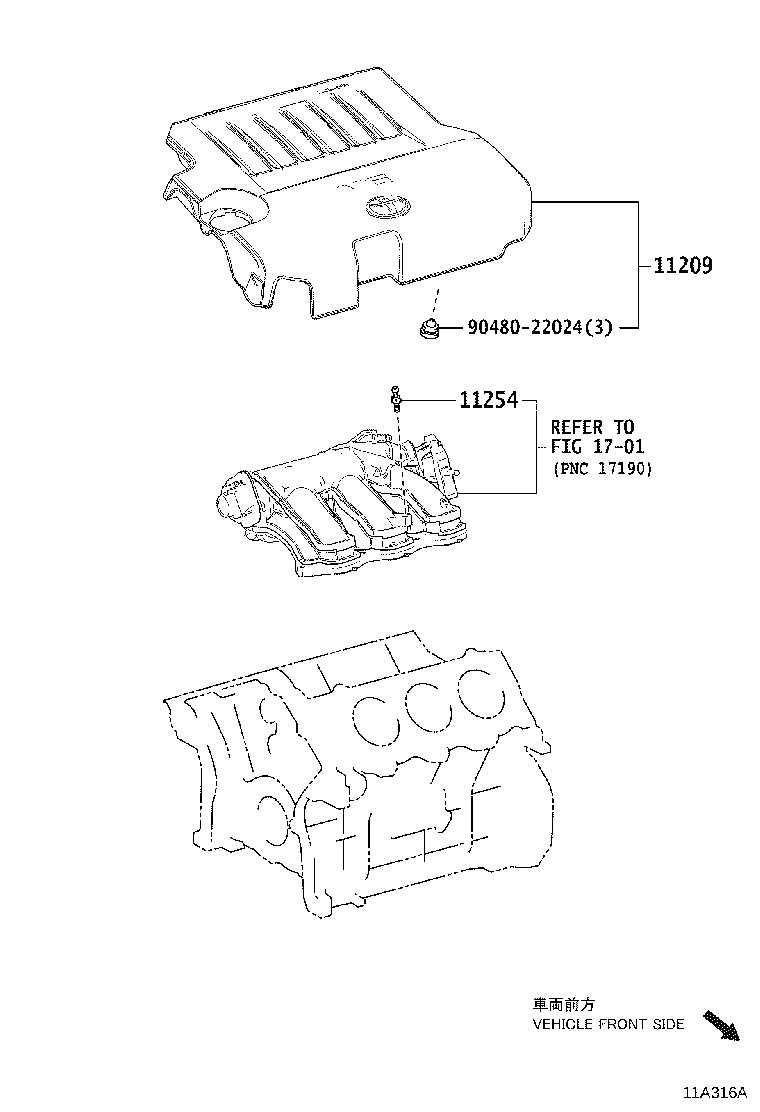

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11209 — Cover Sub-assy, V-bank | ||||
| 11209-31140 |
Cover Sub-assy, V-bank
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 11254 — Bracket, V-bank Cover, NO.1 | ||||
| 11254-31020 |
Bracket, V-bank Cover, NO.1
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
