Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

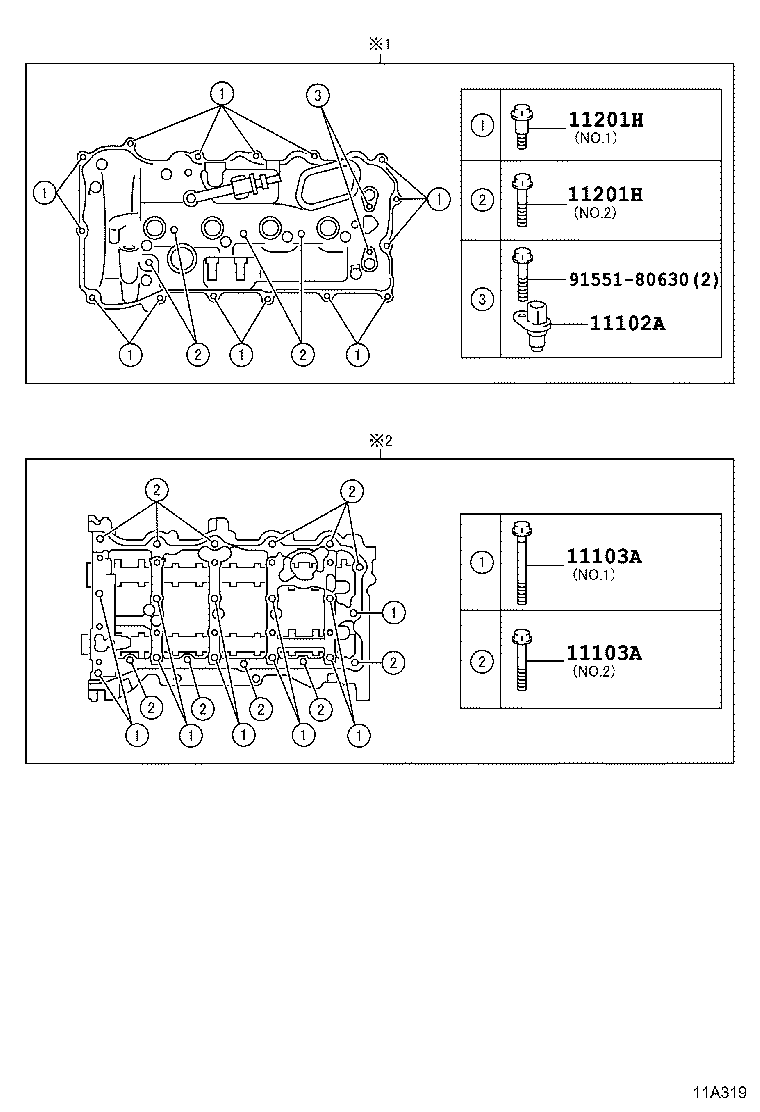

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11102A — Sensor, Camshaft Position | ||||
| 90919-05073 |
Sensor, Camshaft Position
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 90919-05073 |
Sensor, Camshaft Position
2018-03 → —
|
8ARFTS ASU5# | — | |
| 11103A — Bolt(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 11201H — Bolt(FOR CYLINDER HEAD COVER) | ||||
| 90109-06384 note |
Bolt(FOR CYLINDER HEAD COVER)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 91551-80630 note |
Bolt(FOR CYLINDER HEAD COVER)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 90109-06384 note |
Bolt(FOR CYLINDER HEAD COVER)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 91551-80630 note |
Bolt(FOR CYLINDER HEAD COVER)
2018-03 → —
|
8ARFTS ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
