Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

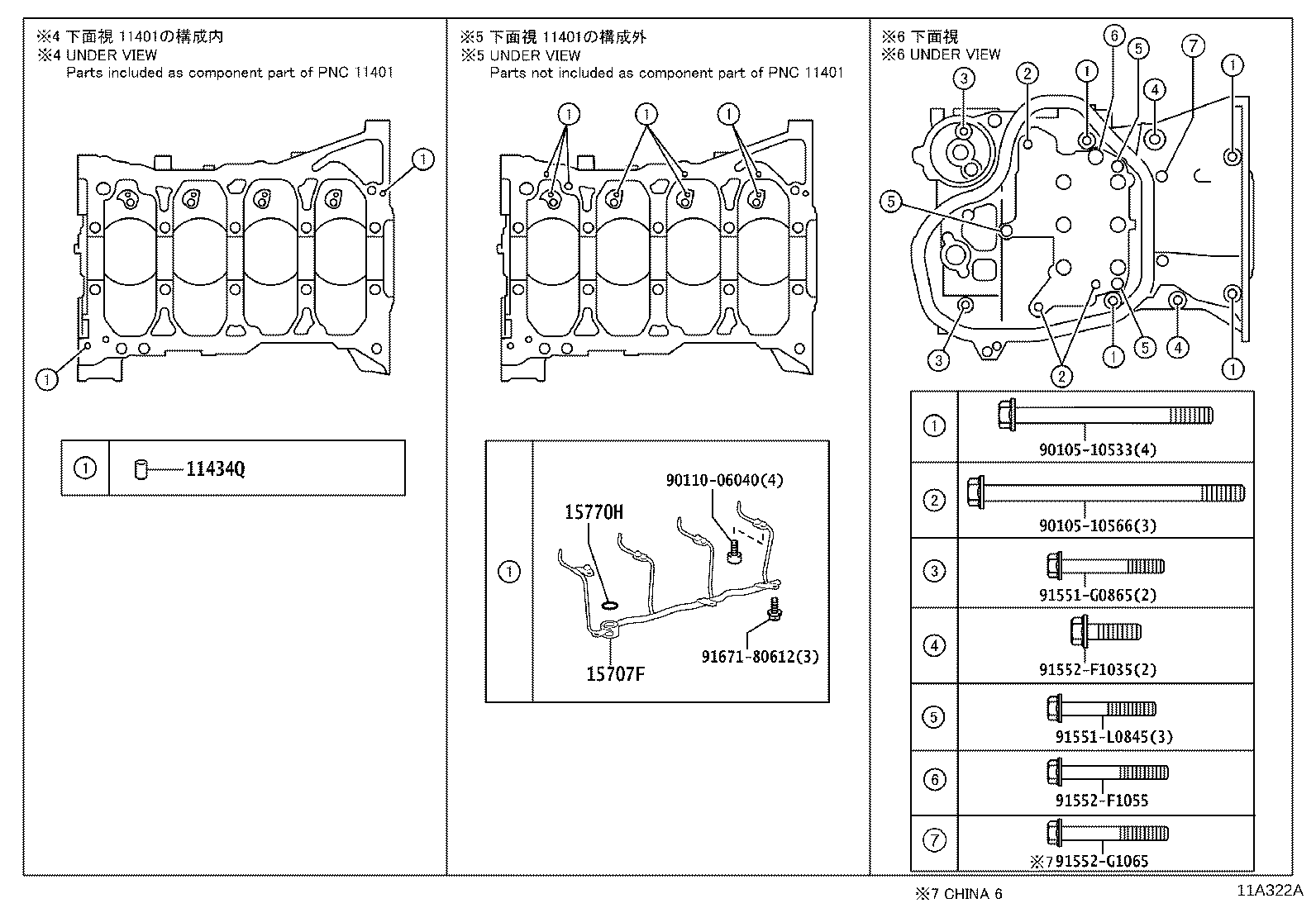

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11434Q — Pin, Straight(FOR CRANKCASE) | ||||
| 90250-06003 note |
Pin, Straight(FOR CRANKCASE)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 90250-06003 note |
Pin, Straight(FOR CRANKCASE)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 15707F — Pipe Sub-assy, Oil | ||||
| 15707-36030 |
Pipe Sub-assy, Oil
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 15707-36030 |
Pipe Sub-assy, Oil
2018-03 → —
|
8ARFTS ASU5# | — | |
| 15770H — Gasket(FOR OIL PIPE) | ||||
| 11496-36030 |
Gasket(FOR OIL PIPE)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 11496-36030 |
Gasket(FOR OIL PIPE)
2018-03 → —
|
8ARFTS ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
