Toyota Highlander (CHINA)

2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

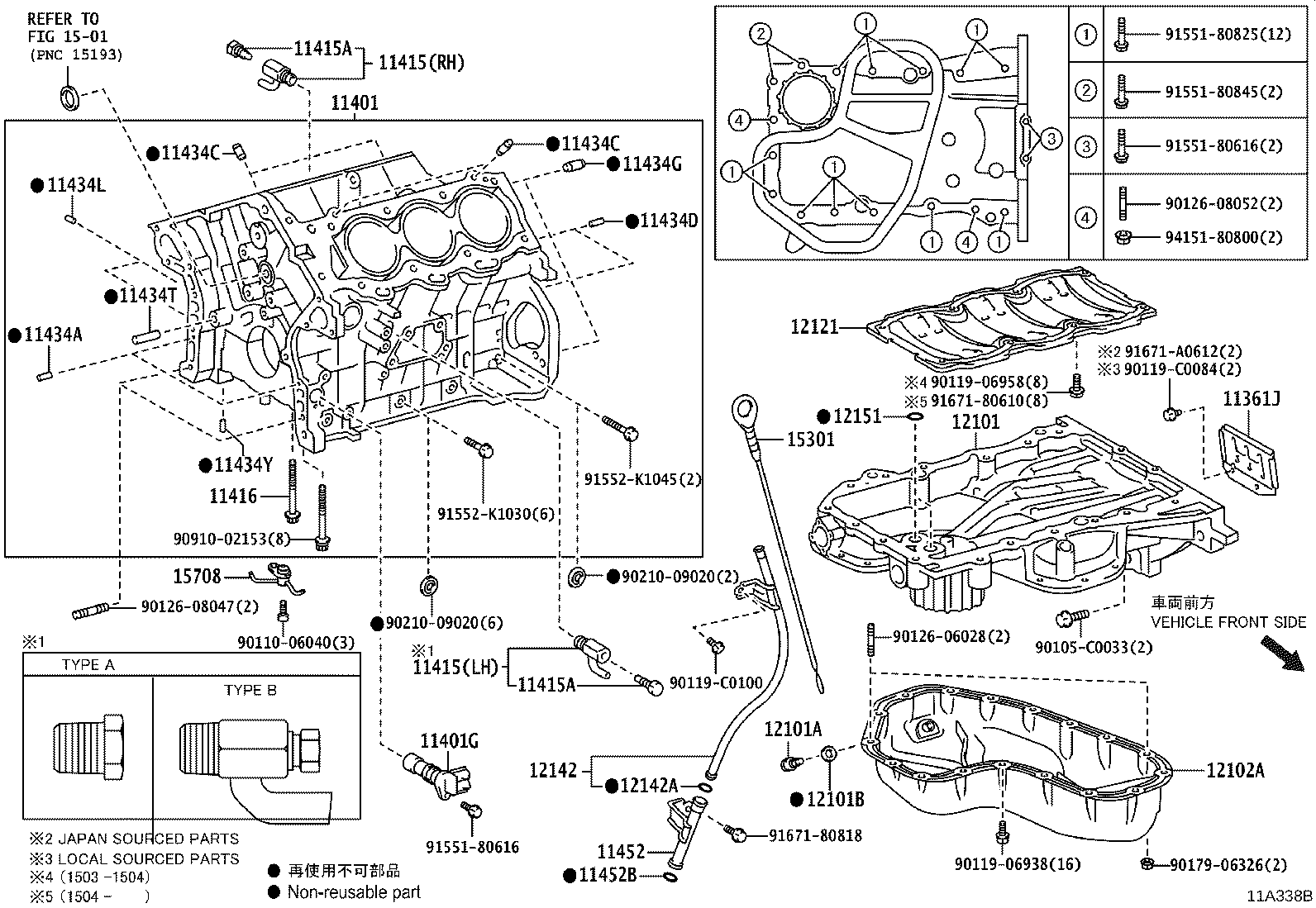

Exploded illustration 11A338B 9012606028 — not listed in this catalogue 12102A — PAN SUB-ASSY, OIL, NO.2 (1 parts) 12101B — GASKET(FOR OIL PAN DRAIN PLUG) (3 parts) 12101A — PLUG(FOR OIL PAN DRAIN) (3 parts) 11452 — GUIDE, OIL LEVEL GAGE (3 parts) 11452B — RING, O(FOR OIL LEVEL GAGE GUIDE) (3 parts) 12142A — RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2) (1 parts) 12142 — GUIDE, OIL LEVEL GAGE, NO.2 (1 parts) 12101 — PAN SUB-ASSY, OIL (5 parts) 15301 — GAGE SUB-ASSY, OIL LEVEL (3 parts) 9017906326 — not listed in this catalogue 9011906938 — not listed in this catalogue 9167180818 — not listed in this catalogue 12121 — PLATE, OIL PAN BAFFLE, NO.1 (5 parts) 90119C0100 — not listed in this catalogue 9011906958 — not listed in this catalogue 9167180610 — not listed in this catalogue 90105C0033 — not listed in this catalogue 9415180800 — not listed in this catalogue 9012608052 — not listed in this catalogue 9155180825 — not listed in this catalogue 9012608047 — not listed in this catalogue 91552K1030 — not listed in this catalogue 91552K1045 — not listed in this catalogue 11415 — COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) (2 parts) 11415A — PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) (1 parts) 11401G — SENSOR, CRANK POSITION (1 parts) 9021009020 — not listed in this catalogue 9021009020 — not listed in this catalogue 15708 — NOZZLE SUB-ASSY, OIL, NO.1 (2 parts) 9011006040 — not listed in this catalogue 11416 — BOLT(FOR CRANKSHAFT BEARING CAP SET) (4 parts) 11434Y — PIN, STRAIGHT(FOR OIL PAN) (1 parts) 11434C — PIN, STRAIGHT (FOR CYLINDER HEAD SET) (3 parts) 11434L — PIN, STRAIGHT(FOR ENGINE MOUNTING) (1 parts) 11434A — PIN, STRAIGHT(FOR TIMING GEAR COVER SET) (3 parts) 11434T — PIN, RING(FOR TIMING BELT IDLER BRACKET SET) (1 parts) 11415A — PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) (1 parts) 11415 — COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) (2 parts) 11434G — PIN, STRAIGHT(FOR END PLATE) (1 parts) 11434C — PIN, STRAIGHT (FOR CYLINDER HEAD SET) (3 parts) 11434D — PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) (1 parts) 11401 — BLOCK SUB-ASSY, CYLINDER (4 parts) 9155180845 — not listed in this catalogue 9155180616 — not listed in this catalogue 9155180616 — not listed in this catalogue 9091002153 — not listed in this catalogue 1501 — not listed in this catalogue 91671A0612 — not listed in this catalogue 11361J — COVER, FLYWHEEL HOUSING UNDER (6 parts) 12151 — GASKET, OIL PAN (1 parts) 90119C0084 — not listed in this catalogue
11A338B · 28 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
11361J — Cover, Flywheel Housing Under
11361-0V020 note Cover, Flywheel Housing Under
2016-07 → 2018-03 ended
8ARFTS ASU5# —
11361-28010 Cover, Flywheel Housing Under
2015-03 → 2016-07 ended
8ARFTS ASU5# —
11361-28010 note Cover, Flywheel Housing Under
2016-07 → 2018-03 ended
8ARFTS ASU5# —
11361-31060 Cover, Flywheel Housing Under
2015-03 → 2017-10 ended
2GRFE GSU55 —
11361-0V020 note Cover, Flywheel Housing Under
2018-03 → —
8ARFTS ASU5# —
11361-28010 note Cover, Flywheel Housing Under
2018-03 → —
8ARFTS ASU5# —
11401 — Block Sub-assy, Cylinder
11401-80826 Block Sub-assy, Cylinder
2015-03 → 2017-10 ended
2GRFE GSU55 —
11410-39195 Block Sub-assy, Cylinder
2015-03 → 2018-03 ended
8ARFTS ASU5# —
11410-39195 Block Sub-assy, Cylinder
2018-03 → 2021-10 ended
8ARFTS ASU5# —
11410-39255 Block Sub-assy, Cylinder
2021-10 → —
8ARFTS ASU5# —
11401G — Sensor, Crank Position
90919-05057 Sensor, Crank Position
2015-03 → 2017-10 ended
2GRFE GSU55 —
11415 — Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
90345-52001 note Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2015-03 → 2017-10 ended
2GRFE GSU55 —
90910-09129 note Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11415A — Plug, Water Drain Cock(FOR CYLINDER BLOCK)
90910-09087 Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET)
90910-02154 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-03 → 2017-08 ended
8ARFTS ASU5# —
90910-02154 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-03 → 2017-10 ended
2GRFE GSU55 —
90910-02197 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2017-09 → 2018-03 ended
8ARFTS ASU5# —
90910-02197 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2018-03 → —
8ARFTS ASU5# —
11434A — Pin, Straight(FOR TIMING GEAR COVER SET)
90250-04097 note Pin, Straight(FOR TIMING GEAR COVER SET)
2015-03 → 2017-10 ended
2GRFE GSU55 —
90250-06003 note Pin, Straight(FOR TIMING GEAR COVER SET)
2015-03 → 2018-03 ended
8ARFTS ASU5# —
90250-06003 note Pin, Straight(FOR TIMING GEAR COVER SET)
2018-03 → —
8ARFTS ASU5# —
11434C — Pin, Straight (FOR CYLINDER HEAD SET)
90250-08120 note Pin, Straight (FOR CYLINDER HEAD SET)
2015-03 → 2017-10 ended
2GRFE GSU55 —
90253-15001 note Pin, Straight (FOR CYLINDER HEAD SET)
2015-03 → 2018-03 ended
8ARFTS ASU5# —
90253-15001 note Pin, Straight (FOR CYLINDER HEAD SET)
2018-03 → —
8ARFTS ASU5# —
11434D — Pin, Straight(FOR ENGINE REAR OIL SEAL)
90250-04097 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11434G — Pin, Straight(FOR END PLATE)
90250-10113 Pin, Straight(FOR END PLATE)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11434L — Pin, Straight(FOR ENGINE MOUNTING)
90250-04097 Pin, Straight(FOR ENGINE MOUNTING)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11434T — Pin, Ring(FOR TIMING BELT IDLER BRACKET SET)
90250-10030 Pin, Ring(FOR TIMING BELT IDLER BRACKET SET)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11434Y — Pin, Straight(FOR OIL PAN)
90250-04097 Pin, Straight(FOR OIL PAN)
2015-03 → 2017-10 ended
2GRFE GSU55 —
11452 — Guide, Oil Level Gage
11452-31060 Guide, Oil Level Gage
2015-03 → 2017-10 ended
2GRFE GSU55 —
11452-36040 Guide, Oil Level Gage
2015-03 → 2018-03 ended
8ARFTS ASU5# —
11452-36040 Guide, Oil Level Gage
2018-03 → —
8ARFTS ASU5# —
11452B — Ring, O(FOR OIL LEVEL GAGE GUIDE)
90301-12018 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2015-03 → 2017-10 ended
2GRFE GSU55 —
96723-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2015-03 → 2018-03 ended
8ARFTS ASU5# —
96723-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2018-03 → —
8ARFTS ASU5# —
12101 — Pan Sub-assy, Oil
12101-31121 Pan Sub-assy, Oil
2015-03 → 2017-10 ended
2GRFE GSU55 —
12101-36080 Pan Sub-assy, Oil
2015-03 → 2018-03 ended
8ARFTS ASU5# —
12101-36080 Pan Sub-assy, Oil
2018-03 → 2020-04 ended
8ARFTS ASU5# —
12101-36110 note Pan Sub-assy, Oil
2018-10 → 2020-04 ended
8ARFTS ASU5# —
12101-36110 Pan Sub-assy, Oil
2020-04 → —
8ARFTS ASU5# —
12101A — Plug(FOR OIL PAN DRAIN)
90341-12012 Plug(FOR OIL PAN DRAIN)
2015-03 → 2017-10 ended
2GRFE GSU55 —
90341-12012 Plug(FOR OIL PAN DRAIN)
2015-03 → 2018-03 ended
8ARFTS ASU5# —
90341-12012 Plug(FOR OIL PAN DRAIN)
2018-03 → —
8ARFTS ASU5# —
12101B — Gasket(FOR OIL PAN DRAIN PLUG)
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2015-03 → 2017-10 ended
2GRFE GSU55 —
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2015-03 → 2018-03 ended
8ARFTS ASU5# —
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2018-03 → —
8ARFTS ASU5# —
12102A — Pan Sub-assy, Oil, NO.2
12102-31051 Pan Sub-assy, Oil, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
12121 — Plate, Oil Pan Baffle, NO.1
12121-31070 Plate, Oil Pan Baffle, NO.1
2015-03 → 2015-04 ended
2GRFE GSU55 —
12121-31120 Plate, Oil Pan Baffle, NO.1
2015-04 → 2017-10 ended
2GRFE GSU55 —
12121-36060 Plate, Oil Pan Baffle, NO.1
2015-03 → 2018-03 ended
8ARFTS ASU5# —
12121-36060 Plate, Oil Pan Baffle, NO.1
2018-03 → 2018-11 ended
8ARFTS ASU5# —
12121-36061 Plate, Oil Pan Baffle, NO.1
2018-11 → —
8ARFTS ASU5# —
12142 — Guide, Oil Level Gage, NO.2
12142-31030 Guide, Oil Level Gage, NO.2
2015-03 → 2017-10 ended
2GRFE GSU55 —
12142A — Ring, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
2015-03 → 2017-10 ended
2GRFE GSU55 —
12151 — Gasket, Oil Pan
12151-31010 Gasket, Oil Pan
2015-03 → 2017-10 ended
2GRFE GSU55 —
15301 — Gage Sub-assy, Oil Level
15301-31100 Gage Sub-assy, Oil Level
2015-03 → 2017-10 ended
2GRFE GSU55 —
15301-36060 Gage Sub-assy, Oil Level
2015-03 → 2018-03 ended
8ARFTS ASU5# —
15301-36060 Gage Sub-assy, Oil Level
2018-03 → —
8ARFTS ASU5# —
15708 — Nozzle Sub-assy, Oil, NO.1
15708-31030 Nozzle Sub-assy, Oil, NO.1
2015-03 → 2015-05 ended
2GRFE GSU55 —
15708-31050 Nozzle Sub-assy, Oil, NO.1
2015-06 → 2017-10 ended
2GRFE GSU55 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
