Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

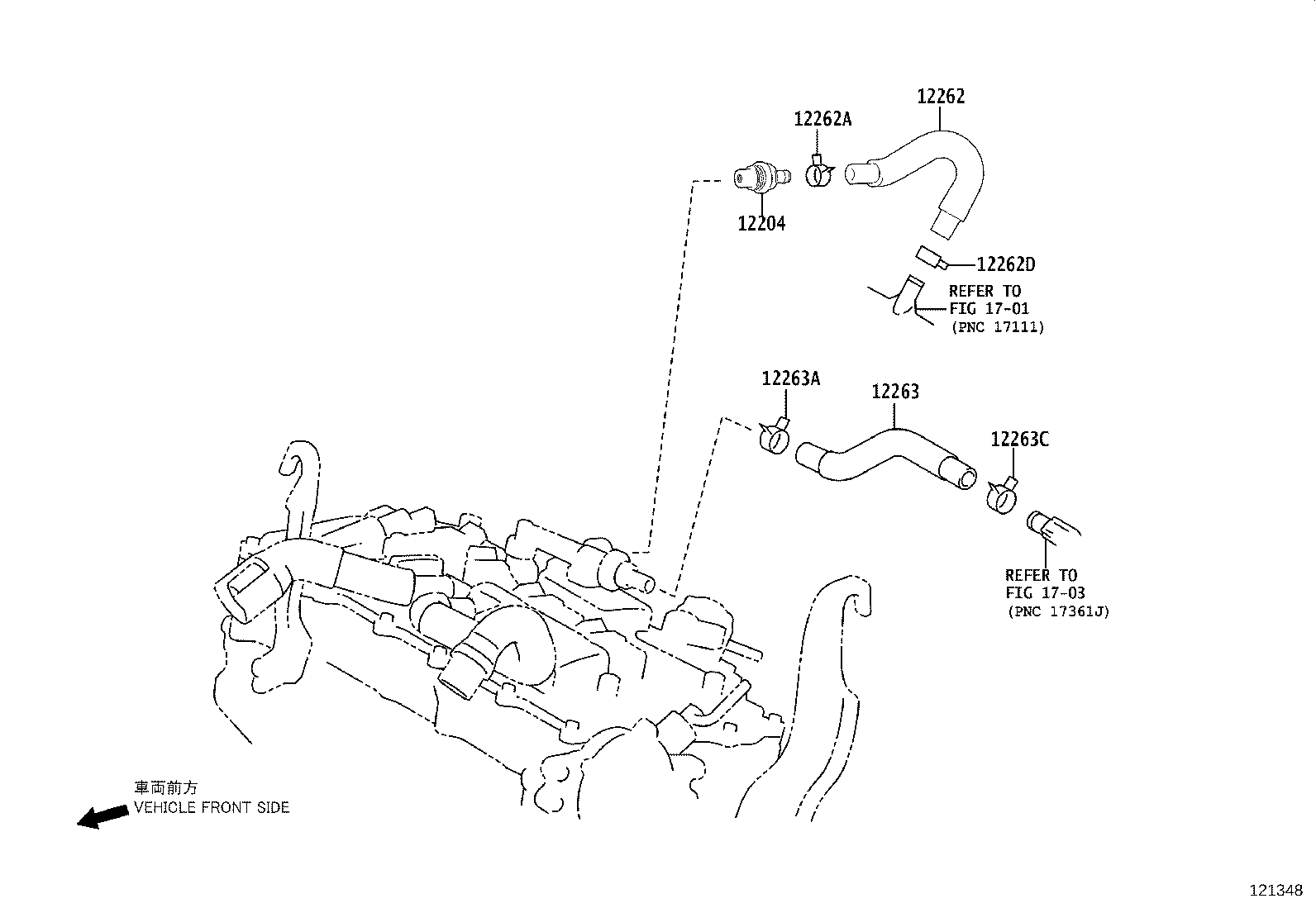

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12204 — Valve Sub-assy, Ventilation | ||||
| 12204-31120 |
Valve Sub-assy, Ventilation
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 12204-36050 |
Valve Sub-assy, Ventilation
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 12204-36050 |
Valve Sub-assy, Ventilation
2018-03 → 2020-04
ended
|
8ARFTS ASU5# | — | |
| 12204-36080 note |
Valve Sub-assy, Ventilation
2018-10 → 2020-04
ended
|
8ARFTS ASU5# | — | |
| 12204-36080 |
Valve Sub-assy, Ventilation
2020-04 → —
|
8ARFTS ASU5# | — | |
| 12262 — Hose, Ventilation, NO.2 | ||||
| 12262-31100 |
Hose, Ventilation, NO.2
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 12262-36070 |
Hose, Ventilation, NO.2
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 12262-36070 |
Hose, Ventilation, NO.2
2018-03 → —
|
8ARFTS ASU5# | — | |
| 12262A — Clip(FOR VENTILATION HOSE NO.2) | ||||
| 90466-16004 |
Clip(FOR VENTILATION HOSE NO.2)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 90466-16004 |
Clip(FOR VENTILATION HOSE NO.2)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 12262D — Clip(FOR VENTILATION HOSE NO.2) | ||||
| 96137-41901 |
Clip(FOR VENTILATION HOSE NO.2)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 96137-41901 |
Clip(FOR VENTILATION HOSE NO.2)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 12263 — Hose, Ventilation, NO.3 | ||||
| 12263-36010 |
Hose, Ventilation, NO.3
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 12263-36010 |
Hose, Ventilation, NO.3
2018-03 → —
|
8ARFTS ASU5# | — | |
| 12263A — Clip(FOR VENTILATION HOSE) | ||||
| 96136-52101 |
Clip(FOR VENTILATION HOSE)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 96136-52101 |
Clip(FOR VENTILATION HOSE)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 12263C — Clip(FOR VENTILATION HOSE) | ||||
| 90466-C0004 |
Clip(FOR VENTILATION HOSE)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 90466-C0004 |
Clip(FOR VENTILATION HOSE)
2018-03 → —
|
8ARFTS ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
