Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

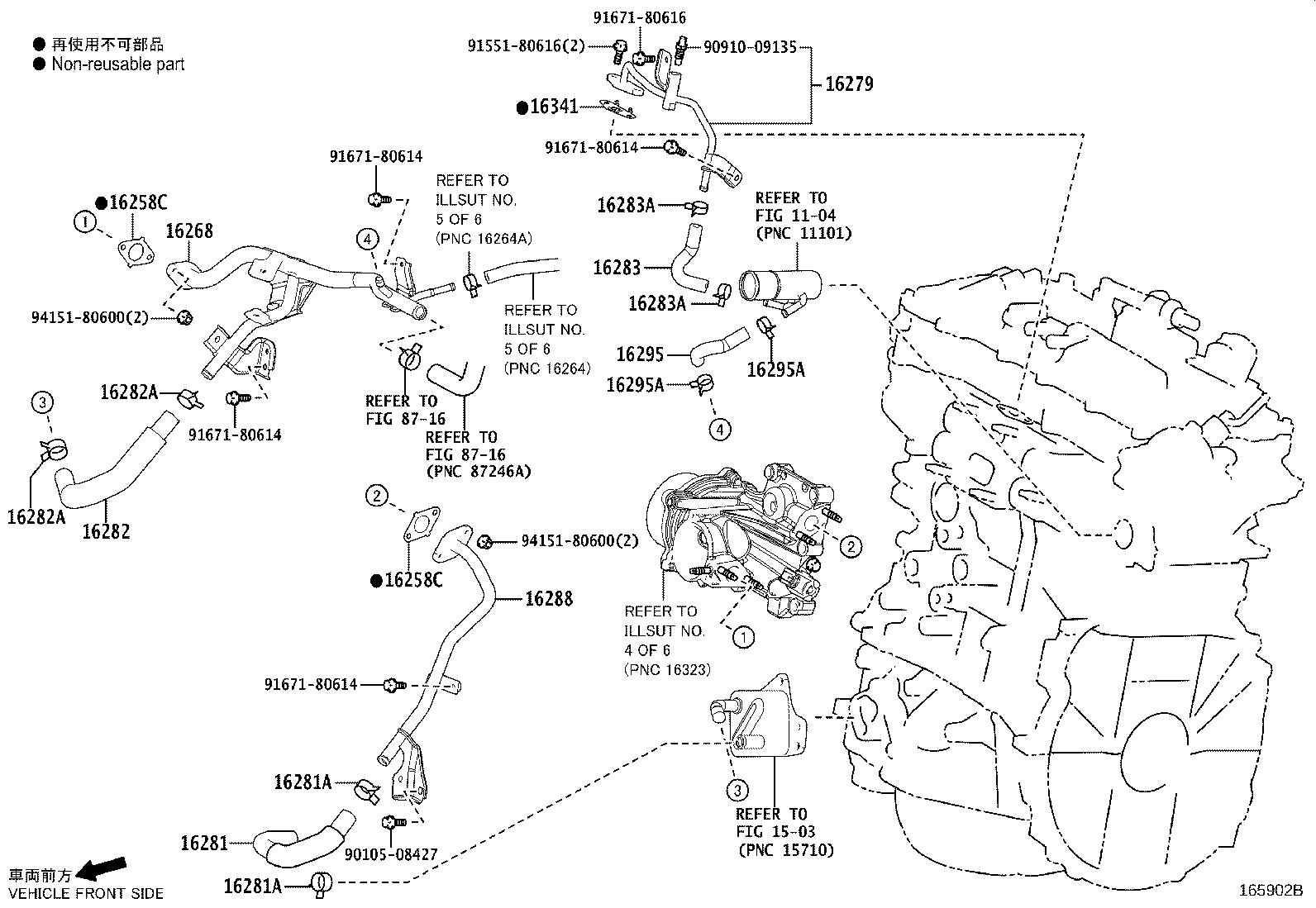

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16258C — Gasket(FOR WATER BY-PASS PIPE) | ||||
| 16258-36040 |
Gasket(FOR WATER BY-PASS PIPE)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16258-36040 |
Gasket(FOR WATER BY-PASS PIPE)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-36170 |
Pipe, Water By-pass, NO.1
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16268-36170 |
Pipe, Water By-pass, NO.1
2018-03 → 2018-06
ended
|
8ARFTS ASU5# | — | |
| 16268-36171 |
Pipe, Water By-pass, NO.1
2018-07 → —
|
8ARFTS ASU5# | — | |
| 16279 — Pipe, Water By-pass, NO.3 | ||||
| 16279-36040 |
Pipe, Water By-pass, NO.3
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16279-36040 |
Pipe, Water By-pass, NO.3
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-36040 |
Hose, Water By-pass, NO.4
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16281-36040 |
Hose, Water By-pass, NO.4
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 96136-42101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16282 — Hose, Water By-pass, NO.5 | ||||
| 16282-36080 |
Hose, Water By-pass, NO.5
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16282-36080 |
Hose, Water By-pass, NO.5
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 96136-42101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16283 — Hose, Water By-pass, NO.6 | ||||
| 16283-36070 |
Hose, Water By-pass, NO.6
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16283-36070 |
Hose, Water By-pass, NO.6
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16288 — Pipe, Water By-pass, NO.4 | ||||
| 16288-36020 |
Pipe, Water By-pass, NO.4
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16288-36020 |
Pipe, Water By-pass, NO.4
2018-03 → 2018-06
ended
|
8ARFTS ASU5# | — | |
| 16288-36021 |
Pipe, Water By-pass, NO.4
2018-07 → —
|
8ARFTS ASU5# | — | |
| 16295 — Hose, Water By-pass, NO.7 | ||||
| 16295-36020 |
Hose, Water By-pass, NO.7
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16295-36020 |
Hose, Water By-pass, NO.7
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16295A — Clip(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.7)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.7)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16341 — Gasket, Water Outlet | ||||
| 16341-31010 |
Gasket, Water Outlet
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 16341-36020 |
Gasket, Water Outlet
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16341-36020 |
Gasket, Water Outlet
2018-03 → —
|
8ARFTS ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
