Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

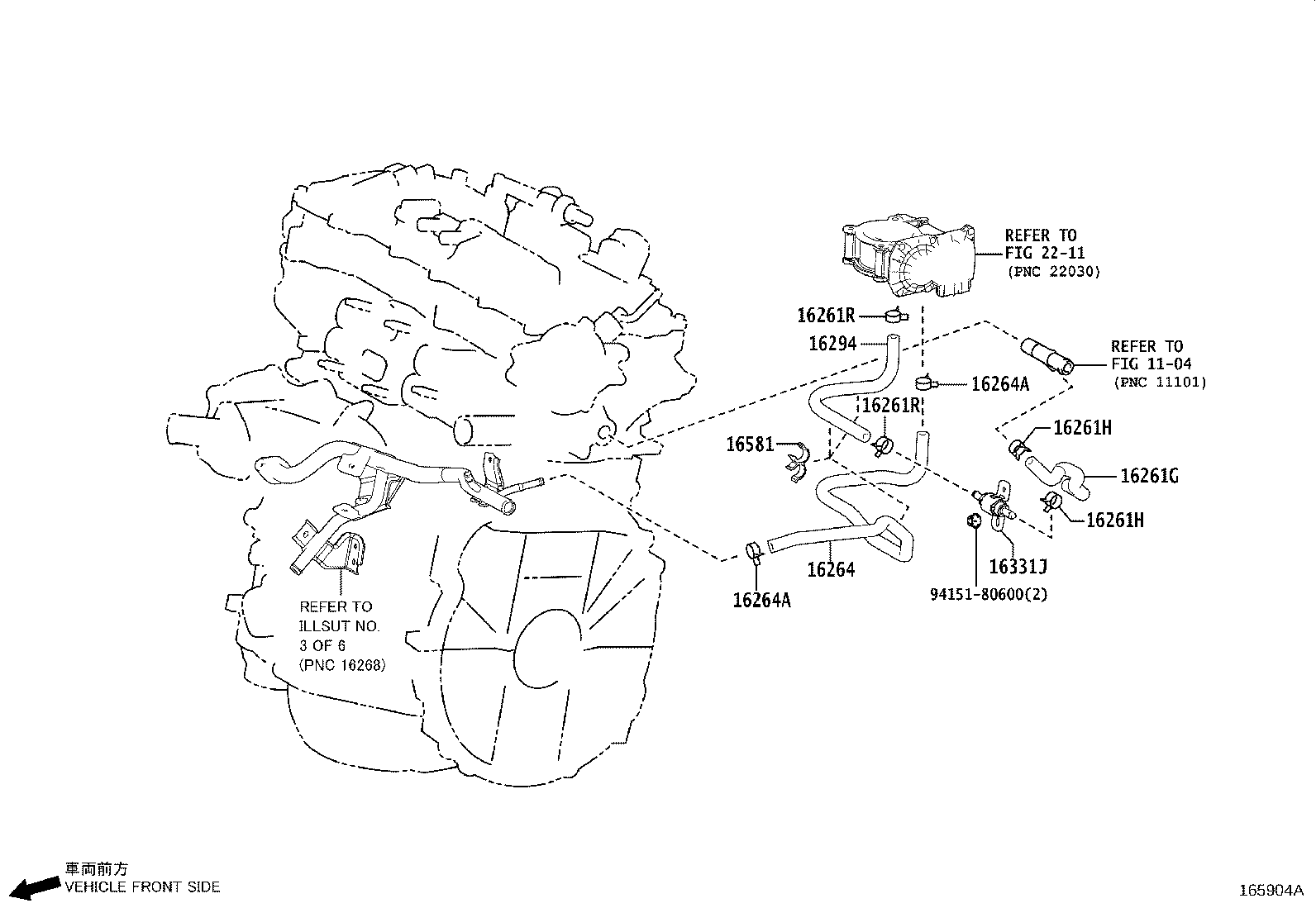

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261G — Hose, Water By-pass, NO.1 | ||||
| 16261-36100 |
Hose, Water By-pass, NO.1
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16261-36100 |
Hose, Water By-pass, NO.1
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16261H — Clip(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16261R — Clamp OR Clip(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-31081 |
Hose, Water By-pass, NO.2
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 16264-36090 |
Hose, Water By-pass, NO.2
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16264-36090 |
Hose, Water By-pass, NO.2
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16294 — Hose, Water By-pass, NO.11 | ||||
| 16294-36020 |
Hose, Water By-pass, NO.11
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16294-36020 |
Hose, Water By-pass, NO.11
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16331J — Thermostat, Manifold | ||||
| 90916-03155 |
Thermostat, Manifold
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 90916-03155 |
Thermostat, Manifold
2018-03 → —
|
8ARFTS ASU5# | — | |
| 16581 — Clamp, Hose(FOR WATER HOSE) | ||||
| 16581-33080 |
Clamp, Hose(FOR WATER HOSE)
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 16581-33080 |
Clamp, Hose(FOR WATER HOSE)
2018-03 → —
|
8ARFTS ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
