Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

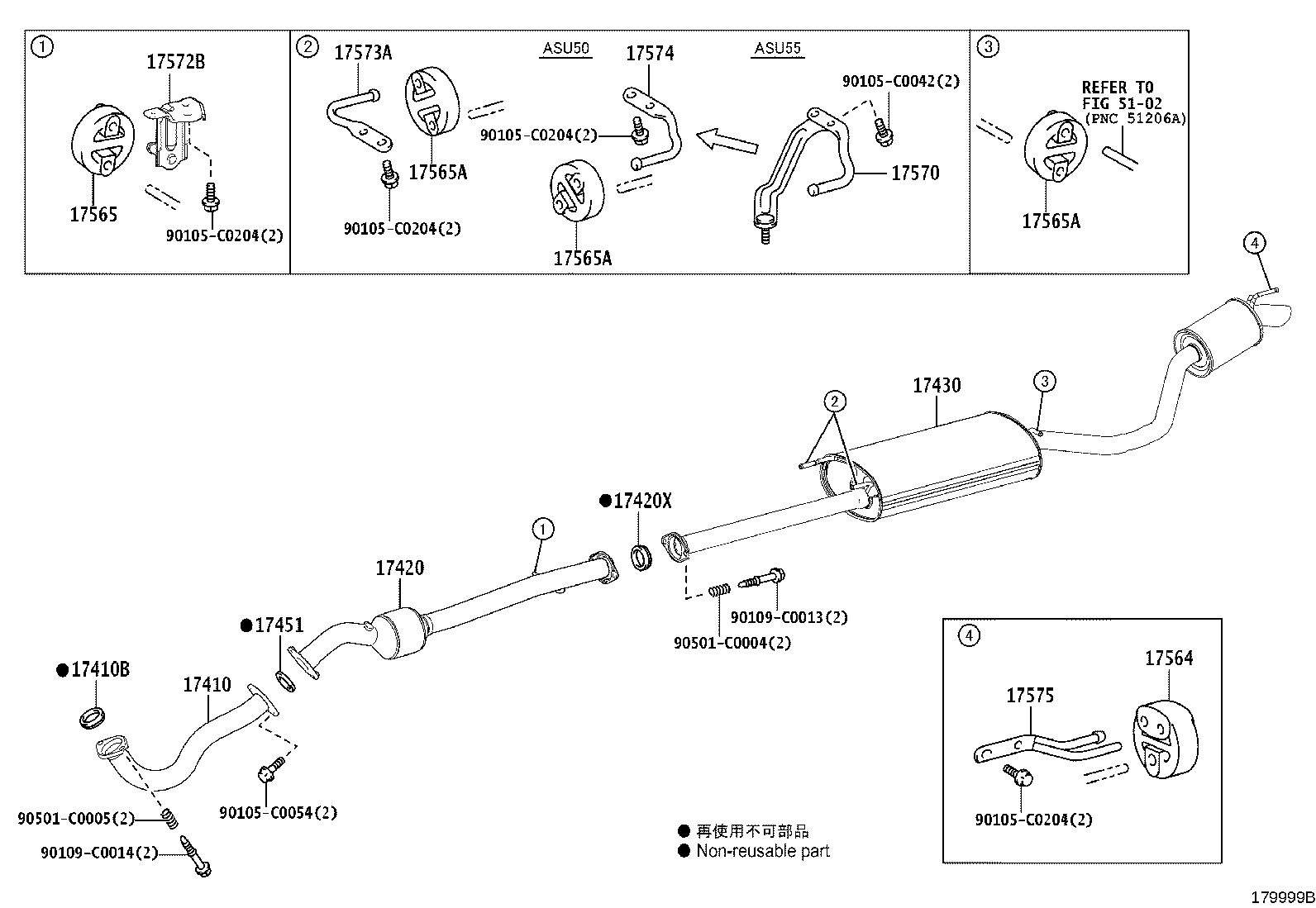

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-0P470 |
Pipe Assy, Exhaust, Front
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17410-0V340 |
Pipe Assy, Exhaust, Front
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 17410-0V340 |
Pipe Assy, Exhaust, Front
2018-03 → 2020-04
ended
|
8ARFTS ASU5# | — | |
| 17410-0V580 note |
Pipe Assy, Exhaust, Front
2018-10 → 2020-04
ended
|
8ARFTS ASU5# | — | |
| 17410-0V580 |
Pipe Assy, Exhaust, Front
2020-04 → —
|
8ARFTS ASU5# | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-0T010 |
Gasket, Exhaust Pipe
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 90917-06065 note |
Gasket, Exhaust Pipe
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 90917-06089 note |
Gasket, Exhaust Pipe
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17451-0T010 |
Gasket, Exhaust Pipe
2018-03 → —
|
8ARFTS ASU5# | — | |
| 17420 — Pipe Assy, Exhaust, Center | ||||
| 17420-0P390 |
Pipe Assy, Exhaust, Center
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17420-0V320 |
Pipe Assy, Exhaust, Center
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 17420-0V320 |
Pipe Assy, Exhaust, Center
2018-03 → 2020-04
ended
|
8ARFTS ASU5# | — | |
| 17420-0V330 |
Pipe Assy, Exhaust, Center
2020-04 → —
|
8ARFTS ASU5# | — | |
| 17420-0V330 note |
Pipe Assy, Exhaust, Center
2018-10 → 2020-04
ended
|
8ARFTS ASU5# | — | |
| 17420X — Gasket, Exhaust Pipe, Center | ||||
| 17451-0P012 |
Gasket, Exhaust Pipe, Center
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 90917-06090 |
Gasket, Exhaust Pipe, Center
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17451-0P012 |
Gasket, Exhaust Pipe, Center
2018-03 → —
|
8ARFTS ASU5# | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-0P390 |
Pipe Assy, Exhaust, Tail
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17430-0V141 |
Pipe Assy, Exhaust, Tail
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 17430-0V141 |
Pipe Assy, Exhaust, Tail
2018-03 → 2020-04
ended
|
8ARFTS ASU5# | — | |
| 17430-0V350 note |
Pipe Assy, Exhaust, Tail
2018-10 → 2020-04
ended
|
8ARFTS ASU5# | — | |
| 17430-0V350 |
Pipe Assy, Exhaust, Tail
2020-04 → —
|
8ARFTS ASU5# | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 17451-0T010 |
Gasket, Exhaust Pipe
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 90917-06072 |
Gasket, Exhaust Pipe
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 90917-06072 |
Gasket, Exhaust Pipe
2018-03 → 2018-10
ended
|
8ARFTS ASU5# | — | |
| 90917-C6004 |
Gasket, Exhaust Pipe
2018-11 → —
|
8ARFTS ASU5# | — | |
| 17564 — Support,Exhaust Pipe, NO.4 | ||||
| 17565-0P230 |
Support,Exhaust Pipe, NO.4
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17565-0P230 |
Support,Exhaust Pipe, NO.4
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 17565-0P230 |
Support,Exhaust Pipe, NO.4
2018-03 → —
|
8ARFTS ASU5# | — | |
| 17565 — Support, Exhaust Pipe, NO.5 | ||||
| 17565-0H080 |
Support, Exhaust Pipe, NO.5
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17565-0H080 |
Support, Exhaust Pipe, NO.5
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 17565-0H080 |
Support, Exhaust Pipe, NO.5
2018-03 → —
|
8ARFTS ASU5# | — | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-0H090 |
Support, Exhaust Pipe, NO.4
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17565-0H090 |
Support, Exhaust Pipe, NO.4
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 17565-0H090 |
Support, Exhaust Pipe, NO.4
2018-03 → 2020-09
ended
|
8ARFTS ASU5# | — | |
| 17565-0H090 |
Support, Exhaust Pipe, NO.4
2020-09 → —
|
8ARFTS ASU5# | — | |
| 17570 — Bracket Assy, Exhaust Pipe Support | ||||
| 17570-0V010 |
Bracket Assy, Exhaust Pipe Support
2018-03 → —
|
8ARFTS ASU55 | — | |
| 17572B — Bracket, Exhaust Pipe Support, NO.2 | ||||
| 17572-0P140 |
Bracket, Exhaust Pipe Support, NO.2
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17572-0P140 |
Bracket, Exhaust Pipe Support, NO.2
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 17572-0P140 |
Bracket, Exhaust Pipe Support, NO.2
2018-03 → —
|
8ARFTS ASU5# | — | |
| 17573A — Bracket, Exhaust Pipe Support, NO.3 | ||||
| 17573-0P140 |
Bracket, Exhaust Pipe Support, NO.3
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17573-0P140 |
Bracket, Exhaust Pipe Support, NO.3
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 17573-0P140 |
Bracket, Exhaust Pipe Support, NO.3
2018-03 → —
|
8ARFTS ASU5# | — | |
| 17574 — Bracket, Exhaust Pipe Support, NO.4 | ||||
| 17574-0P190 |
Bracket, Exhaust Pipe Support, NO.4
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17574-0P190 |
Bracket, Exhaust Pipe Support, NO.4
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 17574-0P190 |
Bracket, Exhaust Pipe Support, NO.4
2018-03 → —
|
8ARFTS ASU50 | — | |
| 17575 — Bracket, Exhaust Pipe Support, NO.5 | ||||
| 17575-0P170 |
Bracket, Exhaust Pipe Support, NO.5
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 17575-0P170 |
Bracket, Exhaust Pipe Support, NO.5
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 17575-0P170 |
Bracket, Exhaust Pipe Support, NO.5
2018-03 → —
|
8ARFTS ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
