Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

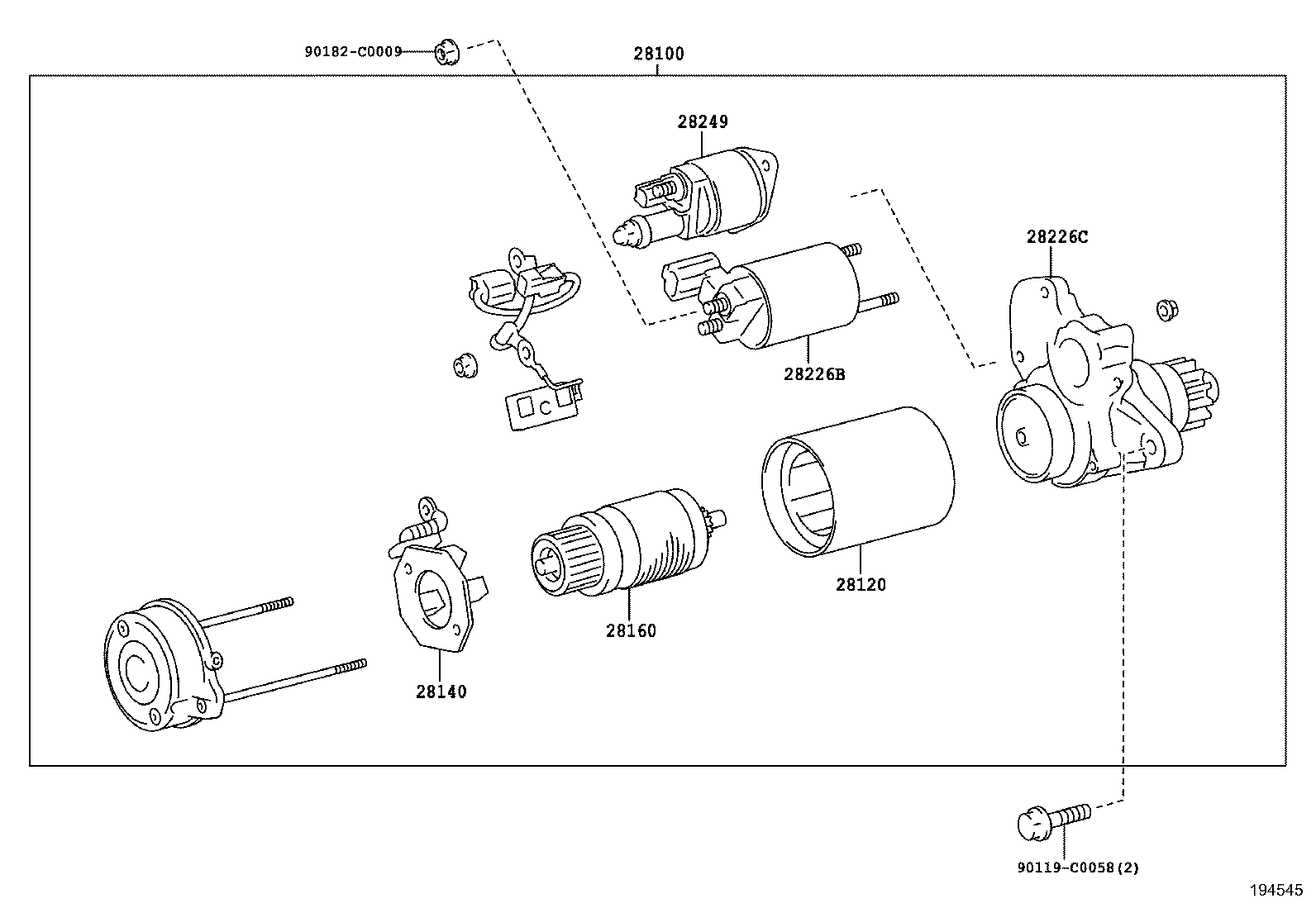

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28100 — Starter Assy | ||||
| 28100-0H080 note |
Starter Assy
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 28100-0V020 note |
Starter Assy
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 28100-0V020 note |
Starter Assy
2018-03 → 2019-02
ended
|
8ARFTS ASU5# | — | |
| 28100-0V021 note |
Starter Assy
2019-02 → —
|
8ARFTS ASU5# | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-0H120 |
Yoke Assy, Starter
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 28120-0V020 |
Yoke Assy, Starter
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 28120-0V020 |
Yoke Assy, Starter
2018-03 → —
|
8ARFTS ASU5# | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-0V020 |
Holder Assy, Starter Brush
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 28140-0V020 |
Holder Assy, Starter Brush
2018-03 → —
|
8ARFTS ASU5# | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-0S050 |
Armature Assy, Starter
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 28160-28040 |
Armature Assy, Starter
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 28160-0S050 |
Armature Assy, Starter
2018-03 → —
|
8ARFTS ASU5# | — | |
| 28226B — Starter Kit, Repair Service | ||||
| 28226-28051 |
Starter Kit, Repair Service
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 28226-31100 |
Starter Kit, Repair Service
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 28226-31100 |
Starter Kit, Repair Service
2018-03 → —
|
8ARFTS ASU5# | — | |
| 28226C — Starter Kit, Repair Service, NO.2 | ||||
| 28226-0V020 |
Starter Kit, Repair Service, NO.2
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 28226-28041 |
Starter Kit, Repair Service, NO.2
2015-03 → 2017-10
ended
|
2GRFE GSU55 | — | |
| 28226-0V020 |
Starter Kit, Repair Service, NO.2
2018-03 → —
|
8ARFTS ASU5# | — | |
| 28249 — Relay, Starter Inrush Current Reduction | ||||
| 28249-36110 |
Relay, Starter Inrush Current Reduction
2015-03 → 2018-03
ended
|
8ARFTS ASU5# | — | |
| 28249-0V020 note |
Relay, Starter Inrush Current Reduction
2020-12 → —
|
8ARFTS ASU5# | — | |
| 28249-36110 |
Relay, Starter Inrush Current Reduction
2018-03 → 2020-12
ended
|
8ARFTS ASU5# | — | |
| 28249-36110 note |
Relay, Starter Inrush Current Reduction
2020-12 → —
|
8ARFTS ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
