Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

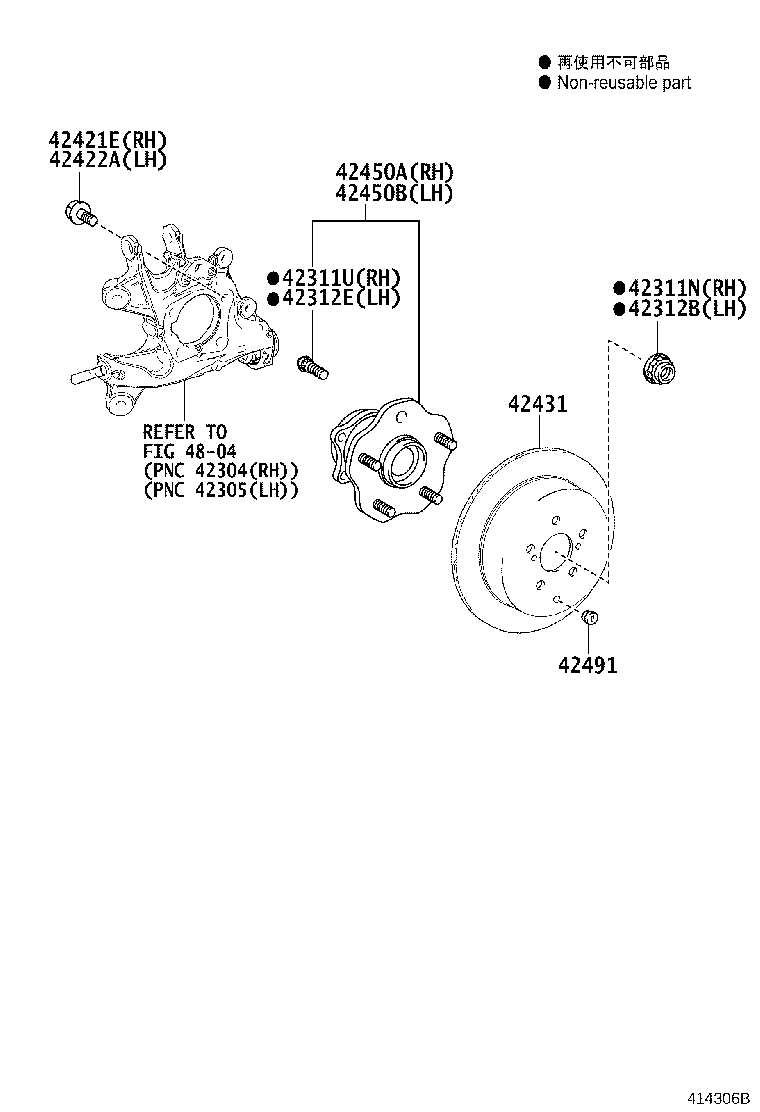

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311N — Nut(FOR REAR AXLE SHAFT RH) | ||||
| 90177-C0004 |
Nut(FOR REAR AXLE SHAFT RH)
2015-03 → 2018-03
ended
|
ASU55 | — | |
| 90177-C0004 |
Nut(FOR REAR AXLE SHAFT RH)
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 90177-C0004 |
Nut(FOR REAR AXLE SHAFT RH)
2018-03 → —
|
ASU55 | — | |
| 42311U — Bolt, Hub(FOR REAR AXLE RH) | ||||
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
2018-03 → —
|
ASU5# | — | |
| 42312B — Nut(FOR REAR AXLE SHAFT LH) | ||||
| 90177-C0004 |
Nut(FOR REAR AXLE SHAFT LH)
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 90177-C0004 |
Nut(FOR REAR AXLE SHAFT LH)
2015-03 → 2018-03
ended
|
ASU55 | — | |
| 90177-C0004 |
Nut(FOR REAR AXLE SHAFT LH)
2018-03 → —
|
ASU55 | — | |
| 42312E — Bolt, Hub(FOR REAR AXLE LH) | ||||
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
2018-03 → —
|
ASU5# | — | |
| 42421E — Bolt (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-C0284 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 90105-C0284 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2018-03 → —
|
ASU5# | — | |
| 42422A — Bolt (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-C0284 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 90105-C0284 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2018-03 → —
|
ASU5# | — | |
| 42431 — Disc, Rear | ||||
| 42431-0E050 |
Disc, Rear
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 42431-0E050 |
Disc, Rear
2018-03 → —
|
ASU5# | — | |
| 42450A — Hub & Bearing Assy, Rear Axle, RH | ||||
| 42410-0E060 |
Hub & Bearing Assy, Rear Axle, RH
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 42410-0E060 |
Hub & Bearing Assy, Rear Axle, RH
2015-03 → 2018-03
ended
|
ASU55 | — | |
| 42450-0E060 |
Hub & Bearing Assy, Rear Axle, RH
2015-03 → 2018-03
ended
|
ASU50 | — | |
| 42410-0E060 |
Hub & Bearing Assy, Rear Axle, RH
2018-03 → —
|
ASU55 | — | |
| 42450-0E060 |
Hub & Bearing Assy, Rear Axle, RH
2018-03 → —
|
ASU50 | — | |
| 42450B — Hub & Bearing Assy, Rear Axle, LH | ||||
| 42410-0E060 |
Hub & Bearing Assy, Rear Axle, LH
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 42410-0E060 |
Hub & Bearing Assy, Rear Axle, LH
2015-03 → 2018-03
ended
|
ASU55 | — | |
| 42450-0E060 |
Hub & Bearing Assy, Rear Axle, LH
2015-03 → 2018-03
ended
|
ASU50 | — | |
| 42410-0E060 |
Hub & Bearing Assy, Rear Axle, LH
2018-03 → —
|
ASU55 | — | |
| 42450-0E060 |
Hub & Bearing Assy, Rear Axle, LH
2018-03 → —
|
ASU50 | — | |
| 42491 — Plug, Shoe Adjusting Hole (FOR PARKING BRAKE) | ||||
| 47493-06010 |
Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 47493-06010 |
Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
2018-03 → —
|
ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
