Toyota Highlander (CHINA)

2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

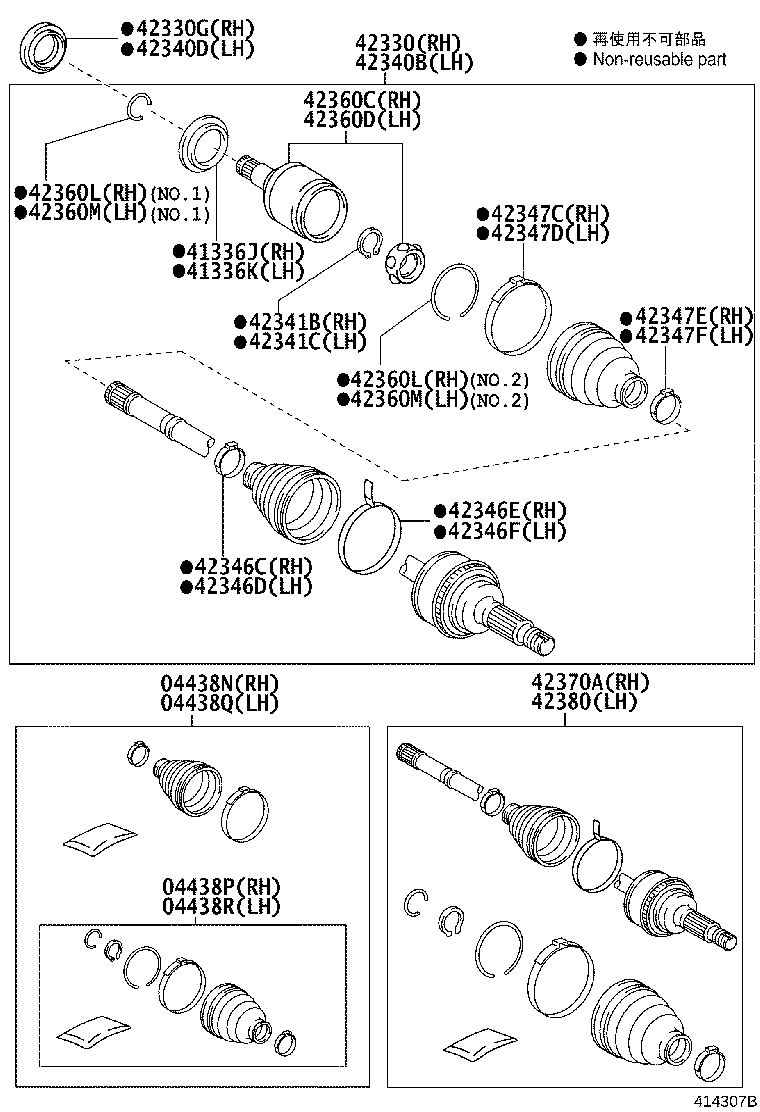

Exploded illustration 414307B 42330 — SHAFT ASSY, REAR DRIVE, RH (3 parts) 42340B — SHAFT ASSY, REAR DRIVE, LH (3 parts) 42346C — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) (4 parts) 42346D — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (4 parts) 42346E — CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) (3 parts) 42347E — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) (4 parts) 42347F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH (4 parts) 42347C — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) (4 parts) 42347D — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) (4 parts) 04438N — BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH (4 parts) 04438Q — BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH (4 parts) 04438P — BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, RH (4 parts) 04438R — BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, LH (4 parts) 41336J — COVER, REAR DRIVE SHAFT DUST, RH (3 parts) 41336K — COVER, REAR DRIVE SHAFT DUST, LH (3 parts) 42346F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (3 parts) 42360L — RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH) (6 parts) 42360M — RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH) (6 parts) 42360L — RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH) (6 parts) 42360M — RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH) (6 parts) 42341B — RING, SNAP (FOR REAR DRIVE SHAFT RH) (3 parts) 42341C — RING, SNAP (FOR REAR DRIVE SHAFT LH) (3 parts) 42330G — OIL SEAL, REAR DRIVE SHAFT, RH (4 parts) 42340D — OIL SEAL, REAR DRIVE SHAFT, LH (4 parts) 42370A — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH (4 parts) 42380 — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH (4 parts) 42360C — JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH (4 parts) 42360D — JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH (4 parts)
414307B · 28 callouts Full size ↗
100 parts on this figure
Part number Description Fitment Price
04438N — Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
04429-21040 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2015-03 → 2018-03 ended
ASU55 —
04429-21040 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2015-03 → 2017-10 ended
GSU55 —
04429-21040 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2018-03 → 2020-02 ended
ASU55 —
04429-21041 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
2020-02 → —
ASU55 —
04438P — Boot Kit, Rear Drive Shaft, Inboard Joint, RH
04439-21030 Boot Kit, Rear Drive Shaft, Inboard Joint, RH
2015-03 → 2018-03 ended
ASU55 —
04439-21030 Boot Kit, Rear Drive Shaft, Inboard Joint, RH
2015-03 → 2017-10 ended
GSU55 —
04439-21030 Boot Kit, Rear Drive Shaft, Inboard Joint, RH
2018-03 → 2020-02 ended
ASU55 —
04439-21031 Boot Kit, Rear Drive Shaft, Inboard Joint, RH
2020-02 → —
ASU55 —
04438Q — Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
04429-21040 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2015-03 → 2017-10 ended
GSU55 —
04429-21040 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2015-03 → 2018-03 ended
ASU55 —
04429-21040 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2018-03 → 2020-02 ended
ASU55 —
04429-21041 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2020-02 → —
ASU55 —
04438R — Boot Kit, Rear Drive Shaft, Inboard Joint, LH
04439-21030 Boot Kit, Rear Drive Shaft, Inboard Joint, LH
2015-03 → 2017-10 ended
GSU55 —
04439-21030 Boot Kit, Rear Drive Shaft, Inboard Joint, LH
2015-03 → 2018-03 ended
ASU55 —
04439-21030 Boot Kit, Rear Drive Shaft, Inboard Joint, LH
2018-03 → 2020-02 ended
ASU55 —
04439-21031 Boot Kit, Rear Drive Shaft, Inboard Joint, LH
2020-02 → —
ASU55 —
41336J — Cover, Rear Drive Shaft Dust, RH
41336-0E130 Cover, Rear Drive Shaft Dust, RH
2015-03 → 2017-10 ended
GSU55 —
41336-0E130 Cover, Rear Drive Shaft Dust, RH
2015-03 → 2018-03 ended
ASU55 —
41336-0E130 Cover, Rear Drive Shaft Dust, RH
2018-03 → —
ASU55 —
41336K — Cover, Rear Drive Shaft Dust, LH
41336-0E130 Cover, Rear Drive Shaft Dust, LH
2015-03 → 2017-10 ended
GSU55 —
41336-0E130 Cover, Rear Drive Shaft Dust, LH
2015-03 → 2018-03 ended
ASU55 —
41336-0E130 Cover, Rear Drive Shaft Dust, LH
2018-03 → —
ASU55 —
42330 — Shaft Assy, Rear Drive, RH
42340-0E120 Shaft Assy, Rear Drive, RH
2015-03 → 2018-03 ended
ASU55,GSU55 —
42340-0E120 Shaft Assy, Rear Drive, RH
2018-03 → 2020-02 ended
ASU55 —
42340-0E121 Shaft Assy, Rear Drive, RH
2020-02 → —
ASU55 —
42330G — Oil Seal, Rear Drive Shaft, RH
90311-42047 Oil Seal, Rear Drive Shaft, RH
2015-03 → 2018-03 ended
ASU55 —
90311-42047 Oil Seal, Rear Drive Shaft, RH
2015-03 → 2017-10 ended
GSU55 —
90311-42047 Oil Seal, Rear Drive Shaft, RH
2018-03 → 2019-10 ended
ASU55 —
90311-42062 Oil Seal, Rear Drive Shaft, RH
2019-11 → —
ASU55 —
42340B — Shaft Assy, Rear Drive, LH
42340-0E130 Shaft Assy, Rear Drive, LH
2015-03 → 2018-03 ended
ASU55,GSU55 —
42340-0E130 Shaft Assy, Rear Drive, LH
2018-03 → 2020-02 ended
ASU55 —
42340-0E131 Shaft Assy, Rear Drive, LH
2020-02 → —
ASU55 —
42340D — Oil Seal, Rear Drive Shaft, LH
90311-42047 Oil Seal, Rear Drive Shaft, LH
2015-03 → 2017-10 ended
GSU55 —
90311-42047 Oil Seal, Rear Drive Shaft, LH
2015-03 → 2018-03 ended
ASU55 —
90311-42047 Oil Seal, Rear Drive Shaft, LH
2018-03 → 2019-10 ended
ASU55 —
90311-42062 Oil Seal, Rear Drive Shaft, LH
2019-11 → —
ASU55 —
42341B — Ring, Snap (FOR REAR DRIVE SHAFT RH)
43425-0E260 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2015-03 → 2017-10 ended
GSU55 —
43425-0E260 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2015-03 → 2018-03 ended
ASU55 —
43425-0E260 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2018-03 → —
ASU55 —
42341C — Ring, Snap (FOR REAR DRIVE SHAFT LH)
43425-0E260 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2015-03 → 2017-10 ended
GSU55 —
43425-0E260 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2015-03 → 2018-03 ended
ASU55 —
43425-0E260 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2018-03 → —
ASU55 —
42346C — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-0E320 Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2015-03 → 2017-10 ended
GSU55 —
42345-0E320 Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2015-03 → 2018-03 ended
ASU55 —
42345-0E320 Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2018-03 → 2020-02 ended
ASU55 —
42345-0R210 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2020-02 → —
ASU55 —
42346D — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-0E320 Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2015-03 → 2017-10 ended
GSU55 —
42345-0E320 Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2015-03 → 2018-03 ended
ASU55 —
42345-0E320 Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2018-03 → 2020-02 ended
ASU55 —
42345-0R210 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2020-02 → —
ASU55 —
42346E — Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-0E310 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2015-03 → 2017-10 ended
GSU55 —
42345-0E310 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2015-03 → 2018-03 ended
ASU55 —
42345-0E310 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2018-03 → —
ASU55 —
42346F — Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-0E310 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2015-03 → 2018-03 ended
ASU55 —
42345-0E310 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2015-03 → 2017-10 ended
GSU55 —
42345-0E310 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2018-03 → —
ASU55 —
42347C — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-0E290 Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-03 → 2017-10 ended
GSU55 —
42345-0E290 Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-03 → 2018-03 ended
ASU55 —
42345-0E290 Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2018-03 → 2020-02 ended
ASU55 —
42345-0R200 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2020-02 → —
ASU55 —
42347D — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-0E290 Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2015-03 → 2017-10 ended
GSU55 —
42345-0E290 Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2015-03 → 2018-03 ended
ASU55 —
42345-0E290 Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2018-03 → 2020-02 ended
ASU55 —
42345-0R200 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2020-02 → —
ASU55 —
42347E — Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-0E300 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-03 → 2017-10 ended
GSU55 —
42345-0E300 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-03 → 2018-03 ended
ASU55 —
42345-0E300 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2018-03 → 2020-02 ended
ASU55 —
42345-0R210 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2020-02 → —
ASU55 —
42347F — Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42345-0E300 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2015-03 → 2017-10 ended
GSU55 —
42345-0E300 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2015-03 → 2018-03 ended
ASU55 —
42345-0E300 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2018-03 → 2020-02 ended
ASU55 —
42345-0R210 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2020-02 → —
ASU55 —
42360C — Joint Assy, Rear Drive Shaft Inboard, RH
42360-0E070 Joint Assy, Rear Drive Shaft Inboard, RH
2015-03 → 2017-10 ended
GSU55 —
42360-0E070 Joint Assy, Rear Drive Shaft Inboard, RH
2015-03 → 2018-03 ended
ASU55 —
42360-0E070 Joint Assy, Rear Drive Shaft Inboard, RH
2018-03 → 2020-02 ended
ASU55 —
42360-0R080 Joint Assy, Rear Drive Shaft Inboard, RH
2020-02 → —
ASU55 —
42360D — Joint Assy, Rear Drive Shaft Inboard, LH
42360-0E070 Joint Assy, Rear Drive Shaft Inboard, LH
2015-03 → 2018-03 ended
ASU55 —
42360-0E070 Joint Assy, Rear Drive Shaft Inboard, LH
2015-03 → 2017-10 ended
GSU55 —
42360-0E070 Joint Assy, Rear Drive Shaft Inboard, LH
2018-03 → 2020-02 ended
ASU55 —
42360-0R080 Joint Assy, Rear Drive Shaft Inboard, LH
2020-02 → —
ASU55 —
42360L — Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
43425-0E250 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
2015-03 → 2017-10 ended
GSU55 —
43425-0E250 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
2015-03 → 2018-03 ended
ASU55 —
43425-0E270 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
2015-03 → 2017-10 ended
GSU55 —
43425-0E270 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
2015-03 → 2018-03 ended
ASU55 —
43425-0E250 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
2018-03 → —
ASU55 —
43425-0E270 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
2018-03 → —
ASU55 —
42360M — Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
43425-0E250 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2015-03 → 2018-03 ended
ASU55 —
43425-0E250 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2015-03 → 2017-10 ended
GSU55 —
43425-0E270 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2015-03 → 2017-10 ended
GSU55 —
43425-0E270 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2015-03 → 2018-03 ended
ASU55 —
43425-0E250 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2018-03 → —
ASU55 —
43425-0E270 note Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2018-03 → —
ASU55 —
42370A — Shaft Assy, Rear Drive Outboard Joint, RH
42370-09140 Shaft Assy, Rear Drive Outboard Joint, RH
2015-03 → 2017-10 ended
GSU55 —
42370-09140 Shaft Assy, Rear Drive Outboard Joint, RH
2015-03 → 2018-03 ended
ASU55 —
42370-09140 Shaft Assy, Rear Drive Outboard Joint, RH
2018-03 → 2020-02 ended
ASU55 —
42370-09141 Shaft Assy, Rear Drive Outboard Joint, RH
2020-02 → —
ASU55 —
42380 — Shaft Assy, Rear Drive Outboard Joint, LH
42370-09150 Shaft Assy, Rear Drive Outboard Joint, LH
2015-03 → 2017-10 ended
GSU55 —
42370-09150 Shaft Assy, Rear Drive Outboard Joint, LH
2015-03 → 2018-03 ended
ASU55 —
42370-09150 Shaft Assy, Rear Drive Outboard Joint, LH
2018-03 → 2020-02 ended
ASU55 —
42370-09151 Shaft Assy, Rear Drive Outboard Joint, LH
2020-02 → —
ASU55 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
