Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

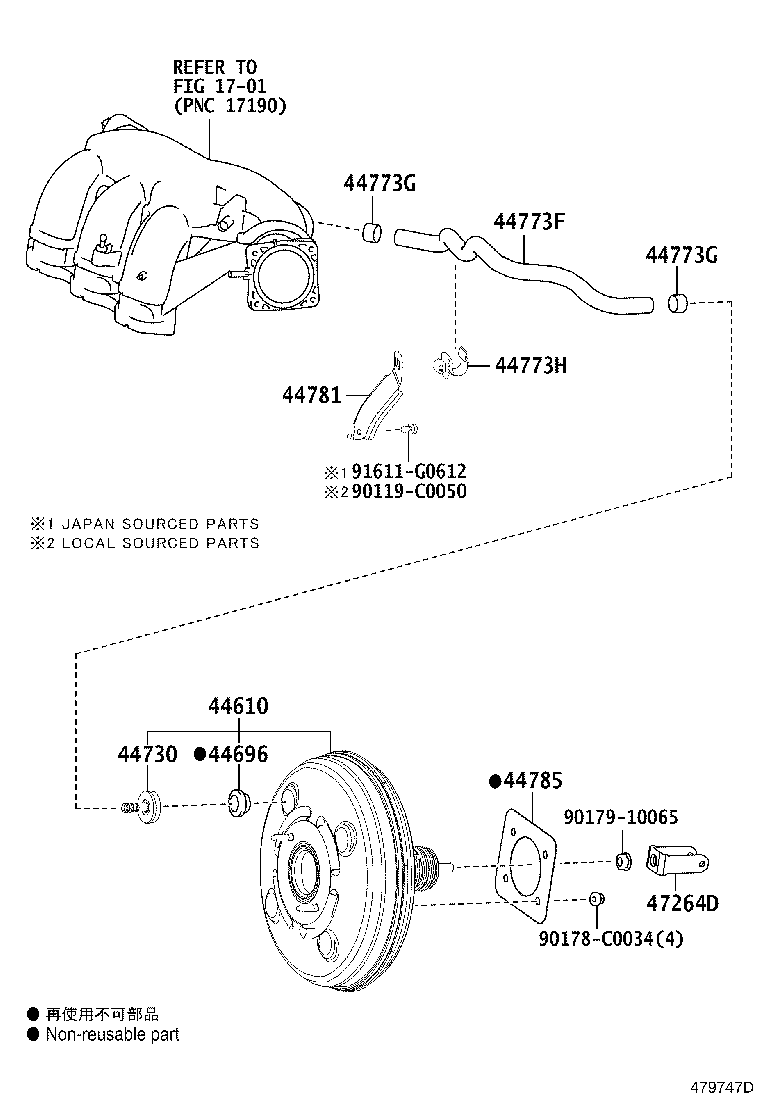

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-0E110 |
Booster Assy, Brake
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 44610-0E120 |
Booster Assy, Brake
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 44610-0E120 |
Booster Assy, Brake
2018-03 → 2020-03
ended
|
ASU5# | — | |
| 44610-0E220 |
Booster Assy, Brake
2020-04 → —
|
ASU5# | — | |
| 44696 — Grommet, Check Valve | ||||
| 90080-48071 |
Grommet, Check Valve
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 90080-48071 |
Grommet, Check Valve
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 90080-48071 |
Grommet, Check Valve
2018-03 → —
|
ASU5# | — | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-60070 |
Valve Assy, Vacuum Check(FOR BRAKE)
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 44730-22150 |
Valve Assy, Vacuum Check(FOR BRAKE)
2018-03 → 2020-04
ended
|
ASU5# | — | |
| 44730-30060 |
Valve Assy, Vacuum Check(FOR BRAKE)
2020-04 → —
|
ASU5# | — | |
| 44773F — Hose, Union TO Check Valve | ||||
| 44773-0E060 |
Hose, Union TO Check Valve
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 44773-0E070 |
Hose, Union TO Check Valve
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 44773-0E070 |
Hose, Union TO Check Valve
2018-03 → —
|
ASU5# | — | |
| 44773G — Clip(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90466-C0034 |
Clip(FOR UNION TO CHECK VALVE HOSE)
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 90466-C0034 |
Clip(FOR UNION TO CHECK VALVE HOSE)
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 90466-C0034 |
Clip(FOR UNION TO CHECK VALVE HOSE)
2018-03 → —
|
ASU5# | — | |
| 44773H — Clamp(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90469-17002 |
Clamp(FOR UNION TO CHECK VALVE HOSE)
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 44781 — Bracket, Hose | ||||
| 44447-0E050 |
Bracket, Hose
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-06020 |
Gasket, Brake Booster
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 44785-06020 |
Gasket, Brake Booster
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 44785-06020 |
Gasket, Brake Booster
2018-03 → —
|
ASU5# | — | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-0E010 |
Clevis, Brake Master Cylinder Push Rod
2016-07 → 2017-10
ended
|
GSU55 | — | |
| 47264-0E010 |
Clevis, Brake Master Cylinder Push Rod
2016-07 → 2018-03
ended
|
ASU5# | — | |
| 47264-48020 |
Clevis, Brake Master Cylinder Push Rod
2015-03 → 2016-07
ended
|
ASU5#,GSU55 | — | |
| 47264-0E010 |
Clevis, Brake Master Cylinder Push Rod
2018-03 → —
|
ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
